◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#46287) — 17 parça

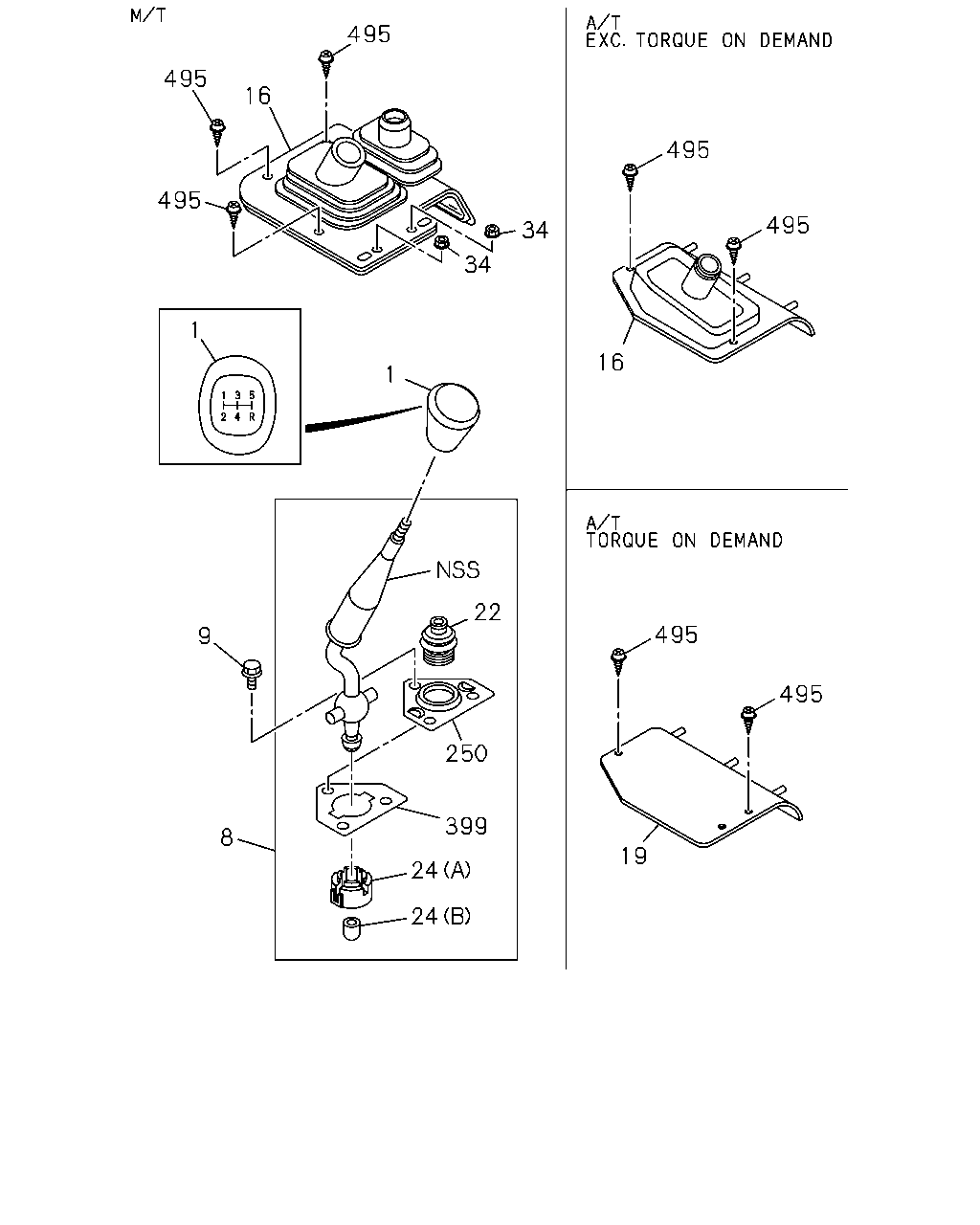

çizim 36747
495 495 495 34 16 495 495 16 34 1 9 8 22 250 399 24 24 495 495 19 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-94453-174-1 01 1 9811- ●
8 04.006 LEVER; CHANGE
2DOOR SHORT(UE***C) 		8-97181-480-2 01 1 9811-0012 ●
8 04.006 LEVER; CHANGE
4DOOR LONG(UE***F) 		8-97181-479-1 01 1 9811-0012 ●
8 04.006 LEVER; CHANGE 8-97181-479-3 01 1 0101- ●
9 04.012 BOLT; CHANGE LEVER
02.664 M8X20 FLANGE USA 		0-28680-820-0 03 1 9811- ●
16 04.015 BOOT; CHANGE LEVER
USA 		8-97130-250-3 01 1 9811- ●
16 04.015 BOOT; CHANGE LEVER
USA 		8-97130-267-3 01 1 9811-0012 ●
16 04.015 BOOT; CHANGE LEVER
EXC. TORQUE ON DEMAND(7HA) USA 		8-97130-267-3 01 1 0101- ●
19 04.010 COVER; CHANGE LEVER
TORQUE ON DEMAND(7HA) USA 		8-97302-476-1 01 1 0101- ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97161-196-1 01 1 9811-0003 ●
24 04.008 BUSHING; CHANGE LEVER
(A) 		8-97161-194-0 01 1 9811-0003 ●
24 04.008 BUSHING; CHANGE LEVER
(B) 		8-97161-606-0 01 1 9811- ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 9811- ●
250 04.008 RETAINER; CHANGE LEVER 8-97161-195-0 01 1 9811-0003 ●
399 04.012 GASKET; CHANGE LEVER 8-97161-605-0 01 1 9811-0109 ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 03 1 9811- ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 02 1 9811- ●
