2-30 — GEAR SHIFTER AND QUADRANT BOX (#46286) — 100 parça

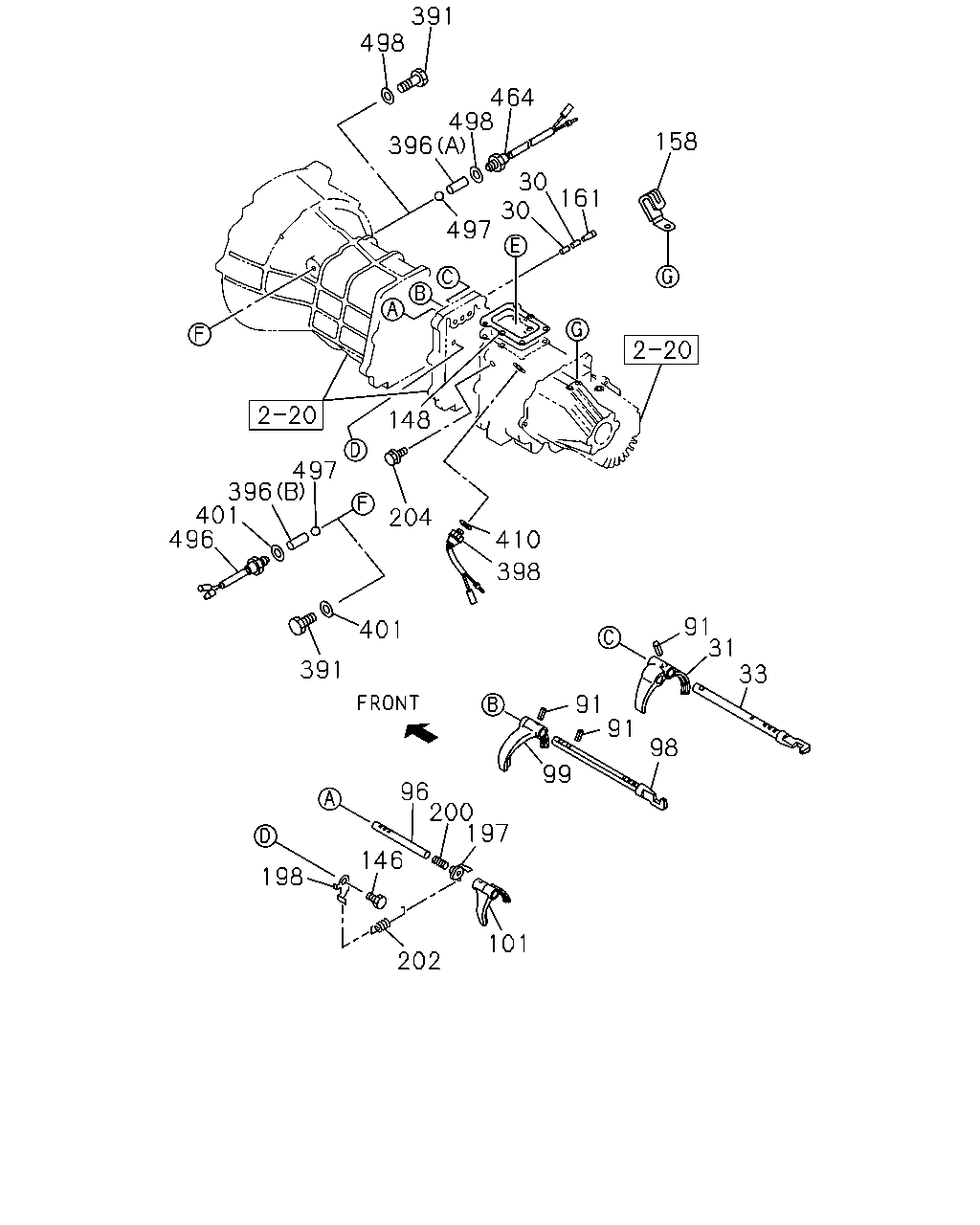

çizim 3543
391 498 464 498 396 158 30 30 497 161 148 497 396 401 496 204 410 398 91 31 33 401 391 91 91 98 99 96 200 197 146 198 101 202
BalonParca AdiParca NoAdetTipApplied Date A B
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9811- ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 9811- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 9811- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 9811- ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 9811- ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 9811- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 9811- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 9811- ●
146 04.032 BOLT; REV INHIBITOR
02.664 M8X20 FLANGE USA 		0-28680-820-0 01 1 9811-0011 ●
146 04.032 BOLT; REV INHIBITOR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0012- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 9811- ●
158 04.105 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811-0012 ●
158 04.105 CLIP; HARNESS
EXC. TORQUE ON DEMAND(7HA) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0101- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9811- ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 9811- ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 9811- ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 9811- ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 9811- ●
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 9811- ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 9811-9811 ●
391 04.104 PLUG; SW HOLE
4DOOR LONG(UE***F) M14X11 		8-94252-142-0 02 1 9907-0012 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 02 1 0101- ●
396 04.311 PLUNGER; SHIFT ROD
4DOOR LONG(UE***F) (B) OD=5.5 L=43.7 		8-94225-227-0 01 1 9811-9906 ●
396 04.311 PLUNGER; SHIFT ROD
4DOOR LONG(UE***F) 04.075 (A) D=5.5 L=20.7 		8-94225-228-0 01 1 9811-9906 ●
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 9811- ●
401 04.075 GASKET; SWITCH,TOP & 3RD
4DOOR LONG(UE***F) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9811-0012 ●
401 04.075 GASKET; SWITCH,TOP & 3RD
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0101- ●
410 04.054 GASKET; REV SW
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9811- ●
464 04.075 SWITCH; 1ST & 2ND
4DOOR LONG(UE***F) 04.439 		8-94411-366-1 01 1 9811-9906 ●
496 04.075 SWITCH; TOP & 3RD
4DOOR LONG(UE***F) 04.439 		8-94411-366-1 01 1 9811-9906 ●
497 04.307 BALL; SWITCH
4DOOR LONG(UE***F) 		9-00097-517-0 02 1 9811-9906 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4DOOR LONG(UE***F) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9811-0012 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0101- ●

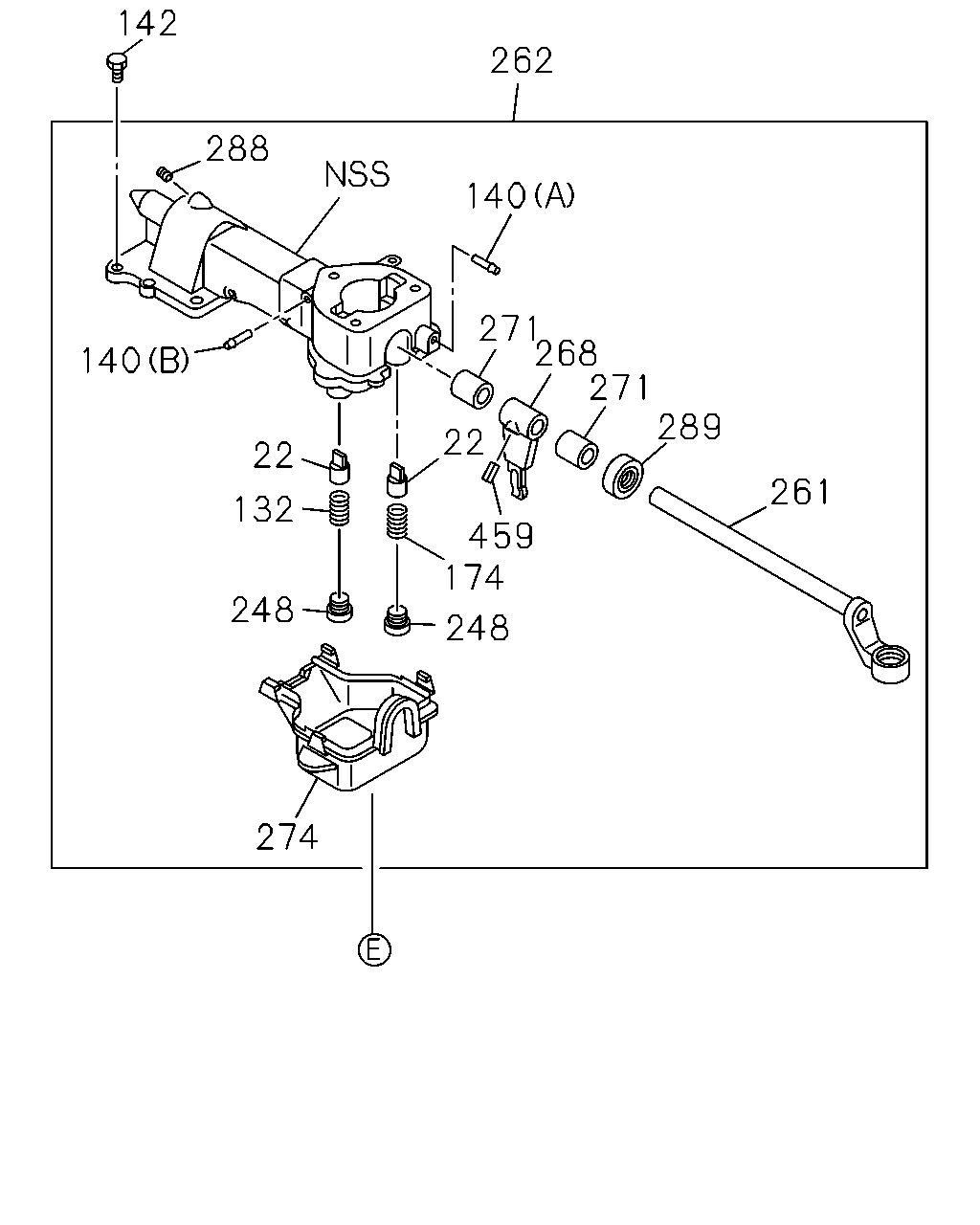

çizim 36840
142 262 288 140 271 268 271 289 140 22 22 261 132 459 174 248 248 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97103-102-0 02 1 9811-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0004- ●
132 04.027 SPRING; SELECT STOP 8-97103-106-0 01 1 9811-0003 ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0004- ●
140 04.104 BREATHER; AIR,TRANS
(A) 		8-97172-655-0 01 1 9811-0003 ●
140 04.104 BREATHER; AIR,TRANS
04.510 (A) 		8-97173-544-0 01 1 0004- ●
140 04.104 BREATHER; AIR,TRANS
(B) 		8-97172-656-0 01 1 9811-0003 ●
140 04.104 BREATHER; AIR,TRANS
04.510 (B) 		8-97173-545-0 01 1 0004- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 9811- ●
174 04.307 SPRING; REV 8-97103-105-0 01 1 9811-0003 ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0004- ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0004- ●
261 04.309 ROD; GEAR CONT 8-97103-090-1 01 1 9811-9811 ●
261 04.309 ROD; GEAR CONT 8-97103-092-1 01 1 9812-0003 ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0004- ●
262 04.105 BOX ASM; SHIFT CONT 8-97172-637-1 01 1 9811-9811 ●
262 04.105 BOX ASM; SHIFT CONT 8-97215-046-1 01 1 9812-0003 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-822-0 01 1 0004- ●
268 04.302 LEVER; CONT,INTERNAL 8-97103-089-0 01 1 9811-0003 ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0004- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=15 		8-94478-119-0 02 1 9811-0003 ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0004- ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97103-093-3 01 1 9811-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0004- ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0004- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94478-118-0 01 1 9811-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0004- ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 (A) OD=5.4 		9-09678-510-0 01 1 9811-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0004- ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 (B) OD=3.3 		9-09678-519-0 01 1 9811-0003 ●

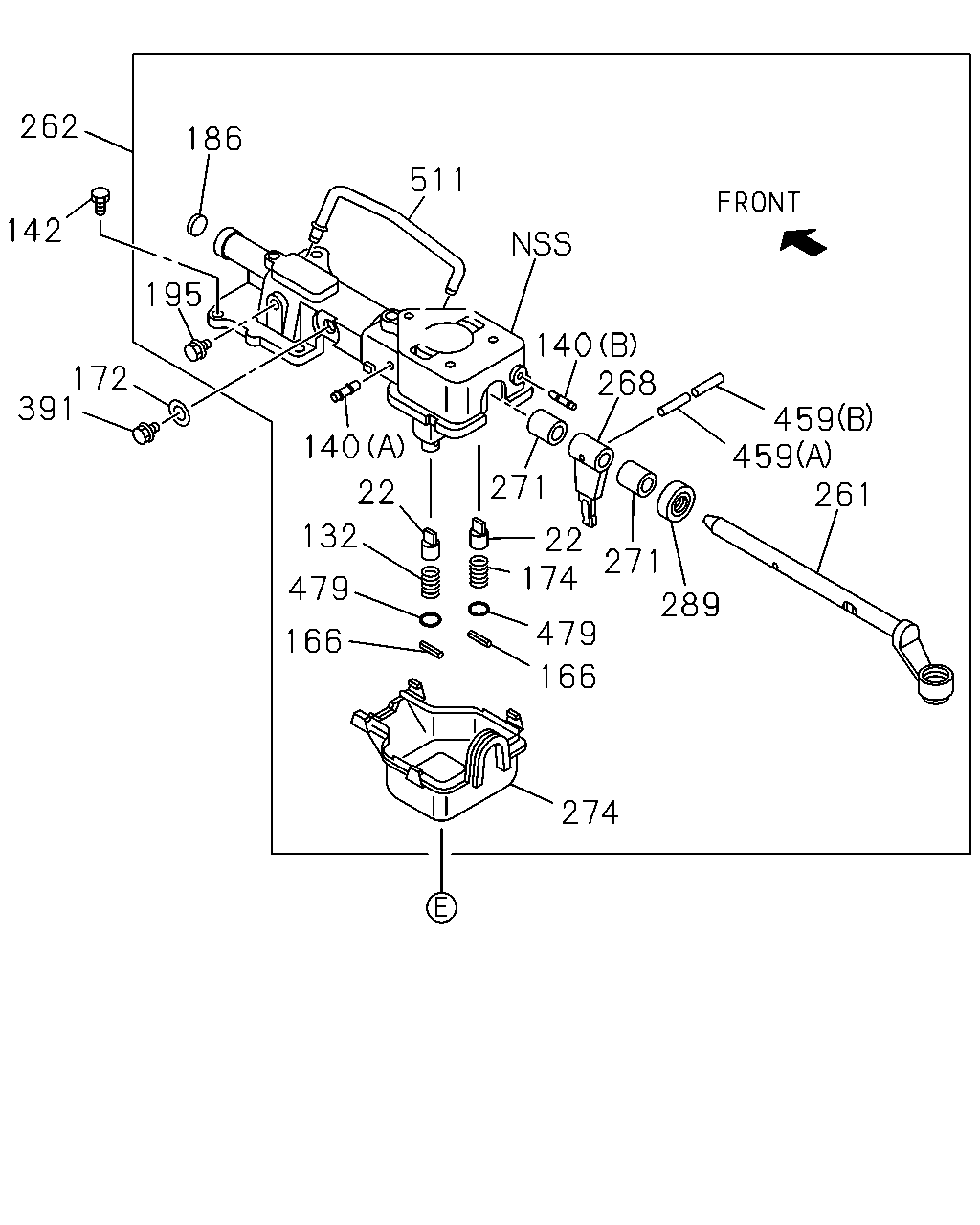

çizim 38874
262 186 511 142 195 140 268 172 391 459 459 140 271 22 261 132 22 174 271 479 289 479 166 166 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97103-102-0 02 1 9811-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0004- ●
132 04.027 SPRING; SELECT STOP 8-97103-106-0 01 1 9811-0003 ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0004- ●
140 04.104 BREATHER; AIR,TRANS
(A) 		8-97172-655-0 01 1 9811-0003 ●
140 04.104 BREATHER; AIR,TRANS
04.510 (A) 		8-97173-544-0 01 1 0004- ●
140 04.104 BREATHER; AIR,TRANS
(B) 		8-97172-656-0 01 1 9811-0003 ●
140 04.104 BREATHER; AIR,TRANS
04.510 (B) 		8-97173-545-0 01 1 0004- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 9811- ●
166 04.302 PIN; SPR,SELECT LEVER
04.307 D=4.2 L=25 		8-97103-142-0 02 1 9811-0003 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 THA 		8-94462-114-0 01 1 9811-9811 ●
174 04.307 SPRING; REV 8-97103-105-0 01 1 9811-0003 ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0004- ●
186 04.105 PLUG; SHIFTER ROD
00.253 OD=16 		9-11129-081-0 01 1 9811-0003 ●
195 04.105 BOLT
01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9811-0003 ●
261 04.309 ROD; GEAR CONT 8-97103-090-1 01 1 9811-9811 ●
261 04.309 ROD; GEAR CONT 8-97103-092-1 01 1 9812-0003 ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0004- ●
262 04.105 BOX ASM; SHIFT CONT 8-97172-637-1 01 1 9811-9811 ●
262 04.105 BOX ASM; SHIFT CONT 8-97215-046-1 01 1 9812-0003 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-822-0 01 1 0004- ●
268 04.302 LEVER; CONT,INTERNAL 8-97103-089-0 01 1 9811-0003 ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0004- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=15 		8-94478-119-0 02 1 9811-0003 ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0004- ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97103-093-3 01 1 9811-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0004- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-94478-118-0 01 1 9811-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0004- ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 9811-9811 ●
391 04.104 PLUG; SW HOLE
4DOOR LONG(UE***F) M14X11 		8-94252-142-0 02 1 9907-0012 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 02 1 0101- ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 (A) OD=5.4 		9-09678-510-0 01 1 9811-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0004- ●
459 04.302 PIN; SPR,ROD TO ARM
04.042 (B) OD=3.3 		9-09678-519-0 01 1 9811-0003 ●
479 04.307 PLATE; SELECT
D=13 		8-97103-110-0 02 1 9811-0003 ●
511 04.302 PIPE; AIR 8-97172-589-0 01 1 9811-0003 ●
