Sayfa 2-26 - Isuzu EPC

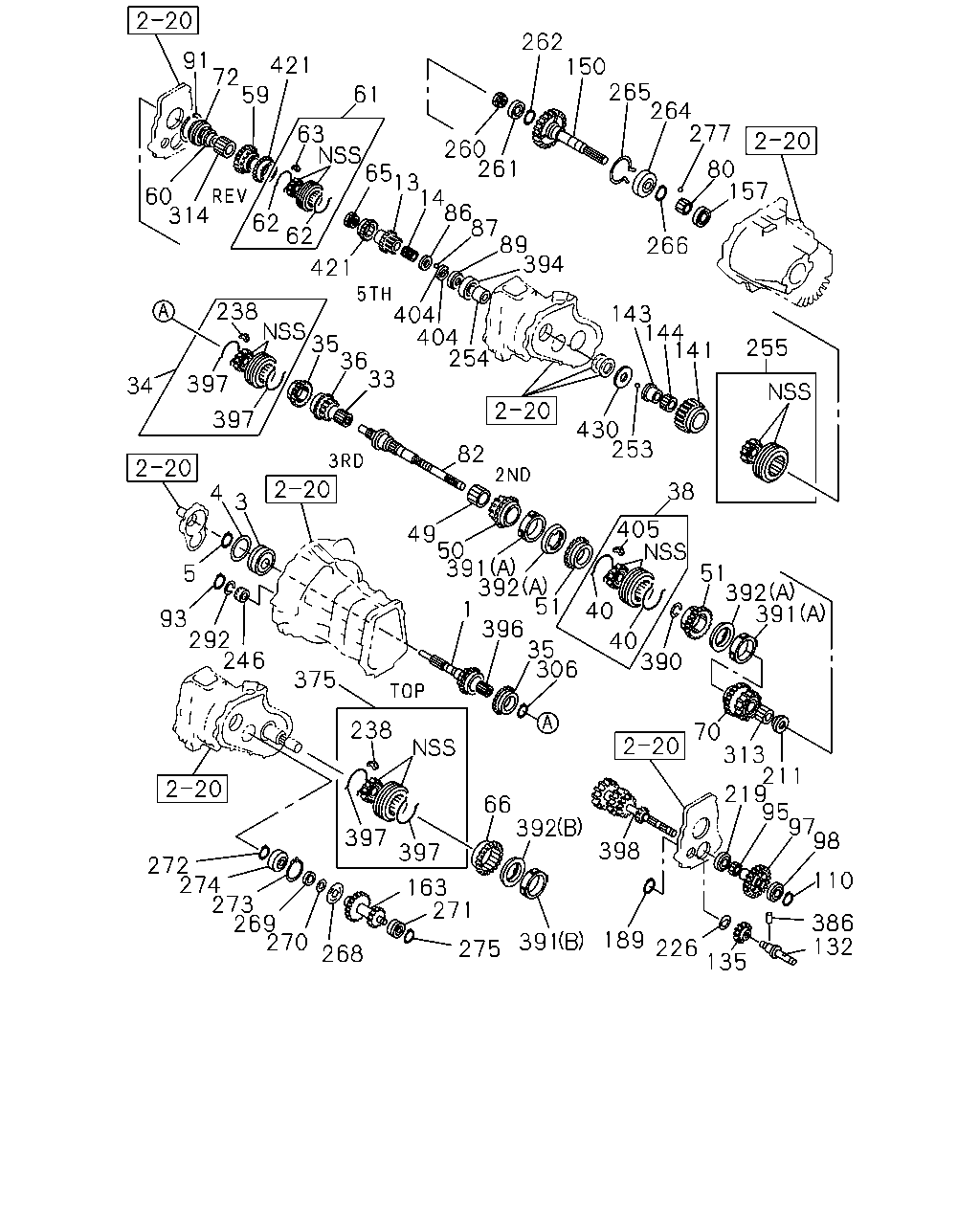

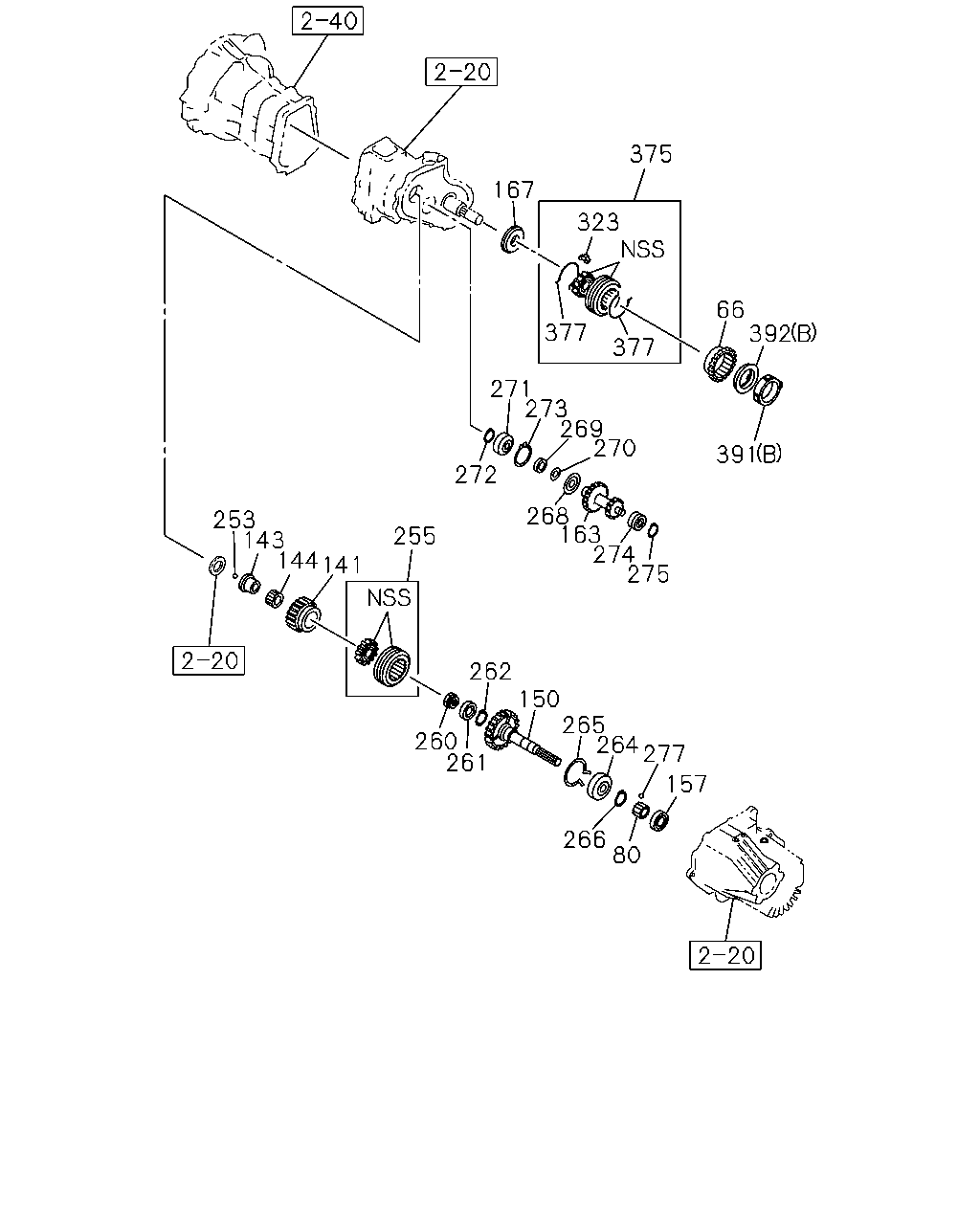

2-26 — MANUAL TRANSMISSION GEAR (#46285) — 277 parça

262 150 265 264 277 91 72 59 421 61 63 65 13 14 86 87 89 394 260 261 80 157 60 314 62 62 266 421 404 404 254 238 35 36 33 143 144 141 255 397 34 397 430 253 82 38 4 3 405 49 50 391 392 1 51 392 391 5 51 40 93 292 246 396 35 306 40 390 375 238 70 313 211 219 95 97 98 66 392 397 398 397 272 274 273 269 270 110 163 271 386 132 189 391 226 275 268 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 2DOOR SHORT(UE***C) Z=25	8-97182-214-1	01	1	9811-0012	●
1	04.351 SHAFT; TOP GEAR,TRANS 4DOOR LONG(UE***F) Z=25	8-97182-212-0	01	1	9811-0012	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0101-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9811-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9811-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9811-0004	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0005-	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9811-	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9811-	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9811-	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9811-0108	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0109-	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9811-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9811-	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9811-0108	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0109-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9811-	●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9811-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9811-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9811-	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9811-	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	9811-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9811-0108	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0109-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9811-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9811-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9811-	●
66	04.383 RING; BLOCK,SYN	8-97169-516-1	01	1	9811-0012	●	●
66	04.383 RING; BLOCK,SYN	8-97169-516-1	01	1	0101-	●
66	04.383 RING; BLOCK,SYN EXC. TORQUE ON DEMAND(7HA)	8-97169-516-1	01	1	0101-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9811-	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9811-	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9811-0012	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0101-	●
80	04.343 GEAR; SPD DRIVE EXC. TORQUE ON DEMAND(7HA) Z=6	8-94333-535-2	01	1	0101-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9811-	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9811-	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9811-	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9811-	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9811-	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9811-	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9811-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9811-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9811-	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9811-	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9811-	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9811-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9811-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9811-	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9811-	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9811-0012	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	0101-	●
141	04.535 GEAR; INPUT,TRANSFER EXC. TORQUE ON DEMAND(7HA) Z=34	8-97141-878-0	01	1	0101-		●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9811-0012	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	0101-	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-94482-579-1	01	1	0101-		●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9811-0012	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	0101-	●
144	04.525 BEARING; NEEDLE,INPUT GEAR EXC. TORQUE ON DEMAND(7HA) 04.419 NSK	1-09811-028-1	01	1	0101-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9811-0012	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	0101-	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE EXC. TORQUE ON DEMAND(7HA) Z=49	8-97166-156-0	01	1	0101-		●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9811-0012	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	0101-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-050-1	01	1	0101-		●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9811-0012	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	0101-	●
163	04.535 GEAR; COUNTER,TRANSFER EXC. TORQUE ON DEMAND(7HA) Z=37-26	8-97165-317-0	01	1	0101-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9811-	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9811-	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9811-	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9811-	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9811-	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	9811-	●
238	04.384 INSERT	8-94448-202-2	06	1	9811-	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	9811-	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9811-0012	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	0101-	●
253	04.535 BALL; INPUT EXC. TORQUE ON DEMAND(7HA) 04.416	8-94201-356-0	01	1	0101-		●
254	04.525 COLLAR; TRANSFER	8-94483-030-2	01	1	9811-	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9811-0012	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	0101-	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS EXC. TORQUE ON DEMAND(7HA)	8-97141-885-1	01	1	0101-		●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9811-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9811-0012		●
260	04.412 NUT; MAINSHAFT END EXC. TORQUE ON DEMAND(7HA) M27	8-94388-182-1	01	1	0101-		●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9811-0012	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	0101-	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-176-0	01	1	0101-		●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9811-0012	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0101-	●
262	04.525 RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND(7HA) 08.934 ID=23.2	9-09180-025-0	01	1	0101-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9811-0012	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	0101-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-054-1	01	1	0101-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9811-0012	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	0101-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND(7HA) KOYO	8-94422-055-1	01	1	0101-		●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9811-0012	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	0101-	●
265	04.525 RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND(7HA) OD=95.0	8-94422-091-0	01	1	0101-		●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9811-0004	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-0012	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0101-	●
266	04.525 RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND(7HA) ID=37.4	8-97254-316-0	01	1	0101-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9811-0012	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	0101-	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TORQUE ON DEMAND(7HA)	8-97164-348-0	01	1	0101-		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9811-9812	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9901-0012	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	0101-	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND(7HA)	8-97222-764-0	01	1	0101-		●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9811-0012	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	0101-	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA EXC. TORQUE ON DEMAND(7HA) 04.537	8-94482-498-0	01	1	0101-		●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9811-0012	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	0101-	●
271	04.520 BEARING; COUNTER GEAR,FRT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-050-1	01	1	0101-		●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9811-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9811-	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9811-0012	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	0101-	●
272	04.525 RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND(7HA) T=1.50 WHITE	8-94448-808-0	01	1	0101-		●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9811-0012	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	0101-	●
273	04.525 RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND(7HA) OD=77.0	8-94422-092-0	01	1	0101-		●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9811-0012	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	0101-	●
274	04.520 BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND(7HA) NSK	8-97080-184-0	01	1	0101-		●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9811-0012	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	0101-	●
274	04.520 BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND(7HA) KOYO	8-97080-185-0	01	1	0101-		●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9811-0012	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	0101-	●
275	04.525 RING; SNAP,COUNTER GEAR BRG EXC. TORQUE ON DEMAND(7HA) 08.934 ID=23.2	9-09180-025-0	01	1	0101-		●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9811-0012	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	0101-	●
277	04.345 BALL; SPD DRIVE GEAR EXC. TORQUE ON DEMAND(7HA) 04.416	8-94201-356-0	01	1	0101-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9811-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9811-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9811-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9811-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9811-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9811-	●
314	04.419 BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	9811-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9811-0108	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97188-798-0	01	1	0109-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9811-0012		●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. TORQUE ON DEMAND(7HA)	8-97104-027-0	01	1	0101-		●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9811-	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9811-	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9811-	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9811-	●
391	04.383 RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9811-	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9811-0012	●	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	0101-	●
391	04.383 RING; INSIDE,SYN EXC. TORQUE ON DEMAND(7HA) (B)	8-97101-452-0	01	1	0101-		●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9811-	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-0	01	1	9811-0012	●	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	0101-	●
392	04.383 RING; OUTSIDE,SYN EXC. TORQUE ON DEMAND(7HA) (B)	8-97169-514-1	01	1	0101-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 04.352 NSK	8-97018-921-1	01	1	9811-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9811-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	04	1	9811-	●
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	9811-	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	9811-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9811-	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9811-	●
430	04.525 PLATE; OIL SEAL,TRANSFER 04.537	8-94482-379-2	01	1	9811-	●

375 167 323 66 392 377 377 271 273 269 270 391 272 268 163 274 275 253 143 144 141 255 262 150 265 264 277 260 261 157 266 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.383 RING; BLOCK,SYN	8-97169-516-1	01	1	9811-0012	●	●
66	04.383 RING; BLOCK,SYN	8-97169-516-1	01	1	0101-	●
66	04.383 RING; BLOCK,SYN EXC. TORQUE ON DEMAND(7HA)	8-97169-516-1	01	1	0101-		●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9811-0012	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0101-	●
80	04.343 GEAR; SPD DRIVE EXC. TORQUE ON DEMAND(7HA) Z=6	8-94333-535-2	01	1	0101-		●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9811-0012	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	0101-	●
141	04.535 GEAR; INPUT,TRANSFER EXC. TORQUE ON DEMAND(7HA) Z=34	8-97141-878-0	01	1	0101-		●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9811-0012	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	0101-	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-94482-579-1	01	1	0101-		●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9811-0012	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	0101-	●
144	04.525 BEARING; NEEDLE,INPUT GEAR EXC. TORQUE ON DEMAND(7HA) 04.419 NSK	1-09811-028-1	01	1	0101-		●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9811-0012	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	0101-	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE EXC. TORQUE ON DEMAND(7HA) Z=49	8-97166-156-0	01	1	0101-		●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9811-0012	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	0101-	●
157	04.520 BEARING; BALL,OUTPUT SHAFT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-050-1	01	1	0101-		●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9811-0012	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	0101-	●
163	04.535 GEAR; COUNTER,TRANSFER EXC. TORQUE ON DEMAND(7HA) Z=37-26	8-97165-317-0	01	1	0101-		●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9811-0012		●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97102-940-0	01	1	0101-		●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9811-0012	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	0101-	●
253	04.535 BALL; INPUT EXC. TORQUE ON DEMAND(7HA) 04.416	8-94201-356-0	01	1	0101-		●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9811-0012	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	0101-	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS EXC. TORQUE ON DEMAND(7HA)	8-97141-885-1	01	1	0101-		●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9811-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9811-0012		●
260	04.412 NUT; MAINSHAFT END EXC. TORQUE ON DEMAND(7HA) M27	8-94388-182-1	01	1	0101-		●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9811-0012	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	0101-	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-176-0	01	1	0101-		●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9811-0012	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0101-	●
262	04.525 RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND(7HA) 08.934 ID=23.2	9-09180-025-0	01	1	0101-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9811-0012	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	0101-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-054-1	01	1	0101-		●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9811-0012	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	0101-	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND(7HA) KOYO	8-94422-055-1	01	1	0101-		●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9811-0012	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	0101-	●
265	04.525 RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND(7HA) OD=95.0	8-94422-091-0	01	1	0101-		●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9811-0004	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-0012	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0101-	●
266	04.525 RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND(7HA) ID=37.4	8-97254-316-0	01	1	0101-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9811-0012	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	0101-	●
268	04.537 PLATE; ANTI LASH,COUNTER EXC. TORQUE ON DEMAND(7HA)	8-97164-348-0	01	1	0101-		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9811-9812	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9901-0012	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	0101-	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND(7HA)	8-97222-764-0	01	1	0101-		●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9811-0012	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	0101-	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA EXC. TORQUE ON DEMAND(7HA) 04.537	8-94482-498-0	01	1	0101-		●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9811-0012	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	0101-	●
271	04.520 BEARING; COUNTER GEAR,FRT EXC. TORQUE ON DEMAND(7HA) NSK	8-94422-050-1	01	1	0101-		●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9811-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9811-	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9811-0012	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	0101-	●
272	04.525 RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND(7HA) T=1.50 WHITE	8-94448-808-0	01	1	0101-		●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9811-0012	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	0101-	●
273	04.525 RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND(7HA) OD=77.0	8-94422-092-0	01	1	0101-		●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9811-0012	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	0101-	●
274	04.520 BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND(7HA) NSK	8-97080-184-0	01	1	0101-		●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9811-0012	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	0101-	●
274	04.520 BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND(7HA) KOYO	8-97080-185-0	01	1	0101-		●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9811-0012	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	0101-	●
275	04.525 RING; SNAP,COUNTER GEAR BRG EXC. TORQUE ON DEMAND(7HA) 08.934 ID=23.2	9-09180-025-0	01	1	0101-		●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9811-0012	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	0101-	●
277	04.345 BALL; SPD DRIVE GEAR EXC. TORQUE ON DEMAND(7HA) 04.416	8-94201-356-0	01	1	0101-		●
323	04.384 INSERT	8-94448-202-2	03	1	9811-0012		●
323	04.384 INSERT EXC. TORQUE ON DEMAND(7HA)	8-94448-202-2	03	1	0101-		●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9811-0108	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97188-798-0	01	1	0109-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9811-0012		●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. TORQUE ON DEMAND(7HA)	8-97104-027-0	01	1	0101-		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9811-0012		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS EXC. TORQUE ON DEMAND(7HA)	8-94422-075-0	02	1	0101-		●
391	04.383 RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9811-	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9811-0012	●	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	0101-	●
391	04.383 RING; INSIDE,SYN EXC. TORQUE ON DEMAND(7HA) (B)	8-97101-452-0	01	1	0101-		●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9811-	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-0	01	1	9811-0012	●	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	0101-	●
392	04.383 RING; OUTSIDE,SYN EXC. TORQUE ON DEMAND(7HA) (B)	8-97169-514-1	01	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
