◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#46284) — 118 parça
çizim 36693
23 22 22 22 14 26 2 1 3 10 11 4 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
2DOOR SHORT(UE***C) Z=20 		8-94473-302-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
4DOOR LONG(UE***F) Z=18 		8-97012-086-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-2 01 1 0101- ●
1 04.337 GEAR; DRIVEN,SPD
Z=17 		8-97012-085-2 01 1 9811- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9811- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9811- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.559 M8X25 FLANGE USA 		0-28680-825-0 01 1 9811-0206 ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0207- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9811- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9811- ● ●
14 00.679 COVER; UNDER,TRANS
2DOOR SHORT(UE***C) 		8-97141-866-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (A) 		8-97164-174-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(A) THA 		8-97164-174-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (B) 		8-97164-175-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-175-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (C) 		8-97164-176-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-176-3 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-521-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-547-3 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
2DOOR SHORT(UE***C) M12X45 FLANGE 		0-28181-245-0 05 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) 02.042 (A) M12X80 		0-28081-280-0 01 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 (A) M12X80 		0-28081-280-0 01 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0101- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9811- ●
23 00.685 BOLT; STARTER TO TRANS CASE
2DOOR SHORT(UE***C) 03.330 M12X60 		0-28181-260-0 01 1 9811-0012 ●
26 00.685 NUT; UNDER COVER,TRANS
2DOOR SHORT(UE***C) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0012 ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9811- ● ●
çizim 36714
15 14 15 2 1 3 10 15 14 11 4 53 15 22 22 22 22 22 27 22 14 15 15 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
2DOOR SHORT(UE***C) Z=20 		8-94473-302-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
4DOOR LONG(UE***F) Z=18 		8-97012-086-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-2 01 1 0101- ●
1 04.337 GEAR; DRIVEN,SPD
Z=17 		8-97012-085-2 01 1 9811- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9811- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9811- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.559 M8X25 FLANGE USA 		0-28680-825-0 01 1 9811-0206 ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0207- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9811- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9811- ● ●
14 00.679 COVER; UNDER,TRANS
2DOOR SHORT(UE***C) 		8-97141-866-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (A) 		8-97164-174-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(A) THA 		8-97164-174-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (B) 		8-97164-175-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-175-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (C) 		8-97164-176-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-176-3 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-521-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-547-3 01 1 9811- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 M6X10 FLANGE 		0-28080-610-0 08 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
2DOOR SHORT(UE***C) M12X45 FLANGE 		0-28181-245-0 05 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) 02.042 (A) M12X80 		0-28081-280-0 01 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 (A) M12X80 		0-28081-280-0 01 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0101- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9811- ●
27 00.685 NUT; CLU HSG TO TRANS
05.586 M12 FLANGE 		0-91150-112-0 01 1 9811- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9811- ● ●

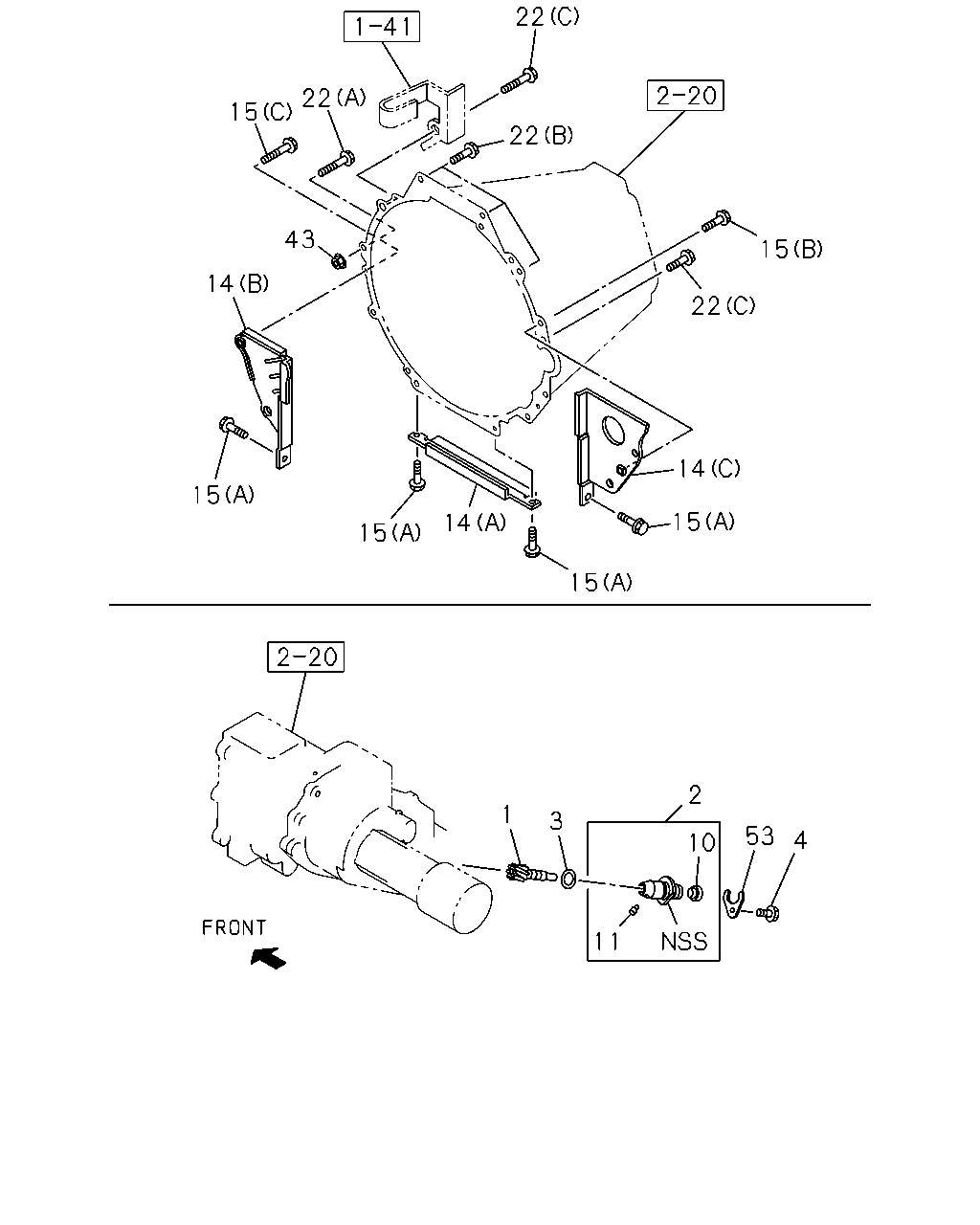

çizim 36774
22 22 15 22 43 15 14 22 14 15 15 14 15 15 2 1 3 53 4 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; DRIVEN,SPD
2DOOR SHORT(UE***C) Z=20 		8-94473-302-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
4DOOR LONG(UE***F) Z=18 		8-97012-086-1 01 1 9811-0012 ●
1 04.337 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-2 01 1 0101- ●
1 04.337 GEAR; DRIVEN,SPD
Z=17 		8-97012-085-2 01 1 9811- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9811- ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9811- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.559 M8X25 FLANGE USA 		0-28680-825-0 01 1 9811-0206 ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0207- ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97131-328-1 01 1 9811- ● ●
11 04.338 FILTER; BUSHING,SPEEDOMETER DRIV 8-94446-571-1 01 1 9811- ● ●
14 00.679 COVER; UNDER,TRANS
2DOOR SHORT(UE***C) 		8-97141-866-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (A) 		8-97164-174-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(A) THA 		8-97164-174-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (B) 		8-97164-175-0 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-175-1 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
4DOOR LONG(UE***F) (C) 		8-97164-176-2 01 1 9811-0012 ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-176-3 01 1 0101- ●
14 00.679 COVER; UNDER,TRANS
(A) 		8-97164-518-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(C) THA 		8-97164-521-1 01 1 9811- ●
14 00.679 COVER; UNDER,TRANS
(B) THA 		8-97164-547-3 01 1 9811- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 (A) M6X10 FLANGE 		0-28080-610-0 04 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
4DOOR LONG(UE***F) 03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 9811-0012 ●
15 00.685 BOLT; UNDER COVER TO TRANS
03.163 (C) M6X40 FLANGE 		0-28680-640-0 01 1 0101- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.500 M6X10 FLANGE 		0-28080-610-0 08 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
2DOOR SHORT(UE***C) M12X45 FLANGE 		0-28181-245-0 05 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) 02.042 (A) M12X80 		0-28081-280-0 01 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
02.042 (A) M12X80 		0-28081-280-0 01 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (B) M12X45 FLANGE 		0-28181-245-0 03 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 0101- ●
22 00.685 BOLT; TRANS CASE TO ENG
4DOOR LONG(UE***F) (C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9811-0012 ●
22 00.685 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0101- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
(A) M12X70 FLANGE 		0-28081-270-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
09.181 (B) M12X40 FLANGE 		0-28181-240-0 01 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9811- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.669 (E) M10X40 FLANGE 		0-28781-040-0 02 1 9811- ●
43 00.685 NUT; TRANS CASE
4DOOR LONG(UE***F) 05.586 M12 FLANGE 		0-91150-112-0 01 1 9811-0012 ●
43 00.685 NUT; TRANS CASE
05.586 M12 FLANGE 		0-91150-112-0 01 1 0101- ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
