Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#46283) — 240 parça

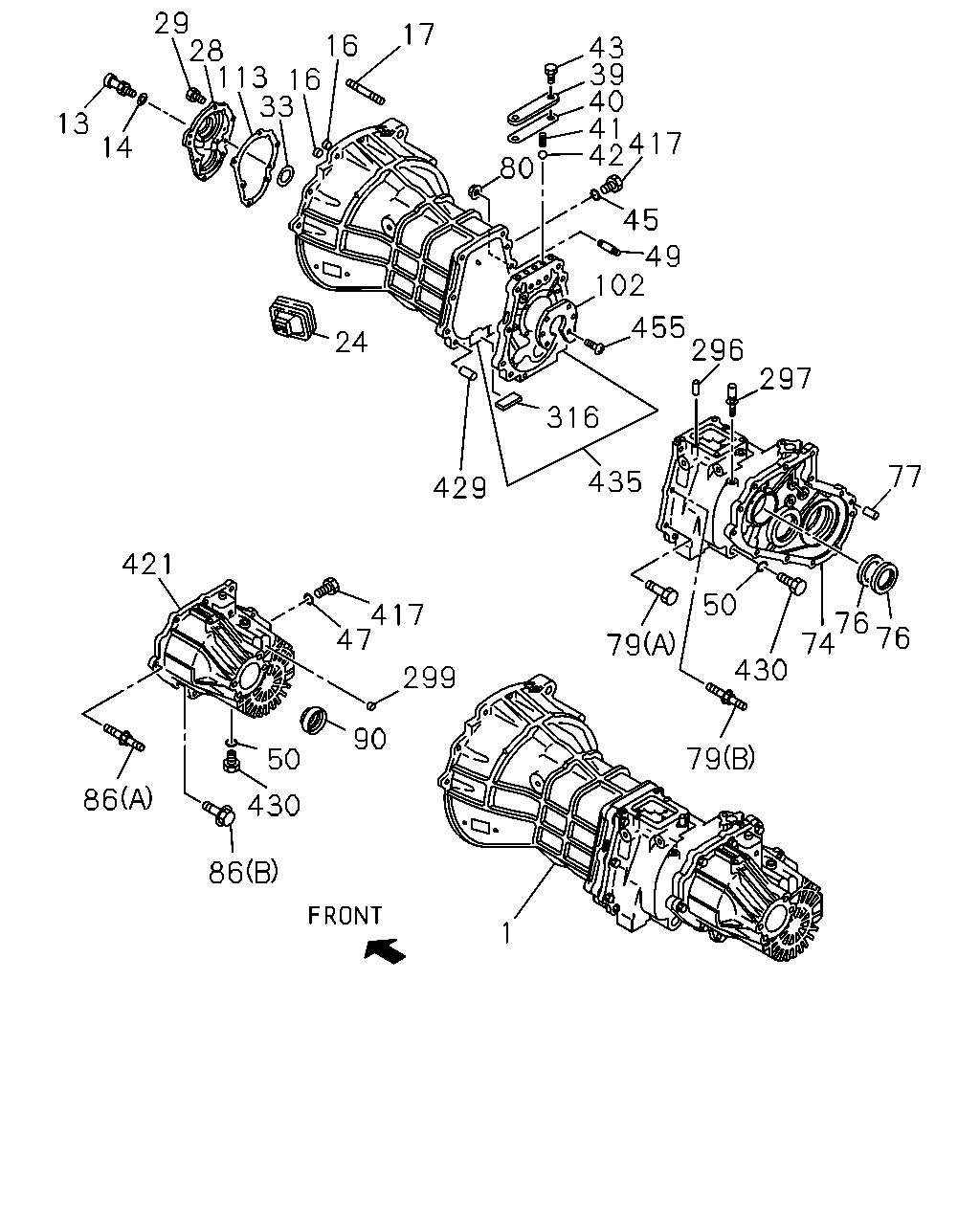

29 28 16 43 113 16 39 33 40 41 417 42 80 45 49 102 455 296 297 17 13 14 24 316 77 435 429 421 76 74 76 430 50 417 47 79 299 90 79 50 86 430 86 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 2DOOR SHORT(UE***C)	8-97124-708-0	01	1	9811-0012	●
1	04.003 TRANSMISSION ASM; MANUAL 4DOOR LONG(UE***F)	8-97184-470-0	01	1	9811-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4DOOR LONG(UE***F)	8-97230-956-0	01	1	9907-0012	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97230-956-0	01	1	0101-	●
13	04.302 SUPPORT; SHIFT FORK 2DOOR SHORT(UE***C) L=47.5	8-97072-827-0	01	1	9811-0012	●
13	04.302 SUPPORT; SHIFT FORK 4DOOR LONG(UE***F)	8-97033-703-1	01	1	9811-9904	●
13	04.302 SUPPORT; SHIFT FORK 4DOOR LONG(UE***F)	8-97218-275-0	01	1	9905-0012	●
13	04.302 SUPPORT; SHIFT FORK	8-97218-275-0	01	1	0101-	●
14	04.302 WASHER; LK,SUPPORT 2DOOR SHORT(UE***C) 04.634 ID=12.2	9-09150-512-0	01	1	9811-0012	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9811-	●
17	04.105 STUD; STARTER SETTING 2DOOR SHORT(UE***C) 01.428 M6X12 L=21	9-04110-612-0	02	1	9811-0012	●
24	00.797 COVER; CHECK HOLE,DUST 2DOOR SHORT(UE***C) 06.868	8-94156-700-0	01	1	9811-0012	●
28	04.356 COVER; FRT,TRANS CASE 2DOOR SHORT(UE***C)	8-97108-066-1	01	1	9811-0012	●
28	04.356 COVER; FRT,TRANS CASE 4DOOR LONG(UE***F)	8-97104-678-0	01	1	9811-0012	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-678-0	01	1	0101-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9811-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9811-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9811-	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9811-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9811-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9811-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9811-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9811-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9811-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9811-0012	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0101-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) 04.105 ID=17	8-97115-712-0	01	1	0101-		●
49	04.510 STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9811-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9811-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9811-0012		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) ID=17	8-97115-712-0	01	1	0101-		●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9811-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9811-0012		●
74	04.510 CASE ASM; TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97164-349-0	01	1	0101-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0109-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0109-		●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	9811-0012	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	0101-	●
77	04.510 PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA) OD=10 L=20 USA	8-97135-423-0	02	1	0101-		●
79	04.510 BOLT; TRANSFER CASE 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	9811-	●
79	04.510 BOLT; TRANSFER CASE (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9811-	●
80	04.510 NUT; TRANSFER CASE 04.785 M10 FLANGE USA	0-91150-110-0	01	1	9811-	●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9811-0012	●	●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-		●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9811-0012	●	●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9811-0010	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9811-0012	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-707-2	01	1	0101-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-707-2	01	1	0101-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9811-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9811-	●
296	04.510 PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9811-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9811-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9811-0012		●
297	04.104 BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA)	8-97173-541-1	01	1	0101-		●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	9811-0012	●	●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	0101-	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND(7HA) 04.309 OD=14	5-09609-004-0	02	1	0101-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9811-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	02	1	9811-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9811-0012		●
417	04.105 PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND(7HA) 08.971	8-94310-917-0	01	1	0101-		●
421	04.317 COVER; RR,TRANS	8-97126-772-1	01	1	9811-9903	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	9904-0012	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	0101-	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND(7HA)	8-97220-601-0	01	1	0101-		●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9811-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	02	1	9811-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9811-0012		●
430	04.105 PLUG; OIL DRAIN EXC. TORQUE ON DEMAND(7HA)	9-09662-004-0	01	1	0101-		●
435	04.103 CASE; TRANS 2DOOR SHORT(UE***C)	8-97126-770-0	01	1	9811-0012	●
435	04.103 CASE; TRANS 4DOOR LONG(UE***F)	8-97184-472-0	01	1	9811-0012	●
435	04.103 CASE; TRANS	8-97184-472-0	01	1	0101-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9811-	●

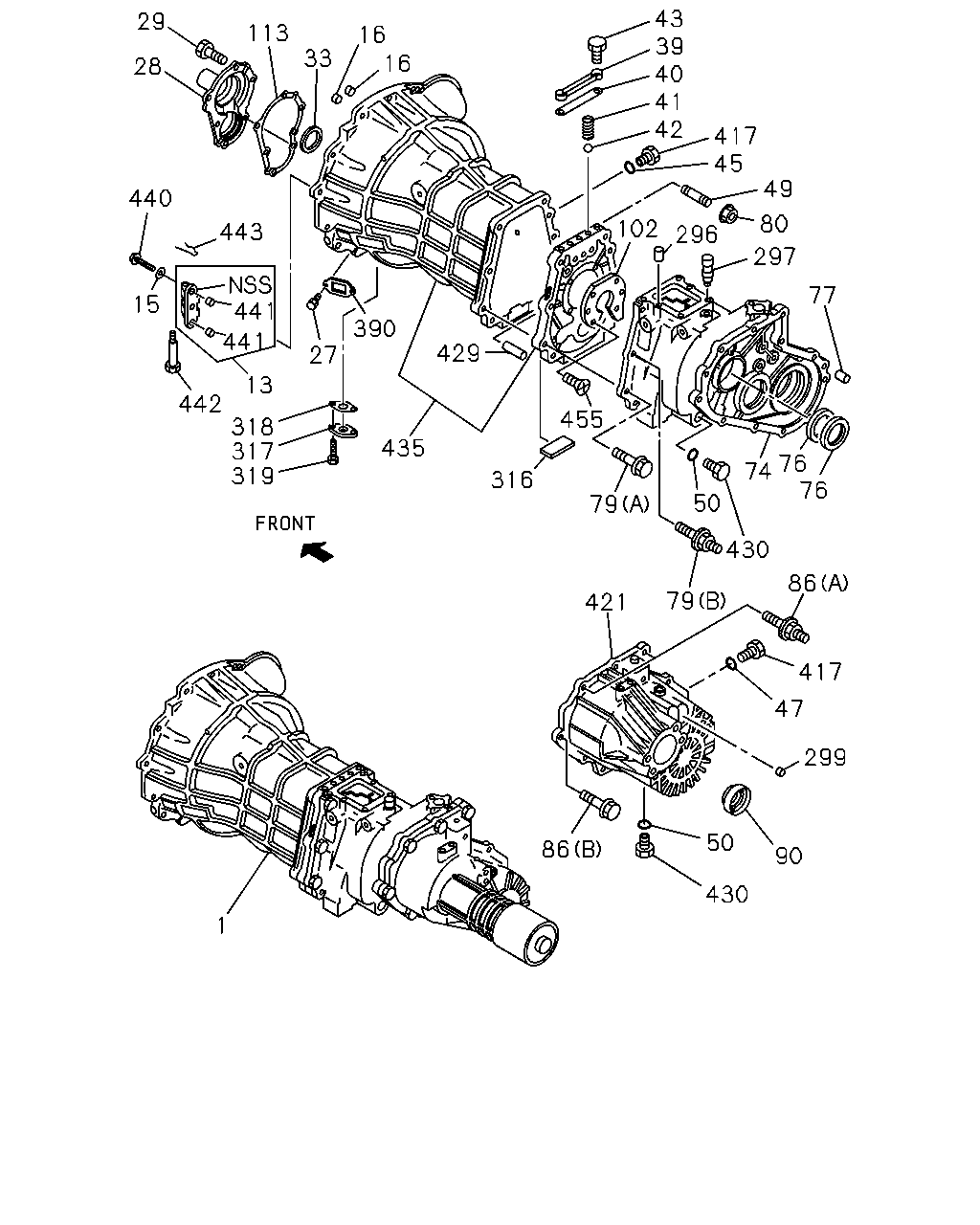

43 39 40 41 42 29 113 33 16 16 28 417 45 49 80 297 440 102 296 443 441 441 77 15 390 27 429 455 13 442 318 317 319 76 74 76 435 316 50 79 430 86 79 421 417 47 299 50 86 90 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 2DOOR SHORT(UE***C)	8-97124-708-0	01	1	9811-0012	●
1	04.003 TRANSMISSION ASM; MANUAL 4DOOR LONG(UE***F)	8-97184-470-0	01	1	9811-9906	●
1	04.003 TRANSMISSION ASM; MANUAL 4DOOR LONG(UE***F)	8-97230-956-0	01	1	9907-0012	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97230-956-0	01	1	0101-	●
13	04.302 SUPPORT; SHIFT FORK 2DOOR SHORT(UE***C) L=47.5	8-97072-827-0	01	1	9811-0012	●
13	04.302 SUPPORT; SHIFT FORK 4DOOR LONG(UE***F)	8-97033-703-1	01	1	9811-9904	●
13	04.302 SUPPORT; SHIFT FORK 4DOOR LONG(UE***F)	8-97218-275-0	01	1	9905-0012	●
13	04.302 SUPPORT; SHIFT FORK	8-97218-275-0	01	1	0101-	●
15	04.302 WASHER; PL 4DOOR LONG(UE***F) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9811-0012	●
15	04.302 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0101-	●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9811-	●
27	00.686 BOLT; COVER TO CLU HSG 4DOOR LONG(UE***F) 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	9811-0012	●
27	00.686 BOLT; COVER TO CLU HSG 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	0101-	●
28	04.356 COVER; FRT,TRANS CASE 2DOOR SHORT(UE***C)	8-97108-066-1	01	1	9811-0012	●
28	04.356 COVER; FRT,TRANS CASE 4DOOR LONG(UE***F)	8-97104-678-0	01	1	9811-0012	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-678-0	01	1	0101-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9811-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9811-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9811-	●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9811-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9811-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9811-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9811-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9811-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9811-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9811-0012	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0101-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) 04.105 ID=17	8-97115-712-0	01	1	0101-		●
49	04.510 STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9811-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9811-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9811-0012		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) ID=17	8-97115-712-0	01	1	0101-		●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9811-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9811-0012		●
74	04.510 CASE ASM; TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97164-349-0	01	1	0101-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0109-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0109-		●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	9811-0012	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	0101-	●
77	04.510 PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA) OD=10 L=20 USA	8-97135-423-0	02	1	0101-		●
79	04.510 BOLT; TRANSFER CASE 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	9811-	●
79	04.510 BOLT; TRANSFER CASE (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9811-	●
80	04.510 NUT; TRANSFER CASE 04.785 M10 FLANGE USA	0-91150-110-0	01	1	9811-	●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9811-0012	●	●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-		●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9811-0012	●	●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9811-0010	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9811-0012	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-707-2	01	1	0101-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-707-2	01	1	0101-		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9811-	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9811-	●
296	04.510 PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9811-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9811-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9811-0012		●
297	04.104 BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA)	8-97173-541-1	01	1	0101-		●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	9811-0012	●	●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	0101-	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND(7HA) 04.309 OD=14	5-09609-004-0	02	1	0101-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9811-	●
317	04.109 COVER; CASE 4DOOR LONG(UE***F)	8-97034-422-1	01	1	9811-0012	●
317	04.109 COVER; CASE	8-97034-422-1	01	1	0101-	●
318	04.109 GASKET; COVER 4DOOR LONG(UE***F)	8-97035-567-0	01	1	9811-0012	●
318	04.109 GASKET; COVER	8-97035-567-0	01	1	0101-	●
319	04.109 BOLT; COVER 4DOOR LONG(UE***F) 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	9811-0012	●
319	04.109 BOLT; COVER 01.428 M6X12 FLANGE USA	0-28080-612-0	02	1	0101-	●
390	00.797 COVER; DUST,CLU SHIFT 4DOOR LONG(UE***F) THA	8-94380-259-1	01	1	9811-0012	●
390	00.797 COVER; DUST,CLU SHIFT THA	8-94380-259-1	01	1	0101-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	02	1	9811-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9811-0012		●
417	04.105 PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND(7HA) 08.971	8-94310-917-0	01	1	0101-		●
421	04.317 COVER; RR,TRANS	8-97126-772-1	01	1	9811-9903	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	9904-0012	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	0101-	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND(7HA)	8-97220-601-0	01	1	0101-		●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9811-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	02	1	9811-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9811-0012		●
430	04.105 PLUG; OIL DRAIN EXC. TORQUE ON DEMAND(7HA)	9-09662-004-0	01	1	0101-		●
435	04.103 CASE; TRANS 2DOOR SHORT(UE***C)	8-97126-770-0	01	1	9811-0012	●
435	04.103 CASE; TRANS 4DOOR LONG(UE***F)	8-97184-472-0	01	1	9811-0012	●
435	04.103 CASE; TRANS	8-97184-472-0	01	1	0101-	●
440	04.302 BOLT; SUPPORT 4DOOR LONG(UE***F) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	9811-0012	●
440	04.302 BOLT; SUPPORT 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0101-	●
441	04.302 DOWEL; SUPPORT 4DOOR LONG(UE***F)	8-97049-712-0	02	1	9811-9904	●
441	04.302 DOWEL; SUPPORT 4DOOR LONG(UE***F)	8-97218-289-0	02	1	9905-0012	●
441	04.302 DOWEL; SUPPORT	8-97218-289-0	02	1	0101-	●
442	04.302 PIN; SHIFT FORK 4DOOR LONG(UE***F)	8-94377-424-1	01	1	9811-0012	●
442	04.302 PIN; SHIFT FORK	8-94377-424-1	01	1	0101-	●
443	04.302 PIN; SNAP,SHIFT FORK 4DOOR LONG(UE***F) 04.662 L=27.7 USA	1-09747-005-0	01	1	9811-0012	●
443	04.302 PIN; SNAP,SHIFT FORK 04.662 L=27.7 USA	1-09747-005-0	01	1	0101-	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9811-	●

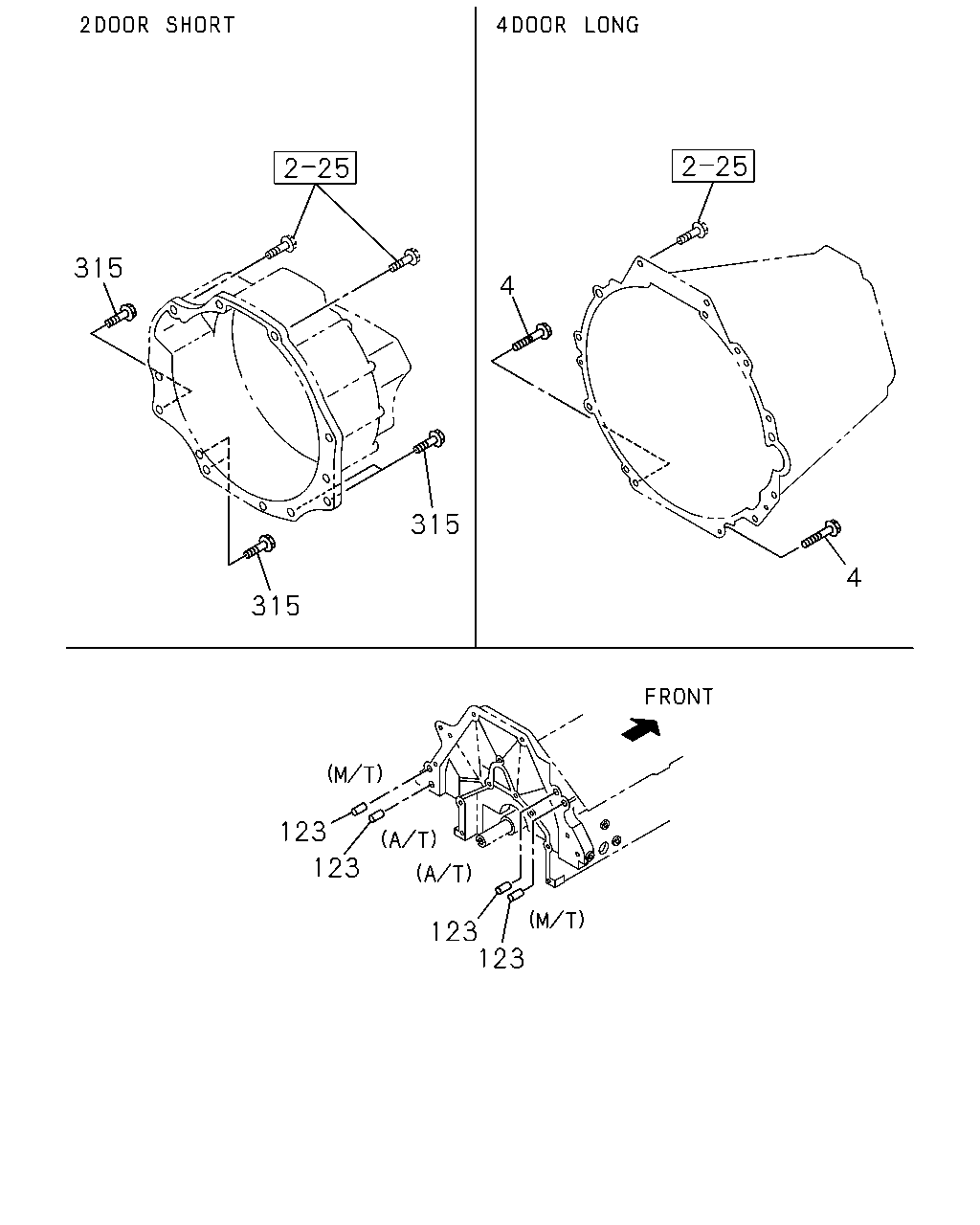

315 4 315 4 315 123 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.683 BOLT; FLYWHEEL HSG 4DOOR LONG(UE***F) 00.685 M12X45 FLANGE	0-28181-245-0	02	1	9811-0012	●
4	00.683 BOLT; FLYWHEEL HSG 00.685 M12X45 FLANGE	0-28181-245-0	02	1	0101-	●
123	00.206 DOWEL; TRANS CASE 4DOOR LONG(UE***F)	8-94325-506-1	02	1	9811-0012	●
123	00.206 DOWEL; TRANS CASE	8-94325-506-1	02	1	9811-0012		●
123	00.206 DOWEL; TRANS CASE	8-94325-506-1	02	1	0101-	●	●
315	04.104 BOLT; CASE 2DOOR SHORT(UE***C) 09.171 M10X45 FLANGE	0-28181-045-0	01	1	9811-0012	●
315	04.104 BOLT; CASE 2DOOR SHORT(UE***C) 03.330 M10X60 FLANGE	0-28181-060-0	02	1	9811-0012	●
315	04.104 BOLT; CASE 2DOOR SHORT(UE***C) 00.669 M10X40 FLANGE	0-28781-040-0	02	1	9811-0012	●

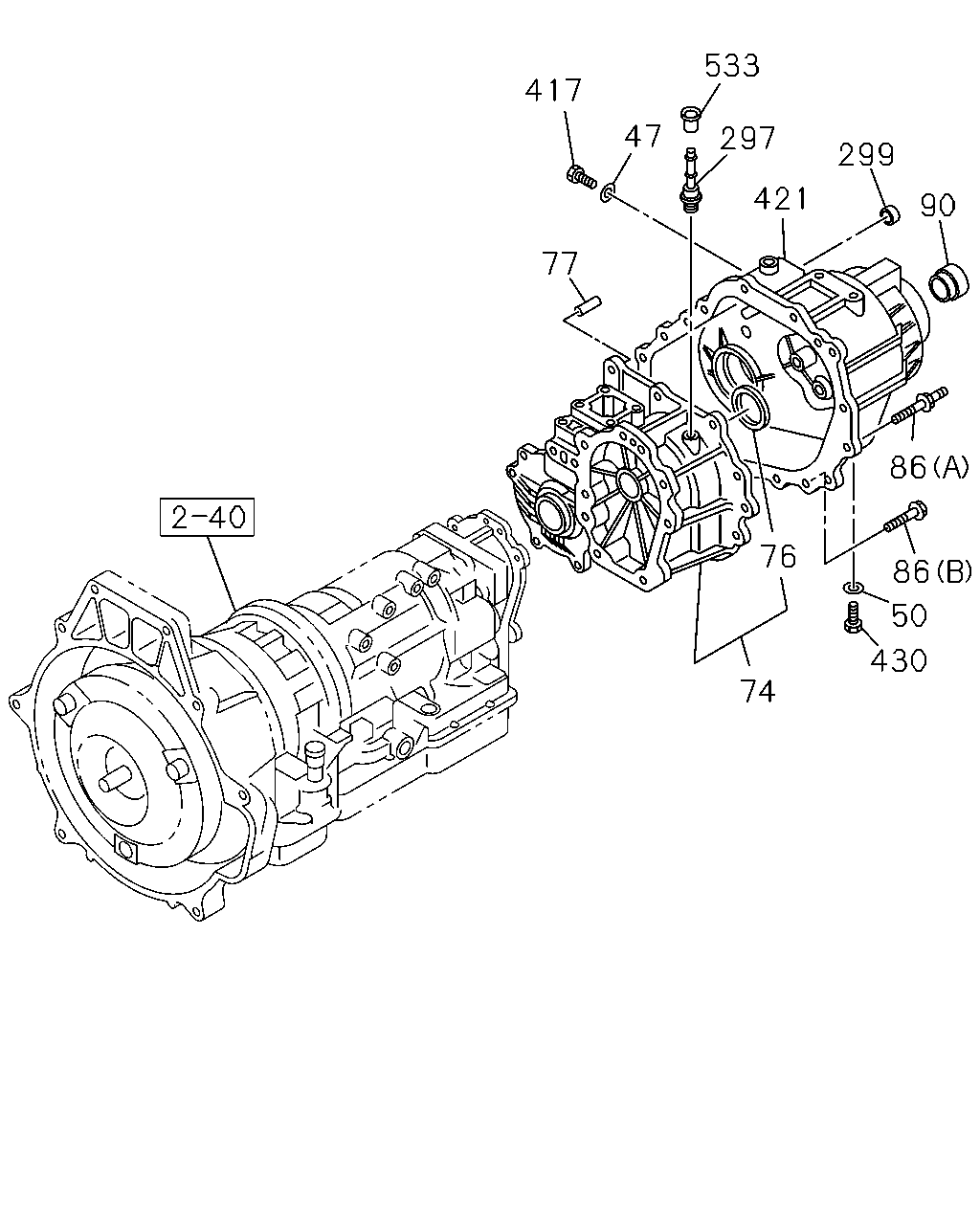

533 417 47 297 299 421 90 77 86 76 86 50 430 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9811-0012	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0101-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) 04.105 ID=17	8-97115-712-0	01	1	0101-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9811-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9811-0012		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) ID=17	8-97115-712-0	01	1	0101-		●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9811-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9811-0012		●
74	04.510 CASE ASM; TRANSFER EXC. TORQUE ON DEMAND(7HA)	8-97164-349-0	01	1	0101-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9811-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9811-0012		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0101-0108		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) TKK	8-97046-700-0	01	1	0109-		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-701-2	01	1	0109-		●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	9811-0012	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20 USA	8-97135-423-0	02	1	0101-	●
77	04.510 PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA) OD=10 L=20 USA	8-97135-423-0	02	1	0101-		●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	9811-0012	●	●
86	04.317 BOLT; RR COVER 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) 00.685 (B) M10X35 FLANGE	0-28081-035-0	09	1	0101-		●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9811-0012	●	●
86	04.317 BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-	●
86	04.317 BOLT; RR COVER EXC. TORQUE ON DEMAND(7HA) (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	0101-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9811-0010	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9811-0012	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-707-2	01	1	0101-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND(7HA) NOK	8-97046-707-2	01	1	0101-		●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9811-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9811-0012		●
297	04.104 BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND(7HA)	8-97173-541-1	01	1	0101-		●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	9811-0012	●	●
299	04.317 PLUG; SHIFTER ROD 04.309 OD=14	5-09609-004-0	02	1	0101-	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND(7HA) 04.309 OD=14	5-09609-004-0	02	1	0101-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	02	1	9811-	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	9811-0012		●
417	04.105 PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND(7HA) 08.971	8-94310-917-0	01	1	0101-		●
421	04.317 COVER; RR,TRANS	8-97126-772-1	01	1	9811-9903	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	9904-0012	●	●
421	04.317 COVER; RR,TRANS	8-97220-601-0	01	1	0101-	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND(7HA)	8-97220-601-0	01	1	0101-		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	02	1	9811-	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	9811-0012		●
430	04.105 PLUG; OIL DRAIN EXC. TORQUE ON DEMAND(7HA)	9-09662-004-0	01	1	0101-		●
533	04.104 CAP; AIR BREATHER	8-94362-237-0	01	1	9811-0012		●
533	04.104 CAP; AIR BREATHER EXC. TORQUE ON DEMAND(7HA)	8-94362-237-0	01	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
