7-10 — CAUTION PLATE AND LABEL (#4628) — 81 parça

181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> L TYPE ENG<90L> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85886-884-0	01	1	9905-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> L TYPE ENG<90L>	1-85886-796-1	01	1	9905-
181	PLATE; CAUTION,AIR CLEANER L TYPE ENG<90L> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85886-796-1	01	1	9905-

4 135 173 7 228 144 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE 6WA1 TC-C(55L)	1-85886-802-0	01	1	9811-9904
4	LABEL; ENG MAINTENANCE 6WA1 TC-N(54L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-85886-802-0	01	1	9905-
4	LABEL; ENG MAINTENANCE 6WA1 TC-S(56L)	1-85886-801-1	01	1	9603-9607
4	LABEL; ENG MAINTENANCE 6WA1 TC-S(56L) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85886-801-1	01	1	9608-9904
4	LABEL; ENG MAINTENANCE 6WA1 TC-R(93L)	1-85886-827-0	01	1	9905-
4	LABEL; ENG MAINTENANCE 6WA1 TC-S(56L) EURO2 SPECIFICATION<THN>	1-85886-840-0	01	1	9610-9904
4	LABEL; ENG MAINTENANCE 6WA1 TC-C(55L)	1-85886-840-0	01	1	9905-
4	LABEL; ENG MAINTENANCE 6WA1 TC-S(56L) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85886-827-0	01	1	9608-9904
4	LABEL; ENG MAINTENANCE 6WA1 TC-N(54L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-85886-828-0	01	1	9905-
7	LABEL; EMISSION 6WA1 TC-N(54L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9905-9905
7	LABEL; EMISSION 6WA1 TC-N(54L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9906-
7	LABEL; EMISSION 10PE1N(61L)	8-94391-418-0	01	1	9906-
48	PLATE; CAUTION,PTO DUMP CONTROL LEVER<RC4>	1-85881-254-0	01	1	9603-
135	PLATE; CAUTION,ENGINE 10PE1S(60L) TAIWAN EQUIPMENT(WW5)	1-85886-803-0	01	1	9603-9904
135	PLATE; CAUTION,ENGINE 10PE1N(61L)	1-85886-826-0	01	1	9905-
135	PLATE; CAUTION,ENGINE 10PE1S(60L) EXC. TAIWAN EQUIPMENT(WW5)	1-85886-804-0	01	1	9603-9904
135	PLATE; CAUTION,ENGINE 10PE1S(60L)	1-85886-804-0	01	1	9905-
144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S151 OD(Y2N)	1-85888-690-0	01	1	9603-9810
144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S151 OD(Y2N) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85888-690-0	01	1	9811-9904
144	PLATE; CAUTION,CLU TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85888-690-0	01	1	9905-
173	PLATE; CAUTION,FUEL FILTER 10PE1S(60L)	1-85886-176-0	01	1	9603-9904
173	PLATE; CAUTION,FUEL FILTER V TYPE ENG<91L>	1-85886-176-0	01	1	9905-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	9802-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	9603-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	9603-9801
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	9802-

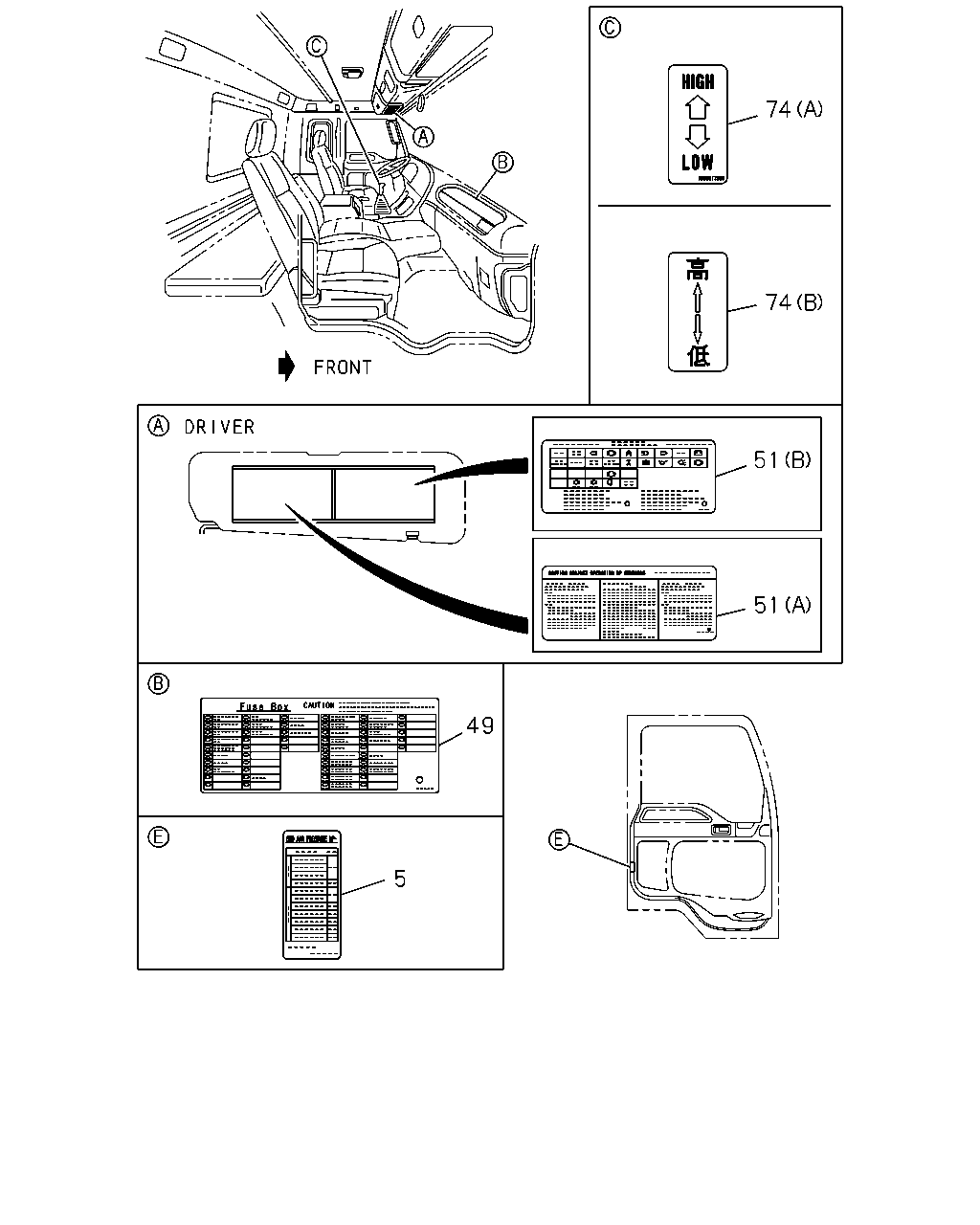

74 74 51 51 49 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE	1-85880-724-2	01	1	9603-0009
5	LABEL; TIRE AIR PRESSURE	1-85880-763-0	01	1	0010-0104
5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0105-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85877-808-0	01	1	9709-9904
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-071-2	01	1	9905-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85888-687-3	01	1	9603-9904
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-069-2	01	1	9905-
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85888-685-3	01	1	9603-9708
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85888-685-3	01	1	9709-9904
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85878-067-2	02	1	9905-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-691-2	01	1	9603-9904
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-070-2	01	1	9905-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-686-2	01	1	9603-9904
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-068-2	01	1	9905-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85877-809-0	01	1	9709-9904
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85878-075-0	01	1	9905-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-758-0	01	1	9709-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-727-0	01	1	9603-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-689-2	01	1	9603-9904
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-074-0	01	1	9905-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	9603-9708
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	9709-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-688-2	01	1	9603-9708
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B)	1-85888-688-2	01	1	9709-9904
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B)	1-85878-073-0	01	1	9905-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (B)	1-85880-726-0	01	1	9603-
74	PLATE; CAUTION,CHANGE LEV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ZF M/T<X9E> (B)	1-85881-666-2	01	1	9603-9904
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S151 OD(Y2N) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-85881-666-2	01	1	9905-
74	PLATE; CAUTION,CHANGE LEV ZF M/T<X9E> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-85881-736-1	01	1	9603-9904
74	PLATE; CAUTION,CHANGE LEV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-85881-736-1	01	1	9905-

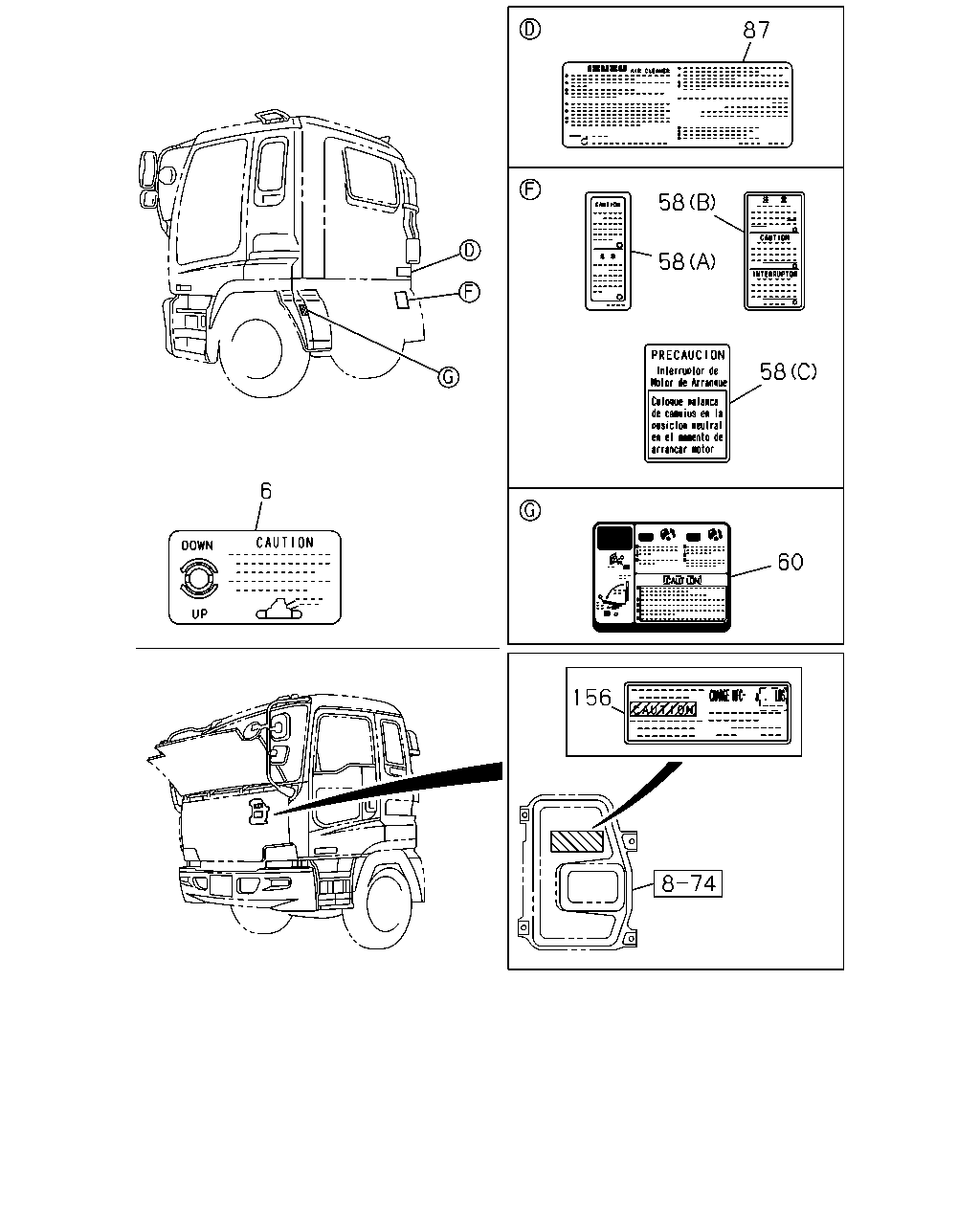

87 58 58 58 6 60 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	9709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	9603-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	9603-9708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	9709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	9603-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	1-53639-005-0	01	1	9603-
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	9709-
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (A)	1-85887-536-0	01	1	9603-
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	9603-9708
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	9709-
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	9603-
58	PLATE; CAUTION,ENG START CAUTIONS SPANISH<YN1> (C)	9-83999-419-0	01	1	9603-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	9709-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	9603-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	9603-9709
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	9710-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	9603-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	9603-
87	PLATE; CAUTION,A/C FILTER L TYPE ENG<90L>	1-85886-796-0	01	1	9603-9904
156	PLATE; CAUTION,A/C AIR CON MANUAL CONTROL(C60)	8-97105-399-0	01	1	9603-9711
156	PLATE; CAUTION,A/C AIR CON MANUAL CONTROL(C60) EXC. CAUTIONS ARABIAN<WJ7>	8-97105-399-0	01	1	9712-
156	PLATE; CAUTION,A/C AIR CON MANUAL CONTROL(C60) CAUTIONS ARABIAN<WJ7>	1-85877-872-0	01	1	9712-
