1-50 — EXHAUST PIPE AND SILENCER (#46276) — 77 parça

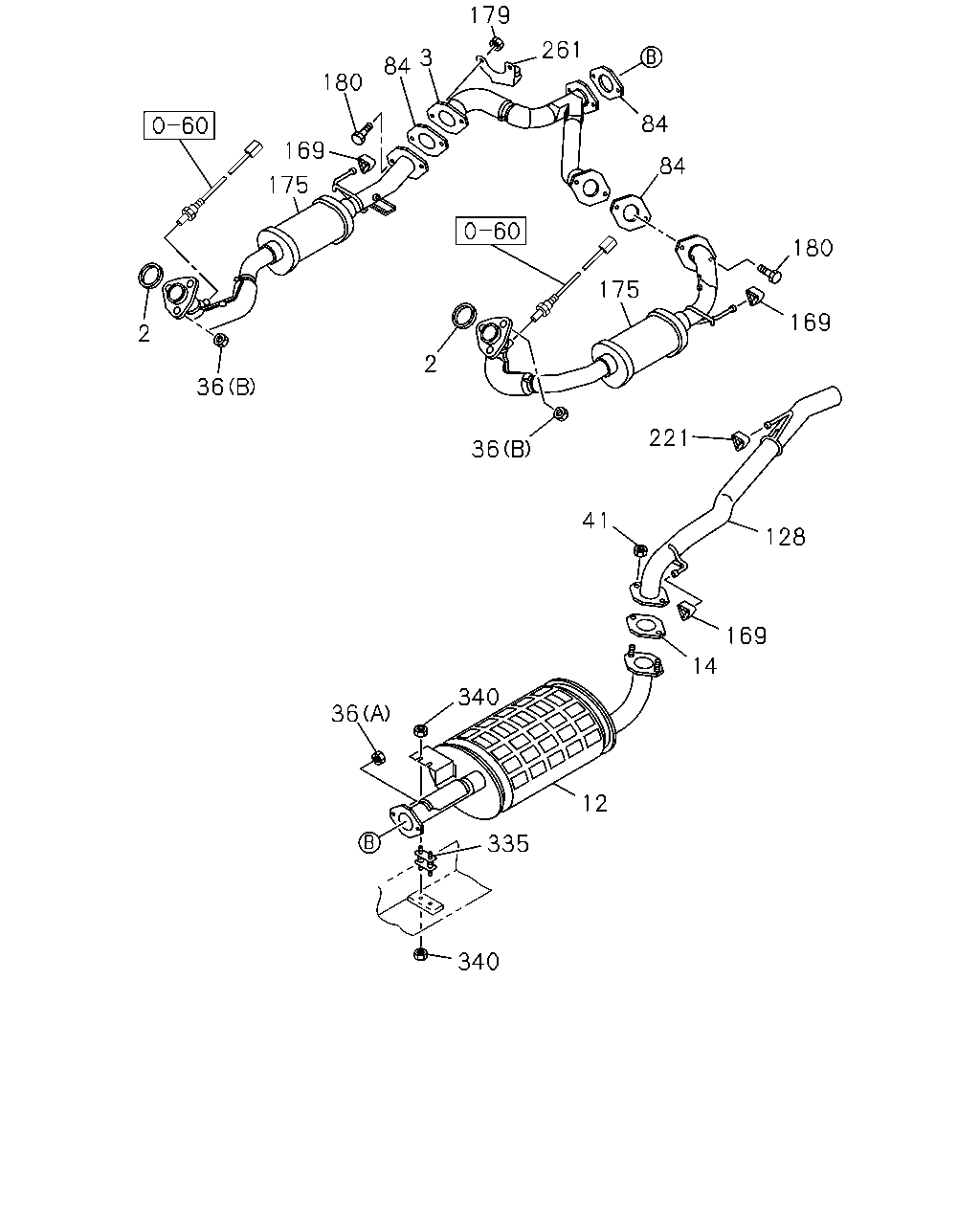

179 261 3 84 180 84 169 84 175 180 175 169 2 2 36 221 36 41 128 169 14 340 36 12 335 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.611 GASKET; PIPE TO MANIF THA	8-97166-290-1	01	1	9811-0012	●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9811-		●
3	03.609 PIPE; EXH,CENTER USA	8-97207-108-0	01	1	9811-0012		●
3	03.609 PIPE; EXH,CENTER USA	8-97207-971-0	01	1	0101-		●
12	03.701 SILENCER ASM; EXH USA	8-97140-700-3	01	1	9811-0006	●
12	03.701 SILENCER ASM; EXH USA	8-97300-244-0	01	1	0007-0012	●
12	03.701 SILENCER ASM; EXH USA	8-97207-110-0	01	1	9811-0012		●
12	03.701 SILENCER ASM; EXH USA	8-97207-973-1	01	1	0101-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65 USA	8-97148-757-1	01	1	9811-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65 USA	8-97148-757-1	01	1	0101-		●
36	03.613 NUT; EXH PIPE M8 FLANGE THA	8-97061-401-1	04	1	9811-0012	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE USA	0-91150-110-0	02	1	9811-		●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE THA	8-97170-524-1	06	1	9811-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE USA	0-91150-110-0	02	1	9811-0003	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 03.613 M10 USA	8-94201-308-1	02	1	0004-0012	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 03.613 M10 USA	8-94201-308-1	02	1	0101-		●
84	03.611 GASKET; EXH PIPE ID=65 USA	8-97148-757-1	01	1	9811-0012	●
84	03.611 GASKET; EXH PIPE ID=65 USA	8-97148-757-1	03	1	9811-		●
128	03.609 PIPE; EXH,RR USA	8-97140-705-0	01	1	9811-0012	●
128	03.609 PIPE; EXH,RR USA	8-97140-704-1	01	1	9811-0012		●
128	03.609 PIPE; EXH,RR USA	8-97207-975-0	01	1	0101-		●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	9811-0012	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	9811-0012	●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	0101-		●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	02	1	9811-		●
175	03.685 CONVERTER; CATALYST USA	8-97190-840-1	01	1	9811-0012		●
175	03.685 CONVERTER; CATALYST USA	8-97223-022-0	01	1	0101-		●
175	03.685 CONVERTER; CATALYST USA	8-97190-839-1	01	1	9811-0012		●
175	03.685 CONVERTER; CATALYST USA	8-97246-719-0	01	1	0101-		●
179	03.611 NUT; CONV TO PIPE 04.785 M10 FLANGE USA	0-91150-110-0	02	1	9811-0012		●
179	03.611 NUT; CONV TO PIPE 04.785 M10 FLANGE USA	0-91150-110-0	02	1	0101-		●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	02	1	9811-0012	●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9811-0012		●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0101-		●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97120-442-0	01	1	9811-0012	●	●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97120-442-0	01	1	0101-		●
261	03.616 DAMPER; MASS,EXH USA	8-97210-805-0	01	1	9811-9910		●
261	03.616 DAMPER; MASS,EXH USA	8-97250-184-0	01	1	9911-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9811-0012	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	0101-		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE USA	0-91150-108-0	04	1	9811-0012	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE USA	0-91150-108-0	04	1	0101-		●

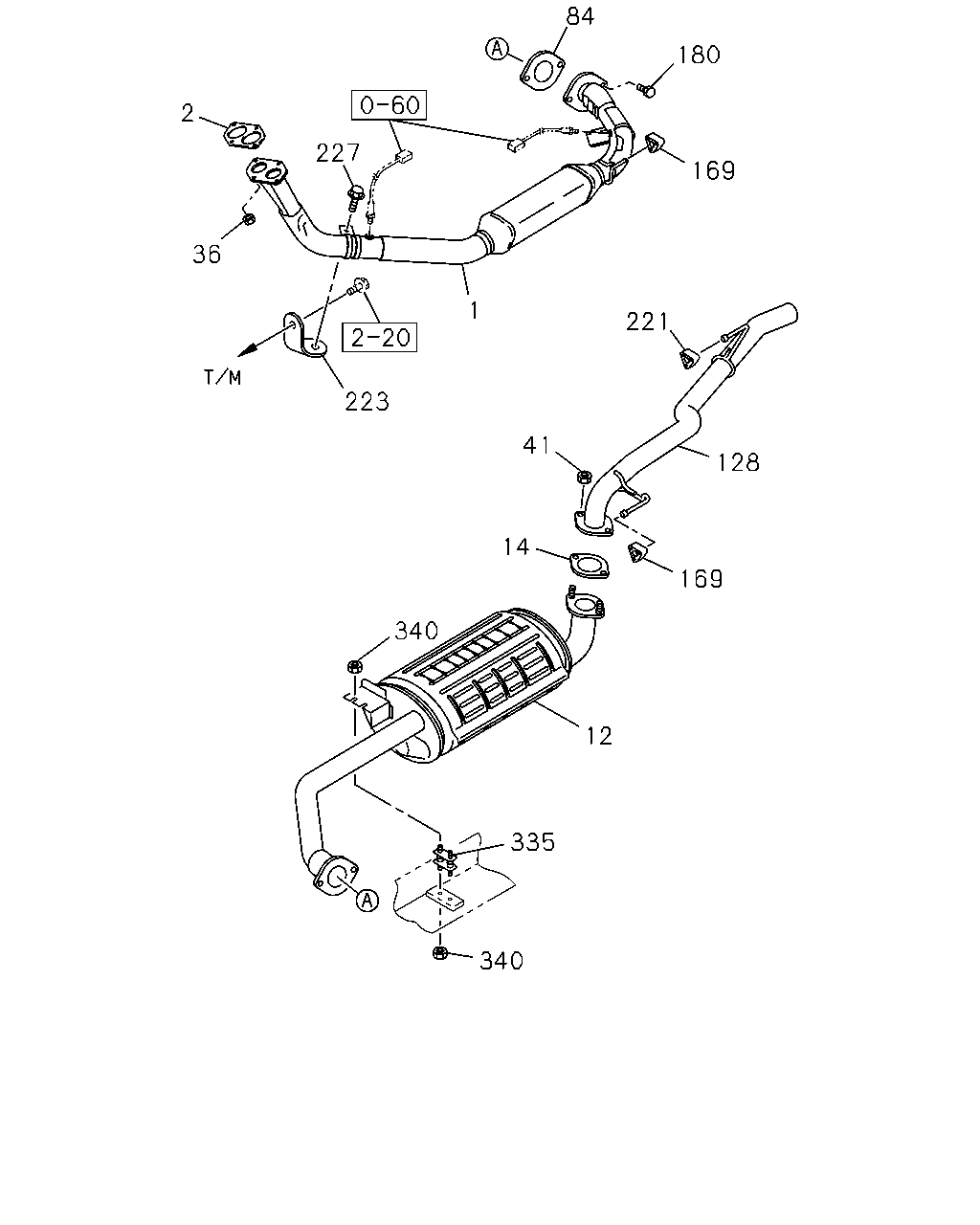

84 180 2 227 169 36 1 221 223 41 128 14 169 340 12 335 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH USA	8-97184-630-0	01	1	9811-0012	●
2	03.611 GASKET; PIPE TO MANIF THA	8-97166-290-1	01	1	9811-0012	●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9811-		●
12	03.701 SILENCER ASM; EXH USA	8-97140-700-3	01	1	9811-0006	●
12	03.701 SILENCER ASM; EXH USA	8-97300-244-0	01	1	0007-0012	●
12	03.701 SILENCER ASM; EXH USA	8-97207-110-0	01	1	9811-0012		●
12	03.701 SILENCER ASM; EXH USA	8-97207-973-1	01	1	0101-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65 USA	8-97148-757-1	01	1	9811-0012	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65 USA	8-97148-757-1	01	1	0101-		●
36	03.613 NUT; EXH PIPE M8 FLANGE THA	8-97061-401-1	04	1	9811-0012	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE USA	0-91150-110-0	02	1	9811-		●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE THA	8-97170-524-1	06	1	9811-		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE USA	0-91150-110-0	02	1	9811-0003	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 03.613 M10 USA	8-94201-308-1	02	1	0004-0012	●	●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 03.613 M10 USA	8-94201-308-1	02	1	0101-		●
84	03.611 GASKET; EXH PIPE ID=65 USA	8-97148-757-1	01	1	9811-0012	●
84	03.611 GASKET; EXH PIPE ID=65 USA	8-97148-757-1	03	1	9811-		●
128	03.609 PIPE; EXH,RR USA	8-97140-705-0	01	1	9811-0012	●
128	03.609 PIPE; EXH,RR USA	8-97140-704-1	01	1	9811-0012		●
128	03.609 PIPE; EXH,RR USA	8-97207-975-0	01	1	0101-		●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	9811-0012	●	●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	9811-0012	●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	01	1	0101-		●
169	03.706 RING; DAMPER,EXH PIPE	8-97120-442-0	02	1	9811-		●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	02	1	9811-0012	●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9811-0012		●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0101-		●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97120-442-0	01	1	9811-0012	●	●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97120-442-0	01	1	0101-		●
223	03.706 BRACKET; EXH PIPE	8-97184-839-0	01	1	9811-0012	●
227	03.706 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9811-0012	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9811-0012	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	0101-		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE USA	0-91150-108-0	04	1	9811-0012	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE USA	0-91150-108-0	04	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
