◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#46275) — 215 parça
çizim 5090
15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 03.162 CLIP; FUEL PIPE
(A) USA 		8-97125-117-0 02 1 9811-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(A) USA 		8-97125-117-0 02 1 0101- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0011-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0101-0108 ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0109- ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0011-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0101-0108 ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0109- ●

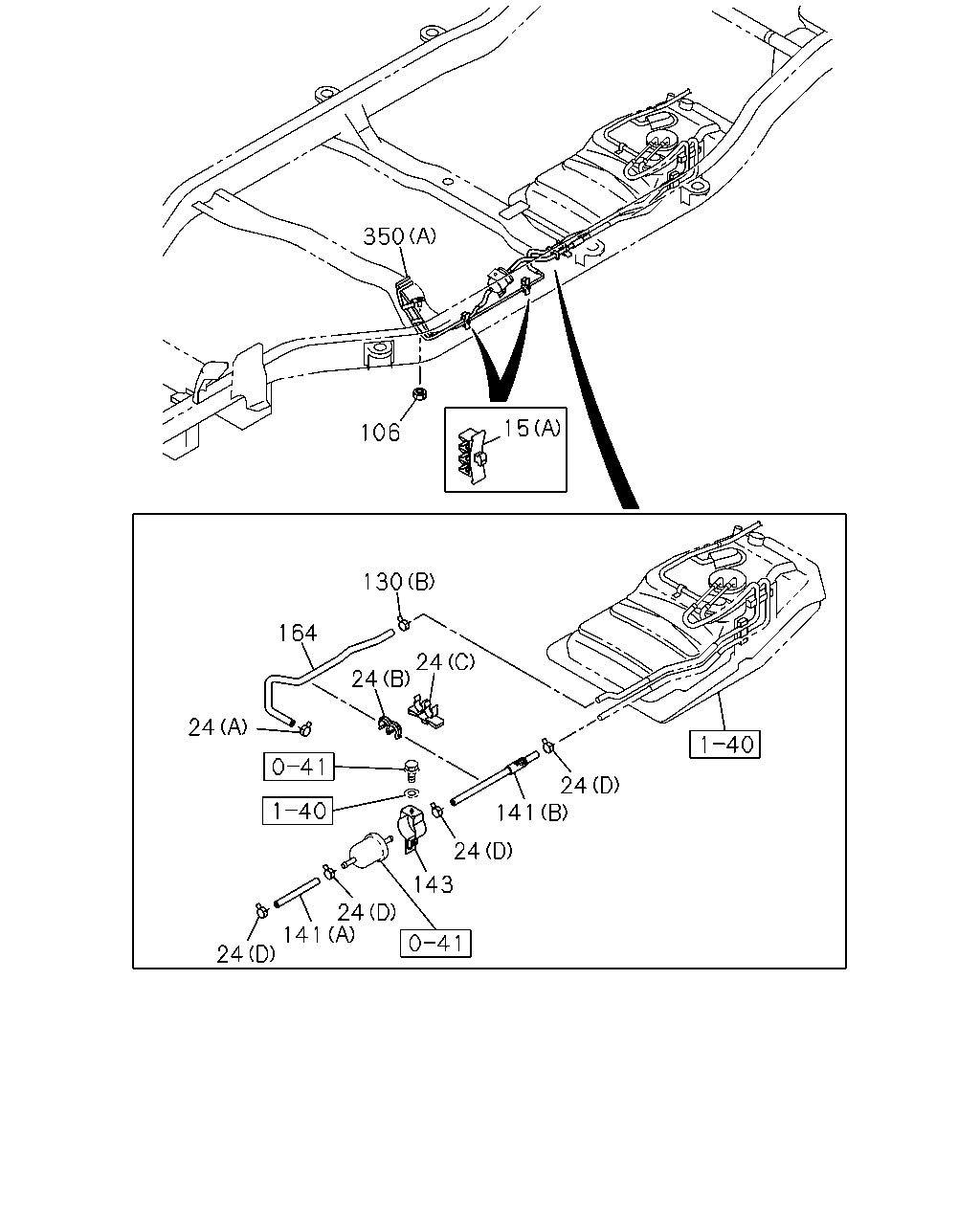

çizim 36462
350 15 106 130 164 24 24 24 24 141 24 143 24 141 24
BalonParca AdiParca NoAdetTipApplied Date A B
15 03.162 CLIP; FUEL PIPE
(A) USA 		8-97125-117-0 02 1 9811-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(A) USA 		8-97125-117-0 02 1 0101- ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0011-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0101-0108 ●
15 03.162 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0109- ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0011-0012 ● ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0101-0108 ●
15 03.162 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0109- ●
24 03.162 CLIP; FUEL HOSE
01.219 (A) ID=13 		8-94238-571-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0101-0108 ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0109- ●
24 03.162 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(D) ID=12 USA 		8-97148-892-0 04 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(D) ID=12 USA 		8-97148-892-1 04 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(B) USA 		8-97173-119-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(B) USA 		8-97173-119-0 01 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0004-0012 ●
24 03.162 CLIP; FUEL HOSE
01.219 (A) ID=13 		8-94238-571-0 01 1 0101- ●
106 03.162 NUT; FUEL PIPE
07.833 M6 FLANGE 		8-97063-399-0 01 1 9811-0012 ● ●
106 03.162 NUT; FUEL PIPE
07.833 M6 FLANGE 		8-97063-399-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-0 03 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-1 03 1 0101- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
03.901 (A) L=150 SERVICED BY L=3000 		0-01458-300-0 01 1 9811-0012 ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
03.901 (A) L=150 SERVICED BY L=3000 		0-01458-300-0 01 1 0101- ●
141 03.163 HOSE; FUEL FILTER TO PIPE
(B) USA 		8-97164-527-0 01 1 9811-9911 ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
(B) USA 		8-97225-613-0 01 1 9912-0012 ● ●
141 03.163 HOSE; FUEL FILTER TO PIPE
(B) USA 		8-97225-613-1 01 1 0101- ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9811-0012 ● ●
143 03.162 CLAMP; FUEL FILTER 8-97049-810-1 01 1 0101- ●
164 03.163 HOSE; RUBBER,FUEL RETURN
USA 		8-97130-562-2 01 1 9811-0012 ● ●
164 03.163 HOSE; RUBBER,FUEL RETURN
USA 		8-97130-562-2 01 1 0101- ●
350 03.163 PIPE; FUEL,DEL & RET
(C) USA 		8-97136-253-2 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97136-253-2 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
(C) USA 		8-97287-311-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97287-311-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97287-311-1 01 1 0101- ●
350 03.163 PIPE; FUEL,DEL & RET
(A) USA 		8-97139-257-1 01 1 9811-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) USA 		8-97139-257-1 01 1 9811-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) USA 		8-97139-257-1 01 1 0101- ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (A) USA 		8-97139-258-1 01 1 9811-0112 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (A) USA 		8-97330-004-0 01 1 0201- ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97210-830-0 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97287-309-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97287-637-0 01 1 0101-0101 ●

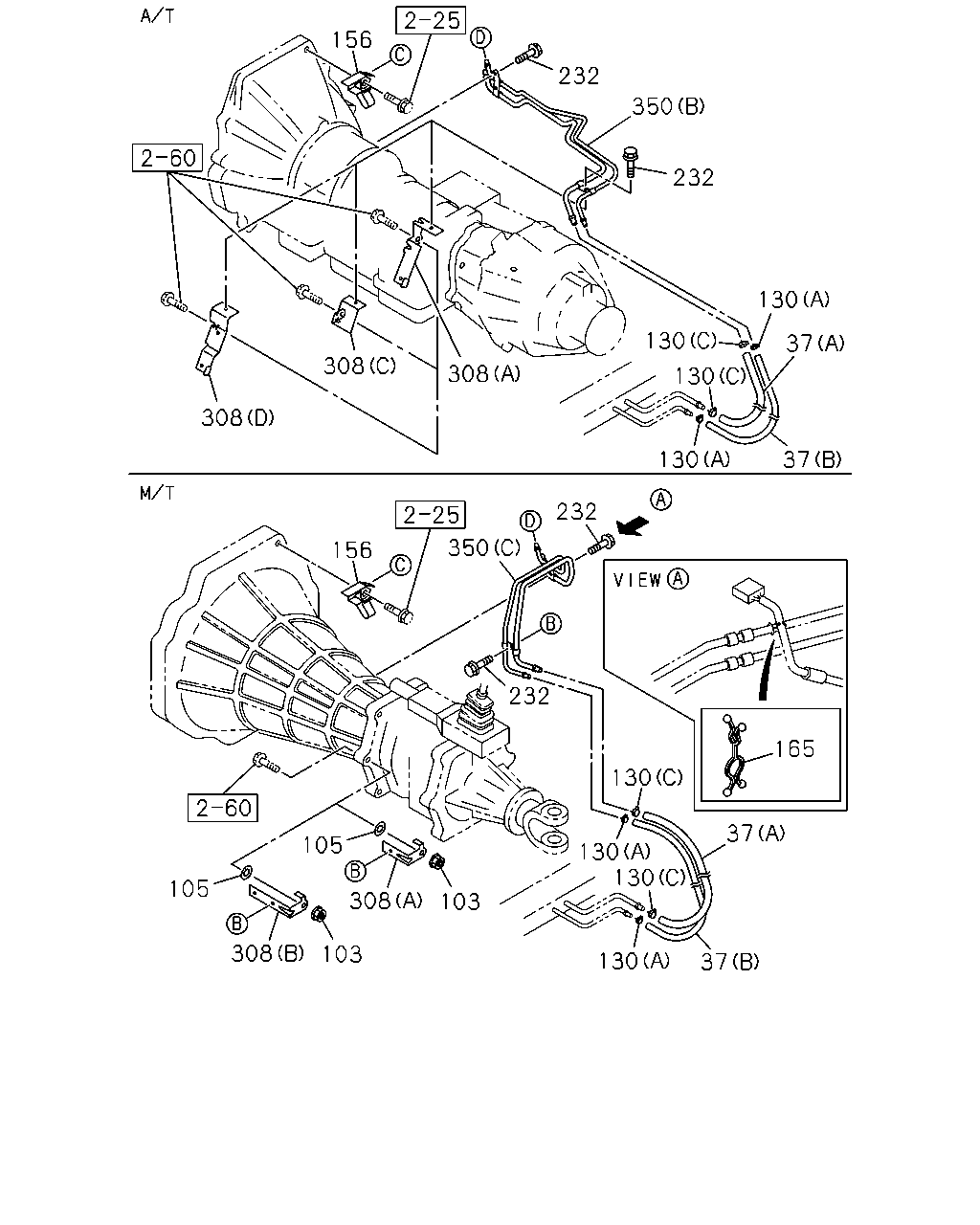

çizim 36664
156 232 350 232 130 130 37 308 308 130 308 130 37 232 350 156 232 165 130 37 105 130 130 105 308 103 308 103 130 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 03.163 HOSE; RUBBER DELIVERY
(A) USA 		8-97165-094-1 01 1 9811-0012 ● ●
37 03.163 HOSE; RUBBER DELIVERY
(A) USA 		8-97165-094-1 01 1 0101-0108 ●
37 03.163 HOSE; RUBBER DELIVERY
(A) USA 		8-97165-094-1 01 1 0109- ●
37 03.163 HOSE; RUBBER DELIVERY
(B) USA 		8-97165-096-1 01 1 9811-0012 ● ●
37 03.163 HOSE; RUBBER DELIVERY
(B) USA 		8-97165-096-1 01 1 0101-0108 ●
37 03.163 HOSE; RUBBER DELIVERY
(B) USA 		8-97165-096-1 01 1 0109- ●
103 03.130 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0108 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 06.168 M10 FLANGE USA 		8-94242-425-0 01 1 0109- ●
103 03.130 NUT; BRKT
07.633 M8 FLANGE USA 		0-91150-108-0 01 1 9811-0012 ● ●
103 03.130 NUT; BRKT
07.633 M8 FLANGE USA 		0-91150-108-0 01 1 0101- ●
105 03.130 WASHER; PL,BRKT
06.896 ID=10.5 		9-09164-510-0 01 1 9811-0012 ●
105 03.130 WASHER; PL,BRKT
M/T MUA 5 SPEED(RMN) 06.896 ID=10.5 		9-09164-510-0 01 1 9811-0012 ●
105 03.130 WASHER; PL,BRKT
M/T MUA 5 SPEED(RMN) 06.896 ID=10.5 		9-09164-510-0 01 1 0101-0108 ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-0 03 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-1 03 1 0101- ●
156 03.162 BRACKET; FUEL HOSE 8-97258-214-0 01 1 0005-0012 ●
156 03.162 BRACKET; FUEL HOSE
A/T THM 4 SPEED(RMQ) USA 		8-97166-671-0 01 1 9811-0003 ●
156 03.162 BRACKET; FUEL HOSE
A/T THM 4 SPEED(RMQ) 		8-97231-352-0 01 1 0004- ●
156 03.162 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) USA 		8-97166-672-0 01 1 9811-0003 ●
156 03.162 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) 		8-97231-353-0 01 1 0004- ●
165 03.162 CLIP; FUEL HOSE
M/T MUA 5 SPEED(RMN) USA 		8-97174-301-0 01 1 9811-0011 ●
165 03.162 CLIP; FUEL HOSE 8-97029-257-0 01 1 0012-0012 ●
165 03.162 CLIP; FUEL HOSE 8-97029-257-0 01 1 0011- ●
232 03.162 BOLT; CLIP,PIPE
01.428 M6X12 FLANGE USA 		0-28080-612-0 01 1 9811-0012 ●
232 03.162 BOLT; CLIP,PIPE
04.439 M6X16 FLANGE USA 		0-28680-616-0 01 1 9811-0012 ●
232 03.162 BOLT; CLIP,PIPE
04.439 M6X16 FLANGE USA 		0-28680-616-0 02 1 9811- ●
308 03.162 BRACKET; FUEL PIPE
(B) USA 		8-97192-086-0 01 1 9811-0012 ●
308 03.162 BRACKET; FUEL PIPE
A/T THM 4 SPEED(RMQ) (A) 		8-97210-829-1 01 1 9811-0003 ●
308 03.162 BRACKET; FUEL PIPE
A/T THM 4 SPEED(RMQ) (C) USA 		8-97240-243-0 01 1 0004-0012 ●
308 03.162 BRACKET; FUEL PIPE
A/T THM 4 SPEED(RMQ) (D) 		8-97219-313-1 01 1 0101- ●
308 03.162 BRACKET; FUEL PIPE
M/T MUA 5 SPEED(RMN) (A) USA 		8-97130-553-0 01 1 9811- ●
350 03.163 PIPE; FUEL,DEL & RET
(C) USA 		8-97136-253-2 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97136-253-2 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
(C) USA 		8-97287-311-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97287-311-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (C) USA 		8-97287-311-1 01 1 0101- ●
350 03.163 PIPE; FUEL,DEL & RET
(A) USA 		8-97139-257-1 01 1 9811-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) USA 		8-97139-257-1 01 1 9811-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) USA 		8-97139-257-1 01 1 0101- ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (A) USA 		8-97139-258-1 01 1 9811-0112 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (A) USA 		8-97330-004-0 01 1 0201- ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97210-830-0 01 1 9811-0010 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97287-309-0 01 1 0011-0012 ●
350 03.163 PIPE; FUEL,DEL & RET
A/T THM 4 SPEED(RMQ) (B) USA 		8-97287-637-0 01 1 0101-0101 ●

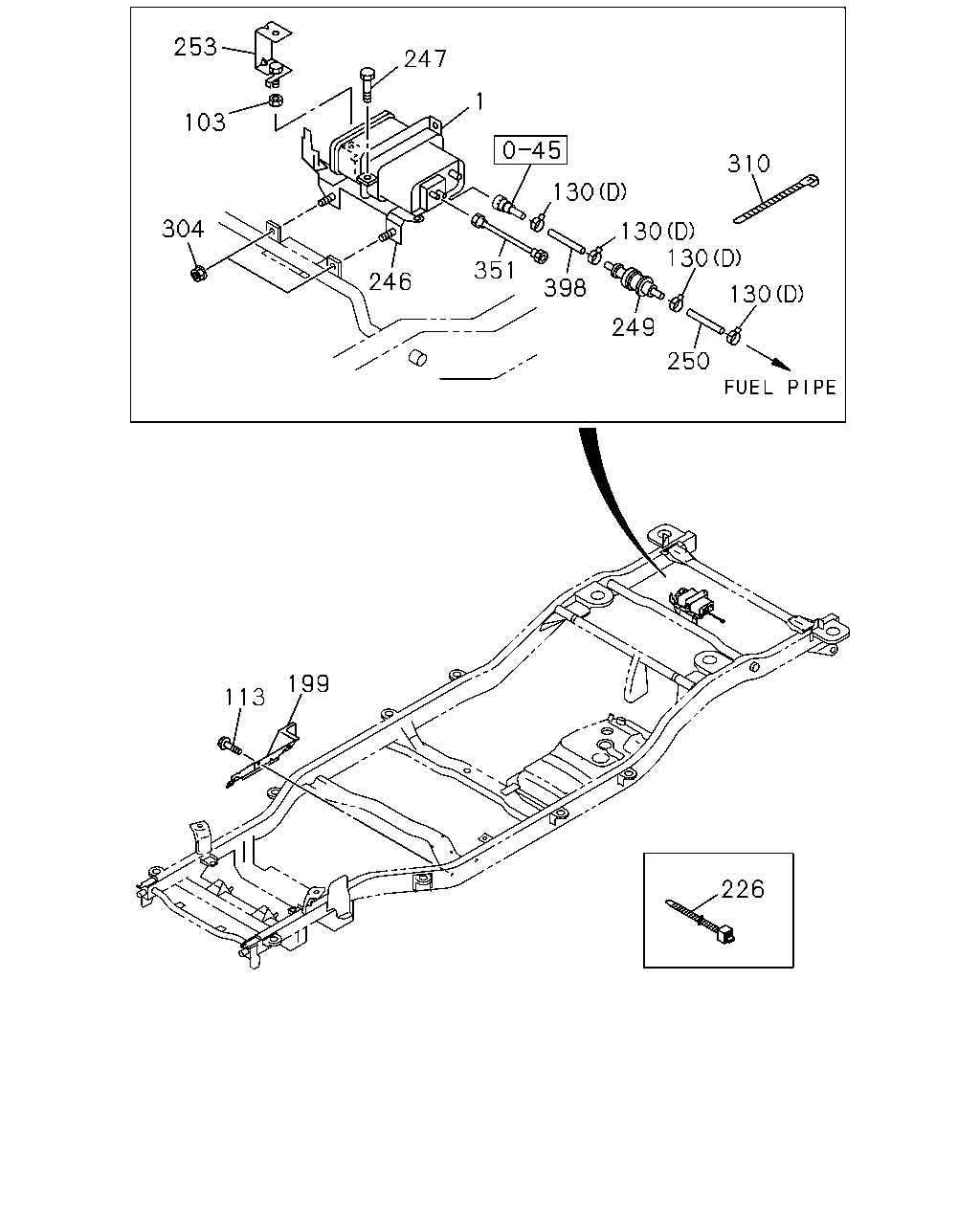

çizim 36692
253 247 1 103 310 130 304 130 130 351 246 398 130 249 250 199 113 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.130 CANISTER; FUEL
USA 		8-17097-118-0 01 1 9811-0012 ● ●
1 03.130 CANISTER; FUEL
USA 		8-17097-118-0 01 1 0101- ●
103 03.130 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 08.917 M10 FLANGE 		0-91150-210-0 01 1 9811-0012 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0101-0108 ●
103 03.130 NUT; BRKT
M/T MUA 5 SPEED(RMN) 06.168 M10 FLANGE USA 		8-94242-425-0 01 1 0109- ●
103 03.130 NUT; BRKT
07.633 M8 FLANGE USA 		0-91150-108-0 01 1 9811-0012 ● ●
103 03.130 NUT; BRKT
07.633 M8 FLANGE USA 		0-91150-108-0 01 1 0101- ●
113 03.162 BOLT; PROTECTOR
01.203 M8X25 		8-97091-076-0 03 1 9811-0012 ● ●
113 03.162 BOLT; PROTECTOR
01.203 M8X25 		8-97091-076-0 03 1 0101-0211 ●
113 03.162 BOLT; PROTECTOR
M8X25 		8-97327-634-0 03 1 0212- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-0 03 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-1 03 1 0101- ●
199 03.162 PROTECTOR; FUEL PIPE
USA 		8-97166-881-2 01 1 9811-0012 ● ●
199 03.162 PROTECTOR; FUEL PIPE
USA 		8-97166-881-2 01 1 0101- ●
226 03.890 CLIP; BAND
03.008 L=330 		5-09709-118-0 01 1 9811-0012 ●
226 03.890 CLIP; BAND
03.008 L=330 		5-09709-118-0 01 1 0101- ●
246 03.130 BRACKET; CANISTER
USA 		8-97130-941-2 01 1 9811-0012 ● ●
246 03.130 BRACKET; CANISTER
USA 		8-97130-941-2 01 1 0101- ●
247 03.130 BOLT; CANISTER BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 01 1 9811-0012 ● ●
247 03.130 BOLT; CANISTER BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 01 1 0101- ●
249 03.120 VALVE; CONT,EVAP
03.162 		8-97076-391-0 01 1 9811-0012 ● ●
249 03.120 VALVE; CONT,EVAP
03.162 		8-97076-391-0 01 1 0101- ●
250 03.163 HOSE; RUBBER
08.962 L=80 SERVICED BY L=3000 		0-04750-300-0 01 1 9811-0012 ● ●
250 03.163 HOSE; RUBBER
08.962 L=80 SERVICED BY L=3000 		0-04750-300-0 01 1 0101- ●
253 03.145 BRACKET; HOSE,CANISTER 8-97175-854-0 01 1 9811-0012 ● ●
253 03.145 BRACKET; HOSE,CANISTER 8-97175-854-0 01 1 0101- ●
304 03.130 NUT; BRKT
02.525 M12 		8-94400-927-0 02 1 9811-0012 ● ●
304 03.130 NUT; BRKT
02.525 M12 		8-94400-927-0 02 1 0101- ●
310 03.162 CLIP; CONT VLV
03.008 L=330 		5-09709-118-0 01 1 9811-0012 ● ●
351 03.163 TUBE; PURGE,CANISTER
03.145 USA 		8-97130-889-0 01 1 9811-0012 ● ●
351 03.163 TUBE; PURGE,CANISTER
03.145 USA 		8-97130-889-0 01 1 0101- ●
398 03.163 HOSE; RUBBER,PIPE TO VLV
08.962 L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 9811-0012 ● ●
398 03.163 HOSE; RUBBER,PIPE TO VLV
08.962 L=100 SERVICED BY L=3000 		0-04750-300-0 01 1 0101- ●

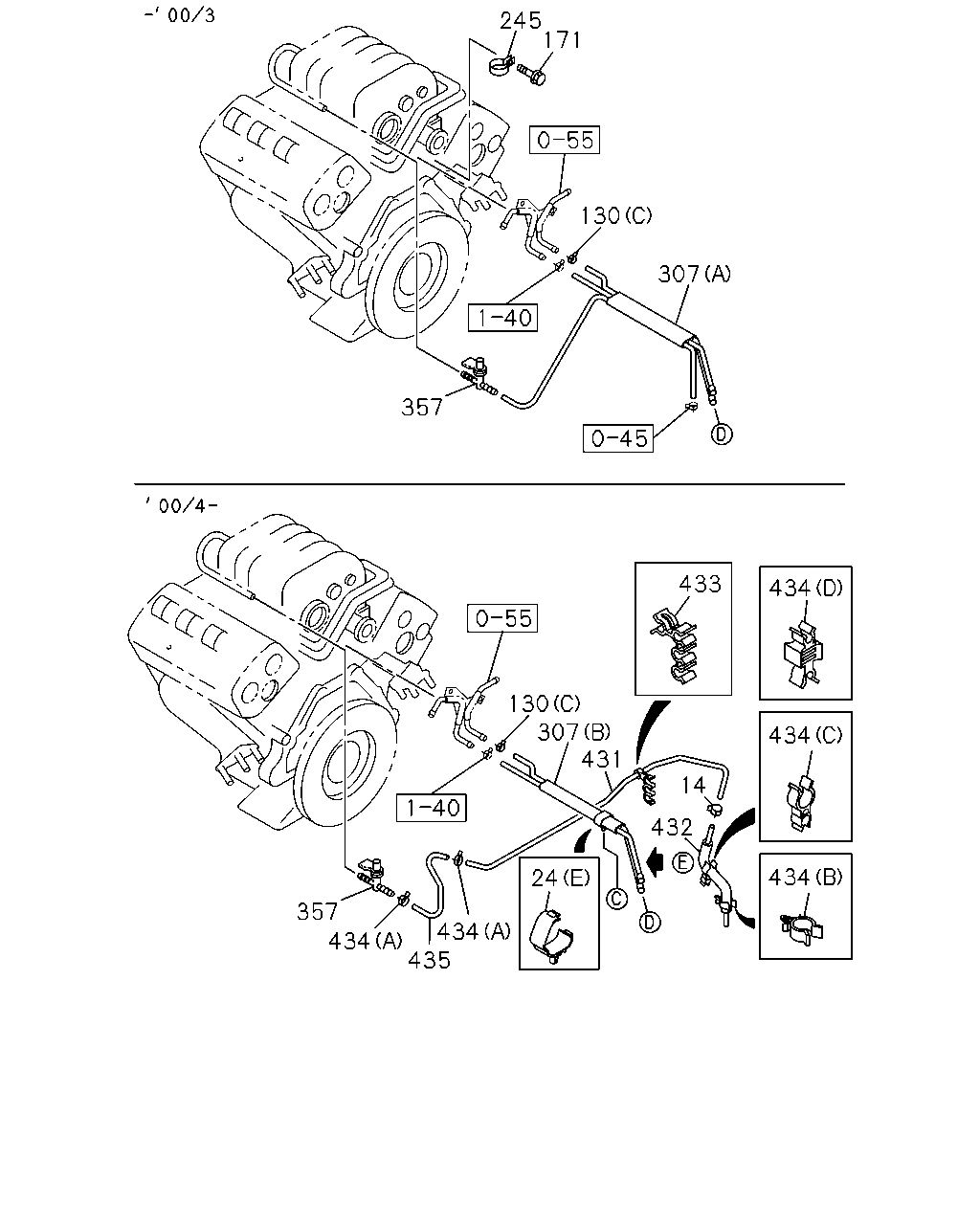

çizim 36783
245 171 130 307 357 433 434 130 307 431 434 14 432 434 24 357 434 435 434
BalonParca AdiParca NoAdetTipApplied Date A B
14 03.162 CLIP; HOSE
03.163 ID=11 USA 		8-94238-570-0 01 1 0004- ●
24 03.162 CLIP; FUEL HOSE
01.219 (A) ID=13 		8-94238-571-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0101-0108 ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0109- ●
24 03.162 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(D) ID=12 USA 		8-97148-892-0 04 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(D) ID=12 USA 		8-97148-892-1 04 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(B) USA 		8-97173-119-0 01 1 9811-0012 ● ●
24 03.162 CLIP; FUEL HOSE
(B) USA 		8-97173-119-0 01 1 0101- ●
24 03.162 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0004-0012 ●
24 03.162 CLIP; FUEL HOSE
01.219 (A) ID=13 		8-94238-571-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-0 03 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-1 03 1 0101- ●
171 03.162 BOLT; CLIP
02.664 M8X20 FLANGE USA 		0-28680-820-0 01 1 9811-0003 ●
245 03.162 CLIP; EVAP HOSE
01.516 ID=13 L=20 		9-09525-235-0 01 1 9811-0003 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(C) USA 		8-97135-818-3 01 1 9811-0012 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (A) USA 		8-97210-831-1 01 1 9811-0003 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (B) USA 		8-97233-141-1 01 1 0004-0012 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (B) USA 		8-97247-113-0 01 1 0101- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) (A) USA 		8-97135-820-3 01 1 9811-0003 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) (B) USA 		8-97233-142-1 01 1 0004- ●
357 03.130 VALVE; CHECK,EVAPORATOR
USA 		8-97126-016-0 01 1 9811- ●
431 03.163 PIPE; PURGE,ENG ROOM
USA 		8-97231-343-1 01 1 0004- ●
432 03.163 HOSE; PURGE,PIPE TO PIPE
USA 		8-97231-475-3 01 1 0004- ●
433 03.162 CLIP; PURGE PIPE
04.686 ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0004-0012 ●
433 03.162 CLIP; PURGE PIPE
04.686 ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 0101- ●
434 03.162 CLIP; PURGE HOSE
03.163 (A) ID=11 USA 		8-94238-570-0 02 1 0004- ●
434 03.162 CLIP; PURGE HOSE
02.183 (D) ID=6 & 4.8 THA 		8-94313-325-0 01 1 0004- ●
434 03.162 CLIP; PURGE HOSE
06.672 (B) ID=17 THA 		8-94382-792-1 01 1 0004- ●
434 03.162 CLIP; PURGE HOSE
02.183 (C) ID=16.5 & 4.8 		8-94415-087-0 01 1 0004- ●
435 03.163 HOSE; RUBBER,EVAPO & VACUUM
L=255 		8-97230-433-0 01 1 0004- ●

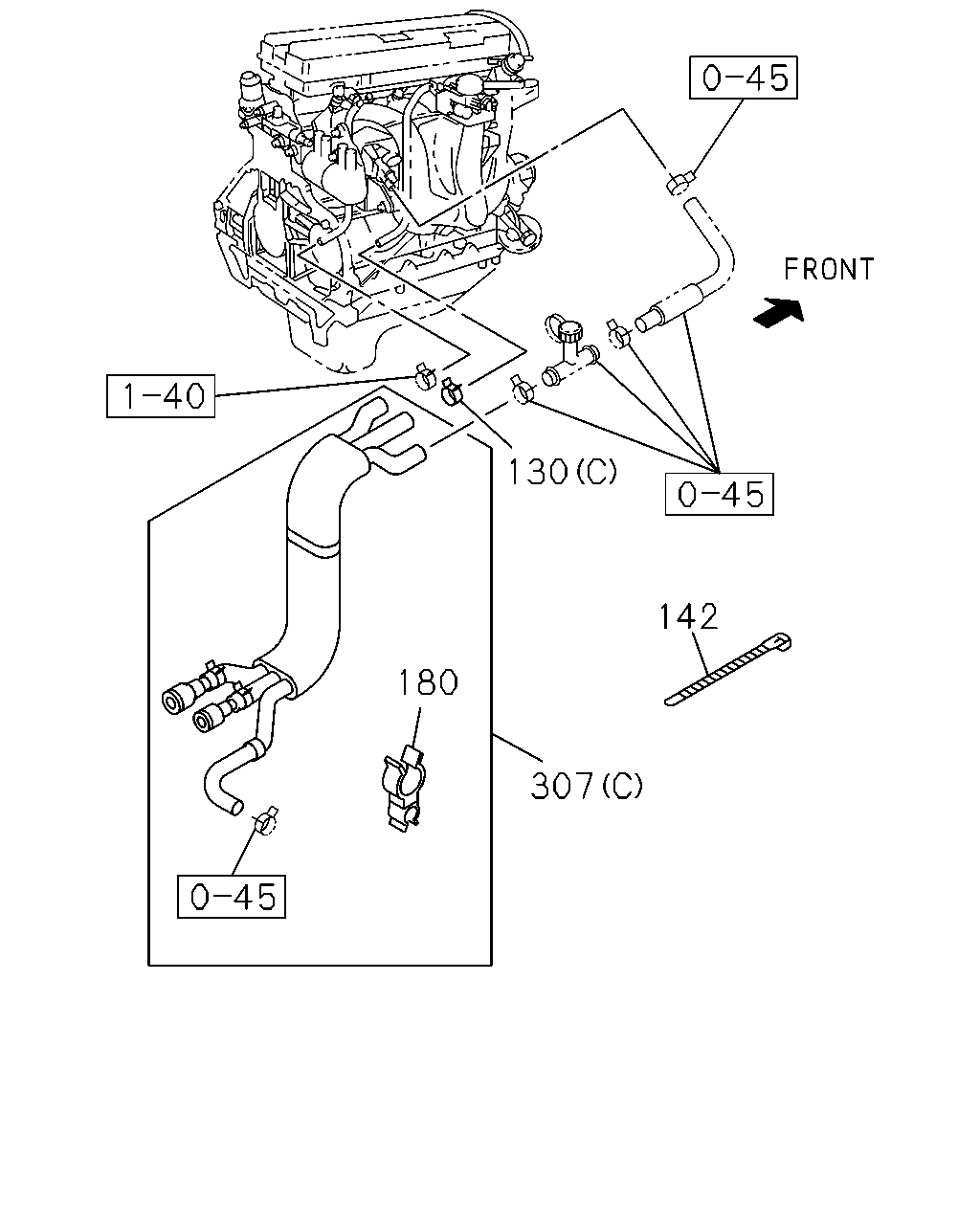

çizim 37071
130 142 180 307
BalonParca AdiParca NoAdetTipApplied Date A B
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
03.163 (D) ID=11 USA 		8-94238-570-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
01.166 (B) ID=14 		8-94238-572-0 01 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 0101- ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-0 03 1 9811-0012 ● ●
130 03.162 CLIP; RUBBER HOSE
(C) ID=12 USA 		8-97148-892-1 03 1 0101- ●
142 03.162 CLIP; BAND,FUEL HOSE
02.559 L=250 		5-09707-030-1 01 1 9811-0012 ●
180 03.162 CLIP; DELIVERY & RETURN
02.559 ID=10 & 11 USA 		8-94438-996-0 01 1 9811-0012 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
(C) USA 		8-97135-818-3 01 1 9811-0012 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (A) USA 		8-97210-831-1 01 1 9811-0003 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (B) USA 		8-97233-141-1 01 1 0004-0012 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM 4 SPEED(RMQ) (B) USA 		8-97247-113-0 01 1 0101- ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) (A) USA 		8-97135-820-3 01 1 9811-0003 ●
307 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) (B) USA 		8-97233-142-1 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
