Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#46274) — 222 parça

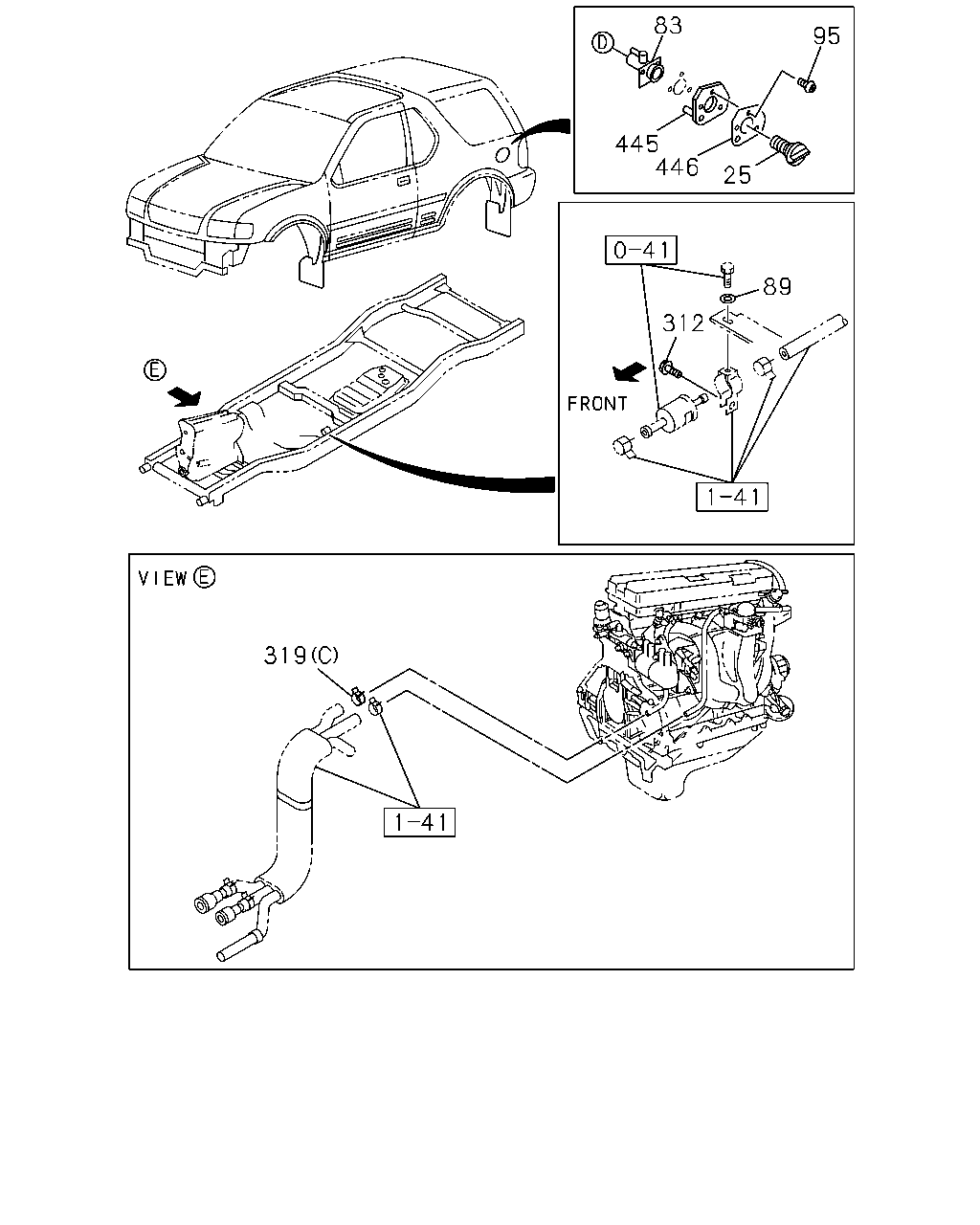

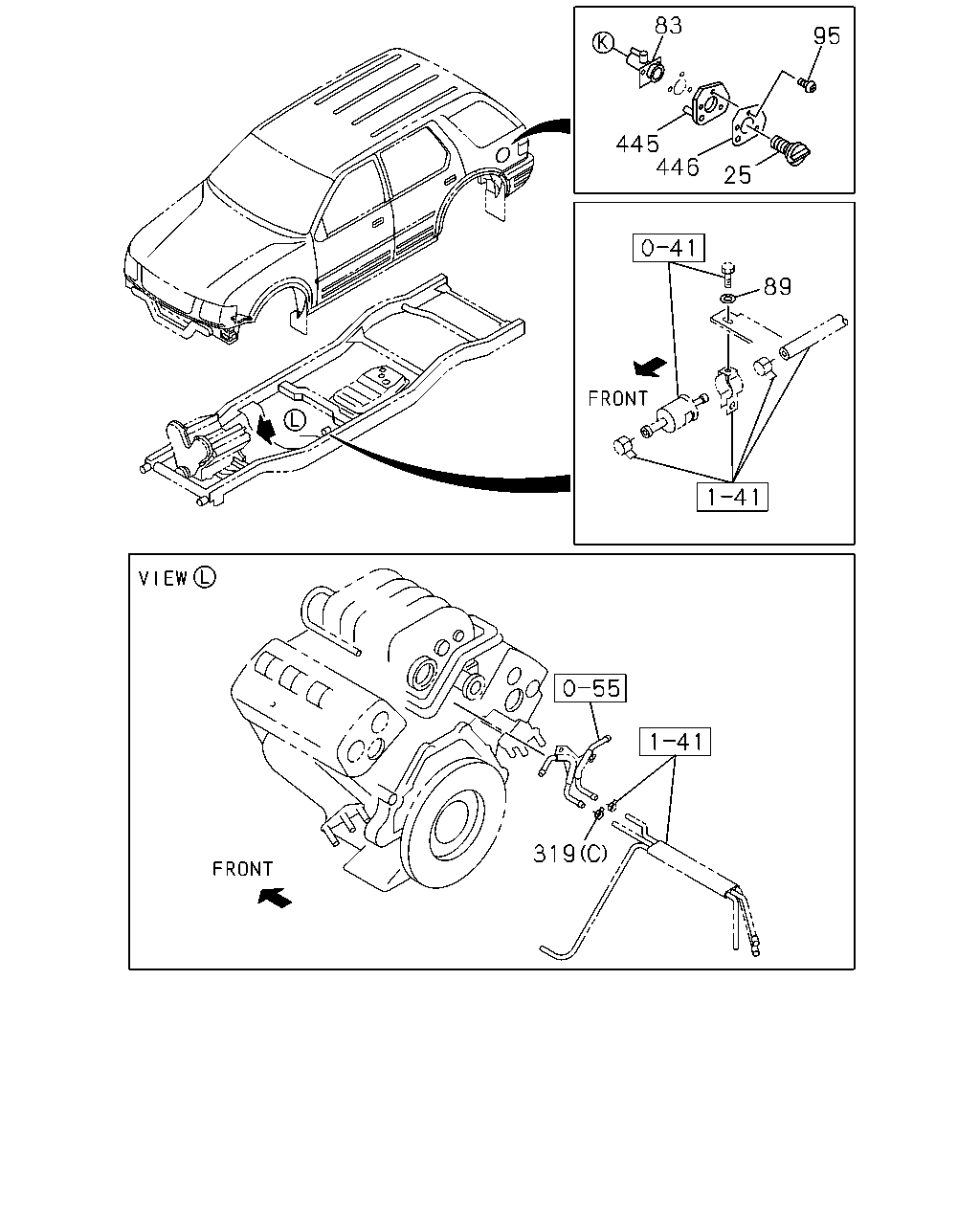

83 95 445 446 25 89 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9811-0012	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	0101-		●
83	03.003 NECK; FUEL FILLER	8-97143-985-0	01	1	9811-0012	●	●
83	03.003 NECK; FUEL FILLER	8-97143-985-0	01	1	0101-		●
89	03.028 WASHER; PL,FILLER NECK 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9811-0012	●	●
89	03.028 WASHER; PL,FILLER NECK 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	0101-		●
95	03.028 SCREW; FILLER NECK USA	8-97148-893-0	03	1	9811-0012	●	●
95	03.028 SCREW; FILLER NECK USA	8-97148-893-0	03	1	0101-		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	9811-0012		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	0101-		●
445	03.001 RUBBER; RECEIVER USA	8-97106-851-0	01	1	9811-0012	●	●
445	03.001 RUBBER; RECEIVER USA	8-97106-851-0	01	1	0101-		●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9811-0012	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	0101-		●

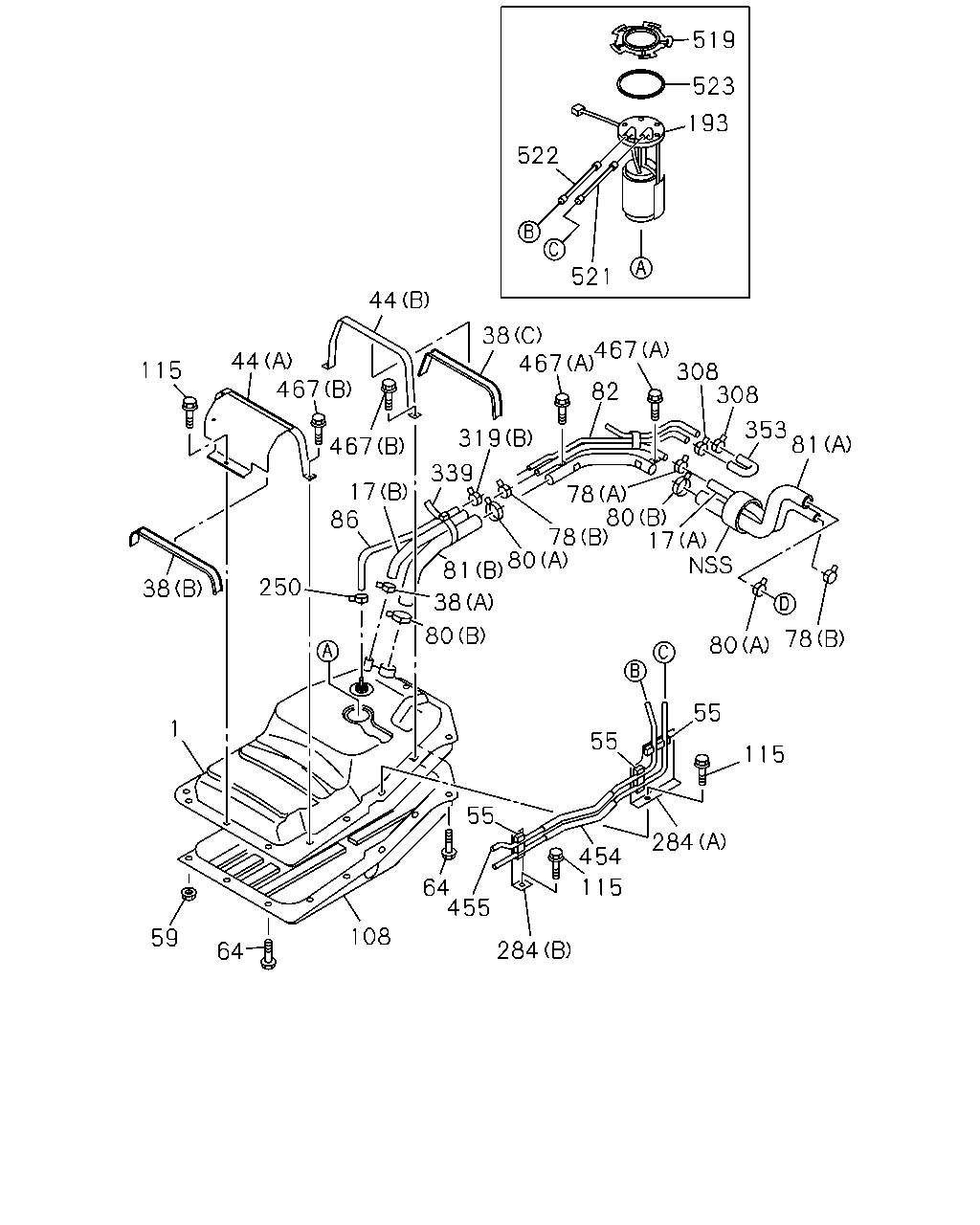

519 523 193 522 521 44 38 467 467 82 308 308 44 467 115 353 81 319 467 339 17 86 78 80 78 17 80 81 250 38 38 80 78 80 55 1 55 115 55 284 454 115 64 455 108 59 284 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL USA	8-97139-966-1	01	1	9811-0012	●
1	03.001 TANK; FUEL USA	8-97138-069-3	01	1	9811-9904		●
1	03.001 TANK; FUEL USA	8-97224-823-0	01	1	9905-		●
17	03.163 HOSE; BREATHER (B) USA	8-97178-860-0	01	1	9811-0012	●
17	03.163 HOSE; BREATHER (B) USA	8-97178-859-0	01	1	9811-		●
17	03.163 HOSE; BREATHER (A) USA	8-97178-857-0	01	1	9811-0012	●	●
17	03.163 HOSE; BREATHER (A) USA	8-97178-857-0	01	1	0101-		●
38	03.022 INSULATION; SUPPORT BELT (B) USA	8-97135-649-0	01	1	9811-0012	●
38	03.022 INSULATION; SUPPORT BELT (C) USA	8-97135-650-0	01	1	9811-0012	●
38	03.022 INSULATION; SUPPORT BELT 06.672 (A) ID=21 USA	8-94242-034-0	01	1	9811-0012	●	●
38	03.022 INSULATION; SUPPORT BELT 06.672 (A) ID=21 USA	8-94242-034-0	01	1	0101-		●
44	03.023 BAND; FUEL TANK (A) USA	8-97130-754-1	01	1	9811-0001	●
44	03.023 BAND; FUEL TANK (A) USA	8-97225-690-0	01	1	0002-0004	●
44	03.023 BAND; FUEL TANK (A) USA	8-97259-849-0	01	1	0005-0012	●
44	03.023 BAND; FUEL TANK (B) USA	8-97130-756-0	01	1	9811-0012	●
55	03.162 CLIP; FUEL PIPE USA	8-97140-132-0	03	1	9811-0012	●	●
55	03.162 CLIP; FUEL PIPE USA	8-97140-132-0	03	1	0101-		●
59	03.023 NUT; FUEL TANK M10 FLANGE USA	8-97142-595-0	01	1	9811-0012	●	●
59	03.023 NUT; FUEL TANK M10 FLANGE USA	8-97142-595-0	01	1	0101-		●
64	03.023 BOLT; FUEL TANK 07.829 M10X30 FLANGE USA	8-97174-300-1	03	1	9811-0012	●	●
64	03.023 BOLT; FUEL TANK 07.829 M10X30 FLANGE USA	8-97174-300-1	03	1	0101-		●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21 USA	8-94242-034-0	01	1	9811-0012	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21 USA	8-94242-034-0	01	1	0101-		●
78	03.003 CLIP; BREATHER HOSE 06.672 (B) ID=21 USA	8-94242-034-0	02	1	9811-0012	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (B) ID=21 USA	8-94242-034-0	02	1	0101-		●
80	03.008 CLIP; FILLER HOSE (A) USA	8-97139-975-0	02	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (A) USA	8-97139-975-0	02	1	0101-		●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	0101-		●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	0101-		●
81	03.003 HOSE; FUEL FILLER (B) USA	8-97178-854-0	01	1	9811-0012	●
81	03.003 HOSE; FUEL FILLER (B) USA	8-97178-852-0	01	1	9811-		●
81	03.003 HOSE; FUEL FILLER (A) USA	8-97178-849-1	01	1	9811-0012	●	●
81	03.003 HOSE; FUEL FILLER (A) USA	8-97178-849-1	01	1	0101-		●
82	03.003 FILLER; FUEL USA	8-97135-884-3	01	1	9811-0012	●	●
82	03.003 FILLER; FUEL USA	8-97135-884-3	01	1	0101-		●
86	03.163 HOSE; EVAP 08.962 L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●
86	03.163 HOSE; EVAP 08.962 L=520 SERVICED BY L=3000	0-04750-300-0	01	1	9811-		●
108	03.015 PROTECTOR; FUEL TANK USA	8-97130-536-2	01	1	9811-0004	●
108	03.015 PROTECTOR; FUEL TANK USA	8-97259-737-0	01	1	0005-0012	●
108	03.015 PROTECTOR; FUEL TANK USA	8-97138-342-3	01	1	9811-9904		●
108	03.015 PROTECTOR; FUEL TANK USA	8-97224-824-0	01	1	9905-		●
115	03.023 BOLT; BRKT 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-0012	●
115	03.023 BOLT; BRKT 04.930 M6X20 FLANGE	0-28680-620-0	06	1	9811-		●
193	03.107 PUMP; FUEL USA	8-25318-883-0	01	1	9811-0001	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	02	1	0002-0003	●
193	03.107 PUMP; FUEL USA	8-25318-883-0	01	1	0004-0004	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	01	1	0004-0004	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	02	1	0005-0012	●
193	03.107 PUMP; FUEL USA	8-25318-881-0	01	1	9811-0001		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	02	1	0002-0003		●
193	03.107 PUMP; FUEL USA	8-25318-881-0	02	1	0004-0004		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	02	1	0005-0012		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	01	1	0101-0108		●
193	03.107 PUMP; FUEL USA	8-25341-599-0	01	1	0109-		●
250	03.162 CLIP; BAND,EVAP HOSE 03.163 ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
250	03.162 CLIP; BAND,EVAP HOSE 03.163 ID=11 USA	8-94238-570-0	01	1	0101-		●
284	03.162 BRACKET; CLIP,FUEL PIPE (A) USA	8-97135-821-0	01	1	9811-0012	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97225-621-0	01	1	0002-0012	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97138-355-0	01	1	9811-0001	●	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97138-355-0	01	1	0002-		●
284	03.162 BRACKET; CLIP,FUEL PIPE (A) USA	8-97138-356-3	01	1	9811-		●
308	03.163 CLIP; HOSE ID=11 USA	8-94238-570-0	02	1	9811-0012	●	●
308	03.163 CLIP; HOSE ID=11 USA	8-94238-570-0	02	1	0101-		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	9811-0012		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	0101-		●
339	03.162 CLIP; BAND,FUEL HOSE 03.008 L=330	5-09709-118-0	01	1	9811-0012	●	●
339	03.162 CLIP; BAND,FUEL HOSE 03.008 L=330	5-09709-118-0	01	1	0101-		●
353	03.003 HOSE; RUBBER,FUEL 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
353	03.003 HOSE; RUBBER,FUEL 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	0101-0107		●
353	03.003 HOSE; RUBBER,FUEL	8-97308-610-0	01	1	0108-		●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97130-530-0	01	1	9811-0012	●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97225-612-0	01	1	0002-0012	●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97138-370-3	01	1	9811-9905		●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97225-611-0	01	1	9906-		●
455	03.163 PIPE; FUEL,RETURN USA	8-97130-531-0	01	1	9811-0012	●
455	03.163 PIPE; FUEL,RETURN USA	8-97138-371-3	01	1	9811-		●
467	03.163 BOLT 04.595 (B) M8X20 FLANGE	0-28480-820-0	04	1	9811-0012	●
467	03.163 BOLT 04.595 (A) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
467	03.163 BOLT 04.595 (A) M8X20 FLANGE	0-28480-820-0	02	1	0101-		●
519	03.107 RETAINER; FUEL PUMP USA	8-21010-287-0	01	1	9811-0012	●
521	03.001 TUBE; FUEL,DELIVERY USA	8-97140-120-0	01	1	9811-0012	●
521	03.001 TUBE; FUEL,DELIVERY USA	8-97145-052-0	01	1	9811-		●
522	03.001 TUBE; FUEL,RETURN USA	8-97140-121-0	01	1	9811-0012	●
522	03.001 TUBE; FUEL,RETURN USA	8-97145-053-0	01	1	9811-		●
523	03.008 SEAL; FUEL SENSOR USA	8-25028-682-0	01	1	9811-0012	●

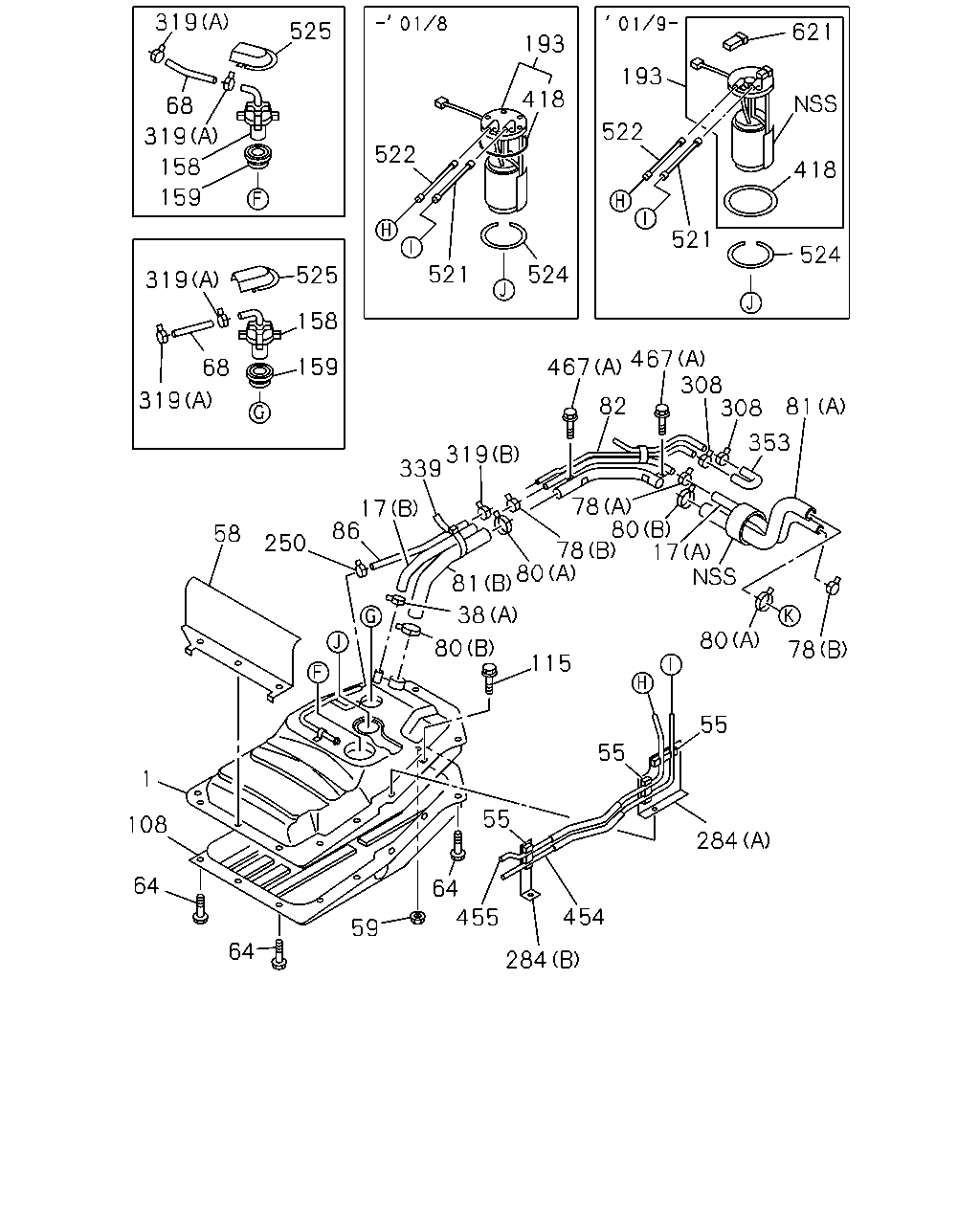

319 525 621 193 193 418 68 522 319 522 158 418 159 521 521 524 524 525 319 158 467 308 308 159 467 68 319 82 81 353 319 339 78 80 78 17 80 81 17 86 58 250 38 80 80 78 115 55 55 1 55 108 284 64 64 454 455 59 64 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL USA	8-97139-966-1	01	1	9811-0012	●
1	03.001 TANK; FUEL USA	8-97138-069-3	01	1	9811-9904		●
1	03.001 TANK; FUEL USA	8-97224-823-0	01	1	9905-		●
17	03.163 HOSE; BREATHER (B) USA	8-97178-860-0	01	1	9811-0012	●
17	03.163 HOSE; BREATHER (B) USA	8-97178-859-0	01	1	9811-		●
17	03.163 HOSE; BREATHER (A) USA	8-97178-857-0	01	1	9811-0012	●	●
17	03.163 HOSE; BREATHER (A) USA	8-97178-857-0	01	1	0101-		●
38	03.022 INSULATION; SUPPORT BELT (B) USA	8-97135-649-0	01	1	9811-0012	●
38	03.022 INSULATION; SUPPORT BELT (C) USA	8-97135-650-0	01	1	9811-0012	●
38	03.022 INSULATION; SUPPORT BELT 06.672 (A) ID=21 USA	8-94242-034-0	01	1	9811-0012	●	●
38	03.022 INSULATION; SUPPORT BELT 06.672 (A) ID=21 USA	8-94242-034-0	01	1	0101-		●
55	03.162 CLIP; FUEL PIPE USA	8-97140-132-0	03	1	9811-0012	●	●
55	03.162 CLIP; FUEL PIPE USA	8-97140-132-0	03	1	0101-		●
58	03.015 PROTECTOR; HEAT,FUEL TANK USA	8-97170-360-0	01	1	9811-9904		●
58	03.015 PROTECTOR; HEAT,FUEL TANK USA	8-97225-074-0	01	1	9905-		●
59	03.023 NUT; FUEL TANK M10 FLANGE USA	8-97142-595-0	01	1	9811-0012	●	●
59	03.023 NUT; FUEL TANK M10 FLANGE USA	8-97142-595-0	01	1	0101-		●
64	03.023 BOLT; FUEL TANK 07.829 M10X30 FLANGE USA	8-97174-300-1	03	1	9811-0012	●	●
64	03.023 BOLT; FUEL TANK 07.829 M10X30 FLANGE USA	8-97174-300-1	03	1	0101-		●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 L=80 SERVICED BY L=3000 USA	8-94128-826-0	02	1	9811-		●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21 USA	8-94242-034-0	01	1	9811-0012	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21 USA	8-94242-034-0	01	1	0101-		●
78	03.003 CLIP; BREATHER HOSE 06.672 (B) ID=21 USA	8-94242-034-0	02	1	9811-0012	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (B) ID=21 USA	8-94242-034-0	02	1	0101-		●
80	03.008 CLIP; FILLER HOSE (A) USA	8-97139-975-0	02	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (A) USA	8-97139-975-0	02	1	0101-		●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	9811-0012	●	●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	0101-		●
80	03.008 CLIP; FILLER HOSE (B) USA	8-97170-389-0	01	1	0101-		●
81	03.003 HOSE; FUEL FILLER (B) USA	8-97178-854-0	01	1	9811-0012	●
81	03.003 HOSE; FUEL FILLER (B) USA	8-97178-852-0	01	1	9811-		●
81	03.003 HOSE; FUEL FILLER (A) USA	8-97178-849-1	01	1	9811-0012	●	●
81	03.003 HOSE; FUEL FILLER (A) USA	8-97178-849-1	01	1	0101-		●
82	03.003 FILLER; FUEL USA	8-97135-884-3	01	1	9811-0012	●	●
82	03.003 FILLER; FUEL USA	8-97135-884-3	01	1	0101-		●
86	03.163 HOSE; EVAP 08.962 L=500 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●
86	03.163 HOSE; EVAP 08.962 L=520 SERVICED BY L=3000	0-04750-300-0	01	1	9811-		●
108	03.015 PROTECTOR; FUEL TANK USA	8-97130-536-2	01	1	9811-0004	●
108	03.015 PROTECTOR; FUEL TANK USA	8-97259-737-0	01	1	0005-0012	●
108	03.015 PROTECTOR; FUEL TANK USA	8-97138-342-3	01	1	9811-9904		●
108	03.015 PROTECTOR; FUEL TANK USA	8-97224-824-0	01	1	9905-		●
115	03.023 BOLT; BRKT 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9811-0012	●
115	03.023 BOLT; BRKT 04.930 M6X20 FLANGE	0-28680-620-0	06	1	9811-		●
158	03.164 VALVE; ROLL OVER & FLOAT USA	8-97160-598-0	02	1	9811-		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163 USA	8-94246-338-2	02	1	9811-		●
193	03.107 PUMP; FUEL USA	8-25318-883-0	01	1	9811-0001	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	02	1	0002-0003	●
193	03.107 PUMP; FUEL USA	8-25318-883-0	01	1	0004-0004	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	01	1	0004-0004	●
193	03.107 PUMP; FUEL USA	8-25331-809-0	02	1	0005-0012	●
193	03.107 PUMP; FUEL USA	8-25318-881-0	01	1	9811-0001		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	02	1	0002-0003		●
193	03.107 PUMP; FUEL USA	8-25318-881-0	02	1	0004-0004		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	02	1	0005-0012		●
193	03.107 PUMP; FUEL USA	8-25331-813-0	01	1	0101-0108		●
193	03.107 PUMP; FUEL USA	8-25341-599-0	01	1	0109-		●
250	03.162 CLIP; BAND,EVAP HOSE 03.163 ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
250	03.162 CLIP; BAND,EVAP HOSE 03.163 ID=11 USA	8-94238-570-0	01	1	0101-		●
284	03.162 BRACKET; CLIP,FUEL PIPE (A) USA	8-97135-821-0	01	1	9811-0012	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97225-621-0	01	1	0002-0012	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97138-355-0	01	1	9811-0001	●	●
284	03.162 BRACKET; CLIP,FUEL PIPE (B) USA	8-97138-355-0	01	1	0002-		●
284	03.162 BRACKET; CLIP,FUEL PIPE (A) USA	8-97138-356-3	01	1	9811-		●
308	03.163 CLIP; HOSE ID=11 USA	8-94238-570-0	02	1	9811-0012	●	●
308	03.163 CLIP; HOSE ID=11 USA	8-94238-570-0	02	1	0101-		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	9811-0012		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	0101-		●
339	03.162 CLIP; BAND,FUEL HOSE 03.008 L=330	5-09709-118-0	01	1	9811-0012	●	●
339	03.162 CLIP; BAND,FUEL HOSE 03.008 L=330	5-09709-118-0	01	1	0101-		●
353	03.003 HOSE; RUBBER,FUEL 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	9811-0012	●	●
353	03.003 HOSE; RUBBER,FUEL 08.962 L=200 SERVICED BY L=3000	0-04750-300-0	01	1	0101-0107		●
353	03.003 HOSE; RUBBER,FUEL	8-97308-610-0	01	1	0108-		●
418	03.107 GASKET; FUEL PUMP USA	8-25027-014-0	01	1	9811-		●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97130-530-0	01	1	9811-0012	●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97225-612-0	01	1	0002-0012	●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97138-370-3	01	1	9811-9905		●
454	03.163 PIPE; FUEL,DELIVERY USA	8-97225-611-0	01	1	9906-		●
455	03.163 PIPE; FUEL,RETURN USA	8-97130-531-0	01	1	9811-0012	●
455	03.163 PIPE; FUEL,RETURN USA	8-97138-371-3	01	1	9811-		●
467	03.163 BOLT 04.595 (B) M8X20 FLANGE	0-28480-820-0	04	1	9811-0012	●
467	03.163 BOLT 04.595 (A) M8X20 FLANGE	0-28480-820-0	02	1	9811-0012	●	●
467	03.163 BOLT 04.595 (A) M8X20 FLANGE	0-28480-820-0	02	1	0101-		●
521	03.001 TUBE; FUEL,DELIVERY USA	8-97140-120-0	01	1	9811-0012	●
521	03.001 TUBE; FUEL,DELIVERY USA	8-97145-052-0	01	1	9811-		●
522	03.001 TUBE; FUEL,RETURN USA	8-97140-121-0	01	1	9811-0012	●
522	03.001 TUBE; FUEL,RETURN USA	8-97145-053-0	01	1	9811-		●
524	03.028 RING; RETAINER USA	8-22552-577-0	01	1	9811-		●
525	03.163 PROTECTOR USA	8-97148-971-0	02	1	9811-		●
621	03.118 RESISTOR ASM; FUEL PUMP 08.131 USA	8-25343-698-0	01	1	0109-		●

83 95 445 446 25 89 312 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9811-0012	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	0101-		●
83	03.003 NECK; FUEL FILLER	8-97143-985-0	01	1	9811-0012	●	●
83	03.003 NECK; FUEL FILLER	8-97143-985-0	01	1	0101-		●
89	03.028 WASHER; PL,FILLER NECK 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9811-0012	●	●
89	03.028 WASHER; PL,FILLER NECK 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	0101-		●
95	03.028 SCREW; FILLER NECK USA	8-97148-893-0	03	1	9811-0012	●	●
95	03.028 SCREW; FILLER NECK USA	8-97148-893-0	03	1	0101-		●
312	03.704 BOLT; FUEL FILTER CLAMP 04.439 M6X16 FLANGE USA	0-28680-616-0	01	1	9811-0012	●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	9811-0012	●	●
319	03.163 CLIP; RUBBER HOSE 03.162 (C) ID=11.5	8-97138-011-0	01	1	0101-		●
319	03.163 CLIP; RUBBER HOSE 03.162 (A) ID=8.5 USA	8-94166-071-0	04	1	9811-0012		●
319	03.163 CLIP; RUBBER HOSE (B) ID=11 USA	8-94238-570-0	01	1	0101-		●
445	03.001 RUBBER; RECEIVER USA	8-97106-851-0	01	1	9811-0012	●	●
445	03.001 RUBBER; RECEIVER USA	8-97106-851-0	01	1	0101-		●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9811-0012	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
