◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#46273) — 26 parça

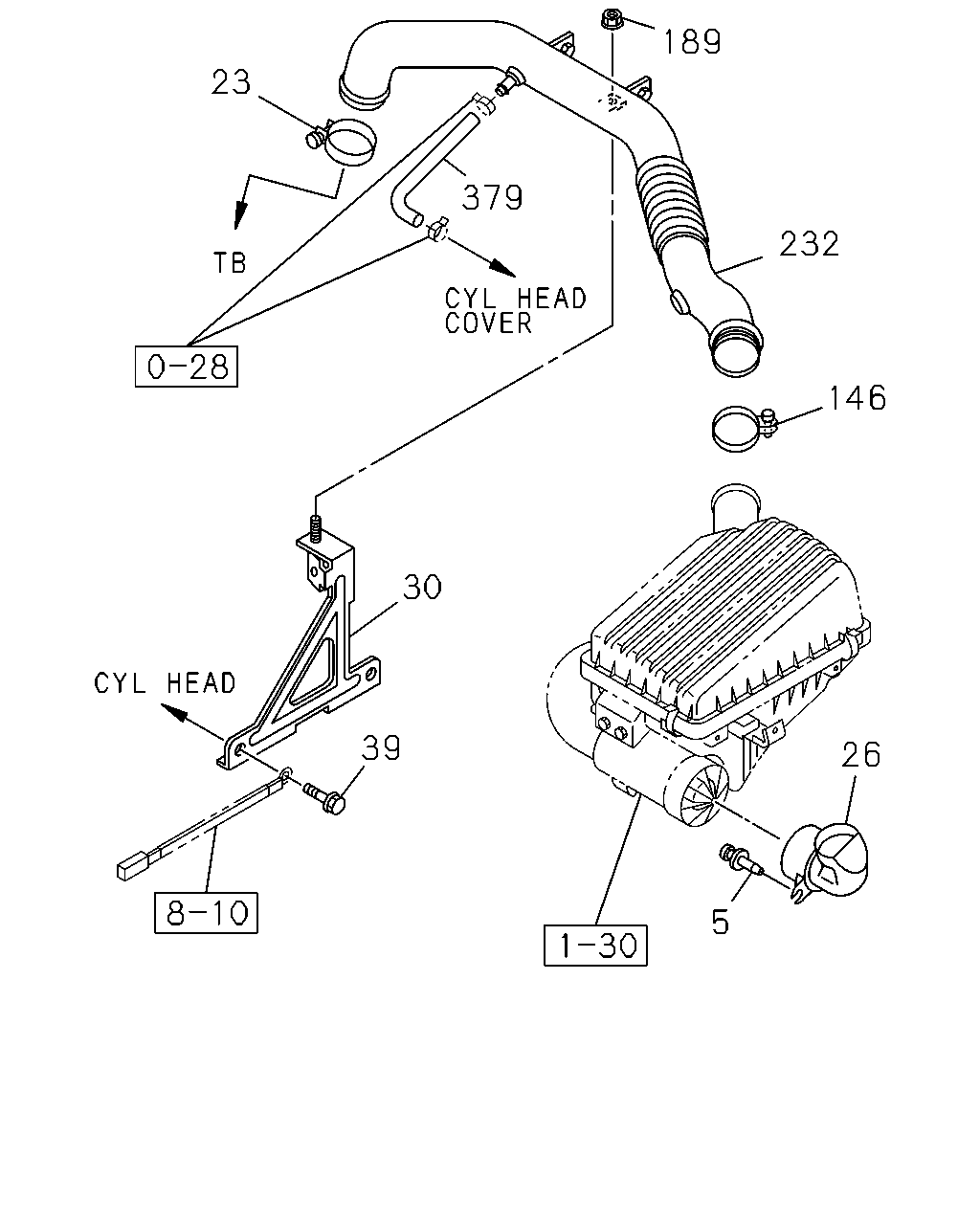

çizim 36482
189 23 379 232 146 30 39 26 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
08.154 THA 		1-09470-001-0 02 1 9811-0012 ●
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 9811-0012 ●
23 03.417 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9811-0012 ●
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 0101- ●
26 03.417 DUCT; AIR INT
USA 		8-97184-483-0 01 1 9811-0012 ● ●
26 03.417 DUCT; AIR INT
USA 		8-97184-483-0 01 1 0101- ●
30 03.417 BRACKET; HOSE
USA 		8-97136-086-0 01 1 9811-0012 ●
39 03.417 BOLT; BRKT
02.664 M8X20 FLANGE USA 		0-28680-820-0 02 1 9811-0012 ●
146 03.417 CLIP; HOSE,ACL
03.374 ID=80 		8-94111-621-0 01 1 9811-0012 ●
189 03.403 NUT; BRKT,INL HOSE
07.633 M8 FLANGE USA 		0-91150-108-0 01 1 9811-0012 ●
232 03.417 HOSE; CONN
USA 		8-97130-899-0 01 1 9811-0012 ●
232 03.417 HOSE; CONN
USA 		8-97130-563-3 01 1 9811-0012 ●
232 03.417 HOSE; CONN
USA 		8-97194-705-0 01 1 0101- ●
379 03.675 HOSE; RUBBER
USA 		8-97136-099-0 01 1 9811-0012 ●

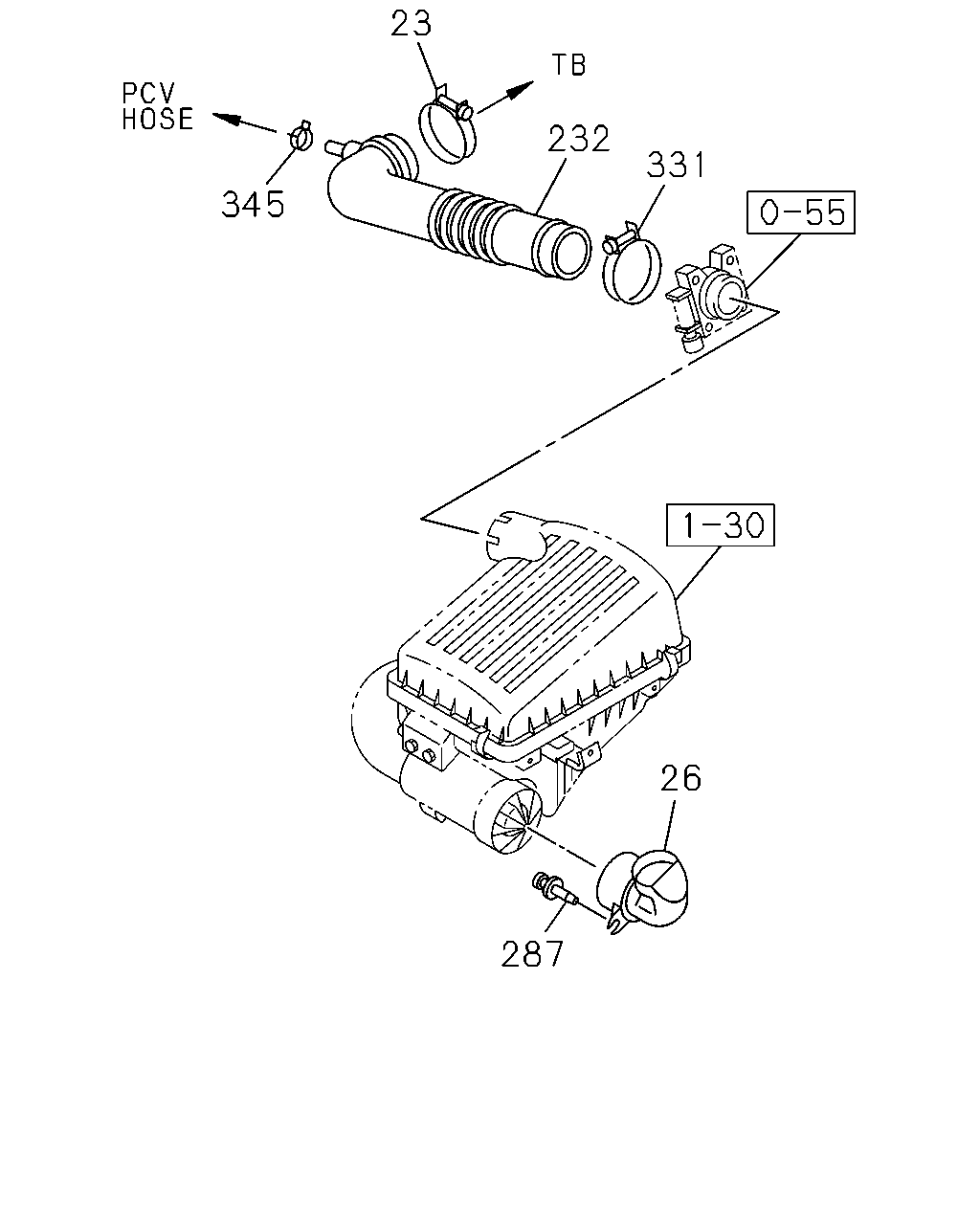

çizim 37277
23 232 331 345 26 287
BalonParca AdiParca NoAdetTipApplied Date A B
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 9811-0012 ●
23 03.417 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9811-0012 ●
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 0101- ●
26 03.417 DUCT; AIR INT
USA 		8-97184-483-0 01 1 9811-0012 ● ●
26 03.417 DUCT; AIR INT
USA 		8-97184-483-0 01 1 0101- ●
232 03.417 HOSE; CONN
USA 		8-97130-899-0 01 1 9811-0012 ●
232 03.417 HOSE; CONN
USA 		8-97130-563-3 01 1 9811-0012 ●
232 03.417 HOSE; CONN
USA 		8-97194-705-0 01 1 0101- ●
287 03.417 CLIP; AIR DUCT
08.154 THA 		1-09470-001-0 02 1 9811- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9811-0305 ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
ID=90 		8-97367-377-0 01 1 0306- ●
345 03.417 CLIP; PCV HOSE
01.762 ID=19 		8-94238-569-0 01 1 9811- ●
