◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#46271) — 26 parça

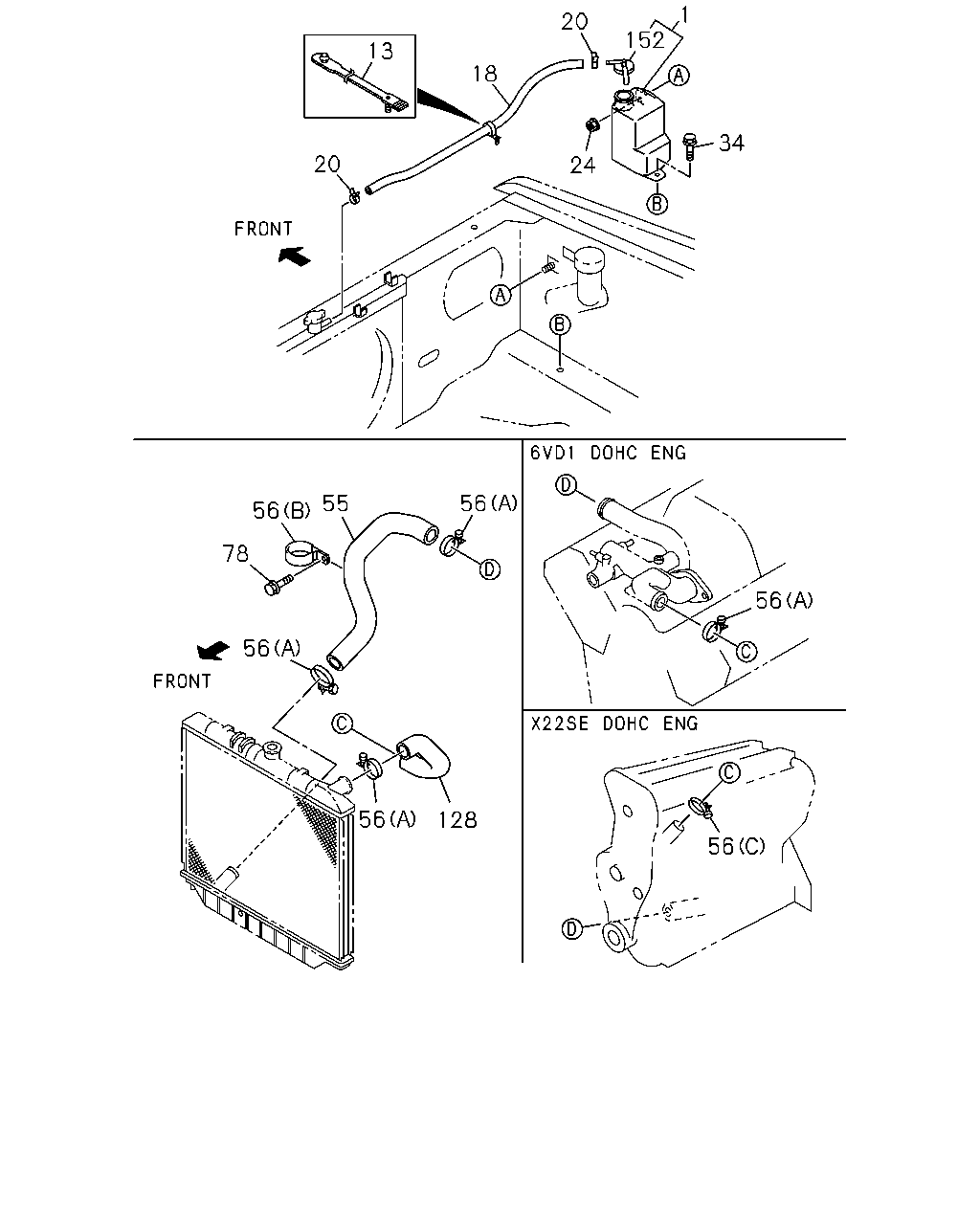

çizim 36680
1 20 152 13 18 34 20 24 55 56 56 78 56 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD
USA 		8-97124-865-1 01 1 9811-0012 ● ●
1 01.219 TANK; SURGE,RAD
USA 		8-97124-865-1 01 1 0101- ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 01 1 9811-0012 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 01 1 0101- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=560, SERVICED BY L=2100 		8-97080-588-0 01 1 9811-0012 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=560, SERVICED BY L=2100 		8-97080-588-0 01 1 0101- ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 9811-0012 ● ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 0101-0103 ●
24 01.219 NUT
03.417 M6 FLANGE 		8-94279-514-0 01 1 9811-0012 ● ●
24 01.219 NUT
03.417 M6 FLANGE 		8-94279-514-0 01 1 0101- ●
34 01.203 BOLT; RESERVE TANK
03.885 M6X20 		8-94412-422-0 01 1 9811-0012 ● ●
34 01.203 BOLT; RESERVE TANK
03.885 M6X20 		8-94412-422-0 01 1 0101- ●
55 01.173 HOSE; WATER,RAD OUTLET
USA 		8-97125-166-1 01 1 9811-0012 ●
55 01.173 HOSE; WATER,RAD OUTLET
USA 		8-97143-737-1 01 1 9811- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) USA 		8-97135-906-2 01 1 9811-0012 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=46 THA 		8-94362-266-0 01 1 0101- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36.5 USA 		8-97135-907-1 01 1 9811-0012 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) USA 		8-97135-906-2 02 1 9811-0012 ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) USA 		8-97135-906-2 02 1 9811-0012 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=46 THA 		8-94362-266-0 01 1 9811-0012 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) USA 		8-97135-906-2 04 1 0101- ●
78 01.159 BOLT; CLIP,HOSE
02.664 M8X20 FLANGE USA 		0-28680-820-0 01 1 9811- ●
128 01.159 HOSE; WATER,RAD INL
USA 		8-97125-159-0 01 1 9811-0012 ●
128 01.159 HOSE; WATER,RAD INL
USA 		8-97125-164-0 01 1 9811- ●
152 01.203 CAP ASM; SURGE TANK
USA 		8-97178-230-0 01 1 9811-0012 ● ●
152 01.203 CAP ASM; SURGE TANK
USA 		8-97178-230-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
