1-10 — RADIATOR (#46270) — 46 parça

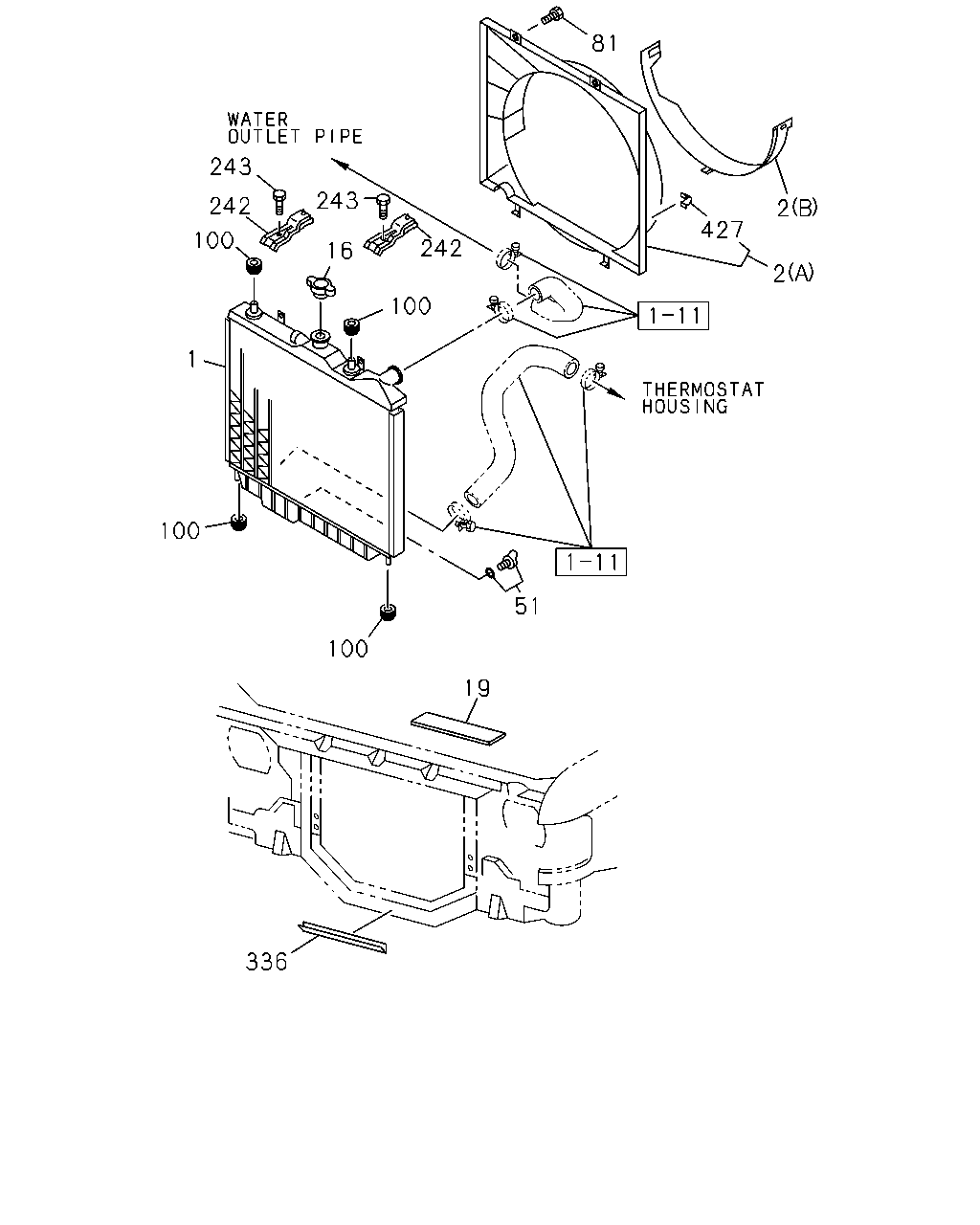

çizim 36469
81 243 243 242 2 427 100 242 16 2 100 1 100 51 100 19 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM
USA 		8-97182-064-0 01 1 9811-0012 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97209-553-0 01 1 9811-0110 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97328-667-0 01 1 0111-0205 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97354-766-0 01 1 0206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) USA 		8-97209-554-0 01 1 9811-0205 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) USA 		8-97354-765-0 01 1 0206- ●
2 01.277 GUIDE; FAN
(B) USA 		8-97209-113-0 01 1 9811- ●
2 01.277 GUIDE; FAN
(A) USA 		8-97209-563-0 01 1 9811- ●
16 01.203 CAP; RAD
USA 		8-97182-068-1 01 1 9811-0012 ●
16 01.203 CAP; RAD
A/T THM 4 SPEED(RMQ) USA 		8-97209-558-0 01 1 9811-9908 ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) USA 		8-97241-092-0 01 1 9811-9908 ●
16 01.203 CAP; RAD
USA 		8-97241-092-0 01 1 9909- ●
19 01.270 SEAL; RAD UPR
L=314 USA 		8-97124-928-1 01 1 9907- ●
51 08.951 PLUG; DRAIN
01.219 USA 		8-94377-806-0 01 1 9811-0012 ●
51 08.951 PLUG; DRAIN
USA 		8-97201-511-0 01 1 9811- ●
81 01.277 SCREW; FAN GUIDE,RAD
USA 		8-97209-560-0 02 1 9811- ●
100 01.277 RUBBER; MTG
USA 		8-97125-291-0 04 1 9811-0012 ● ●
100 01.277 RUBBER; MTG
USA 		8-97125-291-0 04 1 0101- ●
242 01.219 BRACKET; RAD
USA 		8-97124-868-1 02 1 9811-0012 ● ●
242 01.219 BRACKET; RAD
USA 		8-97124-868-1 02 1 0101- ●
243 01.219 BOLT; BRKT
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-0012 ● ●
243 01.219 BOLT; BRKT
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0101- ●
336 01.270 SEAL; LWR,RAD
USA 		8-97124-926-1 01 1 9811-0012 ● ●
336 01.270 SEAL; LWR,RAD
USA 		8-97124-926-1 01 1 0101- ●
427 01.240 CLIP; FAN GUIDE
USA 		8-97209-557-0 06 1 9811- ●

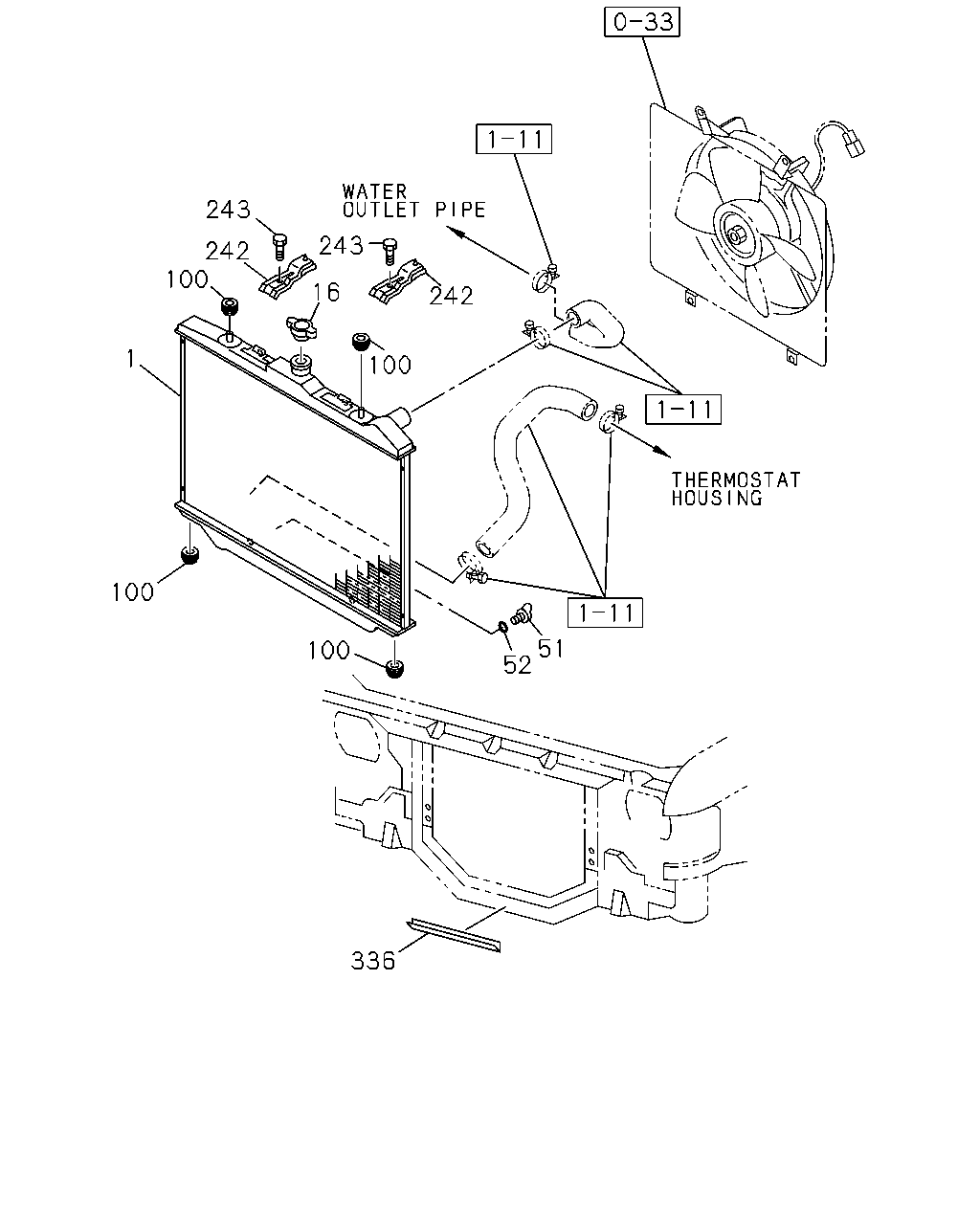

çizim 37253
243 243 242 100 16 242 1 100 100 51 52 100 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM
USA 		8-97182-064-0 01 1 9811-0012 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97209-553-0 01 1 9811-0110 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97328-667-0 01 1 0111-0205 ●
1 01.219 RADIATOR ASM
A/T THM 4 SPEED(RMQ) USA 		8-97354-766-0 01 1 0206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) USA 		8-97209-554-0 01 1 9811-0205 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) USA 		8-97354-765-0 01 1 0206- ●
16 01.203 CAP; RAD
USA 		8-97182-068-1 01 1 9811-0012 ●
16 01.203 CAP; RAD
A/T THM 4 SPEED(RMQ) USA 		8-97209-558-0 01 1 9811-9908 ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN) USA 		8-97241-092-0 01 1 9811-9908 ●
16 01.203 CAP; RAD
USA 		8-97241-092-0 01 1 9909- ●
51 08.951 PLUG; DRAIN
01.219 USA 		8-94377-806-0 01 1 9811-0012 ●
51 08.951 PLUG; DRAIN
USA 		8-97201-511-0 01 1 9811- ●
52 08.951 GASKET; DRAIN PLUG
01.219 USA 		8-94377-807-0 01 1 9811-0012 ●
100 01.277 RUBBER; MTG
USA 		8-97125-291-0 04 1 9811-0012 ● ●
100 01.277 RUBBER; MTG
USA 		8-97125-291-0 04 1 0101- ●
242 01.219 BRACKET; RAD
USA 		8-97124-868-1 02 1 9811-0012 ● ●
242 01.219 BRACKET; RAD
USA 		8-97124-868-1 02 1 0101- ●
243 01.219 BOLT; BRKT
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9811-0012 ● ●
243 01.219 BOLT; BRKT
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0101- ●
336 01.270 SEAL; LWR,RAD
USA 		8-97124-926-1 01 1 9811-0012 ● ●
336 01.270 SEAL; LWR,RAD
USA 		8-97124-926-1 01 1 0101- ●
