◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#4627) — 17 parça

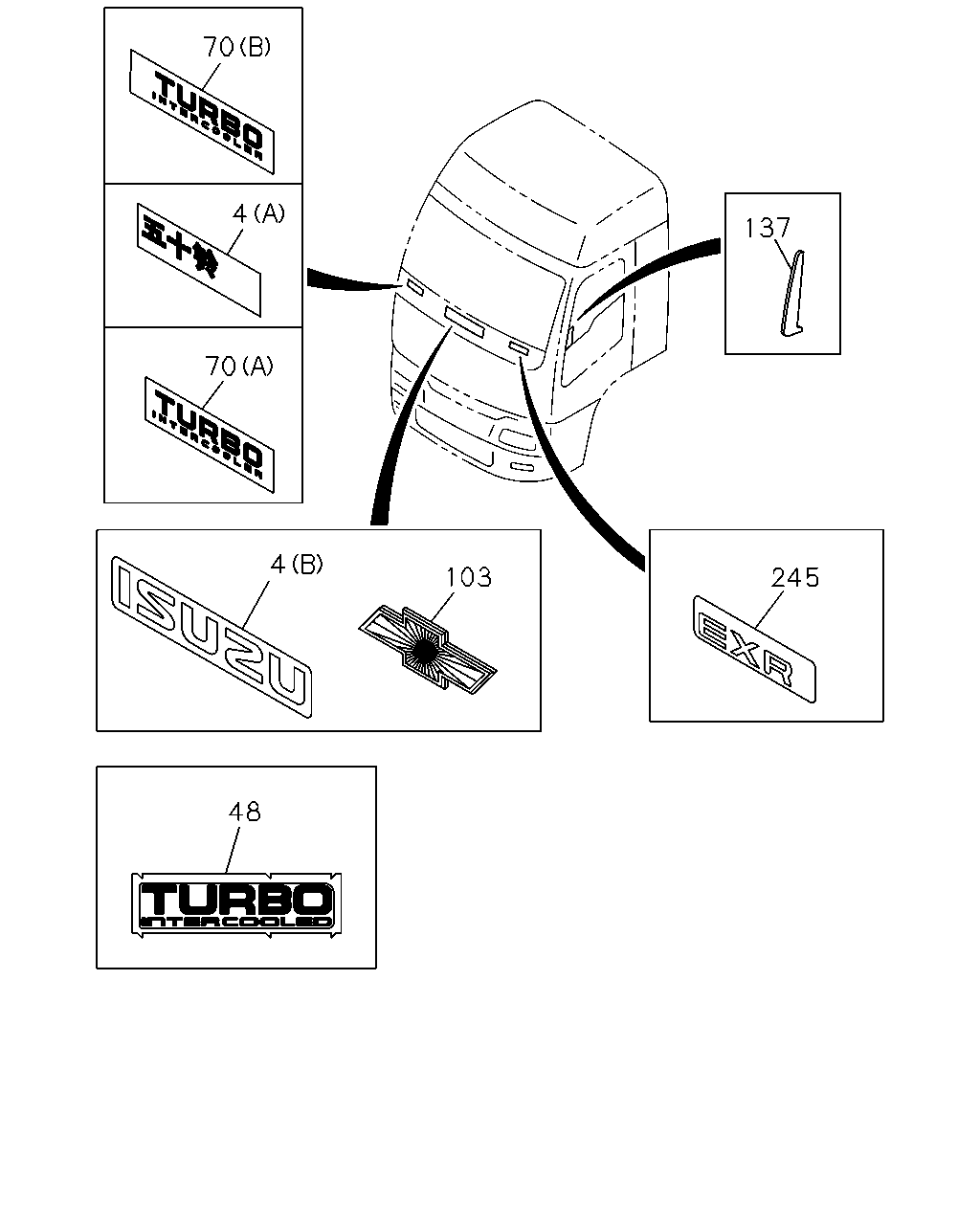

çizim 9673
70 4 137 70 4 103 245 48
BalonParca AdiParca NoAdetTipApplied Date
4 EMBLEM; RAD GRILLE
(B) 		1-76210-634-0 01 1 9603-9705
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (B) 		1-76210-634-0 01 1 9706-9904
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (B) 		1-76210-668-2 01 1 9905-0007
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76210-668-3 01 1 0008-
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-76217-132-0 01 1 9603-
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CAB FRT PANEL CARGO FACE VAR 1<NBH>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-76210-689-1 01 1 0009-
48 DECAL; TURBOCHARGER
6WA1 TC-C(55L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-97857-435-1 01 1 0008-
70 DECAL; INTERCOOLER
L TYPE ENG<90L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		8-97857-435-1 01 1 9603-0007
70 DECAL; INTERCOOLER
L TYPE ENG<90L> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-76218-114-0 01 1 9603-
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-97865-065-0 01 1 9706-
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9603-
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9603-
245 DECAL; MODEL 1-76217-138-0 01 1 9603-0006
245 DECAL; MODEL 1-76217-138-0 01 1 0007-0007
245 DECAL; MODEL
CAB FRT PANEL CARGO FACE VAR 1<NBH>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76217-138-0 01 1 0007-0007
245 DECAL; MODEL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-76217-138-0 01 1 0008-
245 DECAL; MODEL
CAB FRT PANEL CARGO FACE VAR 1<NBH>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76217-138-0 01 1 0008-
