◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#46268) — 40 parça
çizim 4736
243 403 14 1 334
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.451 LEVER; PEDAL SIDE 8-97302-329-2 01 1 0101- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9811-0012 ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0101- ●
243 03.425 SENSOR; ACCEL 8-97193-713-0 01 1 0101- ●
334 03.425 PLUG; ACCEL CABLE
12.804 		8-94147-164-1 01 1 0101- ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9811-0012 ● ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ●

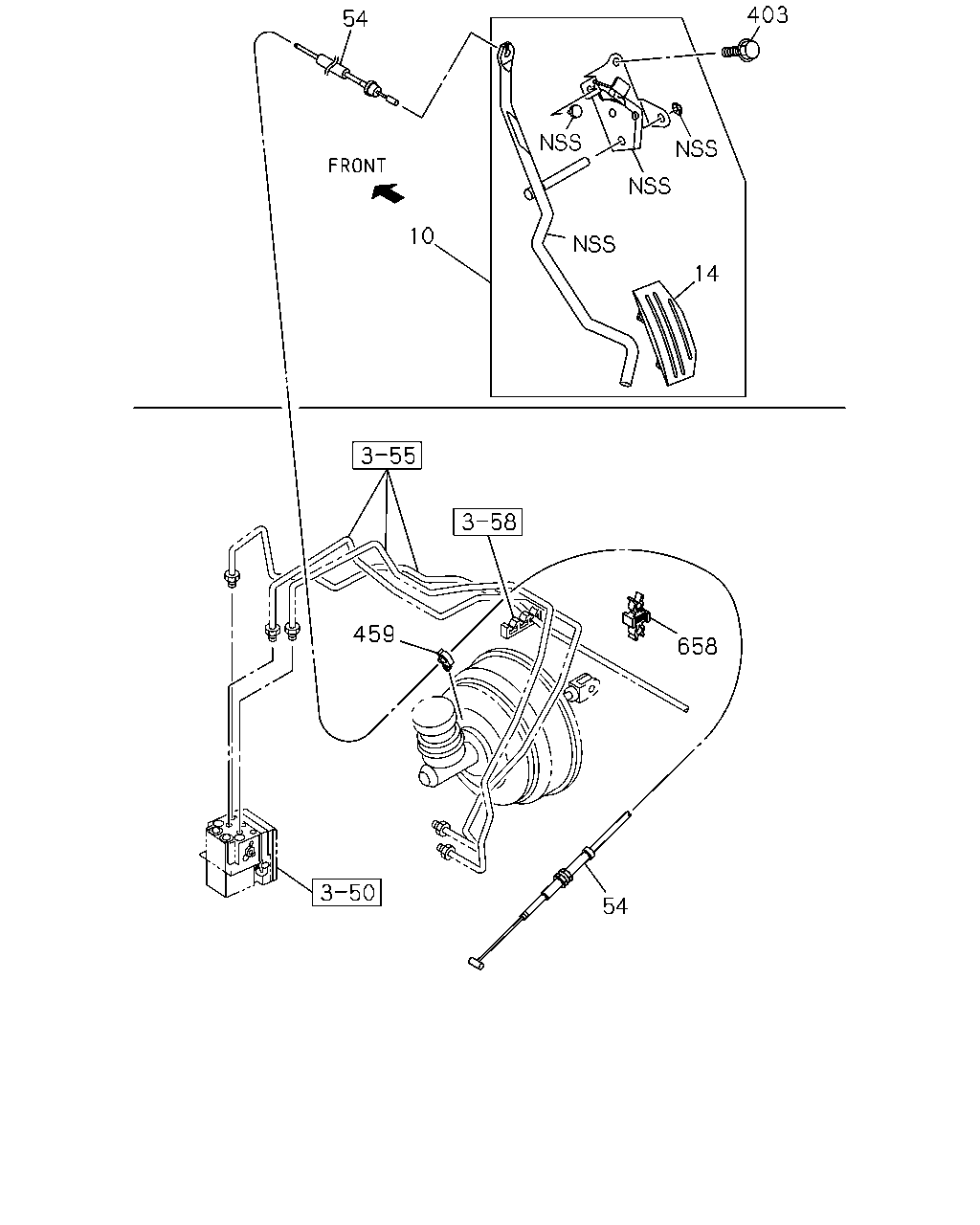

çizim 5570
403 54 10 14 459 658 54
BalonParca AdiParca NoAdetTipApplied Date A B
10 03.451 PEDAL ASM; ACCEL 8-97136-786-0 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN) 		8-97136-786-0 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL 8-97231-419-0 01 1 9911-0012 ●
10 03.451 PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN) 		8-97231-419-0 01 1 9911-0012 ●
10 03.451 PEDAL ASM; ACCEL
A/T THM 4 SPEED(RMQ) 		8-97136-787-1 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL
A/T THM 4 SPEED(RMQ) 		8-97231-525-0 01 1 9911-0012 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9811-0012 ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0101- ●
54 03.430 CABLE; ENG CONT
USA 		8-97136-929-2 01 1 9811-0012 ●
54 03.430 CABLE; ENG CONT
USA 		8-97143-741-4 01 1 9811-0012 ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9811-0012 ● ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ●
459 03.485 CLIP; ACCEL CABLE
02.251 ID=7.0 		8-94423-229-0 01 1 9811-0012 ● ●
658 03.430 CLIP; ENG CONT CABLE
02.183 ID=6 & 4.8 THA 		8-94313-325-0 01 1 9811-0012 ●

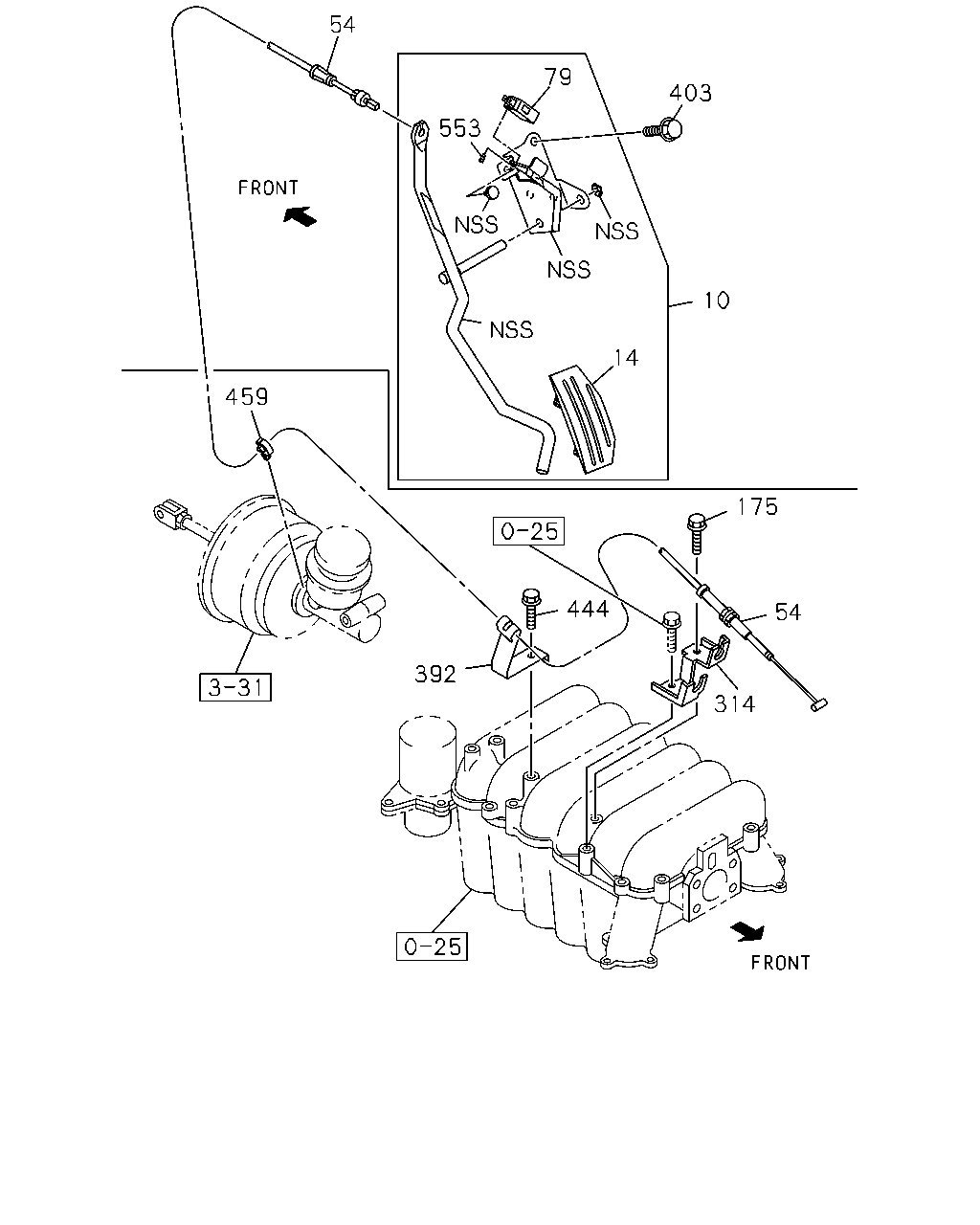

çizim 37254
54 79 403 553 10 14 459 175 444 54 392 314
BalonParca AdiParca NoAdetTipApplied Date A B
10 03.451 PEDAL ASM; ACCEL 8-97136-786-0 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN) 		8-97136-786-0 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL 8-97231-419-0 01 1 9911-0012 ●
10 03.451 PEDAL ASM; ACCEL
M/T MUA 5 SPEED(RMN) 		8-97231-419-0 01 1 9911-0012 ●
10 03.451 PEDAL ASM; ACCEL
A/T THM 4 SPEED(RMQ) 		8-97136-787-1 01 1 9811-9910 ●
10 03.451 PEDAL ASM; ACCEL
A/T THM 4 SPEED(RMQ) 		8-97231-525-0 01 1 9911-0012 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9811-0012 ● ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0101- ●
54 03.430 CABLE; ENG CONT
USA 		8-97136-929-2 01 1 9811-0012 ●
54 03.430 CABLE; ENG CONT
USA 		8-97143-741-4 01 1 9811-0012 ●
79 03.451 SWITCH; ACCEL PEDAL
A/T THM 4 SPEED(RMQ) 03.452 		8-97147-332-0 01 1 9811-0012 ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE USA 		0-28080-612-0 01 1 9811-0012 ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 9811-0012 ●
392 03.483 CLIP; ACCEL CONT CABLE
USA 		8-97146-111-0 01 1 9811-0012 ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9811-0012 ● ●
403 03.431 BOLT; BRKT,ACCEL PEDAL
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ●
444 03.483 BOLT; CABLE CLIP
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811-0012 ●
459 03.485 CLIP; ACCEL CABLE
02.251 ID=7.0 		8-94423-229-0 01 1 9811-0012 ● ●
553 03.451 SCREW; TAP,PEDAL TO SW
A/T THM 4 SPEED(RMQ) M3X16 TAPPING 		0-71280-316-0 02 1 9811-0012 ●
