◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#46267) — 19 parça

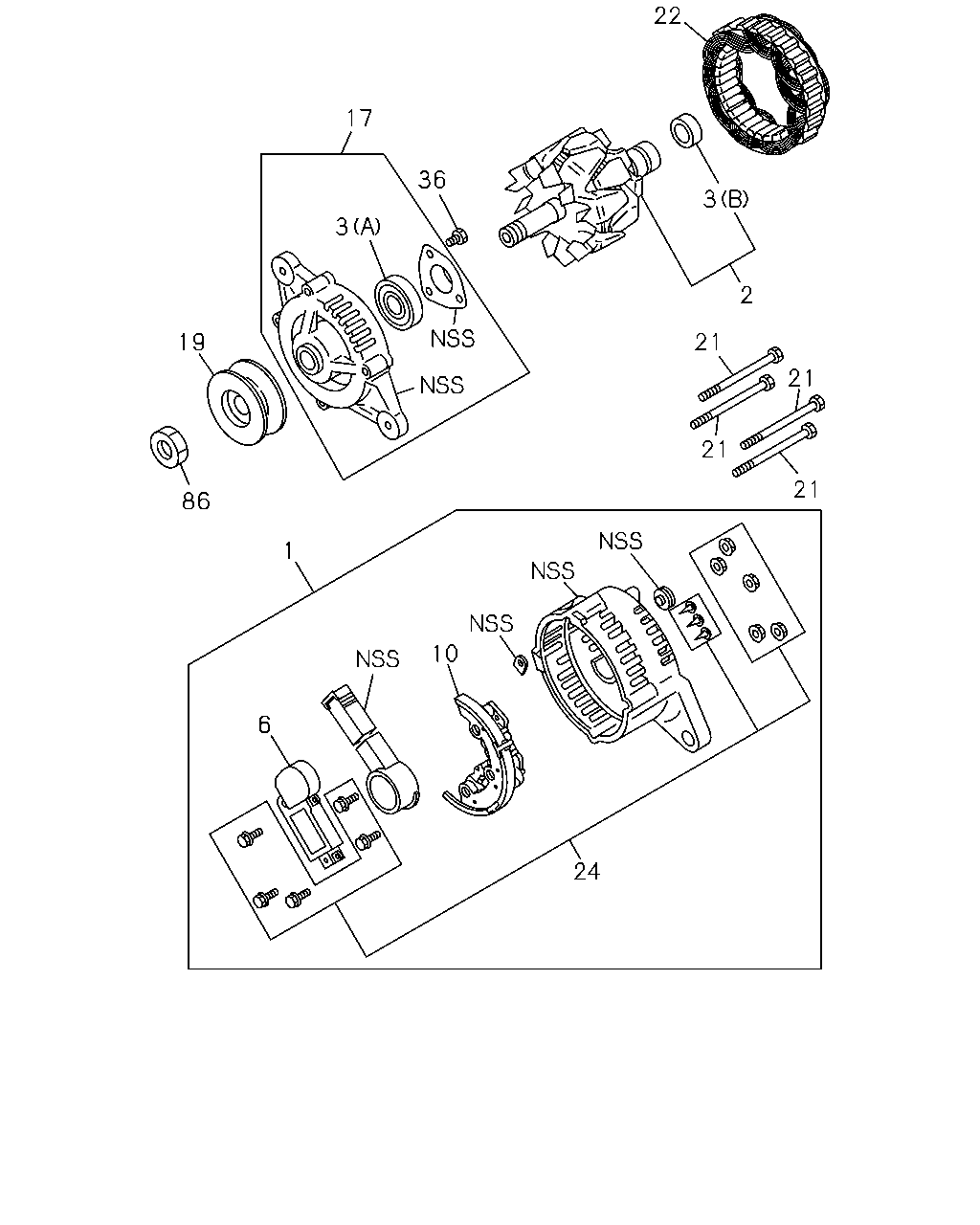

çizim 38871
22 17 36 3 3 2 21 19 21 21 21 86 1 10 6 24
BalonParca AdiParca NoAdetTipApplied Date
1 02.297 COVER ASM; RR,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-020-0 01 1 -
2 02.279 ROTOR; GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97205-065-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A), USA ASM PART: B = 8-97204-332-1, 97204332 		8-94462-859-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B), USA ASM PART: B = 8-97204-332-1, 97204332 		8-97103-807-0 01 1 -
6 02.500 REGULATOR ASM; VOLTAGE,GEN
USA ASM PART: A = 8-10479-923-0, 10479923 		8-10475-019-0 01 1 -
6 02.500 REGULATOR ASM; VOLTAGE,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-022-0 01 1 -
10 02.319 RECTIFIER; GEN
USA ASM PART: A = 8-10479-923-0, 10479923 		8-10475-034-0 01 1 -
10 02.319 RECTIFIER; GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-024-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
02.500, USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-025-0 01 1 -
19 02.274 PULLEY; GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97135-144-0 01 1 -
21 02.316 BOLT; THROUGH,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97182-960-0 04 1 -
22 02.310 STATOR; GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97205-067-0 01 1 -
24 02.307 SCREW; RECTIFIER,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97120-257-0 01 1 -
36 02.277 SCREW; FRT COVER
02.307, USA ASM PART: B = 8-97204-332-1, 97204332 		8-94233-653-0 01 1 -
86 02.280 NUT SET; PULLEY,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97074-927-0 01 1 -

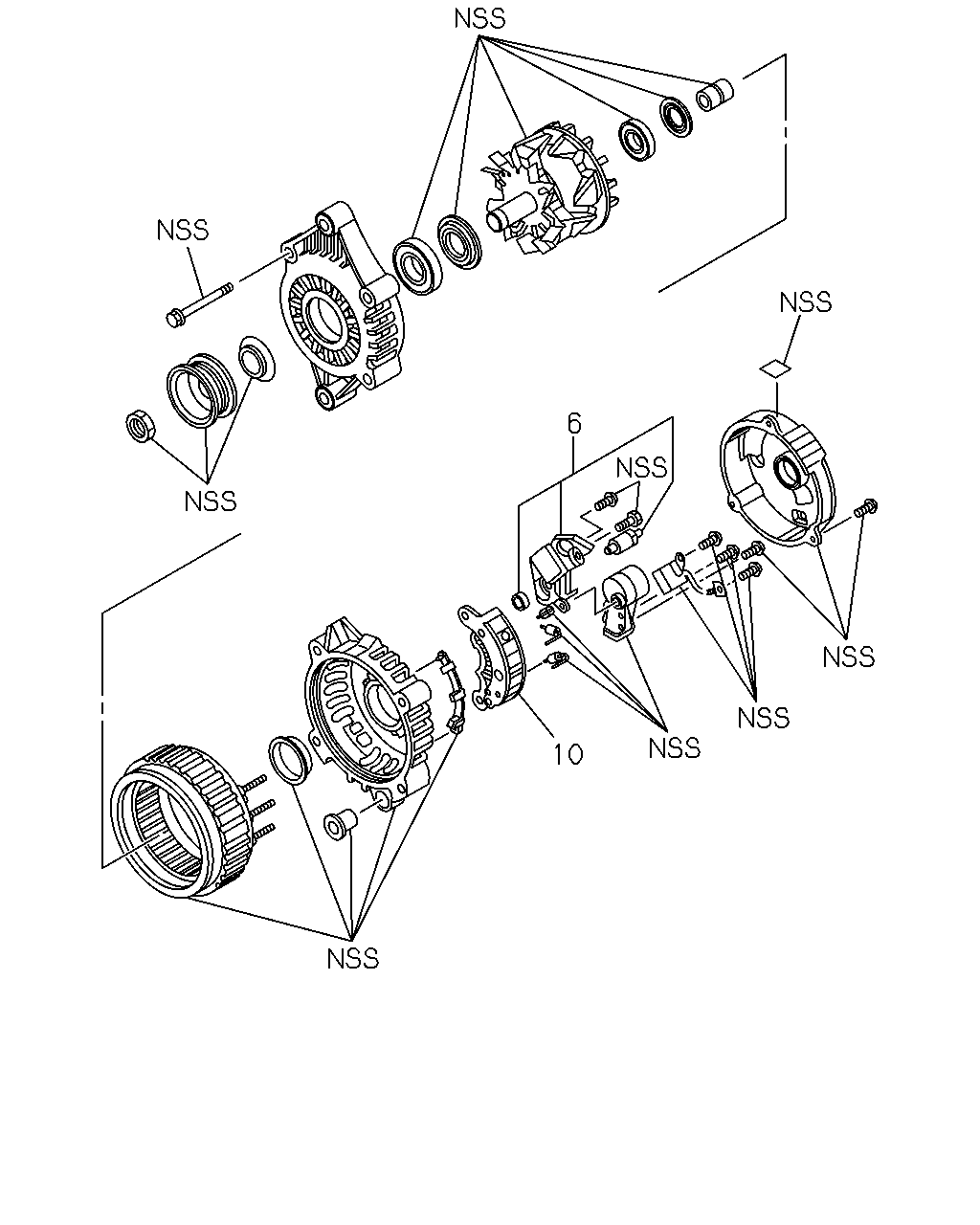

çizim 39214
6 10
BalonParca AdiParca NoAdetTipApplied Date
6 02.500 REGULATOR ASM; VOLTAGE,GEN
USA ASM PART: A = 8-10479-923-0, 10479923 		8-10475-019-0 01 1 -
6 02.500 REGULATOR ASM; VOLTAGE,GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-022-0 01 1 -
10 02.319 RECTIFIER; GEN
USA ASM PART: A = 8-10479-923-0, 10479923 		8-10475-034-0 01 1 -
10 02.319 RECTIFIER; GEN
USA ASM PART: B = 8-97204-332-1, 97204332 		8-97210-024-0 01 1 -
