0-65 — STARTER (#46266) — 58 parça

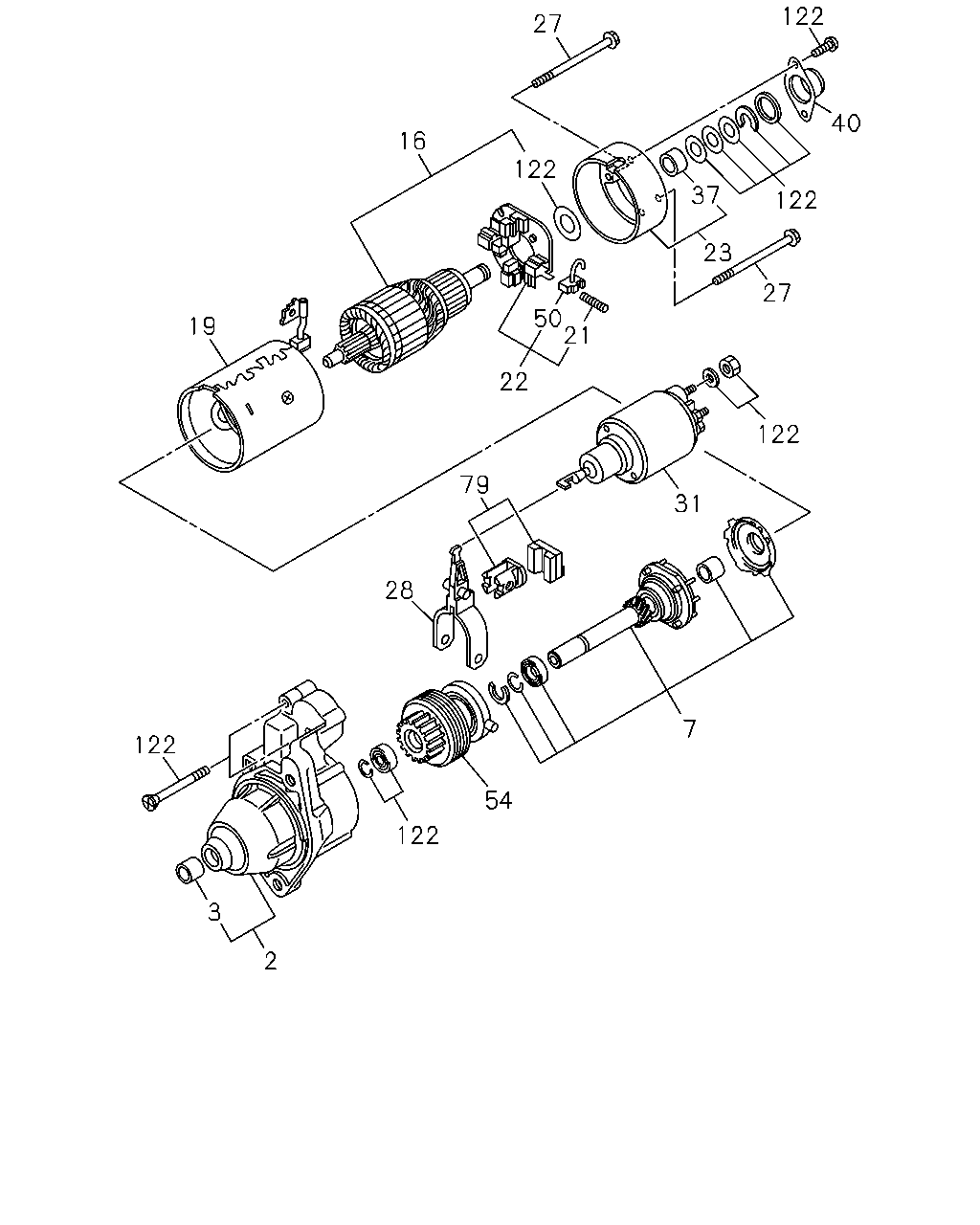

çizim 38231
122 27 40 16 122 37 122 23 27 50 21 19 22 122 79 31 28 7 122 54 122 3 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-426-0 01 1 -
2 02.085 CASE; PINION,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-140-0 01 1 -
3 02.083 METAL; PINION CASE STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-07424-628-0 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-147-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92140-278-0 01 1 -
16 02.043 ARMATURE; STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-253-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92142-453-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92141-442-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-244-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-92140-283-0 01 1 -
22 02.051 HOLDER; BRUSH STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-424-0 01 1 -
23 02.067 COVER; RR COVER STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-423-0 01 1 -
23 02.067 COVER; RR COVER STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-153-0 01 1 -
27 02.077 BOLT; THROUGH,STARTER
(A), USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-243-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(B), USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-422-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-155-0 02 1 -
28 02.108 LEVER; SHIFT,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-92140-255-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-425-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-145-0 01 1 -
37 02.083 METAL; RR COVER STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92140-285-0 01 1 -
40 02.049 COVER; DUST,RR COVER,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-156-0 01 1 -
50 02.051 BRUSH; (-),STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-92140-288-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-427-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-146-0 01 1 -
79 02.055 HOLDER; SHIFT LEVER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-144-0 01 1 -
122 02.041 REPAIR KIT; STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-92140-287-0 01 1 -
çizim 39247
23 41 14 22 21 13 14 27 16 17 58 32 17 114 46 44 43 114 31 47 48 54 96 27 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-426-0 01 1 -
2 02.085 CASE; PINION,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-140-0 01 1 -
13 02.049 YOKE; STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-254-0 01 1 -
14 02.087 GASKET; YOKE,STARTER
02.049, USA ASM PART: B = 8-97064-553-0, 97064553 		8-94170-214-0 02 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92140-278-0 01 1 -
16 02.043 ARMATURE; STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-253-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A), USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-240-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B), USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-241-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-92064-181-0, 92064181 		8-92141-442-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-244-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-92140-283-0 01 1 -
22 02.051 HOLDER; BRUSH STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-424-0 01 1 -
23 02.067 COVER; RR COVER STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-423-0 01 1 -
23 02.067 COVER; RR COVER STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-153-0 01 1 -
27 02.077 BOLT; THROUGH,STARTER
(A), USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-243-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(B), USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-422-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-155-0 02 1 -
31 02.100 SWITCH; ENGAGE STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-425-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-145-0 01 1 -
32 02.115 COVER; RUBBER,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-420-0 01 1 -
41 02.067 SCREW; RR COVER,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94170-216-0 02 1 -
43 02.086 RETAINER; PINION STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-246-0 01 1 -
44 02.086 ROLLER; PINION STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		5-81129-099-0 05 1 -
46 02.086 GEAR; CLU STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-247-0 01 1 -
47 02.086 SPRING; PINION STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-245-0 01 1 -
48 02.108 BALL; PINION,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		5-81129-092-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-427-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
AUS ASM PART: A = 8-92064-181-0, 92064181 		8-97182-146-0 01 1 -
58 03.330 PIPE; DRAIN RR COVER STARTER
02.067, USA ASM PART: B = 8-97064-553-0, 97064553 		8-97041-421-0 01 1 -
96 02.104 GASKET; FRT CASE
USA ASM PART: B = 8-97064-553-0, 97064553 		8-97078-001-0 01 1 -
114 02.055 NUT; TERMINAL
02.102, (B) ASM PART: B = 8-97064-553-0, 97064553 		8-94109-763-0 01 1 -
114 02.055 NUT; TERMINAL
(A), USA ASM PART: B = 8-97064-553-0, 97064553 		8-94377-238-0 01 1 -
