0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#46265) — 94 parça

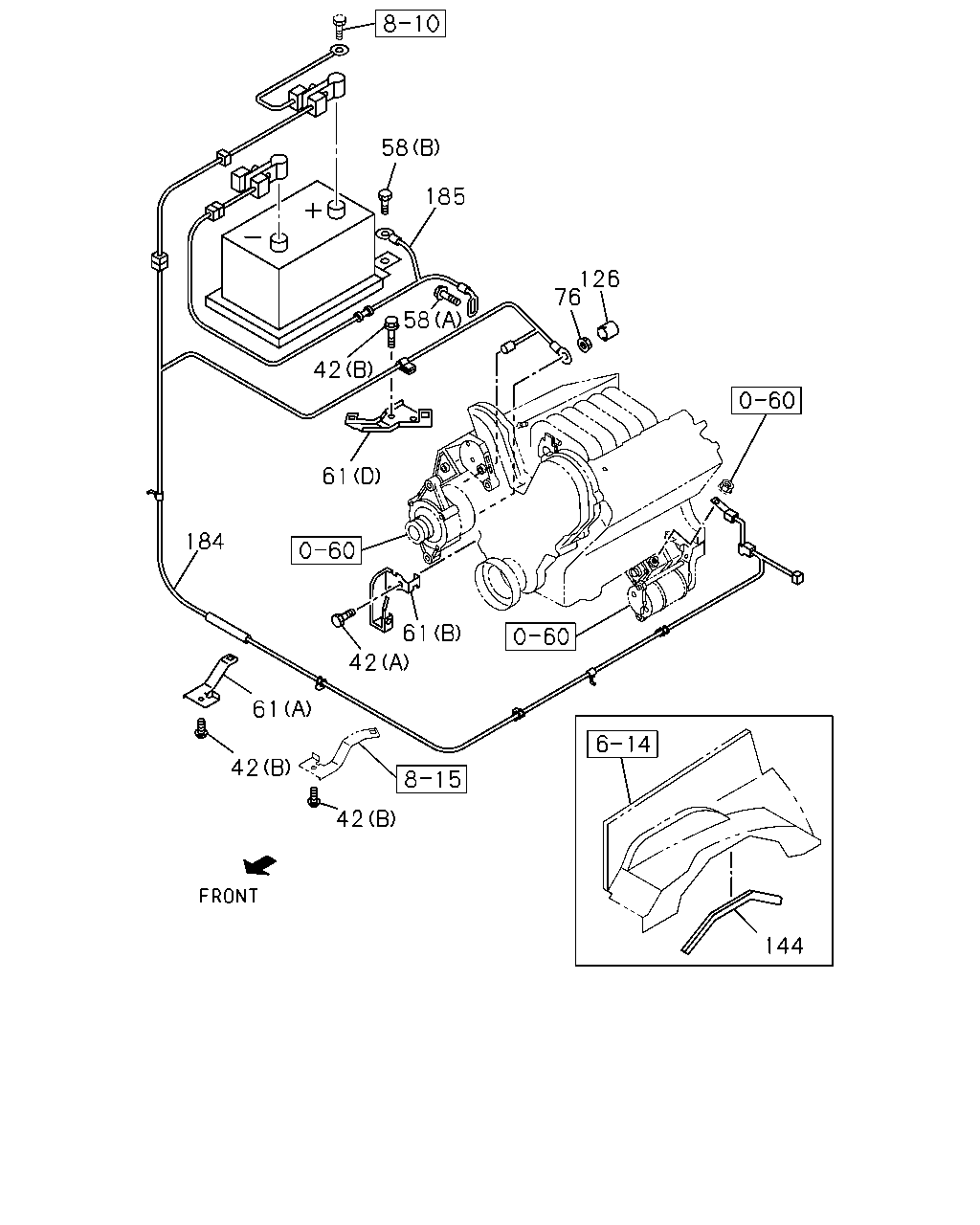

58 185 126 76 58 42 61 184 61 42 61 42 42 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	02.343 BOLT; BRKT,BATTERY CABLE 01.428 (A) M6X12 FLANGE USA	0-28080-612-0	01	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	04	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE TORQUE ON DEMAND(7HA) 06.635 (B) M6X16 FLANGE	0-28480-616-0	01	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9811-0012		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	03	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	01	1	9811-		●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	9811-0009	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	0010-0012	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9811-0012	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0101-		●
58	02.343 BOLT; CABLE,BATTERY 00.002 (A) M8X25 FLANGE	0-28690-825-0	01	1	0010-0108		●
58	02.343 BOLT; CABLE,BATTERY 00.002 M8X25 FLANGE	0-28690-825-0	01	1	0109-		●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97139-647-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (B) USA	8-97142-528-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (A) USA	8-97135-911-0	01	1	9811-		●
61	02.333 BRACKET; BATTERY CABLE (C)	8-97165-492-0	01	1	9811-0012		●
61	02.333 BRACKET; BATTERY CABLE (D) USA	8-97213-235-0	01	1	0101-		●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97177-582-0	01	1	9811-		●
76	02.343 NUT; BATTERY CABLE 07.633 (A) M8 FLANGE USA	0-91150-108-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE 17.185 (B) M5	9-99110-405-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE M6 W/LK WASHER	8-94424-179-0	01	1	9811-		●
126	02.049 CAP; TERMINAL,AC GEN	8-97087-081-1	01	1	9811-		●
144	02.343 PROTECTOR; EDGE 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0004-		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97126-949-3	01	1	9811-0012	●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97176-094-0	01	1	9811-0012		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97241-417-5	01	1	0101-		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97218-241-0	01	1	9811-0012	●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97217-775-0	01	1	9811-0008		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-213-0	01	1	0009-0012		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-196-0	01	1	0101-		●

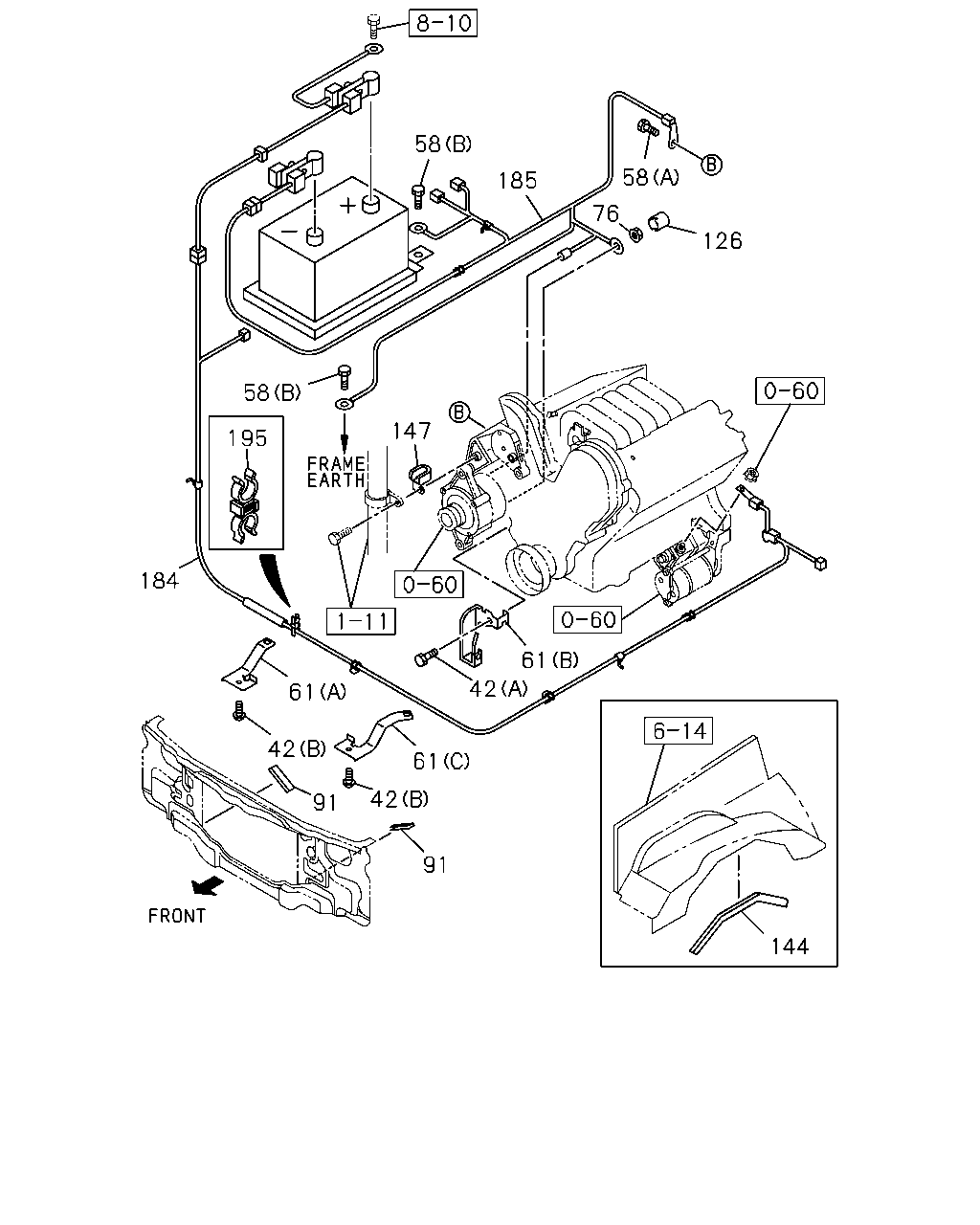

58 58 185 76 126 58 147 195 184 61 42 61 42 61 42 91 91 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	02.343 BOLT; BRKT,BATTERY CABLE 01.428 (A) M6X12 FLANGE USA	0-28080-612-0	01	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	04	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE TORQUE ON DEMAND(7HA) 06.635 (B) M6X16 FLANGE	0-28480-616-0	01	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9811-0012		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	03	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	01	1	9811-		●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	9811-0009	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	0010-0012	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9811-0012	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0101-		●
58	02.343 BOLT; CABLE,BATTERY 00.002 (A) M8X25 FLANGE	0-28690-825-0	01	1	0010-0108		●
58	02.343 BOLT; CABLE,BATTERY 00.002 M8X25 FLANGE	0-28690-825-0	01	1	0109-		●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97139-647-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (B) USA	8-97142-528-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (A) USA	8-97135-911-0	01	1	9811-		●
61	02.333 BRACKET; BATTERY CABLE (C)	8-97165-492-0	01	1	9811-0012		●
61	02.333 BRACKET; BATTERY CABLE (D) USA	8-97213-235-0	01	1	0101-		●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97177-582-0	01	1	9811-		●
76	02.343 NUT; BATTERY CABLE 07.633 (A) M8 FLANGE USA	0-91150-108-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE 17.185 (B) M5	9-99110-405-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE M6 W/LK WASHER	8-94424-179-0	01	1	9811-		●
91	02.183 PROTECTOR; HARNESS 02.559 L=80	5-71997-133-0	02	1	9811-9901		●
126	02.049 CAP; TERMINAL,AC GEN	8-97087-081-1	01	1	9811-		●
144	02.343 PROTECTOR; EDGE 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0004-		●
147	02.559 CLIP; HARNESS 03.162	5-09709-095-0	01	1	9811-0012		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97126-949-3	01	1	9811-0012	●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97176-094-0	01	1	9811-0012		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97241-417-5	01	1	0101-		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97218-241-0	01	1	9811-0012	●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97217-775-0	01	1	9811-0008		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-213-0	01	1	0009-0012		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-196-0	01	1	0101-		●
195	04.128 CLIP; ATF HOSE A/T THM 4 SPEED(RMQ) USA	8-97174-271-0	01	1	0004-0012		●
195	04.128 CLIP; ATF HOSE A/T THM 4 SPEED(RMQ) USA	8-97174-271-0	01	1	0111-		●

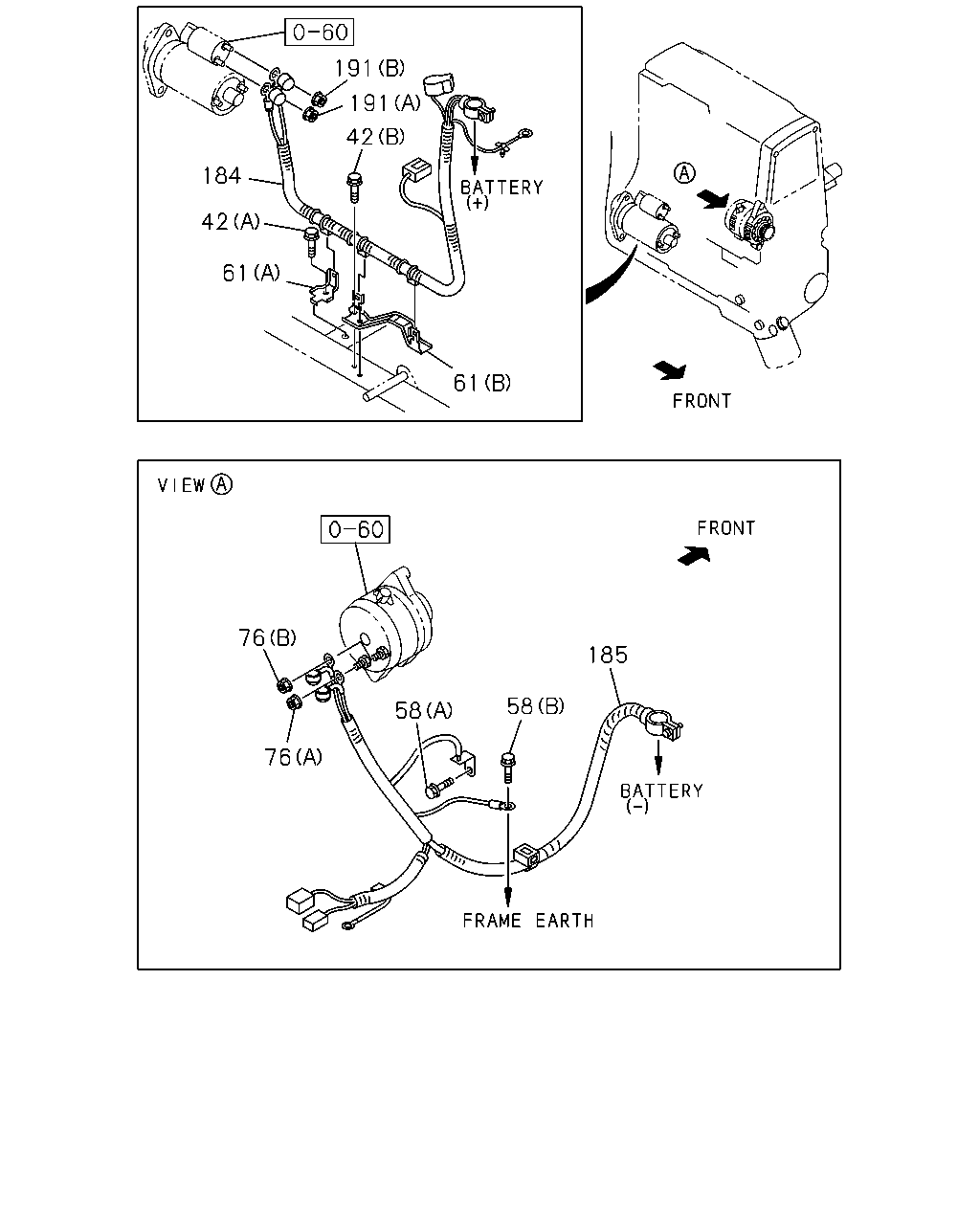

191 191 42 184 42 61 61 76 185 58 58 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	02.343 BOLT; BRKT,BATTERY CABLE 01.428 (A) M6X12 FLANGE USA	0-28080-612-0	01	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	04	1	9811-0012	●
42	02.343 BOLT; BRKT,BATTERY CABLE TORQUE ON DEMAND(7HA) 06.635 (B) M6X16 FLANGE	0-28480-616-0	01	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9811-0012		●
42	02.343 BOLT; BRKT,BATTERY CABLE 06.635 (B) M6X16 FLANGE	0-28480-616-0	03	1	0101-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	01	1	9811-		●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	9811-0009	●	●
58	02.343 BOLT; CABLE,BATTERY 08.900 (A) M8X12 FLANGE USA	0-28080-812-0	01	1	0010-0012	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	9811-0012	●	●
58	02.343 BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0101-		●
58	02.343 BOLT; CABLE,BATTERY 00.002 (A) M8X25 FLANGE	0-28690-825-0	01	1	0010-0108		●
58	02.343 BOLT; CABLE,BATTERY 00.002 M8X25 FLANGE	0-28690-825-0	01	1	0109-		●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97139-647-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (B) USA	8-97142-528-1	01	1	9811-0012	●
61	02.333 BRACKET; BATTERY CABLE (A) USA	8-97135-911-0	01	1	9811-		●
61	02.333 BRACKET; BATTERY CABLE (C)	8-97165-492-0	01	1	9811-0012		●
61	02.333 BRACKET; BATTERY CABLE (D) USA	8-97213-235-0	01	1	0101-		●
61	02.333 BRACKET; BATTERY CABLE (B)	8-97177-582-0	01	1	9811-		●
76	02.343 NUT; BATTERY CABLE 07.633 (A) M8 FLANGE USA	0-91150-108-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE 17.185 (B) M5	9-99110-405-0	01	1	9811-0012	●
76	02.343 NUT; BATTERY CABLE M6 W/LK WASHER	8-94424-179-0	01	1	9811-		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97126-949-3	01	1	9811-0012	●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97176-094-0	01	1	9811-0012		●
184	02.525 HARNESS; CABLE,BATTERY (+) USA	8-97241-417-5	01	1	0101-		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97218-241-0	01	1	9811-0012	●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97217-775-0	01	1	9811-0008		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-213-0	01	1	0009-0012		●
185	02.525 HARNESS; CABLE,BATTERY (-) USA	8-97289-196-0	01	1	0101-		●
191	08.155 NUT; STARTER 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9811-0012	●
191	08.155 NUT; STARTER 07.633 (B) M8 FLANGE USA	0-91150-108-0	01	1	9811-0012	●
