◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#46264) — 120 parça
çizim 4381
779 612 262 611 417
BalonParca AdiParca NoAdetTipApplied Date A B
262 02.559 CLIP; HARNESS
(A) ID=12 		5-09700-331-0 02 1 9811- ●
262 02.559 CLIP; HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811-0003 ●
417 02.420 CLIP
03.162 L=170 		5-09707-054-0 01 1 9811- ●
611 01.150 BRACKET; SENSOR
A/T THM 4 SPEED(RMQ) 		8-97135-742-0 01 1 9811- ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) 		8-97147-203-0 01 1 9811- ●
612 02.510 BOLT; BRKT
A/T THM 4 SPEED(RMQ) 00.738 M6X16 FLANGE USA 		0-28080-616-0 01 1 9811-0012 ●
779 02.277 BRACKET; CONNECTOR 8-97184-476-0 01 1 9811-0012 ●
çizim 5543
124 124 608
BalonParca AdiParca NoAdetTipApplied Date A B
124 01.150 SENSOR; OXYGEN
USA 		8-25312-200-0 01 1 9811-0012 ●
124 01.150 SENSOR; OXYGEN
USA 		8-25312-200-0 02 1 9811-0012 ●
124 01.150 SENSOR; OXYGEN 8-97224-011-0 02 1 0101-0108 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0109- ●
608 01.150 SENSOR; AIR TEMP
(A) AUS 		8-92063-941-0 01 1 9811-0012 ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 9811-0012 ● ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 0101- ●
çizim 5569
10
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
10 02.100 RELAY; STARTER
02.515 USA 		8-97231-264-0 01 1 0101- ●

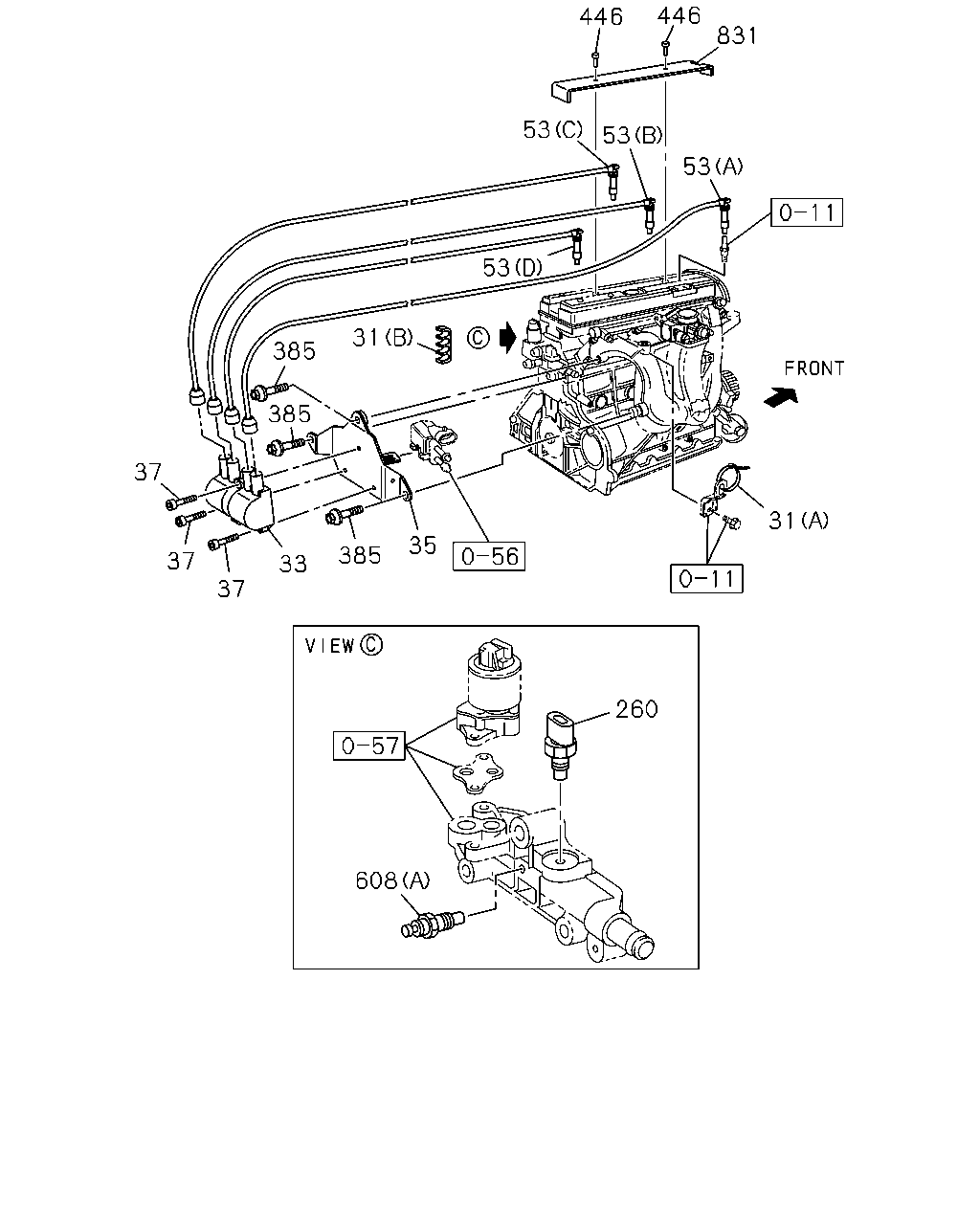

çizim 36451
446 446 831 53 53 53 53 31 385 385 37 31 35 385 37 33 37 260 608
BalonParca AdiParca NoAdetTipApplied Date A B
31 02.251 CLIP; HIGH TENSION CABLE
03.162 (A) L=140 		5-09707-031-1 01 1 9811-0012 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) AUS 		8-02965-736-0 01 1 9811-0012 ●
33 02.170 COIL ASM; IGN
AUS 		8-01104-038-0 01 1 9811-0012 ●
33 02.170 COIL ASM; IGN
NO.6 CYLINDER 		8-19005-250-1 01 1 0101- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9811-0012 ●
33 02.170 COIL ASM; IGN
NO.1-NO.5 CYLINDER 		8-19005-249-0 05 1 0101- ●
35 02.183 BRACKET; IGN COIL
AUS 		8-92062-929-0 01 1 9811-0012 ●
37 02.559 BOLT; IGN COIL 8-11086-662-0 03 1 9811-0012 ●
53 02.240 CABLE; IGN PLUG
(A) AUS 		8-92062-771-0 01 1 9811-0012 ●
53 02.240 CABLE; IGN PLUG
(B) AUS 		8-92062-772-0 01 1 9811-0012 ●
53 02.240 CABLE; IGN PLUG
(C) AUS 		8-92062-773-0 01 1 9811-0012 ●
53 02.240 CABLE; IGN PLUG
(D) AUS 		8-92062-774-0 01 1 9811-0012 ●
260 01.150 SENSOR; WATER TEMP
AUS 		8-12191-170-0 01 1 9811-0012 ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9811-0106 ●
260 01.150 SENSOR; WATER TEMP 8-15326-386-0 01 1 0107- ●
385 02.183 BOLT; BRKT,IGN COIL
AUS 		8-11093-601-0 03 1 9811-0012 ●
446 02.510 SCREW; COVER
AUS 		8-11071-693-0 02 1 9811-0012 ●
608 01.150 SENSOR; AIR TEMP
(A) AUS 		8-92063-941-0 01 1 9811-0012 ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 9811-0012 ● ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 0101- ●
831 02.362 COVER; CABLE,IGN
AUS 		8-92063-261-0 01 1 9811-0012 ●

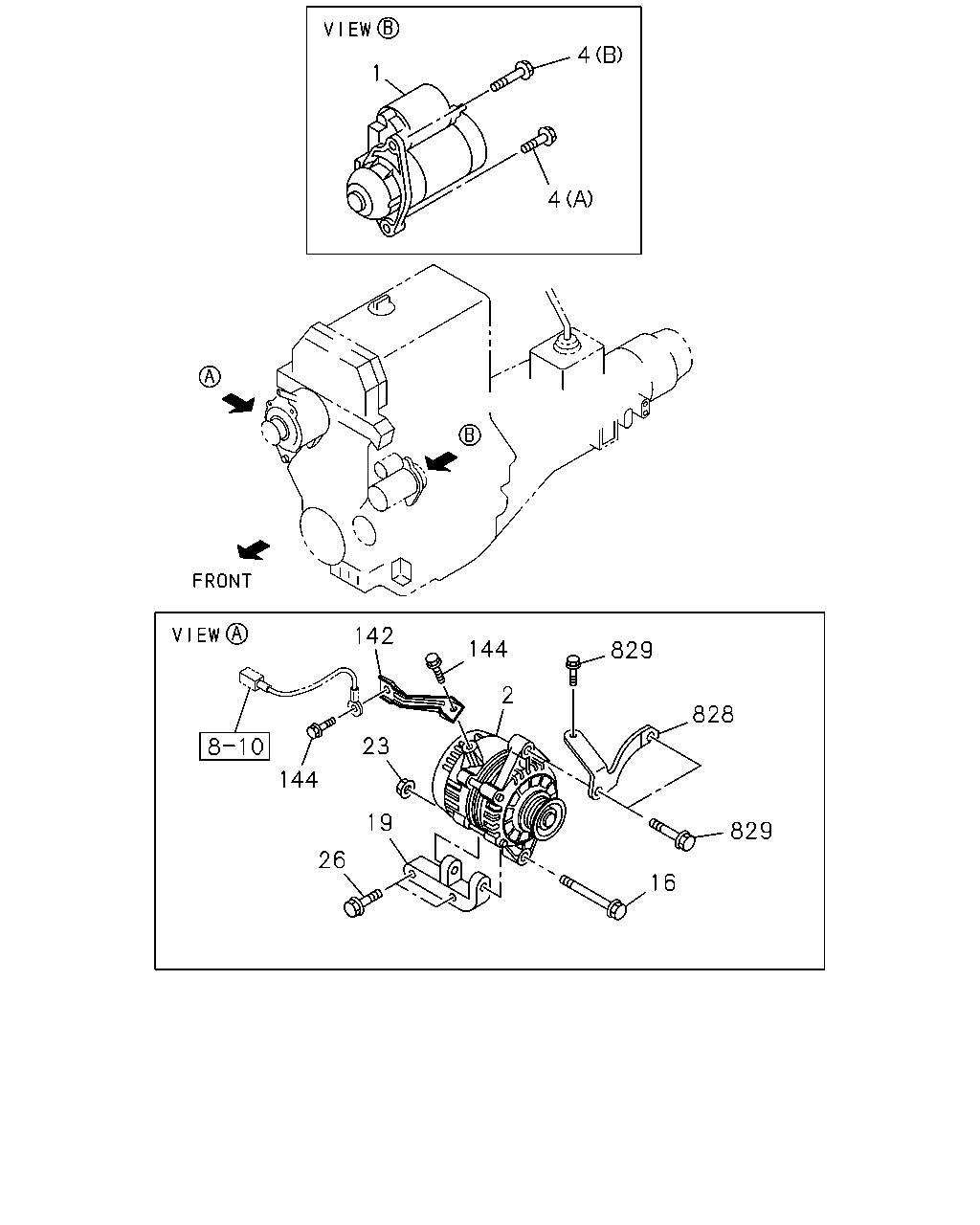

çizim 36768
4 1 4 142 144 829 2 828 23 144 19 829 26 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW AUS 		8-92064-181-0 01 1 9811-0012 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW USA 		8-97064-553-0 01 1 9811- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A USA 		8-10479-923-0 01 1 9811-0012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A USA 		8-97204-332-1 01 1 9811- ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 9811-0012 ●
4 02.042 BOLT; STARTER
(B) AUS 		8-11073-352-0 01 1 9811-0012 ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9811- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9811- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28186-012-0 01 1 9811-0012 ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9811- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9811- ●
19 02.277 BRACKET; GEN 8-09129-426-0 01 1 9811-0012 ●
19 02.277 BRACKET; GEN
USA 		8-97130-365-1 01 1 9811-0003 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91250-210-0 01 1 9811-0012 ●
26 02.277 BOLT; GEN BRKT
AUS 		8-11097-751-0 02 1 9811-0012 ●
142 02.277 BRACE
USA 		8-90499-377-0 01 1 9811-0012 ●
144 02.277 BOLT; BRACE
02.664 M8X20 FLANGE USA 		0-28680-820-0 02 1 9811-0012 ●
828 02.277 SHACKLE; GEN
USA 		8-91151-913-0 01 1 9811-0012 ●
829 02.510 BOLT; SHACKLE
02.664 M8X20 FLANGE USA 		0-28680-820-0 03 1 9811-0012 ●

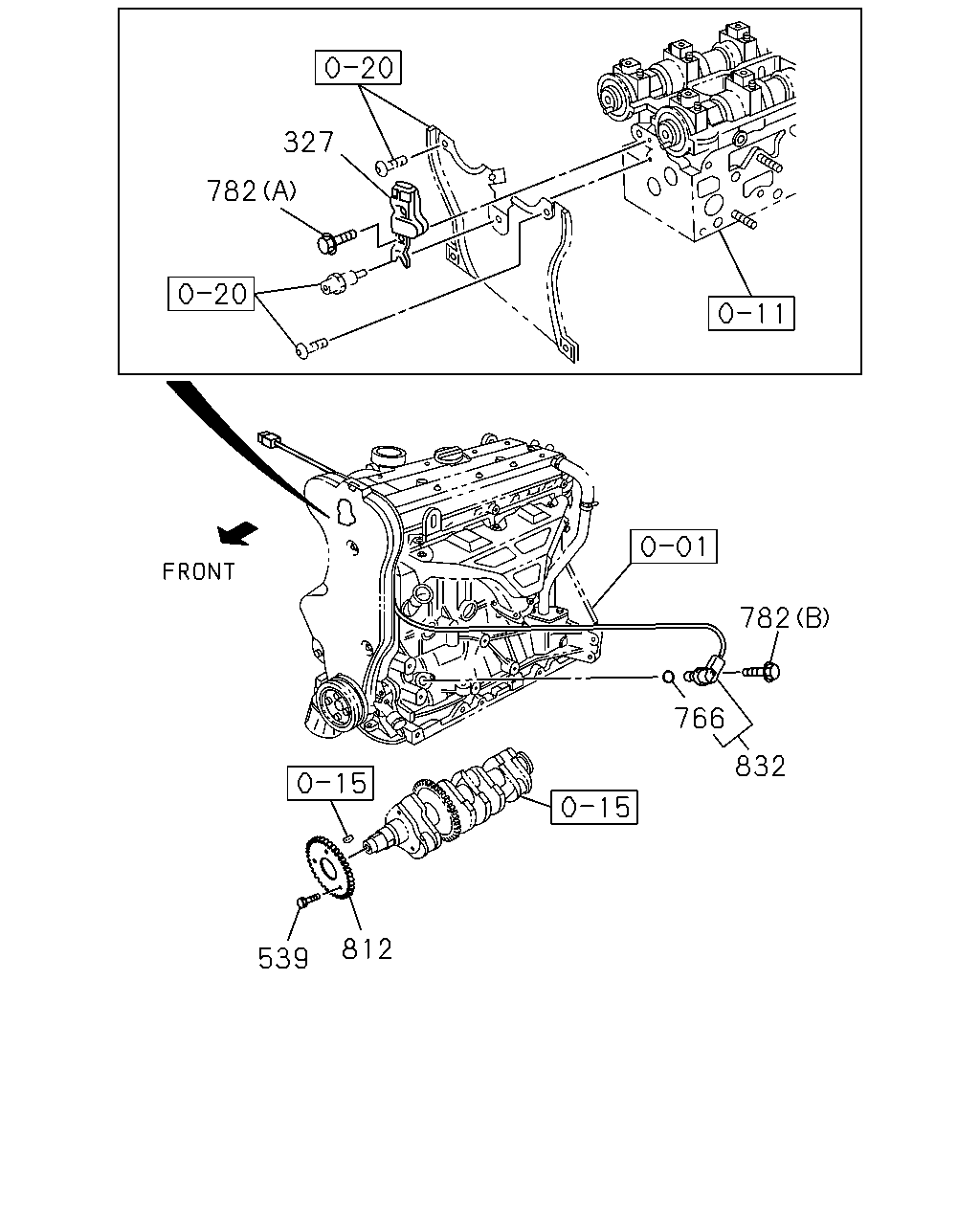

çizim 36795
327 782 782 766 832 812 539
BalonParca AdiParca NoAdetTipApplied Date A B
327 02.361 SENSOR; CAMSHAFT POSITION
AUS 		8-10456-506-0 01 1 9811-0012 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9811-0012 ●
539 02.510 SCREW; SENSOR
AUS 		8-90280-051-0 03 1 9811-0012 ●
766 02.363 GASKET; SENSOR
AUS 		8-10473-965-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
(A) AUS 		8-11093-881-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
(B) AUS 		8-11093-971-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE USA 		0-28080-612-0 01 1 9811-0108 ●
812 02.510 ROTOR; SENSOR
AUS 		8-90265-094-0 01 1 9811-0012 ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD
AUS 		8-10456-515-0 01 1 9811-0012 ●

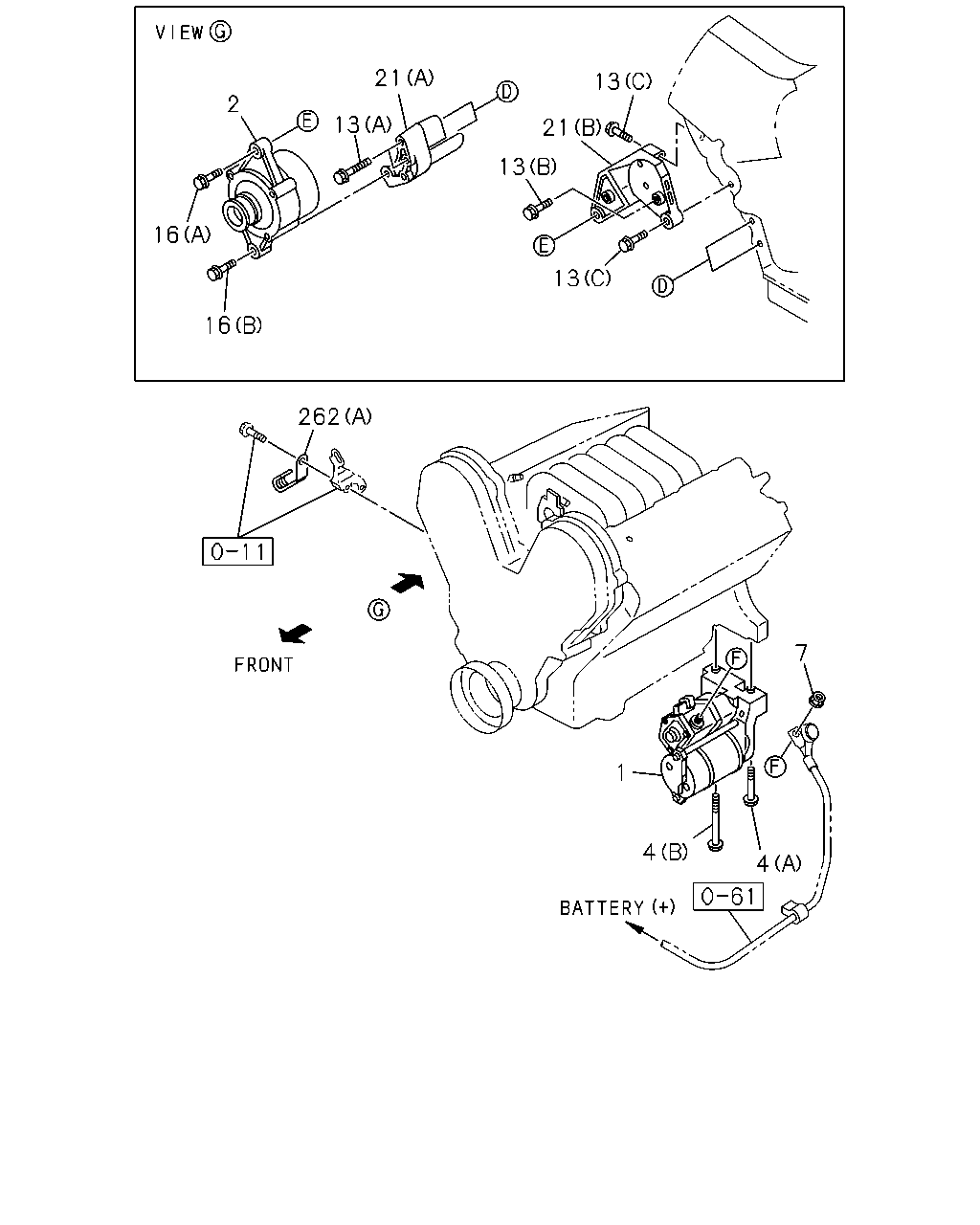

çizim 36855
21 13 2 13 21 13 16 13 16 262 7 1 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW AUS 		8-92064-181-0 01 1 9811-0012 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW USA 		8-97064-553-0 01 1 9811- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A USA 		8-10479-923-0 01 1 9811-0012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A USA 		8-97204-332-1 01 1 9811- ●
4 02.042 BOLT; STARTER
04.525 (A) M10X25 FLANGE 		0-28181-025-0 01 1 9811-0012 ●
4 02.042 BOLT; STARTER
(B) AUS 		8-11073-352-0 01 1 9811-0012 ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9811- ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9811- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER THA 		8-94413-537-0 01 1 9811- ●
13 02.100 BOLT; BRKT
09.171 (A) M8X90 FLANGE 		0-28080-890-0 02 1 9811- ●
13 02.100 BOLT; BRKT
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9811- ●
13 02.100 BOLT; BRKT
03.704 (C) M8X40 FLANGE 		0-28680-840-0 02 1 9811-0101 ●
13 02.100 BOLT; BRKT
16.545 (C) M8X40 FLANGE 		0-28690-840-0 02 1 0102- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28186-012-0 01 1 9811-0012 ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9811- ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9811- ●
21 02.277 BRACKET; GEN
(B) USA 		8-97130-365-1 01 1 9811-0009 ●
21 02.277 BRACKET; GEN
(A) USA 		8-97130-367-2 01 1 9811-0106 ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0107- ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0010-0201 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ●
262 02.559 CLIP; HARNESS
(A) ID=12 		5-09700-331-0 02 1 9811- ●
262 02.559 CLIP; HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811-0003 ●
çizim 36907
124 608
BalonParca AdiParca NoAdetTipApplied Date A B
124 01.150 SENSOR; OXYGEN
USA 		8-25312-200-0 01 1 9811-0012 ●
124 01.150 SENSOR; OXYGEN
USA 		8-25312-200-0 02 1 9811-0012 ●
124 01.150 SENSOR; OXYGEN 8-97224-011-0 02 1 0101-0108 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0109- ●
608 01.150 SENSOR; AIR TEMP
(A) AUS 		8-92063-941-0 01 1 9811-0012 ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 9811-0012 ● ●
608 01.150 SENSOR; AIR TEMP
03.682 (B) USA 		8-12160-244-0 01 1 0101- ●

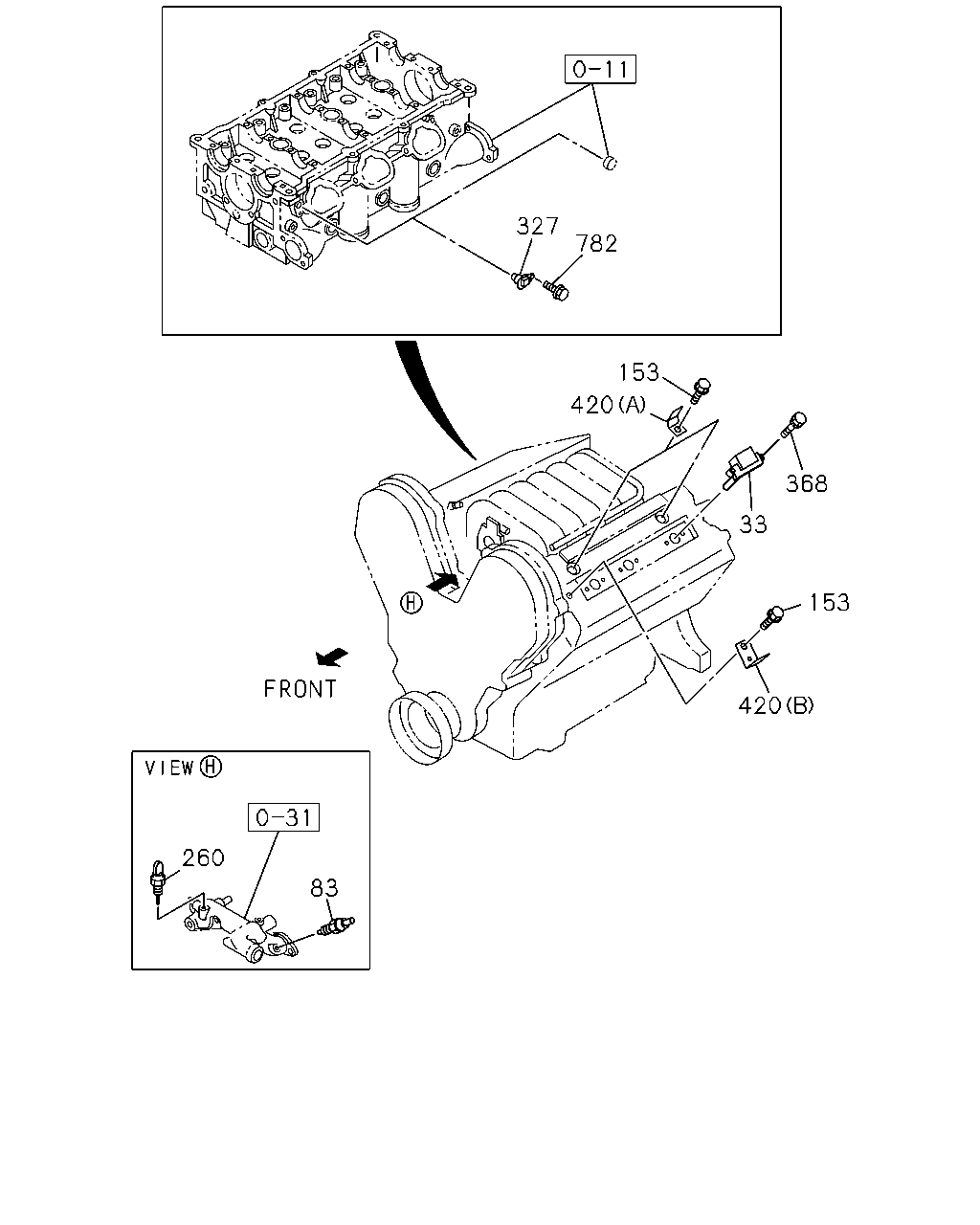

çizim 39216
327 782 153 420 368 33 153 420 260 83
BalonParca AdiParca NoAdetTipApplied Date A B
33 02.170 COIL ASM; IGN
AUS 		8-01104-038-0 01 1 9811-0012 ●
33 02.170 COIL ASM; IGN
NO.6 CYLINDER 		8-19005-250-1 01 1 0101- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9811-0012 ●
33 02.170 COIL ASM; IGN
NO.1-NO.5 CYLINDER 		8-19005-249-0 05 1 0101- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9811- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 9811-0012 ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0101- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0101- ●
260 01.150 SENSOR; WATER TEMP
AUS 		8-12191-170-0 01 1 9811-0012 ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9811-0106 ●
260 01.150 SENSOR; WATER TEMP 8-15326-386-0 01 1 0107- ●
327 02.361 SENSOR; CAMSHAFT POSITION
AUS 		8-10456-506-0 01 1 9811-0012 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9811-0012 ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 9811- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9811-0012 ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
(A) AUS 		8-11093-881-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
(B) AUS 		8-11093-971-0 01 1 9811-0012 ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE USA 		0-28080-612-0 01 1 9811-0108 ●
çizim 39250
779 262 611 417
BalonParca AdiParca NoAdetTipApplied Date A B
262 02.559 CLIP; HARNESS
(A) ID=12 		5-09700-331-0 02 1 9811- ●
262 02.559 CLIP; HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9811-0003 ●
417 02.420 CLIP
03.162 L=170 		5-09707-054-0 01 1 9811- ●
611 01.150 BRACKET; SENSOR
A/T THM 4 SPEED(RMQ) 		8-97135-742-0 01 1 9811- ●
611 01.150 BRACKET; SENSOR
M/T MUA 5 SPEED(RMN) 		8-97147-203-0 01 1 9811- ●
779 02.277 BRACKET; CONNECTOR 8-97184-476-0 01 1 9811-0012 ●
