Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶
0-56 — EMISSION SYSTEM
(#46262) — 19 parça
Tümü
A - X22SE DOHC ENG
B - 6VD1 DOHC ENG
◀

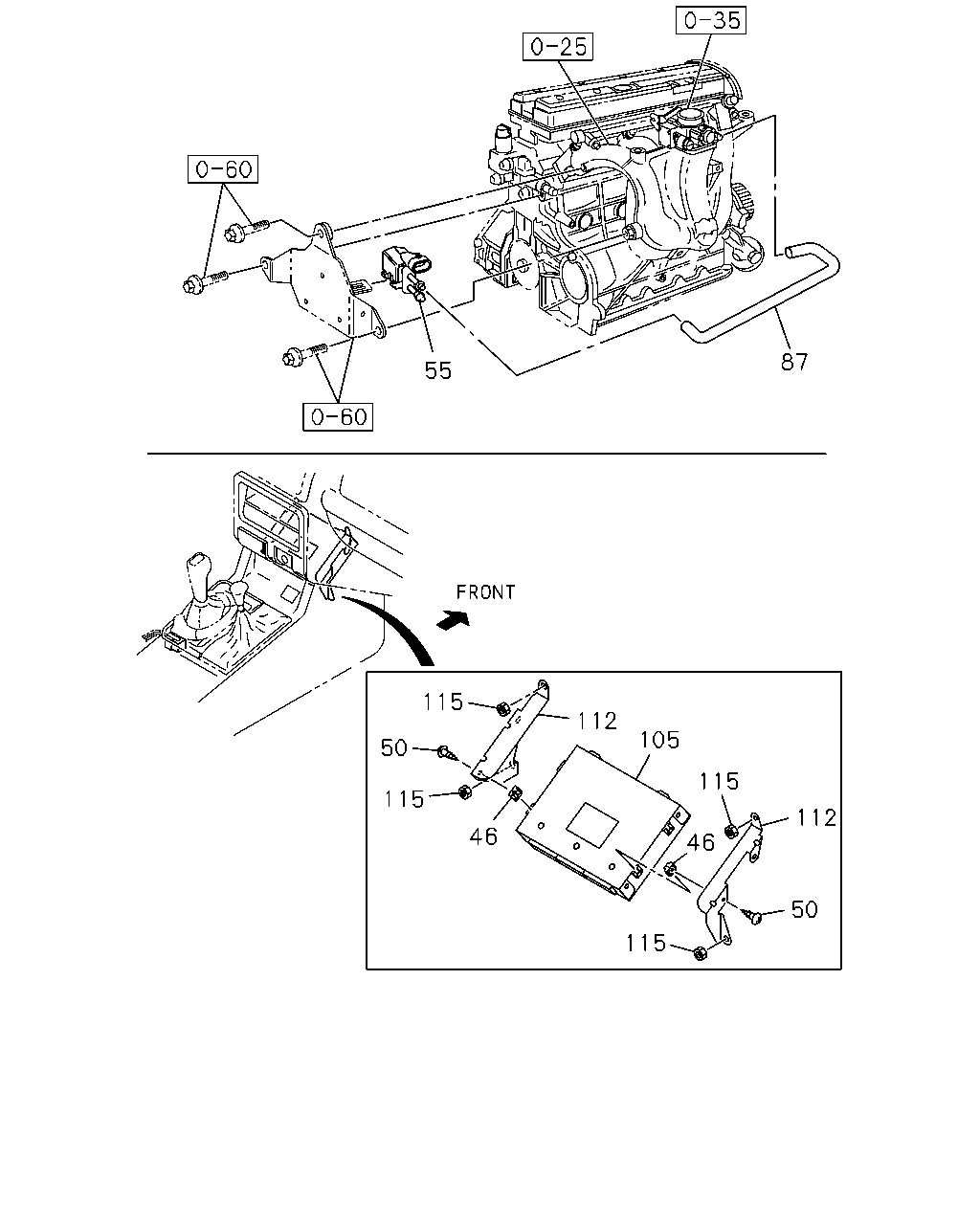

[056A] X22SE DOHC ENG (10 parça)

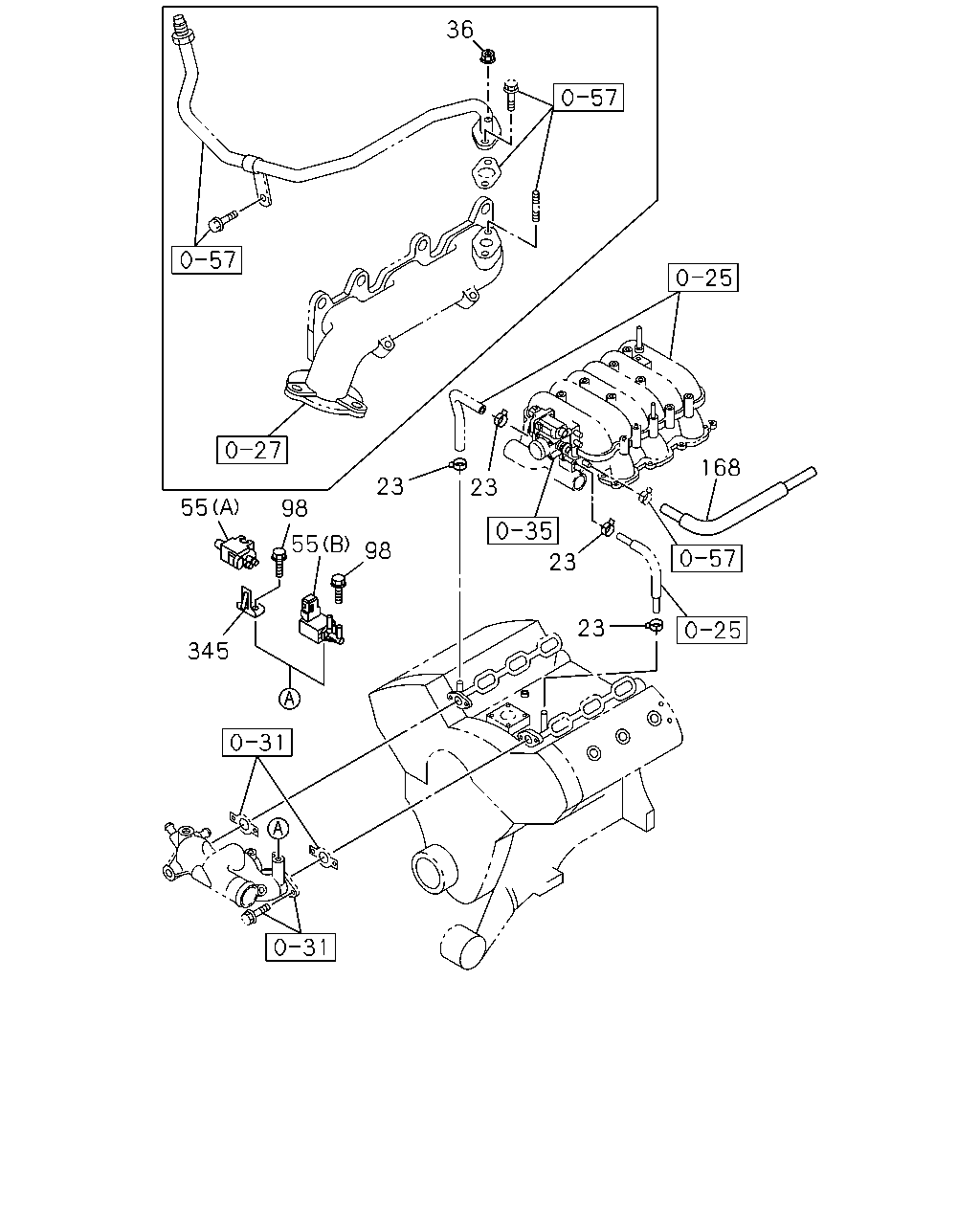

[056A] 6VD1 DOHC ENG (9 parça)
▶
87
55
115
112
105
50
115
115
112
46
46
50
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
46
03.671 GROMMET
04.342
8-97110-216-1
04
1
9811-0012
●
50
03.671 SCREW; ECM
06.514 M4X10 TAPPING W/PL WASHER
0-74100-410-0
04
1
9811-0012
●
55
03.670 SOLENOID; VAC CONT
03.164 AUS
8-01997-210-0
01
1
9811-0012
●
55
03.670 SOLENOID; VAC CONT
(A)
8-01997-201-0
01
1
9811-0108
●
55
03.670 SOLENOID; VAC CONT
(B)
8-97228-082-1
01
1
0109-
●
87
03.417 HOSE; RUBBER,THROTTLE BODY TO VS
AUS
8-92062-711-0
01
1
9811-0012
●
105
03.415 CONTROLLER; MODULE,ENGINE
USA
8-09352-619-2
01
1
9811-0012
●
112
03.671 BRACKET; ECM
09.766
8-97125-870-1
01
1
9811-0012
●
112
03.671 BRACKET; ECM
09.766
8-97125-869-1
01
1
9811-0012
●
115
03.415 NUT; ENG CONT MODULE
04.594 M6 FLANGE
0-91150-106-0
04
1
9811-0012
●
36
168
23
23
55
98
55
98
23
23
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
03.162 CLIP; RUBBER HOSE,THROTTLE
01.153 ID=12.8
8-94367-943-0
04
1
9811-
●
36
03.680 NUT; EGR PIPE
03.613 M8 FLANGE THA
8-97061-401-1
01
1
9811-
●
55
03.670 SOLENOID; VAC CONT
03.164 AUS
8-01997-210-0
01
1
9811-0012
●
55
03.670 SOLENOID; VAC CONT
(A)
8-01997-201-0
01
1
9811-0108
●
55
03.670 SOLENOID; VAC CONT
(B)
8-97228-082-1
01
1
0109-
●
98
03.671 BOLT; SOLENOID
01.428 M6X12 FLANGE USA
0-28080-612-0
01
1
9811-
●
168
03.675 HOSE; RUBBER
8-97136-221-1
01
1
9811-0108
●
168
03.675 HOSE; RUBBER
8-97233-356-0
01
1
0109-
●
345
03.675 BRACKET; SOLENOID
8-10475-356-0
01
1
9811-0108
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
