◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-55 - ECGI SYSTEM OR COMMON RAIL ▶
0-55 — ECGI SYSTEM OR COMMON RAIL (#46261) — 71 parça

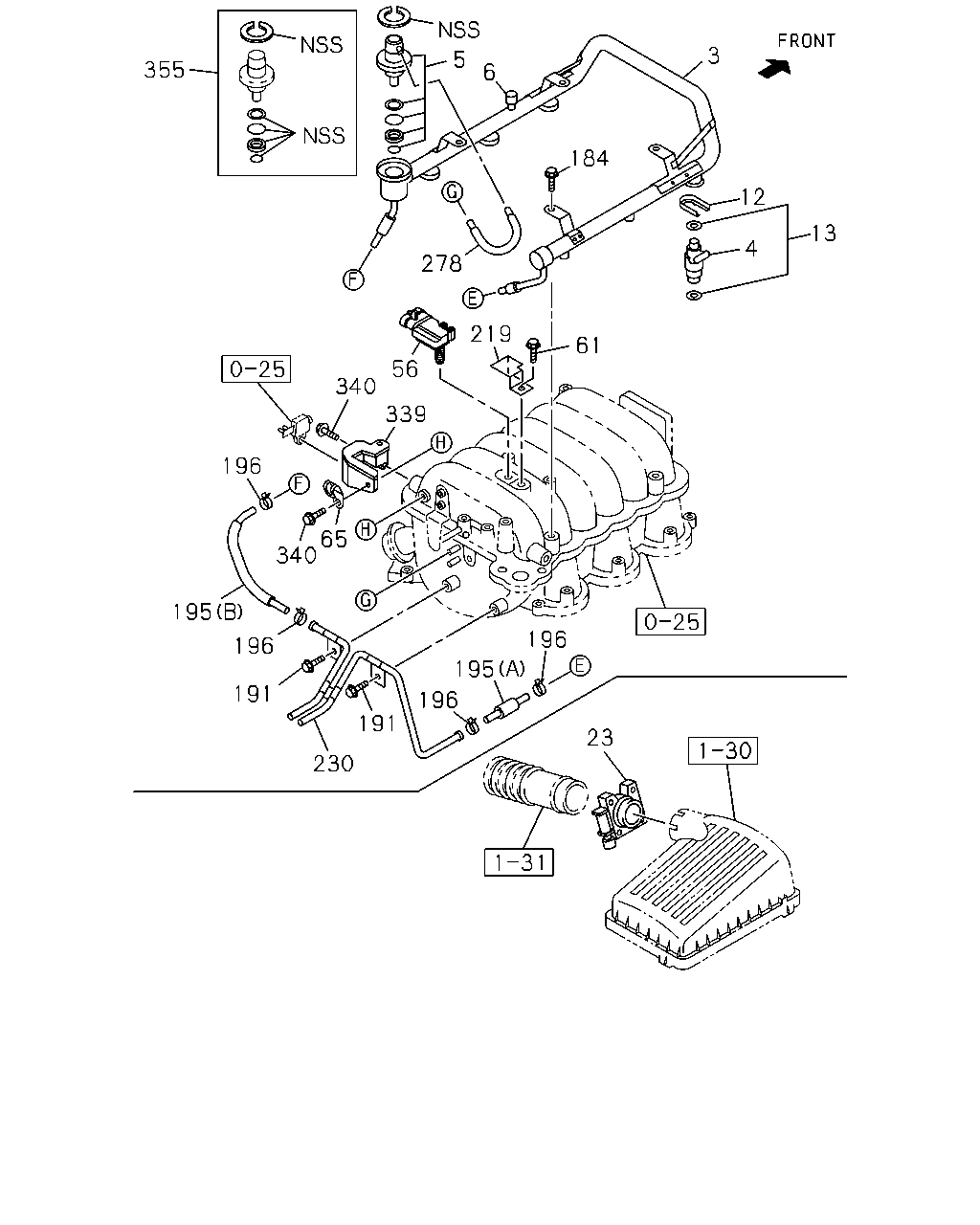

çizim 36733
3 5 355 6 184 12 13 4 278 219 61 56 340 339 196 65 340 195 196 196 195 191 196 191 23 230
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97179-673-1 01 1 0305- ●
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97351-575-0 01 1 0305- ●
3 03.330 RAIL; FUEL INJECTOR 8-17113-397-0 01 1 9811-0304 ●
4 03.332 INJECTOR ASM 8-17113-399-0 06 1 9811-0304 ●
4 03.332 INJECTOR ASM 8-25166-922-1 06 1 0305- ●
5 03.330 REGULATOR; PRESSURE 8-17113-398-0 01 1 9811-0304 ●
6 03.330 CONNECTOR; PRESSURE 8-17112-556-0 01 1 9811-0304 ●
12 03.332 CLIP; INJECTOR
AUS 		8-92063-104-0 04 1 9811-0012 ●
12 03.332 CLIP; INJECTOR
1 SET = 6 PIECES 		8-17113-401-0 01 1 9811-0304 ●
12 03.332 CLIP; INJECTOR 8-17113-401-0 06 1 0305- ●
13 03.332 GASKET; INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.304 1 SET = 12 PIECES 		8-17113-400-0 01 1 9811-0304 ●
23 03.335 SENSOR; AIR FLOW
USA 		8-25166-846-1 01 1 9811- ●
56 03.320 SENSOR; MAP
AUS 		8-16212-460-0 01 1 9811- ●
61 03.330 BOLT; BRKT
01.428 M6X12 FLANGE USA 		0-28080-612-0 01 1 9811- ●
65 03.330 CLIP; HOSE
02.559 ID=12 		5-09700-331-0 01 1 9811- ●
67 03.330 REGULATOR; PRESSURE 8-97254-845-0 01 1 0305- ●
123 03.901 CLIP; FUEL HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0305- ●
184 03.330 BOLT; FUEL RAIL
01.062 M8X16 FLANGE USA 		0-28080-816-0 04 1 9811- ●
188 03.901 HOSE; FUEL
03.163 L=170 SERVICED BY L=3000 		0-01558-300-0 01 1 0305- ●
191 03.330 BOLT; FUEL PIPE
08.077 M6X18 		8-94408-386-1 01 1 9811-0012 ●
191 03.330 BOLT; FUEL PIPE
01.428 M6X12 FLANGE USA 		0-28080-612-0 02 1 9811- ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=106 W/PROTECTOR 		8-97116-433-0 01 1 9811-0006 ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=106 W/PROTECTOR 		8-97257-804-0 01 1 0007-0203 ●
195 03.145 HOSE; RUBBER,FUEL
(B) L=140 W/PROTECTOR 		8-97349-415-0 01 1 0204- ●
195 03.145 HOSE; RUBBER,FUEL
(B) L=130 W/PROTECTOR 		8-97136-350-0 01 1 9811-0203 ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=100 W/PROTECTOR 		8-97349-414-0 01 1 0204- ●
196 03.145 CLIP; RUBBER HOSE,FUEL
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 04 1 9811- ●
219 03.306 BRACKET; MAP SENSOR 8-97136-347-2 01 1 9811- ●
230 03.330 PIPE; FUEL 8-97148-956-0 01 1 9811-0012 ●
230 03.330 PIPE; FUEL 8-97136-254-2 01 1 9811- ●
278 03.330 HOSE; PRESSURE REG
L=200 		8-97166-646-2 01 1 9811- ●
333 03.304 GASKET; FUEL RETURN 8-97179-766-0 01 1 0305- ●
339 03.330 PROTECTOR; PRESSURE REG 8-97148-718-2 01 1 9811- ●
340 03.330 BOLT; PROTECTOR
08.900 M8X16 		9-05820-816-0 02 1 9811-0008 ●
340 03.330 BOLT; PROTECTOR
M8X16 HEX SOCKET 		0-58310-816-0 02 1 0009- ●
353 03.145 CAP; PRESSURE VLV
03.330 		8-97119-713-0 01 1 0305- ●
355 03.330 RING KIT; PRESSURE REGULATOR 8-17113-393-0 01 1 9811-0304 ●

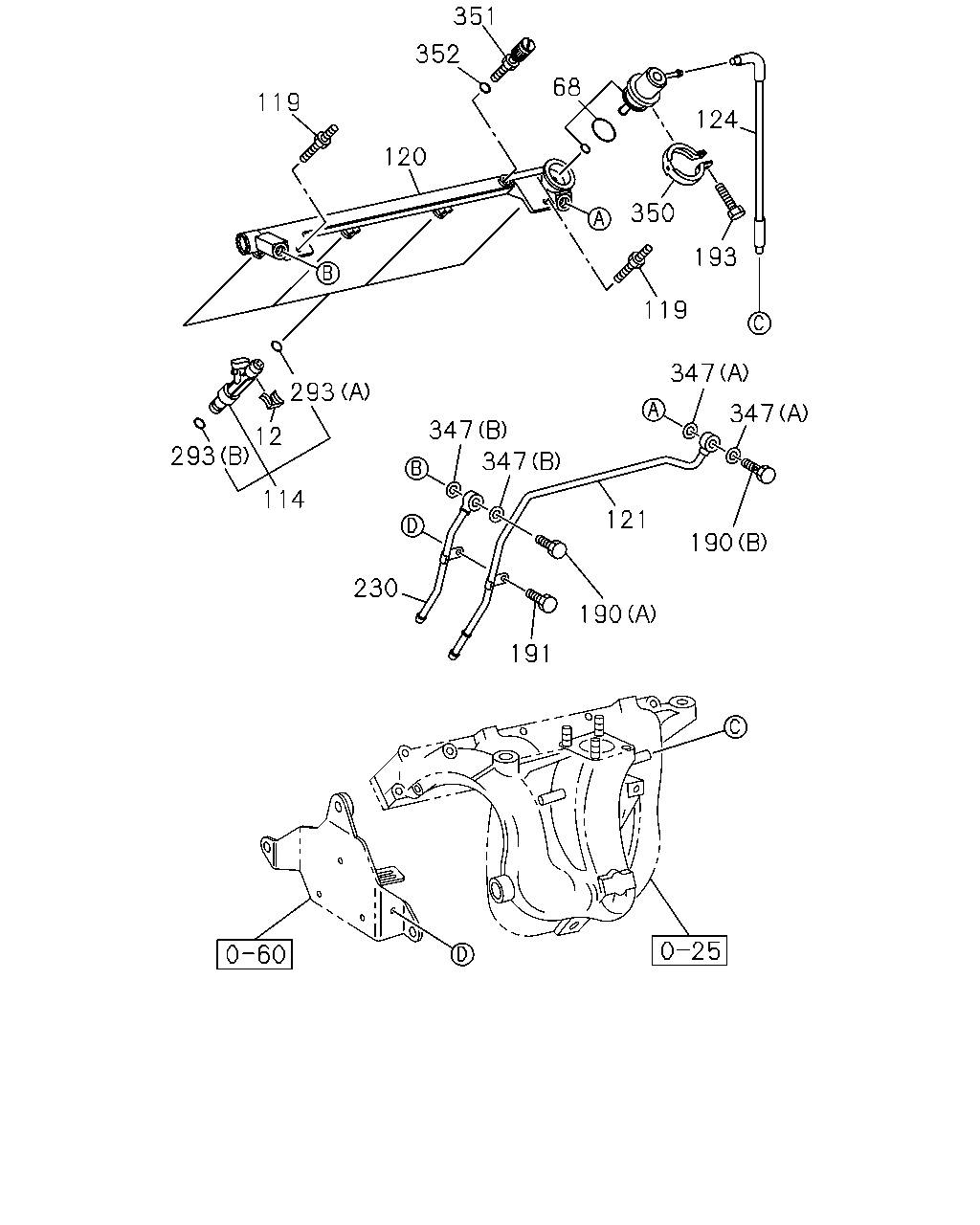

çizim 37789
351 352 68 119 124 120 350 193 119 347 293 347 347 12 293 347 114 121 190 230 190 191
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97179-673-1 01 1 0305- ●
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97351-575-0 01 1 0305- ●
12 03.332 CLIP; INJECTOR
AUS 		8-92063-104-0 04 1 9811-0012 ●
12 03.332 CLIP; INJECTOR
1 SET = 6 PIECES 		8-17113-401-0 01 1 9811-0304 ●
12 03.332 CLIP; INJECTOR 8-17113-401-0 06 1 0305- ●
67 03.330 REGULATOR; PRESSURE 8-97254-845-0 01 1 0305- ●
68 03.330 REGULATOR; PRESSURE
AUS 		8-90411-542-0 01 1 9811-0012 ●
114 03.300 INJECTOR; FUEL
AUS 		8-25173-828-0 04 1 9811-0012 ●
119 03.330 STUD; FUEL INJ
AUS 		8-90325-554-0 02 1 9811-0012 ●
120 03.330 PIPE; FUEL,INJ
AUS 		8-90411-551-0 01 1 9811-0012 ●
121 03.330 PIPE; FUEL,RETURN 8-97148-957-0 01 1 9811-9812 ●
121 03.330 PIPE; FUEL,RETURN 8-97212-167-0 01 1 9901-0012 ●
123 03.901 CLIP; FUEL HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0305- ●
124 03.901 HOSE; FUEL,PRESSURE REG TO PIPE
AUS 		8-90499-109-0 01 1 9811-0012 ●
188 03.901 HOSE; FUEL
03.163 L=170 SERVICED BY L=3000 		0-01558-300-0 01 1 0305- ●
190 03.330 BOLT; FUEL PIPE
03.890 (A) 		5-09675-035-0 01 1 9811-0012 ●
190 03.330 BOLT; FUEL PIPE
(B) M10X28 FLANGE 		8-97149-995-0 01 1 9811-0012 ●
191 03.330 BOLT; FUEL PIPE
08.077 M6X18 		8-94408-386-1 01 1 9811-0012 ●
191 03.330 BOLT; FUEL PIPE
01.428 M6X12 FLANGE USA 		0-28080-612-0 02 1 9811- ●
193 03.330 BOLT; PRESSURE REG
AUS 		8-11082-662-0 01 1 9811-0012 ●
193 03.330 BOLT; PRESSURE REG
14.865 M5X12 		8-94386-089-0 02 1 0305- ●
230 03.330 PIPE; FUEL 8-97148-956-0 01 1 9811-0012 ●
230 03.330 PIPE; FUEL 8-97136-254-2 01 1 9811- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) AUS 		8-17106-005-0 04 1 9811-0012 ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-25169-195-0 04 1 9811-0012 ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-17113-400-0 06 1 0305- ●
333 03.304 GASKET; FUEL RETURN 8-97179-766-0 01 1 0305- ●
347 03.304 GASKET; PIPE
08.955 (A) ID=10.2 OD=19 		9-09572-010-0 02 1 9811-0012 ●
347 03.304 GASKET; PIPE
03.890 (B) ID=12.2 		9-09572-012-0 02 1 9811-0012 ●
350 03.330 CLAMP; REGULATOR
AUS 		8-90469-475-0 01 1 9811-0012 ●
351 03.335 VALVE; PRESSURE RELIEF
AUS 		8-90448-751-0 01 1 9811-0012 ●
351 03.335 VALVE; PRESSURE RELIEF 8-97119-714-0 01 1 0305- ●
352 03.306 WASHER; RELIEF VLV
AUS 		8-90354-618-0 01 1 9811-0012 ●
353 03.145 CAP; PRESSURE VLV
03.330 		8-97119-713-0 01 1 0305- ●
