0-51 — OIL PUMP AND OIL STRAINER (#46259) — 47 parça

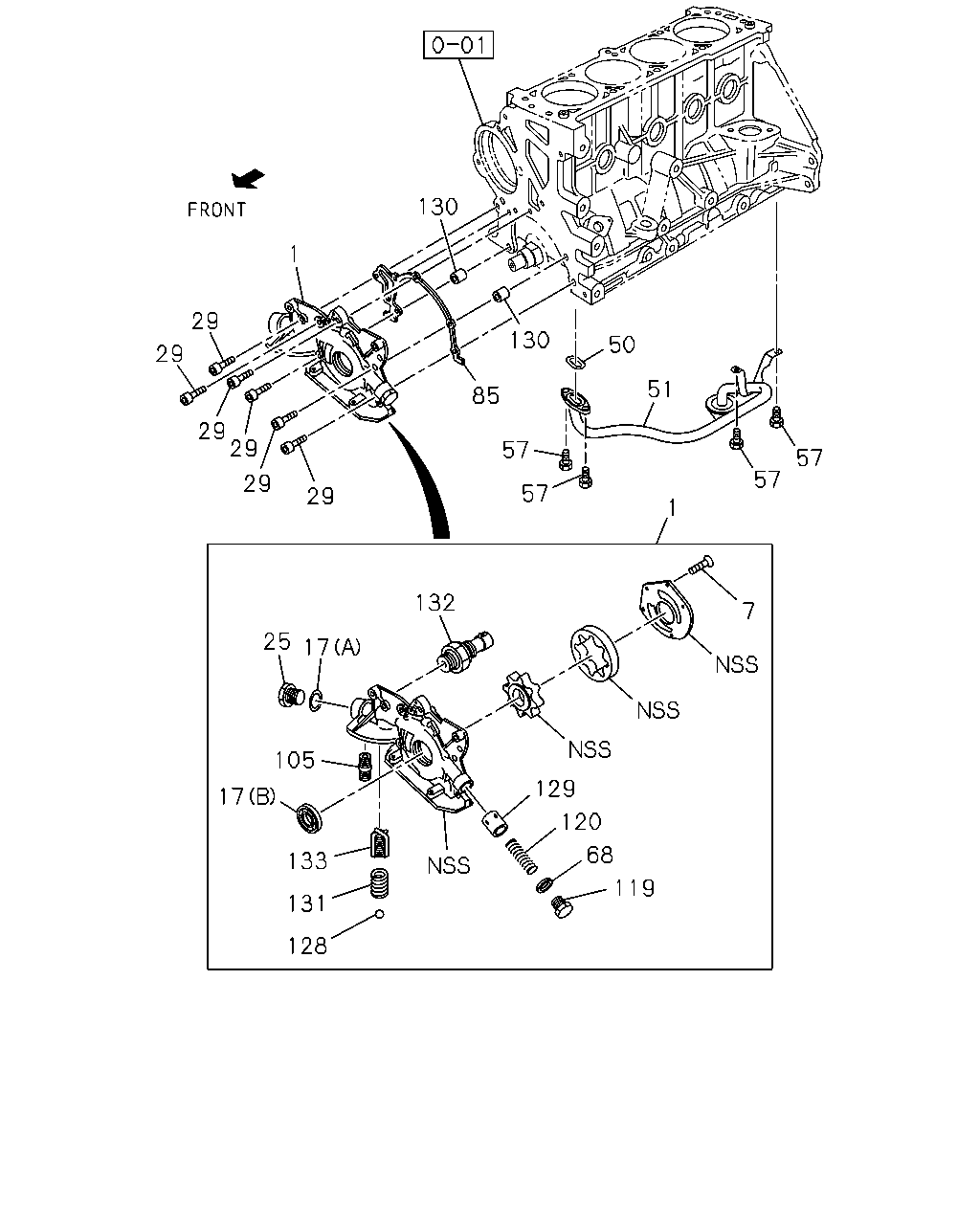

130 1 29 130 50 29 51 85 29 29 57 57 57 29 57 29 1 132 7 25 17 105 129 17 120 68 133 119 131 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.652 PUMP ASM; OIL AUS	8-90570-980-0	01	1	9811-0012	●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9811-		●
7	01.657 BOLT; COVER,OIL PUMP AUS	8-11085-861-0	05	1	9811-0012	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) AUS	8-11096-531-0	01	1	9811-0012	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) AUS	8-90156-002-0	01	1	9811-0012	●
25	01.609 PLUG; OIL PUMP AUS	8-90501-549-0	01	1	9811-0012	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9811-		●
29	01.652 BOLT; OIL PUMP AUS	8-11084-961-0	06	1	9811-0012	●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE USA	0-28680-825-0	05	1	9811-		●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9811-		●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-90500-908-0	01	1	9811-0012	●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9811-		●
51	01.519 STRAINER & PIPE ASM; OIL AUS	8-92062-684-0	01	1	9811-0012	●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9811-		●
57	01.531 BOLT; OIL PIPE AUS	8-11055-131-0	04	1	9811-0012	●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9811-		●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9811-		●
68	01.609 WASHER; RELIEF VLV AUS	8-11093-042-0	01	1	9811-0012	●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-92060-519-0	01	1	9811-0012	●
105	01.855 CONNECTOR; OIL FILTER AUS	8-90412-159-0	01	1	9811-0012	●
119	01.639 PLUG; RELIEF VLV AUS	8-03448-834-0	01	1	9811-0012	●
120	01.639 SPRING; RELIEF VLV AUS	8-90501-547-0	01	1	9811-0012	●
128	01.609 BALL; BYPASS VLV,OIL PUMP AUS	8-11055-689-0	01	1	9811-0012	●
129	01.609 PLUNGER; RELIEF VLV AUS	8-90530-592-0	01	1	9811-0012	●
130	01.609 SLEEVE; OIL PUMP AUS	8-90351-709-0	02	1	9811-0012	●
131	01.609 SPRING; BYPASS VLV,OIL PUMP AUS	8-90136-328-0	01	1	9811-0012	●
132	01.800 SWITCH; OIL PRESSURE AUS	8-90336-039-0	01	1	9811-0012	●
133	01.609 VALVE; BYPASS,OIL PUMP 00.293 AUS	8-90136-113-0	01	1	9811-0012	●

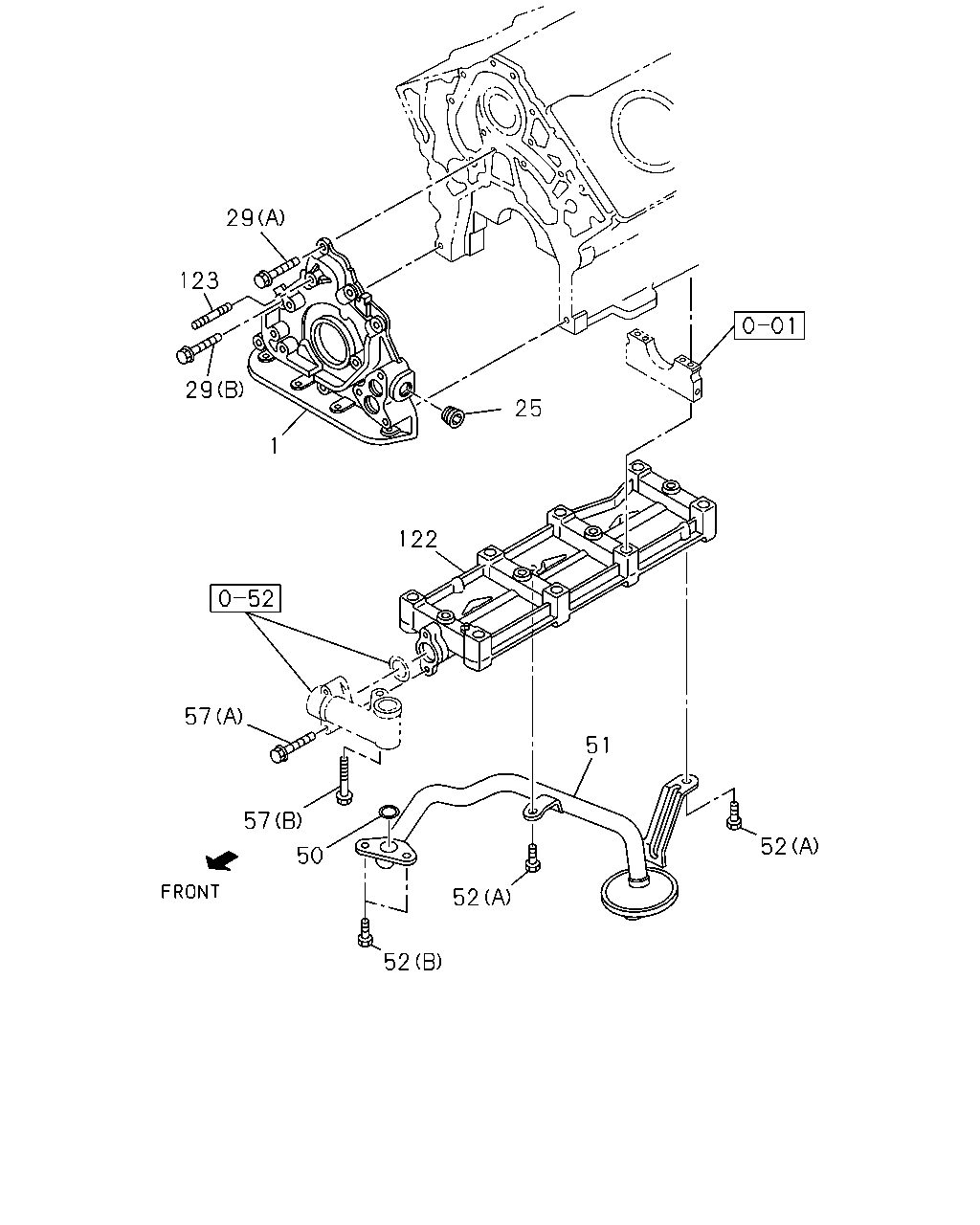

29 123 29 25 1 122 57 51 57 52 50 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.652 PUMP ASM; OIL AUS	8-90570-980-0	01	1	9811-0012	●
1	01.652 PUMP ASM; OIL	8-97136-464-0	01	1	9811-		●
25	01.609 PLUG; OIL PUMP AUS	8-90501-549-0	01	1	9811-0012	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9811-		●
29	01.652 BOLT; OIL PUMP AUS	8-11084-961-0	06	1	9811-0012	●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE USA	0-28680-825-0	05	1	9811-		●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9811-		●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-90500-908-0	01	1	9811-0012	●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9811-		●
51	01.519 STRAINER & PIPE ASM; OIL AUS	8-92062-684-0	01	1	9811-0012	●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9811-		●
52	01.656 BOLT; OIL PIPE 01.062 (A) M8X16 FLANGE USA	0-28080-816-0	02	1	9811-		●
52	01.656 BOLT; OIL PIPE 07.010 (B) M8X20 FLANGE	0-28080-820-0	02	1	9811-		●
57	01.531 BOLT; OIL PIPE AUS	8-11055-131-0	04	1	9811-0012	●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9811-		●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9811-		●
122	01.519 GALLERY; OIL	8-97131-865-0	01	1	9811-0008		●
122	01.519 GALLERY; OIL	8-97226-641-0	01	1	0009-		●
123	01.060 STUD; FAN BRKT 00.349 M8X65 L=81	9-04020-865-0	01	1	9811-		●
