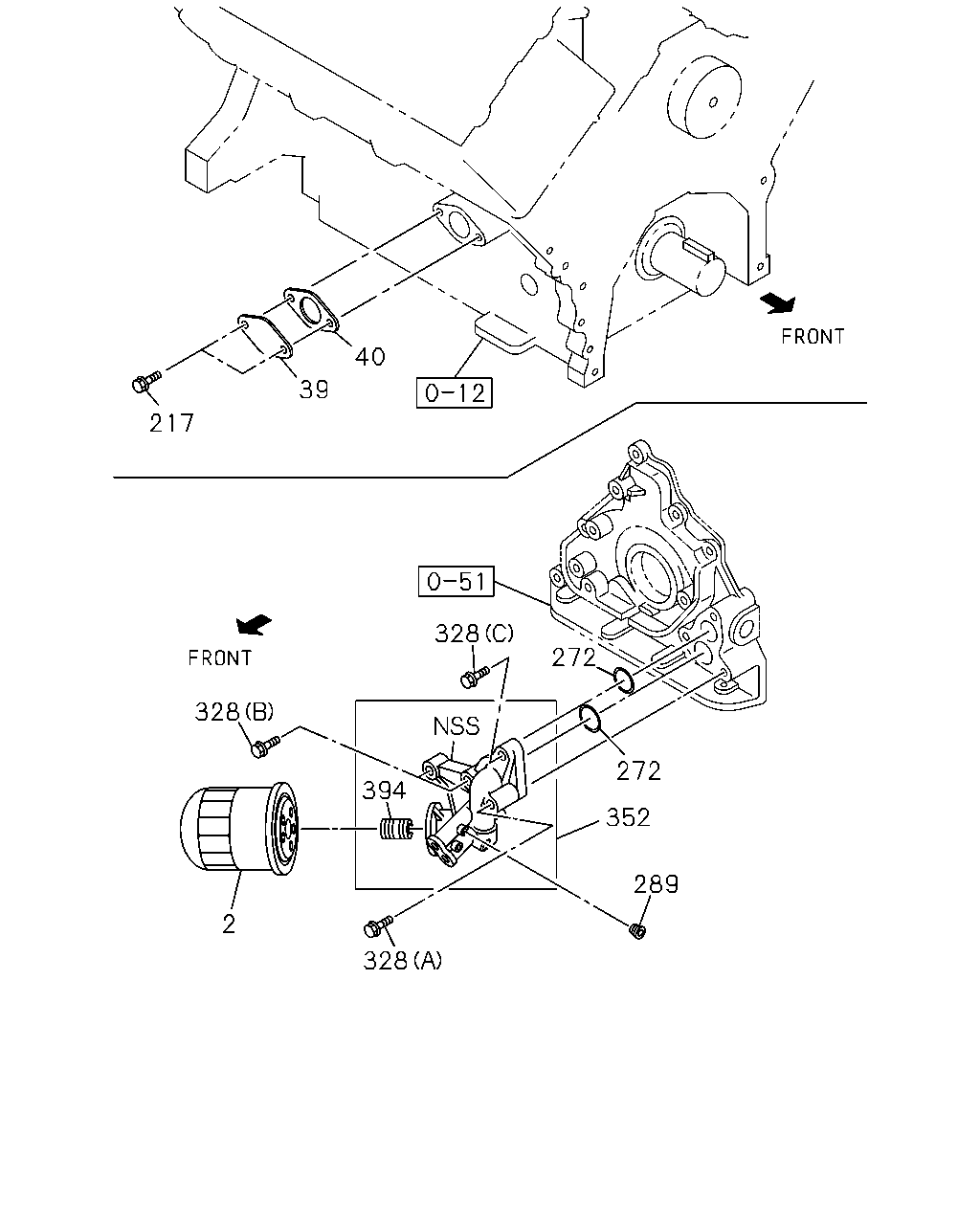

0-50 — OIL COOLER AND OIL FILTER (#46258) — 14 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	9811-0012	●
	2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9811-		●

40 39 217 328 272 328 272 394 352 289 2 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	9811-0012	●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9811-		●
39	01.540 COVER; OIL COOLER	8-97031-507-1	01	1	9811-		●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97031-084-0	01	1	9811-		●
217	01.540 BOLT; CONNECTOR 00.738 M6X16 FLANGE USA	0-28080-616-0	02	1	9811-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	9811-		●
289	01.840 PLUG; ADAPTER 01.531 PT1/8	1-09605-050-0	01	1	9811-		●
328	01.840 BOLT; OIL FILTER 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9811-		●
328	01.840 BOLT; OIL FILTER 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	9811-		●
328	01.840 BOLT; OIL FILTER (C) M8X70 FLANGE	0-28080-870-0	01	1	9811-		●
352	01.840 ADAPTER; OIL FILTER	8-97149-343-2	01	1	9811-		●
394	01.837 STUD; OIL FILTER	8-97022-473-0	01	1	9811-		●
