◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#46255) — 29 parça

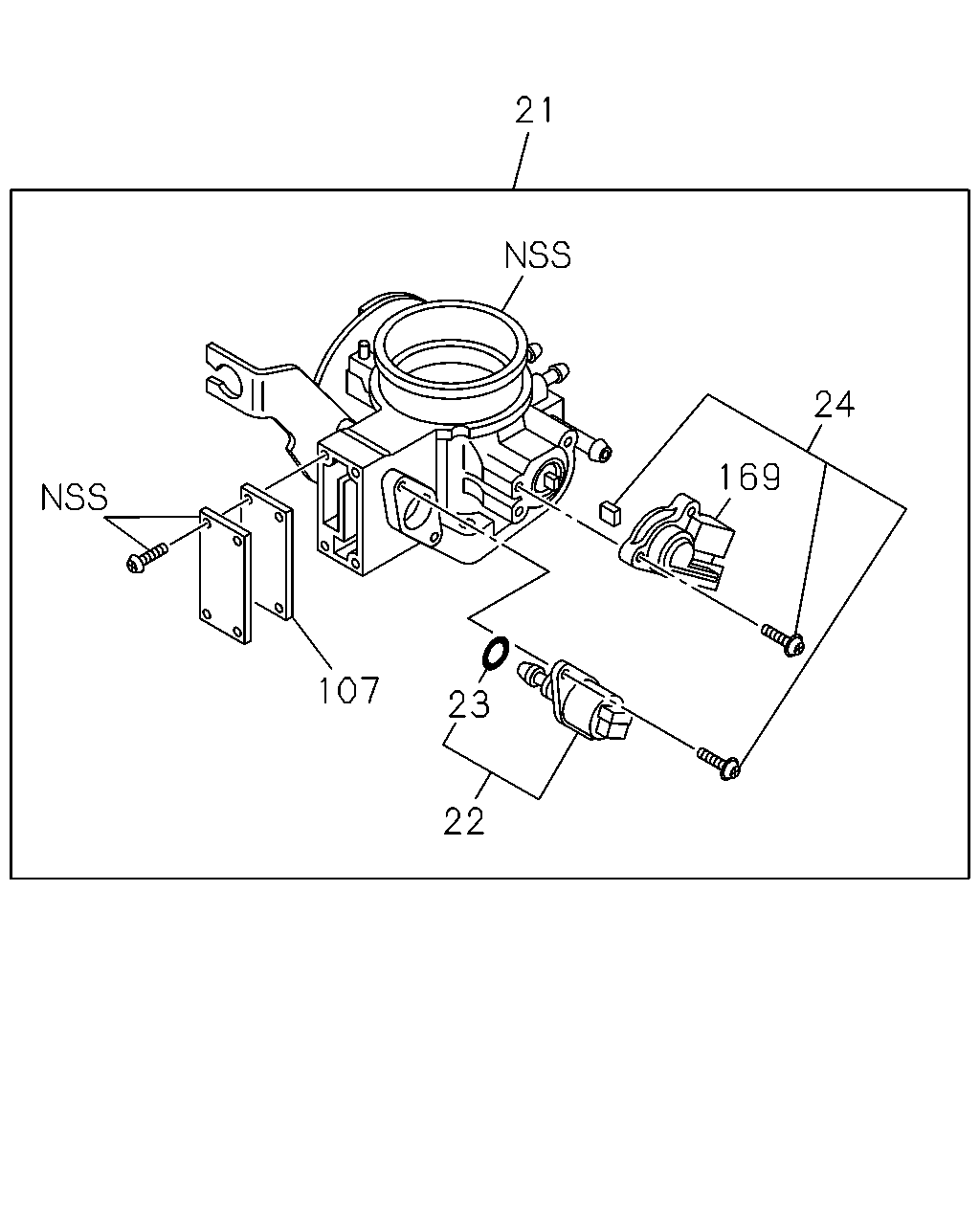

çizim 37055
21 24 169 107 23 22
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
AUS 		8-92062-700-0 01 1 9811-0012 ●
21 03.440 VALVE ASM; THROTTLE
A/T THM 4 SPEED(RMQ) 		8-17098-169-0 01 1 9811-0012 ●
21 03.440 VALVE ASM; THROTTLE 8-97213-219-3 01 1 0101- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) 		8-17098-170-0 01 1 9811-0012 ●
22 03.440 VALVE ASM; CONT,TB
AUS 		8-92061-898-0 01 1 9811-0012 ●
22 03.440 VALVE ASM; CONT,TB 8-17112-648-0 01 1 9811-0012 ●
23 03.440 GASKET; AIR CONT VLV
AUS 		8-17082-049-0 01 1 9811-0012 ●
23 03.440 GASKET; AIR CONT VLV
M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) AUS 		8-17082-049-0 01 1 9811-0012 ●
24 03.440 SCREW SET; TB
AUS 		8-92140-474-0 01 1 9811-0012 ●
24 03.440 SCREW SET; TB 8-17112-689-0 01 1 9811-0012 ●
107 03.440 GASKET; COVER TO THROTTLE BODY
AUS 		8-97182-090-0 01 1 9811-0012 ●
169 03.440 SENSOR
AUS 		8-17106-681-0 01 1 9811-0012 ●
169 03.440 SENSOR 8-17106-680-0 01 1 9811-0012 ●
169 03.440 SENSOR 8-97254-681-0 01 1 0101- ●

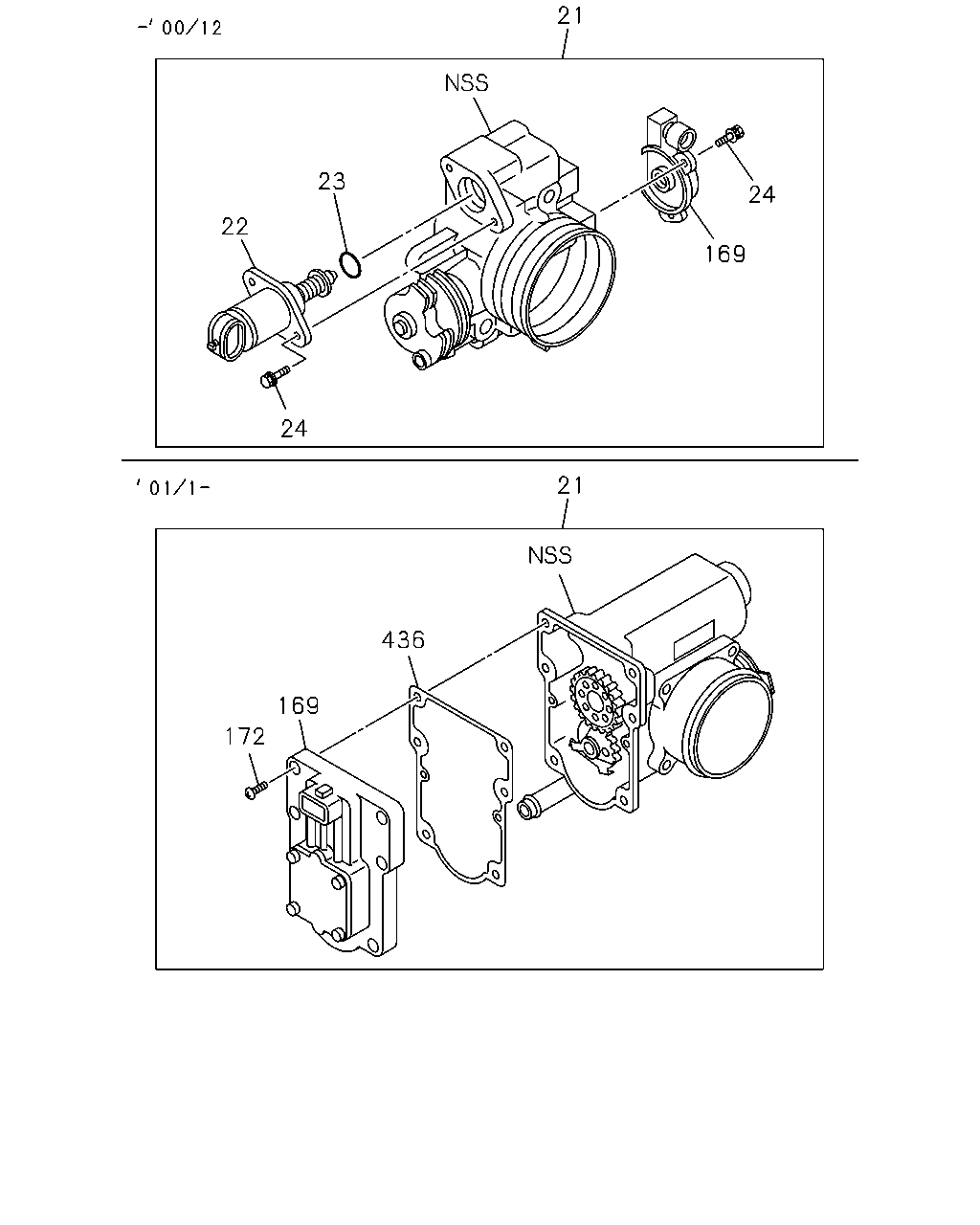

çizim 37787
21 23 24 22 169 24 21 436 169 172
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
AUS 		8-92062-700-0 01 1 9811-0012 ●
21 03.440 VALVE ASM; THROTTLE
A/T THM 4 SPEED(RMQ) 		8-17098-169-0 01 1 9811-0012 ●
21 03.440 VALVE ASM; THROTTLE 8-97213-219-3 01 1 0101- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) 		8-17098-170-0 01 1 9811-0012 ●
22 03.440 VALVE ASM; CONT,TB
AUS 		8-92061-898-0 01 1 9811-0012 ●
22 03.440 VALVE ASM; CONT,TB 8-17112-648-0 01 1 9811-0012 ●
23 03.440 GASKET; AIR CONT VLV
AUS 		8-17082-049-0 01 1 9811-0012 ●
23 03.440 GASKET; AIR CONT VLV
M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) AUS 		8-17082-049-0 01 1 9811-0012 ●
24 03.440 SCREW SET; TB
AUS 		8-92140-474-0 01 1 9811-0012 ●
24 03.440 SCREW SET; TB 8-17112-689-0 01 1 9811-0012 ●
169 03.440 SENSOR
AUS 		8-17106-681-0 01 1 9811-0012 ●
169 03.440 SENSOR 8-17106-680-0 01 1 9811-0012 ●
169 03.440 SENSOR 8-97254-681-0 01 1 0101- ●
172 03.440 SCREW; SENSOR 8-97254-684-0 06 1 0101- ●
436 03.440 GASKET; SENSOR 8-97254-683-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
