◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#46253) — 11 parça
çizim 5088
2 148 148
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97167-694-2 01 1 9811- ●
148 01.097 CLIP; BYPASS HOSE
01.540 ID=18.9 		8-94478-875-0 02 1 9811- ●

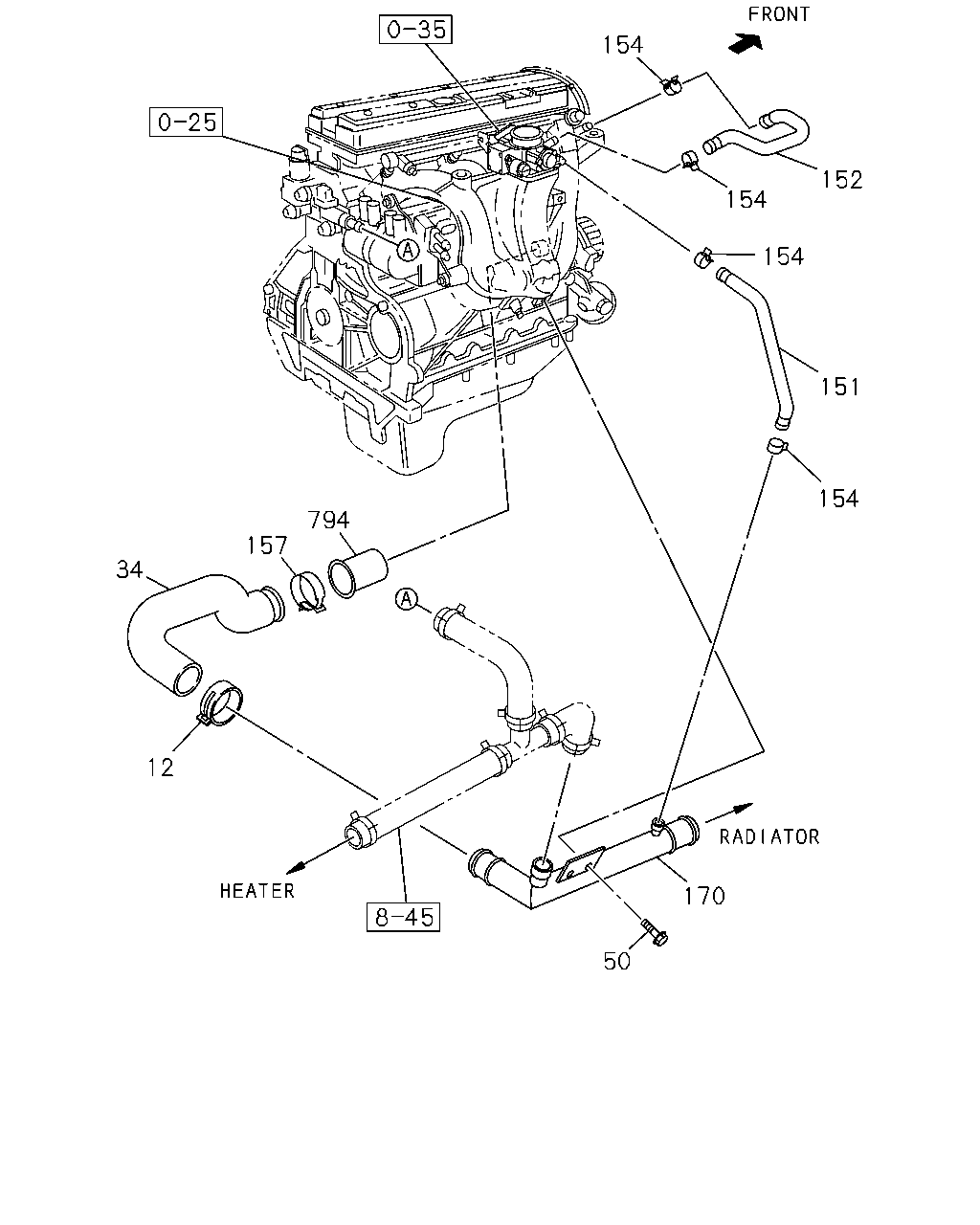

çizim 36748
154 152 154 154 151 154 794 157 34 12 170 50
BalonParca AdiParca NoAdetTipApplied Date A B
12 01.153 CLIP; INL PIPE
03.330 AUS 		8-90469-895-0 01 1 9811-0012 ●
34 01.242 HOSE; RUBBER,WATER PIPE
AUS 		8-92062-926-0 01 1 9811-0012 ●
50 01.153 BOLT; WATER PIPE INL
AUS 		8-11090-684-0 01 1 9811-0012 ●
151 01.153 HOSE; WATER OUTLET
AUS 		8-92063-622-0 01 1 9811-0012 ●
152 01.153 HOSE; WATER INL
AUS 		8-92062-840-0 01 1 9811-0012 ●
154 01.153 CLIP; WATER HOSE
AUS 		8-90469-889-0 04 1 9811-0012 ●
157 03.330 CLIP; RUBBER HOSE
AUS 		8-90469-895-0 01 1 9811-0012 ●
170 01.159 PIPE; WATER,INL
AUS 		8-92063-282-0 01 1 9811-0012 ●
794 03.276 CONNECTOR; WATER HOSE
AUS 		8-90128-407-0 01 1 9811-0012 ●
