0-31 — THERMOSTAT AND HOUSING (#46252) — 40 parça

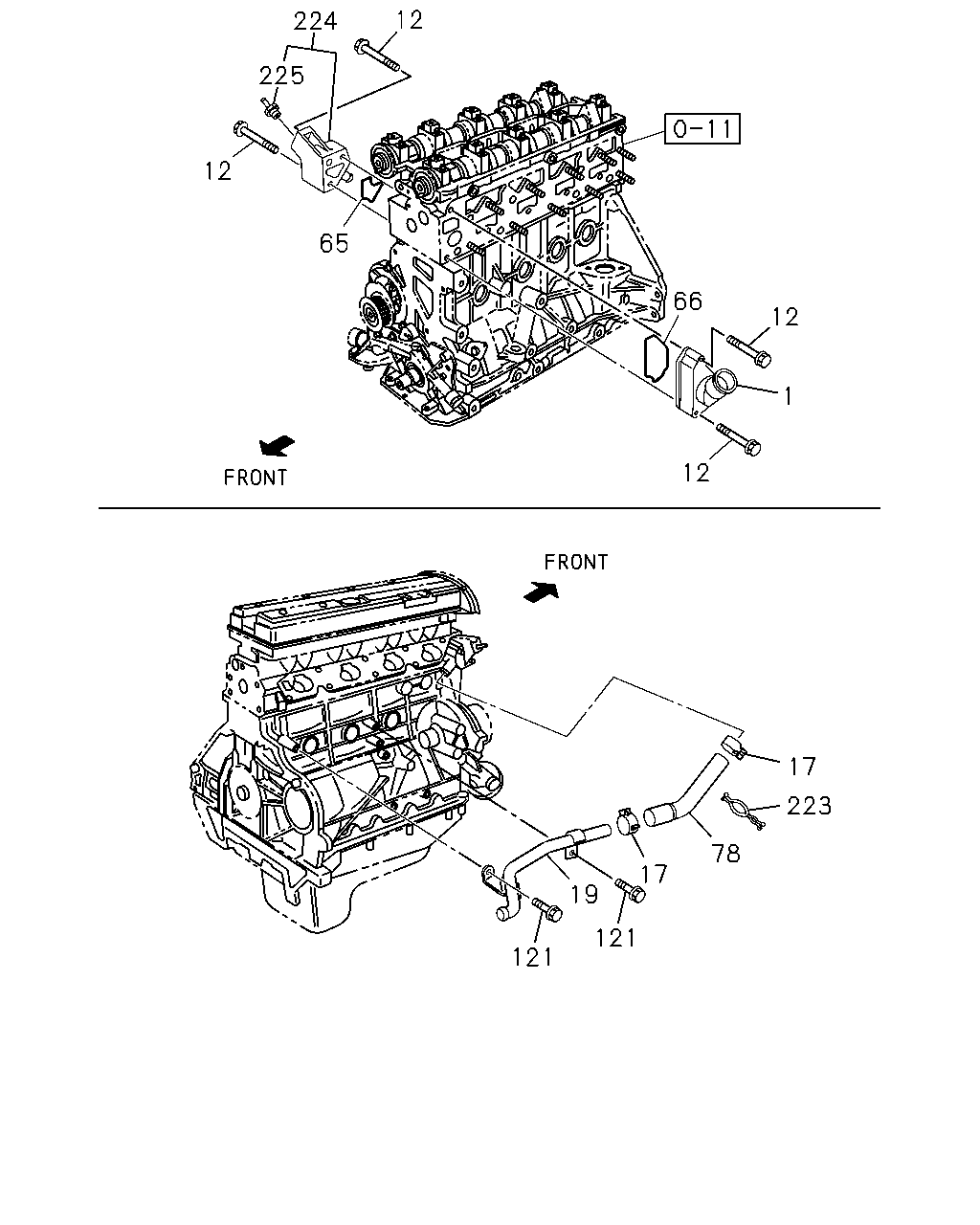

çizim 36669
12 224 225 66 12 65 12 1 12 17 223 78 17 19 121 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
AUS 		8-92063-300-0 01 1 9811-0012 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9811-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
12 01.252 BOLT; HSG
AUS 		8-90411-951-0 04 1 9811-0012 ●
17 01.166 CLIP; WATER HOSE
AUS 		8-90467-195-0 02 1 9811-0012 ●
19 01.252 PIPE; HSG TO HTR
AUS 		8-92063-620-0 01 1 9811-0012 ●
65 01.252 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90411-954-0 01 1 9811-0012 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90411-950-0 01 1 9811-0012 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97123-162-0 01 1 9811-0301 ●
78 08.845 HOSE; RUBBER,WATER PIPE
AUS 		8-92063-621-0 01 1 9811-0012 ●
121 08.900 BOLT; HTR PIPE
02.183 AUS 		8-11094-881-0 02 1 9811-0012 ●
121 08.900 BOLT; HTR PIPE
01.062 (C) M8X16 FLANGE USA 		0-28080-816-0 01 1 9811- ●
121 08.900 BOLT; HTR PIPE
01.428 (A) M6X12 FLANGE USA 		0-28080-612-0 04 1 9811- ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE USA 		0-28080-812-0 02 1 9811- ●
223 02.559 CLIP; HARNESS
01.097 AUS 		8-92063-869-0 01 1 9811-0012 ●
224 01.251 HOUSING; BYPASS
AUS 		8-92064-021-0 01 1 9811-0012 ●
225 01.153 CONNECTOR; BYPASS HSG
AUS 		8-90122-748-0 01 1 9811-0012 ●

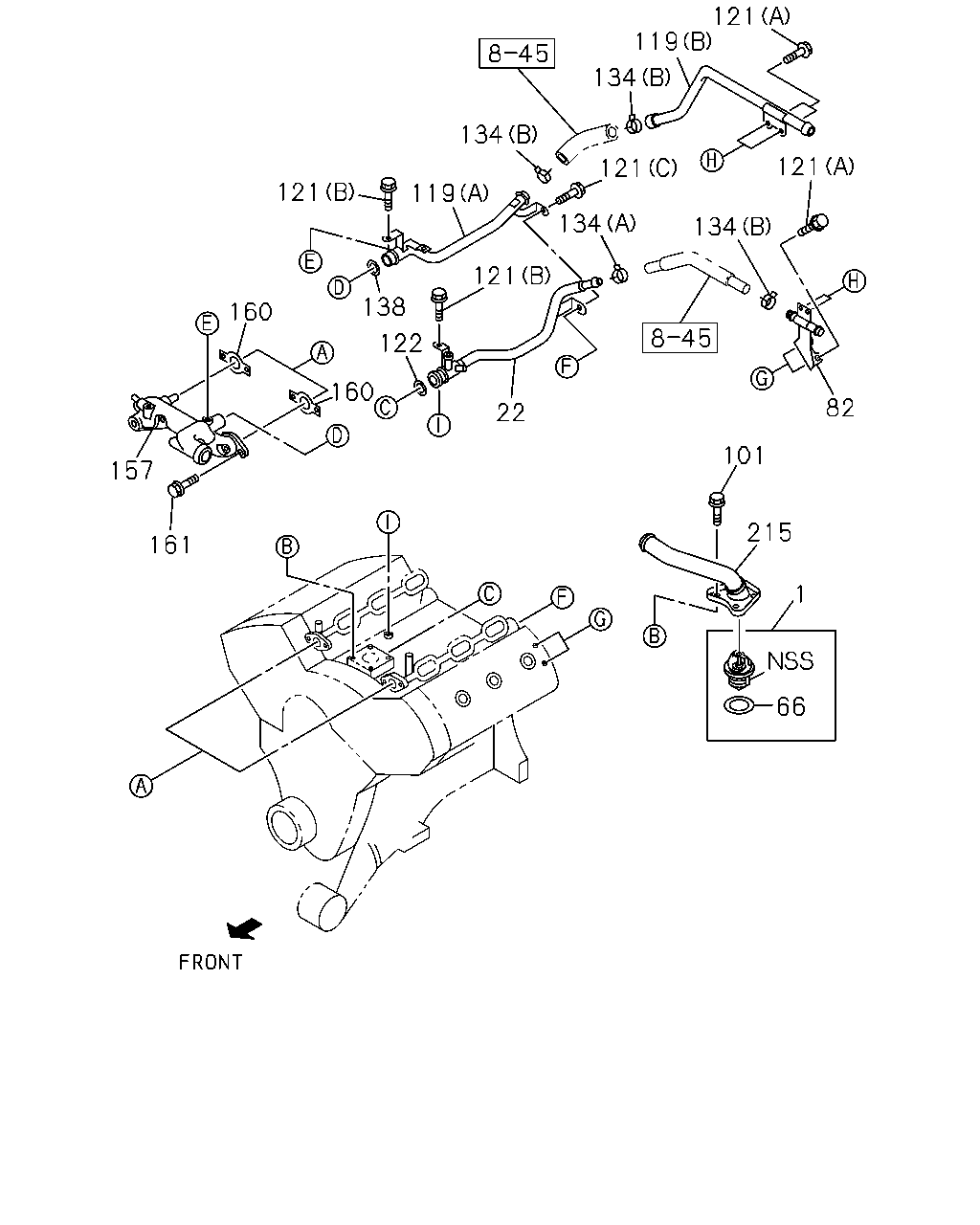

çizim 36839
121 119 134 134 121 121 121 119 134 134 121 138 160 122 160 82 22 101 157 215 161 1 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
AUS 		8-92063-300-0 01 1 9811-0012 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97123-161-4 01 1 9811-0301 ●
1 01.246 THERMOSTAT
76.5 CELSIUS 		8-97362-894-0 01 1 0302- ●
22 03.278 PIPE; HTR,RETURN 8-97136-134-1 01 1 9811-9907 ●
22 03.278 PIPE; HTR,RETURN 8-97224-807-1 01 1 9908- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90411-950-0 01 1 9811-0012 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97123-162-0 01 1 9811-0301 ●
82 08.845 PIPE; WATER,HTR 8-97160-601-1 01 1 9811- ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE USA 		0-28080-812-0 04 1 9811- ●
119 08.846 PIPE; HTR
(A) 		8-97136-133-1 01 1 9811- ●
119 08.846 PIPE; HTR
(B) 		8-97160-600-1 01 1 9811- ●
121 08.900 BOLT; HTR PIPE
02.183 AUS 		8-11094-881-0 02 1 9811-0012 ●
121 08.900 BOLT; HTR PIPE
01.062 (C) M8X16 FLANGE USA 		0-28080-816-0 01 1 9811- ●
121 08.900 BOLT; HTR PIPE
01.428 (A) M6X12 FLANGE USA 		0-28080-612-0 04 1 9811- ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE USA 		0-28080-812-0 02 1 9811- ●
122 03.602 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.154 		9-09561-220-0 01 1 9811- ●
134 04.930 CLIP; RUBBER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 01 1 9811- ●
134 04.930 CLIP; RUBBER HOSE
08.846 (B) ID=23 		8-94382-402-0 03 1 9811- ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 9811- ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 9811- ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9811- ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 9811- ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9811- ●
