0-30 — WATER PUMP AND CORROSION RESISTOR (#46251) — 13 parça

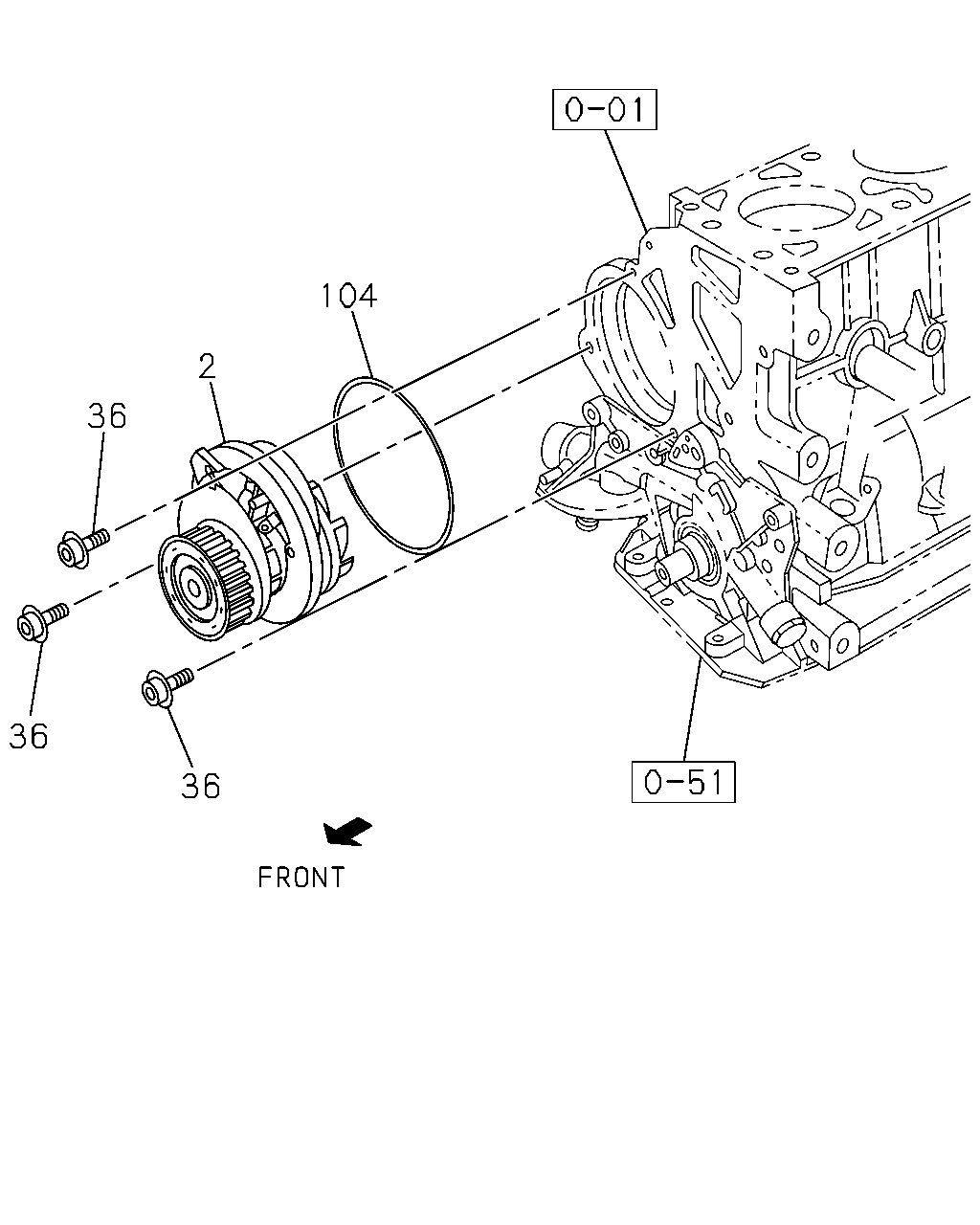

çizim 5500

104 2 36 36 36

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	01.069 PUMP ASM; WATER AUS	8-92064-250-0	01	1	9811-0012	●
	36	00.386 BOLT; WATER PUMP TO C/BL AUS	8-90298-530-0	03	1	9811-0012	●
	36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	9811-		●
	36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	9811-		●
	36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	9811-		●
	104	01.079 GASKET; WATER PUMP ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-90322-506-0	01	1	9811-0012	●

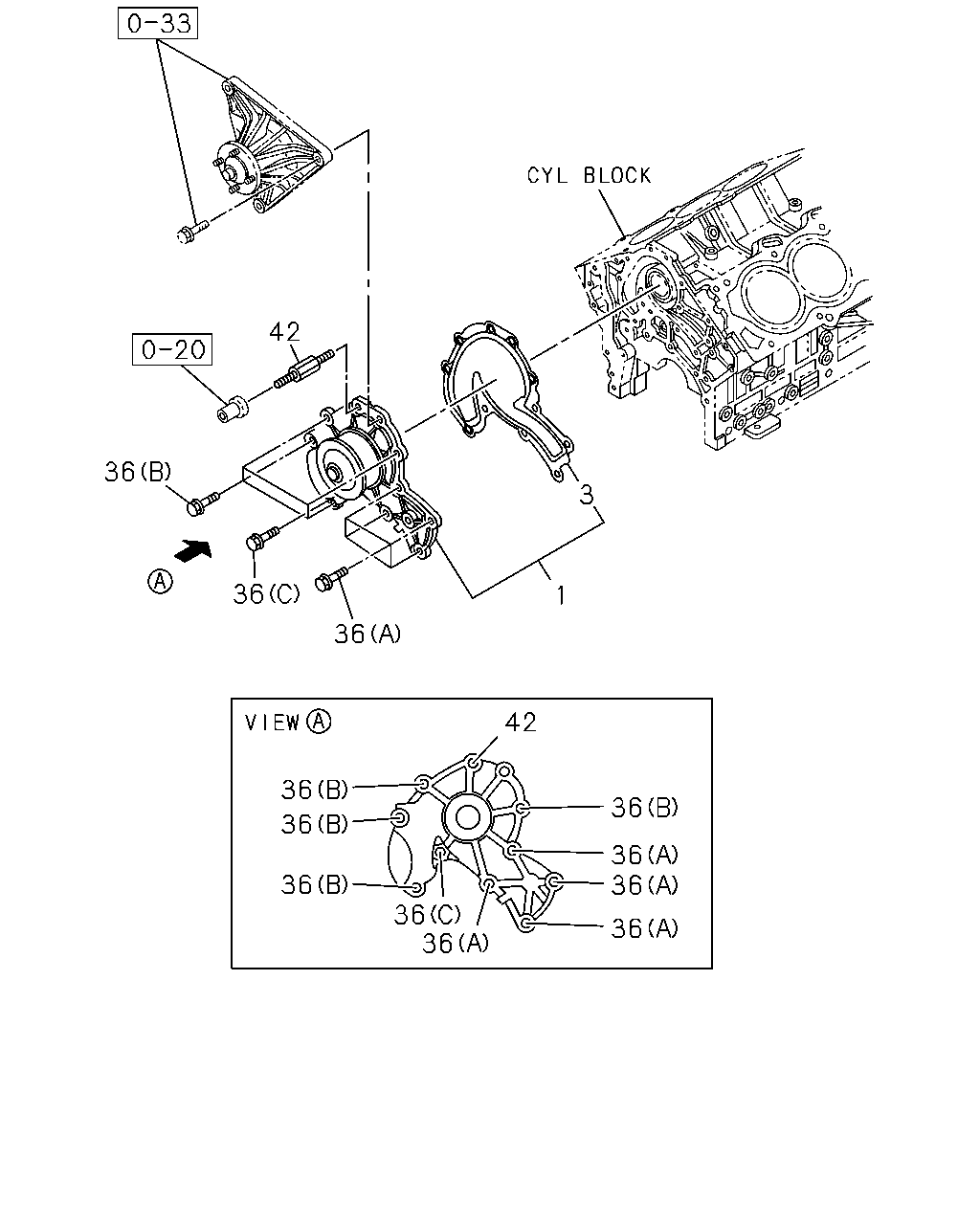

çizim 36805

42 36 3 36 1 36 42 36 36 36 36 36 36 36 36 36

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	9811-		●
	3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97148-736-0	01	1	9811-		●
	36	00.386 BOLT; WATER PUMP TO C/BL AUS	8-90298-530-0	03	1	9811-0012	●
	36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	9811-		●
	36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	9811-		●
	36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	9811-		●
	42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	9811-		●
