◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-87 - TRUNK ROOM PACKAGE AND REAR PARCEL ▶
6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#4625) — 18 parça

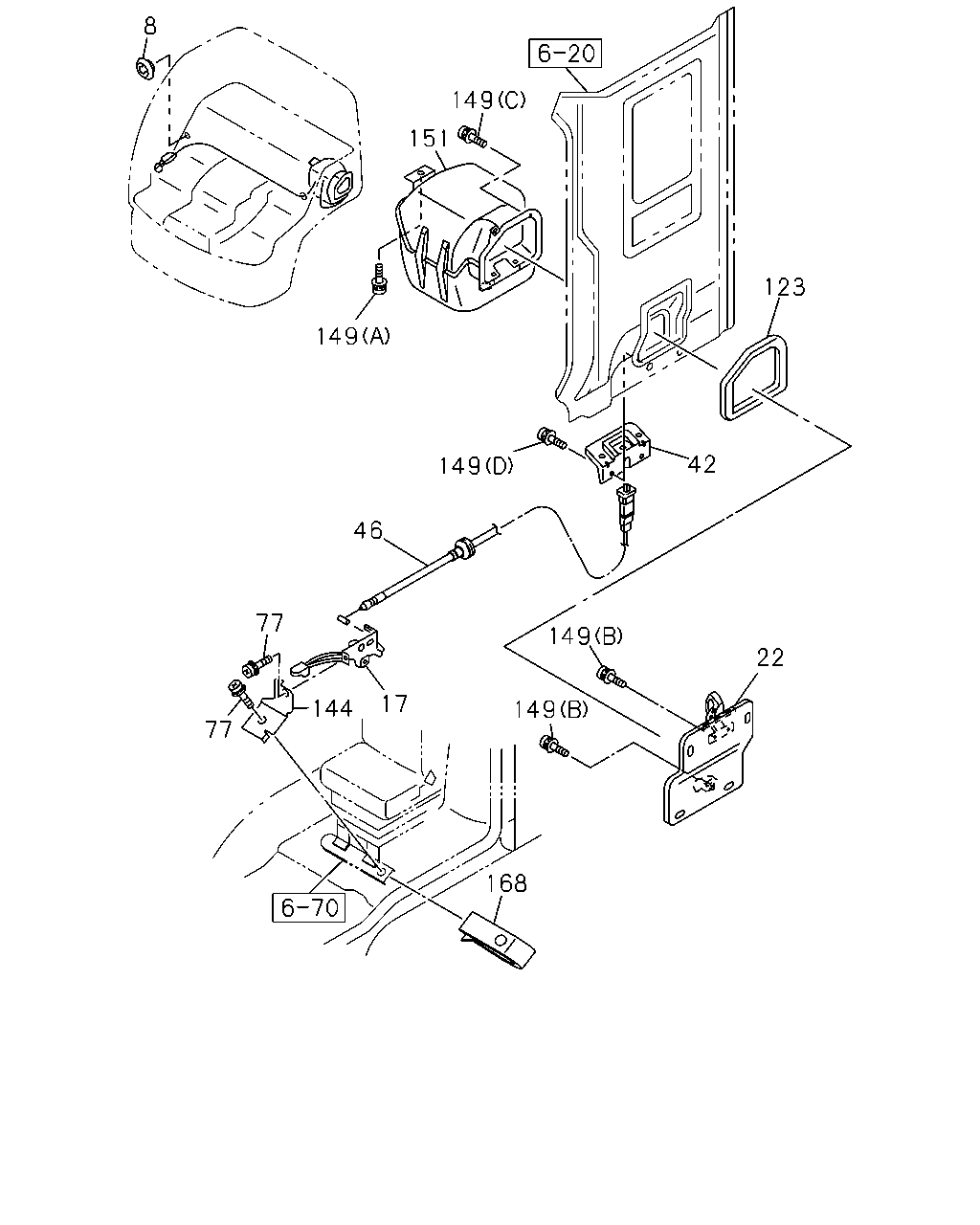

çizim 41839
8 149 151 123 149 42 149 46 77 149 22 17 144 149 77 168
BalonParca AdiParca NoAdetTipApplied Date
8 GROMMET; BOARD FIX
OD=28 		8-94279-720-0 02 1 9603-9904
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 01 1 9905-
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=28 		8-94279-720-0 02 1 9905-
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 9905-
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 9905-
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 9905-
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L TYPE ENG<90L> L=883.5 		1-79517-003-0 01 1 9905-9906
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L TYPE ENG<90L> L=886.5 		1-79517-007-0 01 1 9907-
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-9908
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 9909-
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-0 01 1 9905-
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-583-3 01 1 9905-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9905-
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> L TYPE ENG<90L> 		1-71797-951-2 01 1 9905-
168 NUT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-09984-156-0 01 1 9905-
