0-25 — INLET MANIFOLD (#46248) — 57 parça

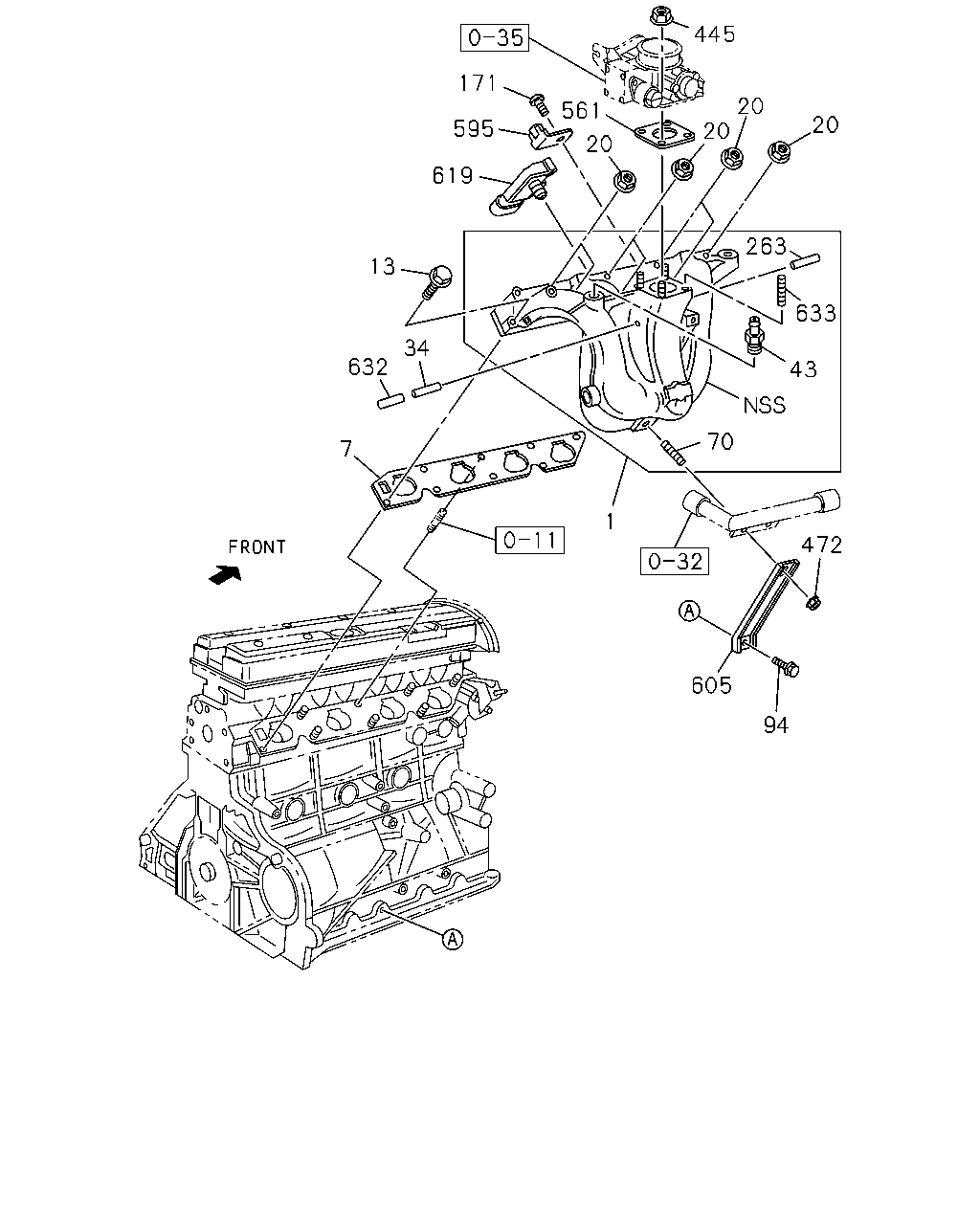

çizim 36438
445 171 561 20 20 20 595 20 619 263 13 633 34 632 43 70 7 1 472 605 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL
AUS 		8-92062-696-0 01 1 9811-0012 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90412-459-0 01 1 9811-0012 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97131-894-2 02 1 9811-9909 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97237-538-0 02 1 9910- ●
13 03.275 BOLT; INL MANIF
AUS 		8-11091-511-0 01 1 9811-0012 ●
20 03.275 NUT; INL MANIF
03.604 AUS 		8-11082-413-0 07 1 9811-0012 ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE USA 		0-91150-108-0 04 1 9811- ●
34 03.675 PIPE; VAC
03.278 AUS 		8-09281-117-0 01 1 9811-0012 ●
43 03.278 CONNECTOR; M/VAC
AUS 		8-92063-155-0 01 1 9811-0012 ●
70 03.275 STUD; WATER PIPE
AUS 		8-90106-924-0 01 1 9811-0012 ●
94 02.559 BOLT
08.900 M8X12 FLANGE USA 		0-28080-812-0 01 1 9811-0012 ●
171 02.559 BOLT; BRKT
02.510 AUS 		8-11093-971-0 01 1 9811-0012 ●
263 03.278 PIPE; PRESSURE REG
AUS 		8-09281-117-0 01 1 9811-0012 ●
445 03.275 NUT; THROTTLE BODY TO MANIF
AUS 		8-11094-423-0 04 1 9811-0012 ●
472 00.002 NUT
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811-0012 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). AUS 		8-90412-686-0 01 1 9811-0012 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94389-939-0 01 1 9811-0012 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97193-729-1 01 1 0101- ●
595 02.559 BRACKET; MAP SENSOR
AUS 		8-92063-497-0 01 1 9811-0012 ●
605 03.671 SUPPORT; AIR INTAKE
USA 		8-92062-702-0 01 1 9811-0012 ●
619 01.150 SENSOR; MAP
03.320 AUS 		8-16212-460-0 01 1 9811-0012 ●
632 03.280 CAP; VAC PIPE
AUS 		8-92063-879-0 01 1 9811-0012 ●
633 03.275 STUD; THROTTLE BODY
AUS 		8-11075-291-0 04 1 9811-0012 ●
çizim 36712
479 479 479 479 604 711 604 707 553
BalonParca AdiParca NoAdetTipApplied Date A B
479 03.265 CLIP; RUBBER HOSE ASM
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0101- ●
479 03.265 CLIP; RUBBER HOSE ASM
04.686 (C) ID=8 & 4.8 USA 		8-94430-297-0 01 1 0101- ●
479 03.265 CLIP; RUBBER HOSE ASM
02.559 (D) L=135 		8-94473-399-0 01 1 0101- ●
479 03.265 CLIP; RUBBER HOSE ASM
06.008 (A) USA 		8-97200-741-0 01 1 0101- ●
553 03.670 TANK; VAC 8-97212-784-1 01 1 0101-0109 ●
553 03.670 TANK; VAC 8-97320-745-0 01 1 0110- ●
604 03.265 HOSE; RUBBER,VAC 8-97212-829-1 01 1 0101-0109 ●
604 03.265 HOSE; RUBBER,VAC 8-97320-787-0 01 1 0110- ●
707 03.671 BOLT; TANK,VAC
08.900 M8X12 FLANGE USA 		0-28080-812-0 01 1 0101- ●
711 03.278 CLIP; RUBBER HOSE,VAC
03.163 ID=13 & 4.75 THA 		8-94447-856-0 01 1 0101- ●

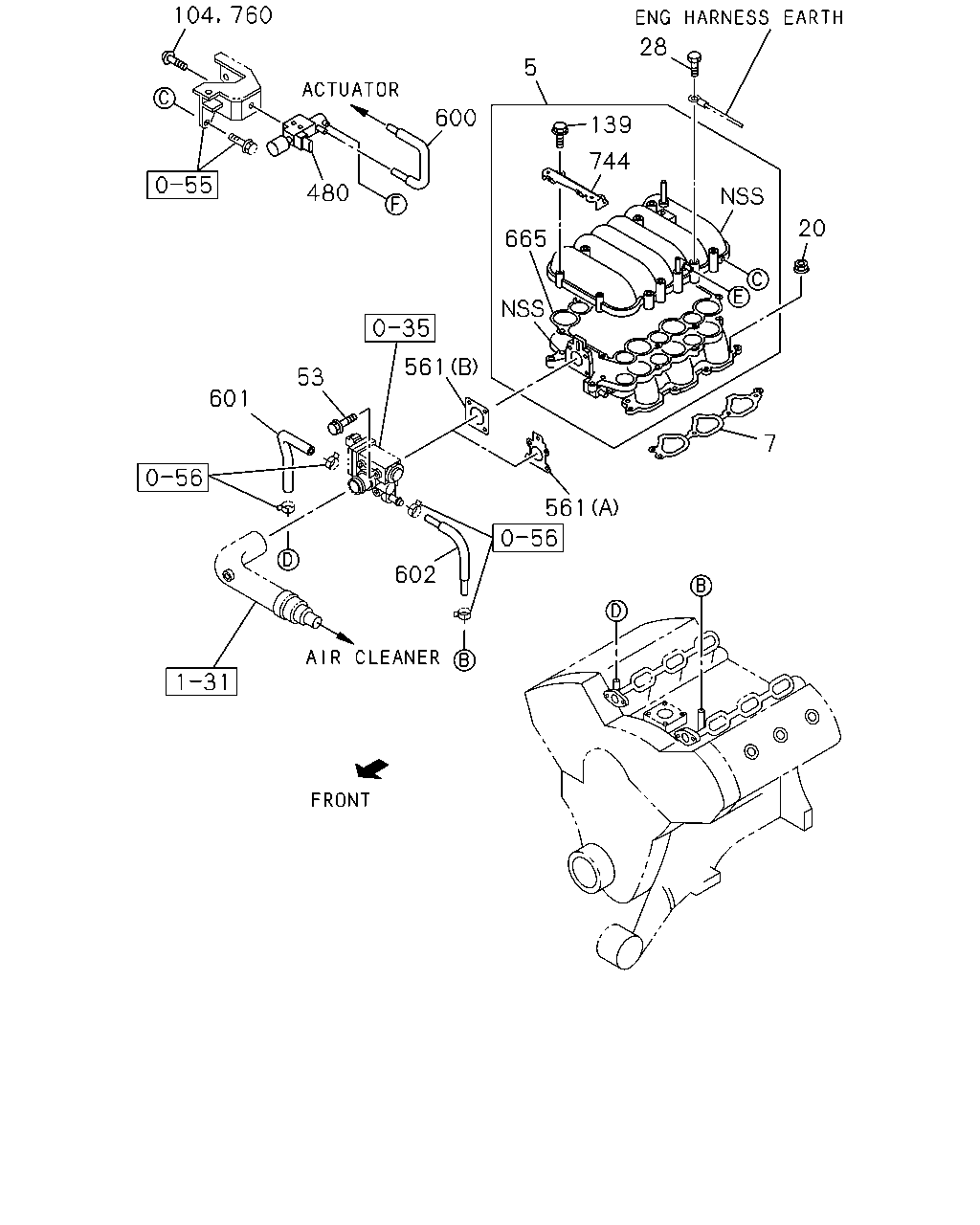

çizim 36746
28 5 600 139 744 480 20 665 561 53 601 7 561 602 104 760
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.278 CHAMBER; COMMON 8-97131-891-7 01 1 9811-0012 ●
5 03.278 CHAMBER; COMMON 8-97193-355-2 01 1 0101- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90412-459-0 01 1 9811-0012 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97131-894-2 02 1 9811-9909 ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97237-538-0 02 1 9910- ●
20 03.275 NUT; INL MANIF
03.604 AUS 		8-11082-413-0 07 1 9811-0012 ●
20 03.275 NUT; INL MANIF
07.633 M8 FLANGE USA 		0-91150-108-0 04 1 9811- ●
28 03.278 BOLT; CHAMBER
M8X150 FLANGE 		0-28085-815-0 04 1 9811- ●
53 03.602 BOLT; INL PIPE
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9811-0012 ●
53 03.602 BOLT; INL PIPE
01.153 M6X50 FLANGE 		0-28080-650-0 04 1 0101- ●
104 03.415 SCREW
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9811-0209 ●
139 03.162 BOLT; BRKT FIX
01.035 		8-97308-002-0 04 1 0101- ●
480 03.314 VALVE ASM; VAC SW
03.670 		8-97086-348-0 01 1 9811- ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). AUS 		8-90412-686-0 01 1 9811-0012 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94389-939-0 01 1 9811-0012 ●
561 03.724 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97193-729-1 01 1 0101- ●
600 03.163 HOSE; RUBBER,VACUUM 8-97149-231-1 01 1 9811- ●
601 01.097 HOSE; WATER,T/V FEED 8-97136-218-0 01 1 9811-9907 ●
601 01.097 HOSE; WATER,T/V FEED 8-97231-680-0 01 1 9908- ●
602 01.097 HOSE; WATER,T/V RETURN 8-97136-219-2 01 1 9811- ●
665 03.270 GASKET; COMMON CHAMBER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-074-1 01 1 9811-0107 ●
665 03.270 GASKET; COMMON CHAMBER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97254-448-0 01 1 0108- ●
744 01.035 BRACKET; ENG COVER 8-97307-352-0 01 1 0101- ●
760 03.314 BOLT; VSV FIX
14.865 M5X12 		8-94386-089-0 01 1 0210- ●
