0-22 — ENGINE MOUNTING (#46247) — 88 parça

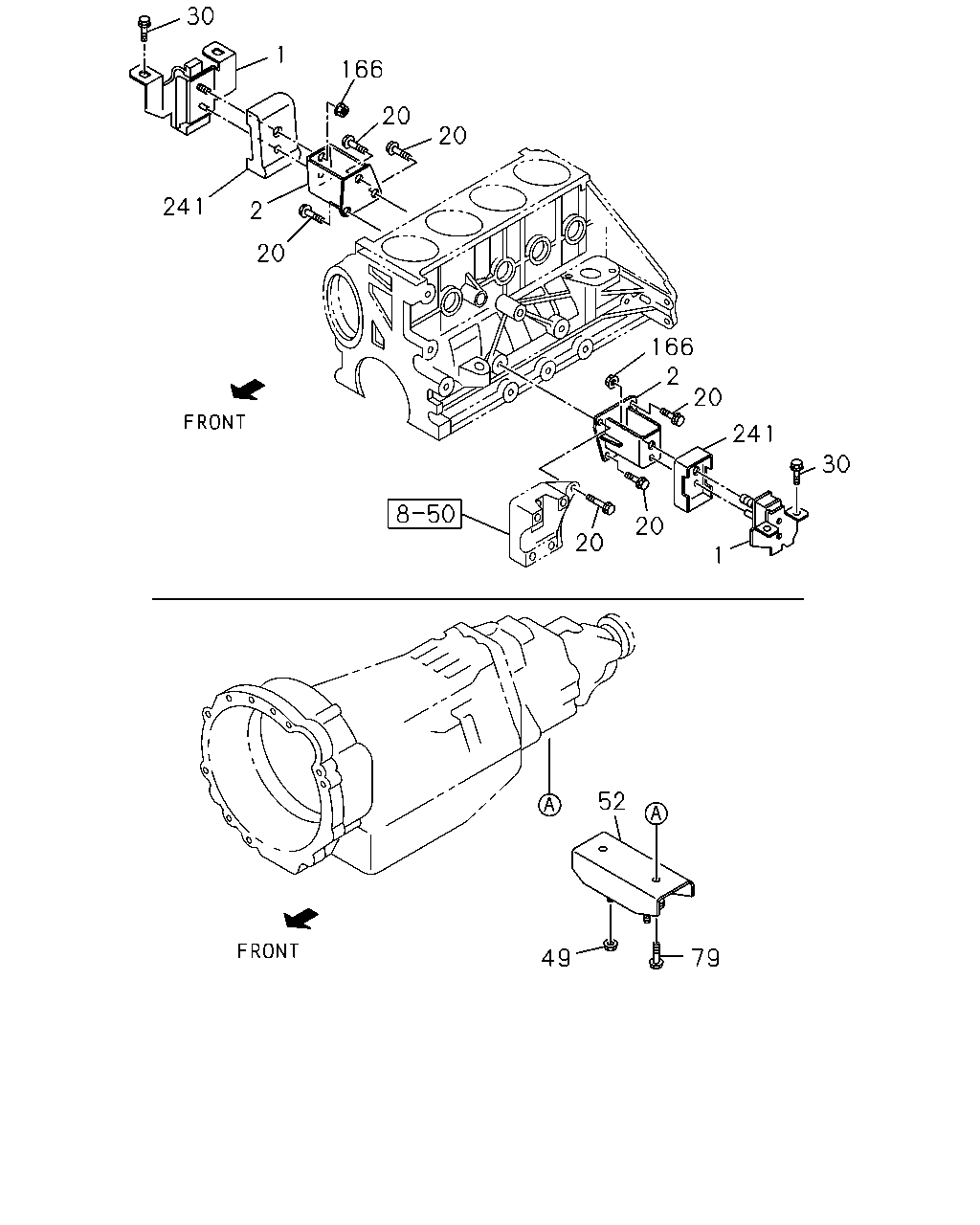

çizim 36679
30 1 166 20 20 241 2 20 166 2 20 241 30 20 20 1 52 49 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97139-276-1 01 1 9811-0012 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97139-275-1 01 1 9811-0012 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-343-2 01 1 9811-0101 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0102-0104 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-343-2 01 1 0105-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0105-0108 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0109- ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-342-2 01 1 9811-0101 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0102-0104 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-342-2 01 1 0105-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0105-0108 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0109- ●
2 00.029 FOOT; ENG
USA 		8-97139-928-0 01 1 9811-0012 ●
2 00.029 FOOT; ENG
USA 		8-97139-927-0 01 1 9811-0012 ●
2 00.029 FOOT; ENG
USA 		8-97106-558-1 01 1 9811- ●
2 00.029 FOOT; ENG
USA 		8-97146-072-0 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
04.085 M10X80 FLANGE 		0-28181-080-0 01 1 9811-0012 ●
20 00.029 BOLT; ENG FOOT
09.181 M10X25 FLANGE 		0-28781-025-0 05 1 9811-0012 ●
20 00.029 BOLT; ENG FOOT
04.510 M10X40 FLANGE 		0-28181-040-0 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
09.181 M10X25 FLANGE 		0-28781-025-0 07 1 9811- ●
30 00.002 BOLT; BRKT TO FRAME
07.247 M10X30 FLANGE 		0-28481-030-0 04 1 9811-0012 ● ●
30 00.002 BOLT; BRKT TO FRAME
07.247 M10X30 FLANGE 		0-28481-030-0 04 1 0101- ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE USA 		8-94126-973-0 02 1 9811-0012 ● ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE USA 		8-94126-973-0 02 1 0101- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
USA 		8-97125-129-1 01 1 9811-0012 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM 4 SPEED(RMQ) USA 		8-97125-125-2 01 1 9811-0303 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM 4 SPEED(RMQ) USA 		8-97365-790-0 01 1 0304- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) USA 		8-97125-128-2 01 1 9811-0303 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) USA 		8-97365-791-0 01 1 0304- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0012 ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0012 ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0101- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
A/T THM 4 SPEED(RMQ) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9811- ●
166 00.002 NUT; SUPPORT RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811-0012 ●
166 00.002 NUT; SUPPORT RUBBER
04.785 M10 FLANGE USA 		0-91150-110-0 04 1 9811- ●
241 00.027 COVER; ENG MTG
USA 		8-97139-278-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97287-454-0 01 1 0008-0012 ●
241 00.027 COVER; ENG MTG
USA 		8-97139-277-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97287-453-0 01 1 0008-0012 ●
241 00.027 COVER; ENG MTG
USA 		8-97125-307-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97257-619-0 01 1 0009- ●
241 00.027 COVER; ENG MTG
USA 		8-97125-306-0 01 1 9811-0002 ●
241 00.027 COVER; ENG MTG 8-97241-056-0 01 1 0003-0007 ●
241 00.027 COVER; ENG MTG 8-97257-618-0 01 1 0008- ●

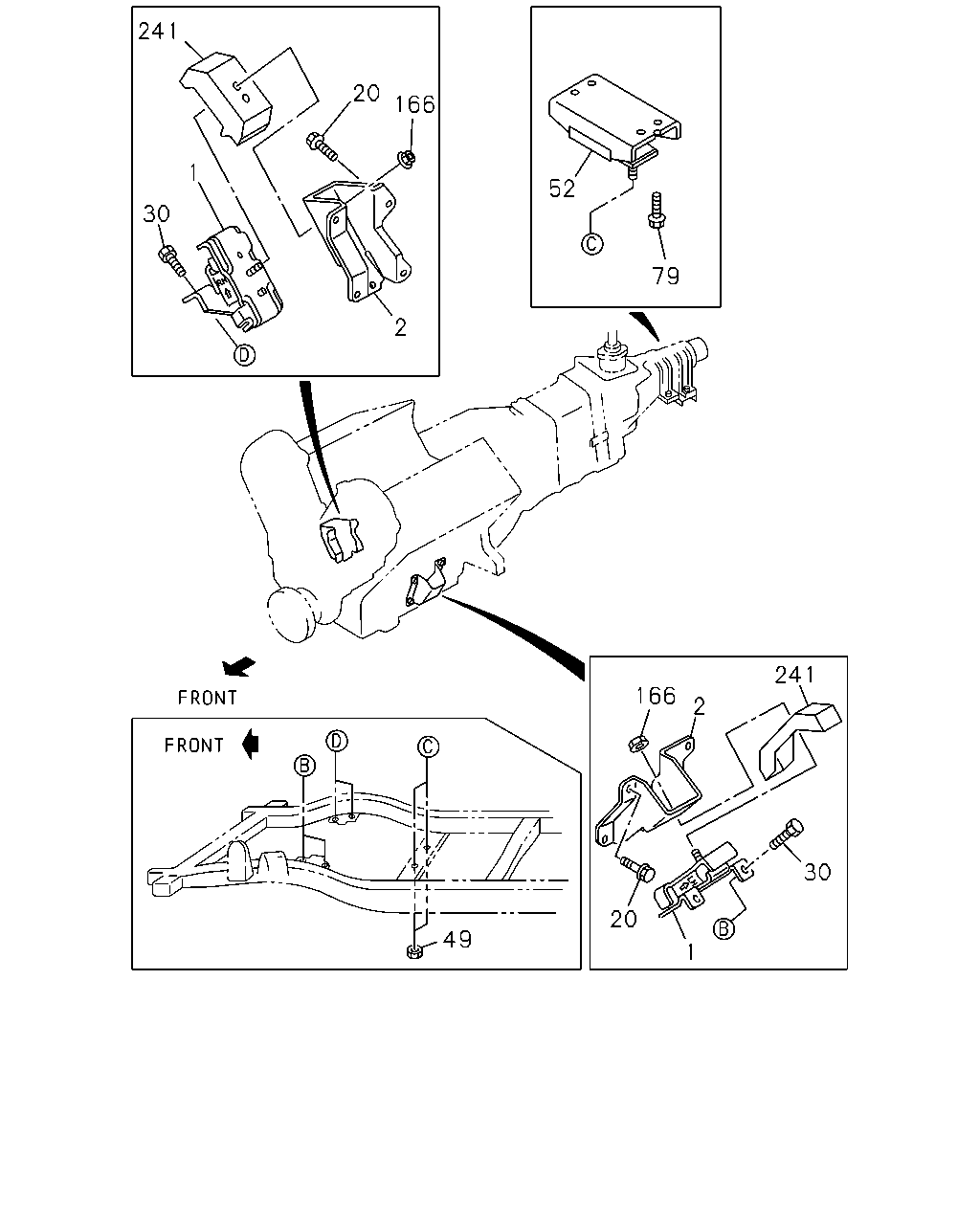

çizim 37302
241 20 166 1 52 30 79 2 241 166 2 30 20 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97139-276-1 01 1 9811-0012 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97139-275-1 01 1 9811-0012 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-343-2 01 1 9811-0101 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0102-0104 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-343-2 01 1 0105-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0105-0108 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-518-0 01 1 0109- ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-342-2 01 1 9811-0101 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0102-0104 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97125-342-2 01 1 0105-0105 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0105-0108 ●
1 00.027 RUBBER; ENG FOOT,FRT
USA 		8-97232-517-0 01 1 0109- ●
2 00.029 FOOT; ENG
USA 		8-97139-928-0 01 1 9811-0012 ●
2 00.029 FOOT; ENG
USA 		8-97139-927-0 01 1 9811-0012 ●
2 00.029 FOOT; ENG
USA 		8-97106-558-1 01 1 9811- ●
2 00.029 FOOT; ENG
USA 		8-97146-072-0 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
04.085 M10X80 FLANGE 		0-28181-080-0 01 1 9811-0012 ●
20 00.029 BOLT; ENG FOOT
09.181 M10X25 FLANGE 		0-28781-025-0 05 1 9811-0012 ●
20 00.029 BOLT; ENG FOOT
04.510 M10X40 FLANGE 		0-28181-040-0 01 1 9811- ●
20 00.029 BOLT; ENG FOOT
09.181 M10X25 FLANGE 		0-28781-025-0 07 1 9811- ●
30 00.002 BOLT; BRKT TO FRAME
07.247 M10X30 FLANGE 		0-28481-030-0 04 1 9811-0012 ● ●
30 00.002 BOLT; BRKT TO FRAME
07.247 M10X30 FLANGE 		0-28481-030-0 04 1 0101- ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE USA 		8-94126-973-0 02 1 9811-0012 ● ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE USA 		8-94126-973-0 02 1 0101- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
USA 		8-97125-129-1 01 1 9811-0012 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM 4 SPEED(RMQ) USA 		8-97125-125-2 01 1 9811-0303 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM 4 SPEED(RMQ) USA 		8-97365-790-0 01 1 0304- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) USA 		8-97125-128-2 01 1 9811-0303 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) USA 		8-97365-791-0 01 1 0304- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0012 ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811-0012 ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0101- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
A/T THM 4 SPEED(RMQ) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9811- ●
166 00.002 NUT; SUPPORT RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811-0012 ●
166 00.002 NUT; SUPPORT RUBBER
04.785 M10 FLANGE USA 		0-91150-110-0 04 1 9811- ●
241 00.027 COVER; ENG MTG
USA 		8-97139-278-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97287-454-0 01 1 0008-0012 ●
241 00.027 COVER; ENG MTG
USA 		8-97139-277-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97287-453-0 01 1 0008-0012 ●
241 00.027 COVER; ENG MTG
USA 		8-97125-307-0 01 1 9811-0007 ●
241 00.027 COVER; ENG MTG 8-97257-619-0 01 1 0009- ●
241 00.027 COVER; ENG MTG
USA 		8-97125-306-0 01 1 9811-0002 ●
241 00.027 COVER; ENG MTG 8-97241-056-0 01 1 0003-0007 ●
241 00.027 COVER; ENG MTG 8-97257-618-0 01 1 0008- ●
