Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#46246) — 29 parça

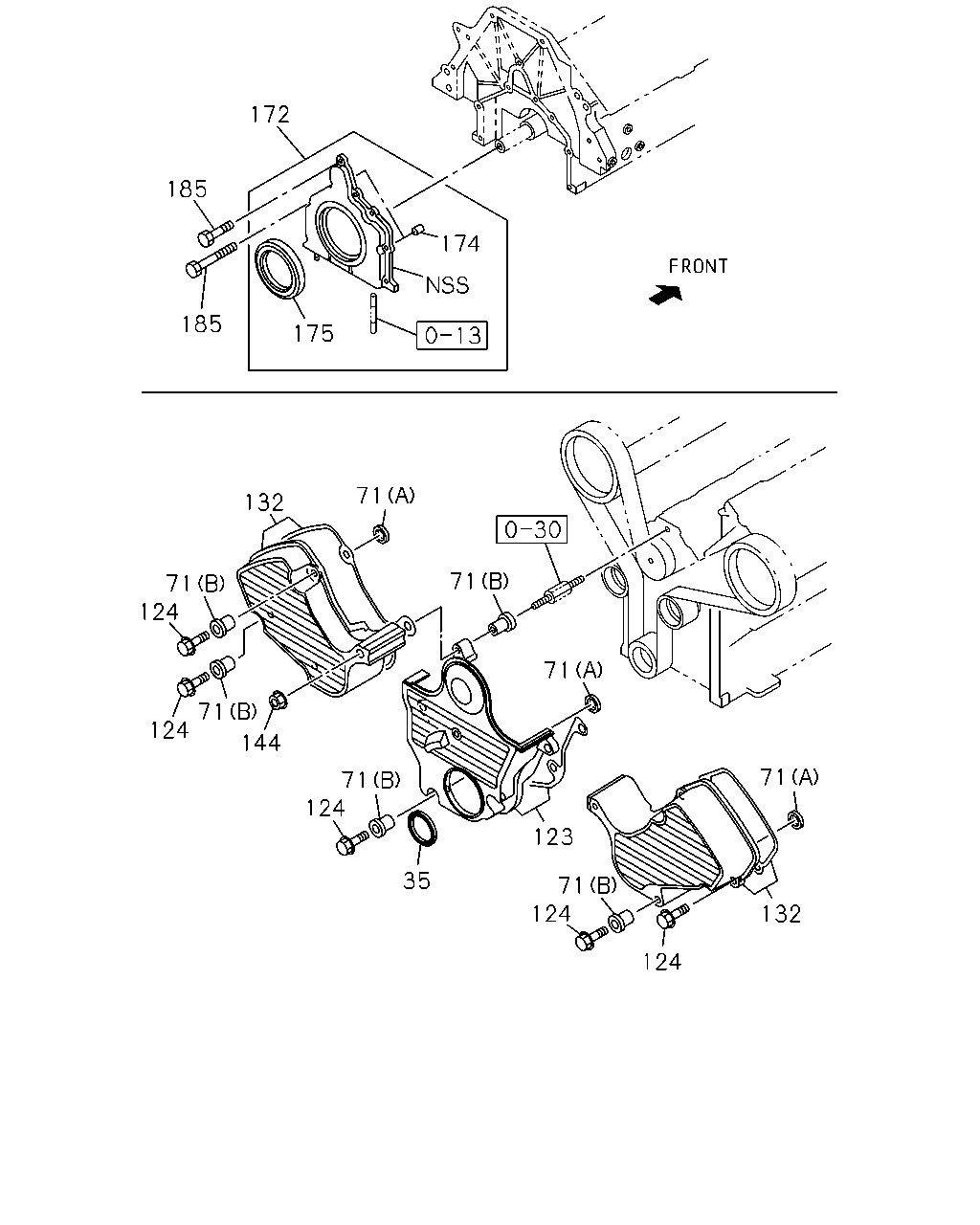

172 185 174 185 175 71 132 71 71 124 71 71 124 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9811-	●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9811-	●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9811-	●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9811-	●
124	00.206 BOLT; TIMING COVER AUS	8-11027-778-0	02	1	9811-0012		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9811-	●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9811-	●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9811-	●
144	00.206 NUT; COVER 07.633 M8 FLANGE USA	0-91150-108-0	01	1	9811-	●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9811-	●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	9811-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-90298-408-0	01	1	9811-0012		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9811-	●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE USA	0-28080-816-0	06	1	9811-	●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9811-	●

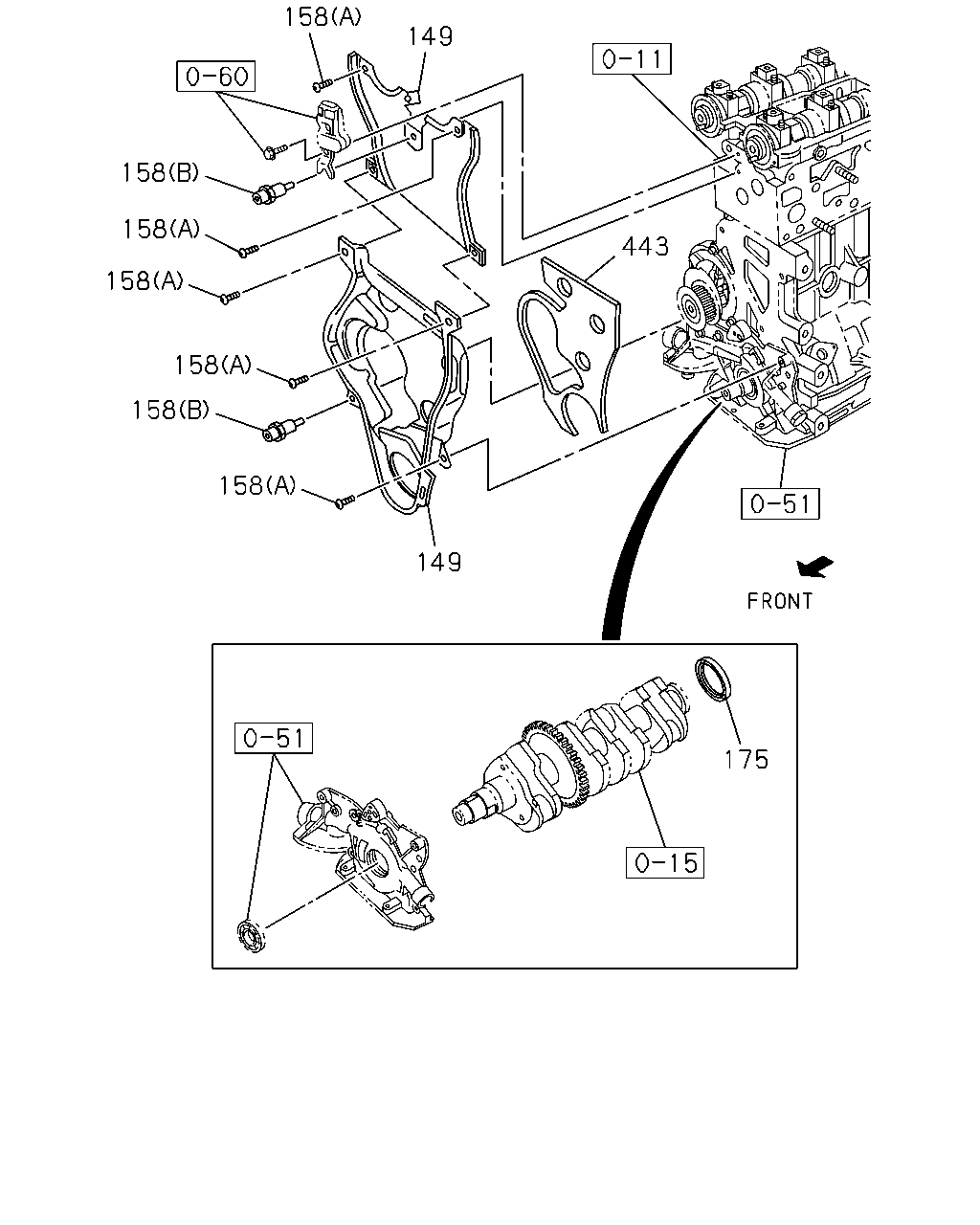

158 149 158 158 443 158 158 158 158 149 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	00.206 PLATE; FRT,C/BL UPPER AUS	8-92063-342-0	01	1	9811-0012		●
149	00.206 PLATE; FRT,C/BL LOWER AUS	8-92063-343-0	01	1	9811-0012		●
158	00.206 BOLT; FRT PLATE (A) AUS	8-90233-279-0	05	1	9811-0012		●
158	00.206 BOLT; FRT PLATE (B) AUS	8-90352-197-0	02	1	9811-0012		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-90298-408-0	01	1	9811-0012		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9811-	●
443	00.206 SEAL; GASKET,COVER AUS	8-92063-344-0	01	1	9811-0012		●

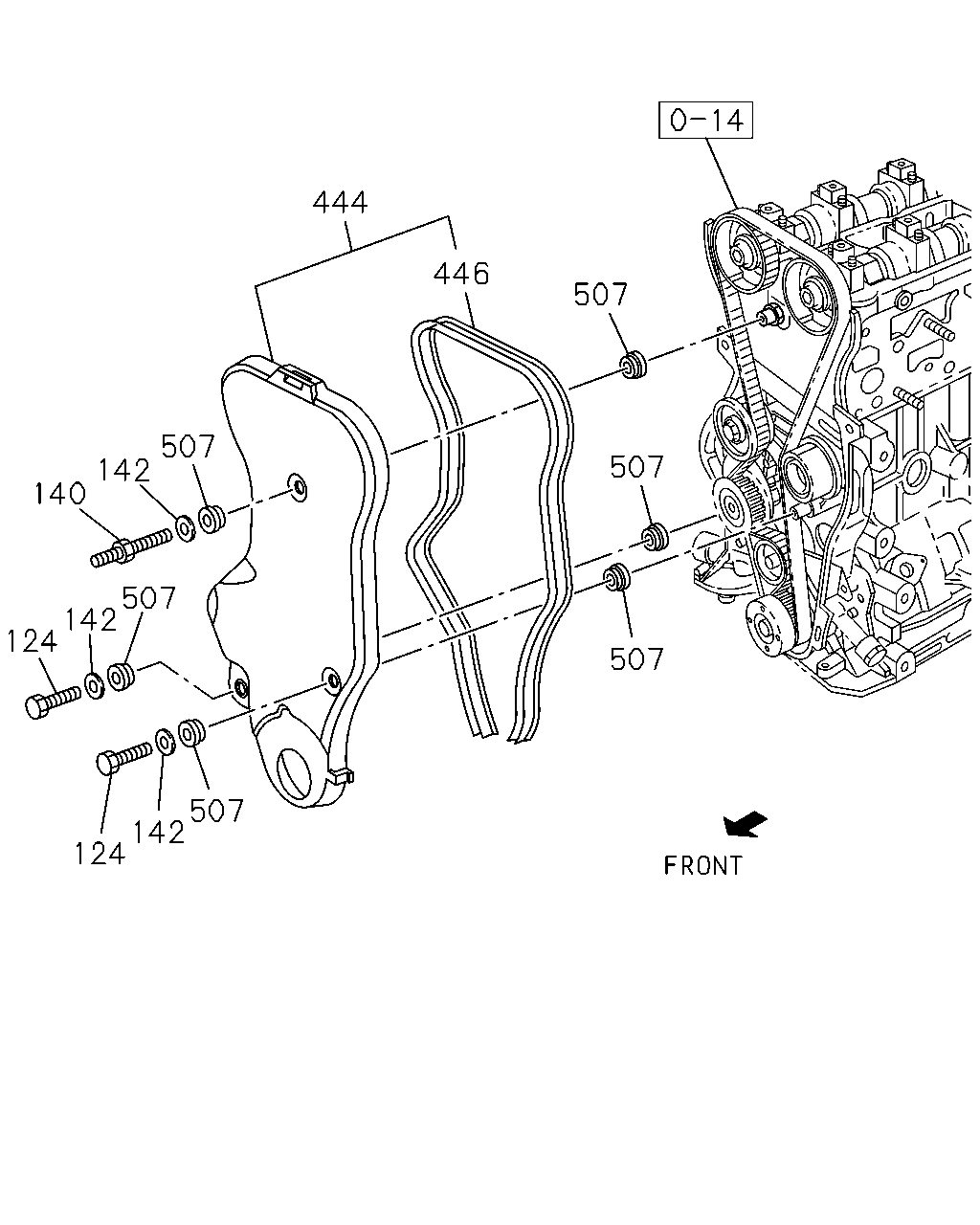

444 446 507 507 142 140 507 507 142 124 507 507 142 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	00.206 BOLT; TIMING COVER AUS	8-11027-778-0	02	1	9811-0012		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9811-	●
140	00.206 STUD; COVER AUS	8-90491-776-0	01	1	9811-0012		●
142	00.206 WASHER; COVER IMA	8-90220-983-0	03	1	9811-0012		●
444	00.206 COVER; TIMING CASE AUS	8-92062-691-0	01	1	9811-0012		●
446	00.206 GASKET; COVER AUS	8-92062-693-0	01	1	9811-0012		●
507	00.206 RING; DAMPER AUS	8-90233-881-0	06	1	9811-0012		●
