◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#46245) — 84 parça

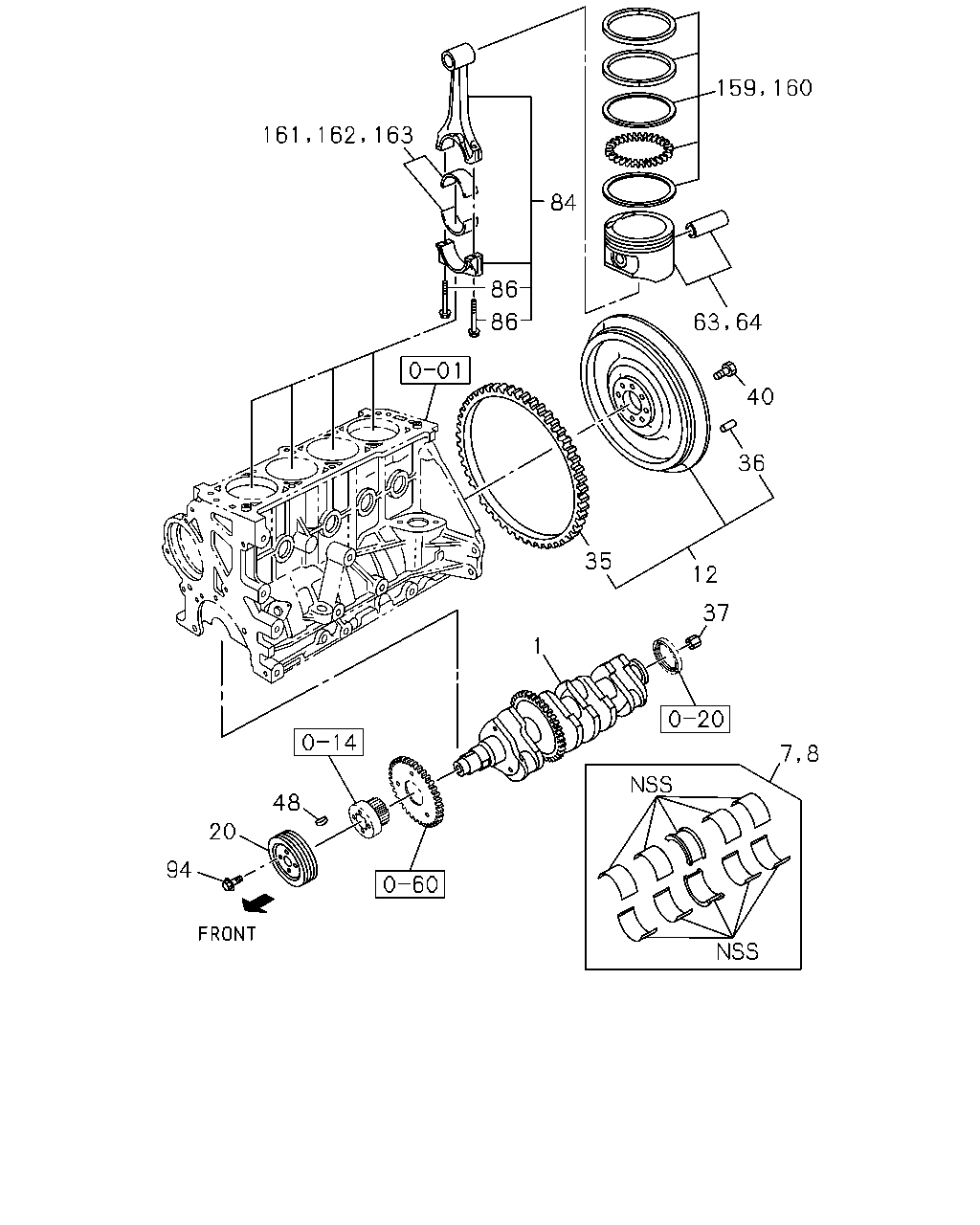

çizim 36453
161 84 86 86 40 36 35 12 37 1 48 20 94 159 160 63 64 7 8 162 163
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT
AUS 		8-90530-455-0 01 1 9811-0012 ●
1 00.646 CRANKSHAFT 8-97131-857-2 01 1 9811- ●
7 00.094 METAL KIT; CRANKSHAFT,STANDARD
AUS 		8-92064-016-0 01 1 9811-0012 ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25
AUS 		8-92064-017-0 01 1 9811-0012 ●
12 00.666 FLYWHEEL
AUS 		8-92062-669-0 01 1 9811-0012 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED(RMN) 		8-97131-860-0 01 1 9811- ●
20 00.659 DAMPER; CR/SHF
AUS 		8-90469-102-0 01 1 9811-0012 ●
35 00.673 GEAR; RING
Z=135 AUS 		8-90136-995-0 01 1 9811-0012 ●
35 00.673 GEAR; RING
A/T THM 4 SPEED(RMQ) Z=121 		8-97174-420-0 01 1 9811- ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED(RMN) ID=281 		8-94374-959-0 01 1 9811- ●
36 00.862 PIN; FLYWHEEL
AUS 		8-92062-965-0 03 1 9811-0012 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
AUS 		8-90105-743-0 01 1 9811-0012 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED(RMN) 00.649 		8-97031-741-0 01 1 9811- ●
40 00.669 BOLT; FLYWHEEL
AUS 		8-90285-303-0 06 1 9811-0012 ●
40 00.669 BOLT; FLYWHEEL
A/T THM 4 SPEED(RMQ) M10X17 		8-97015-187-0 08 1 9811- ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED(RMN) M10X31 		8-94379-616-0 08 1 9811- ●
48 00.662 KEY; WOODRUFF,CR/SHF
AUS 		8-11010-612-0 01 1 9811-0012 ●
48 00.662 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9811- ●
63 00.629 PISTON
STAMP 00 AUS 		8-92062-910-0 04 1 9811-0012 ●
63 00.629 PISTON
STAMP 01 AUS 		8-92062-911-0 04 1 9811-0012 ●
63 00.629 PISTON
STAMP 02 AUS 		8-92062-912-0 04 1 9811-0012 ●
63 00.629 PISTON
GRADE=A 		8-97172-674-0 06 1 9811- ●
63 00.629 PISTON
GRADE=B 		8-97172-675-0 06 1 9811- ●
63 00.629 PISTON
GRADE=C 		8-97172-676-0 06 1 9811- ●
64 00.629 PISTON; O/S=0.50
AUS 		8-92062-680-0 04 1 9811-0012 ●
84 00.603 ROD ASM; CONN
AUS 		8-90530-452-0 04 1 9811-0012 ●
84 00.603 ROD ASM; CONN 8-97136-202-0 06 1 9811-0302 ●
84 00.603 ROD ASM; CONN 8-97351-159-0 06 1 0303- ●
86 00.623 BOLT; CONNROD
AUS 		8-90281-736-0 08 1 9811-0012 ●
86 00.623 BOLT; CONNROD
3/8-24UNF X 55.5 		8-97010-606-0 12 1 9811- ●
94 00.659 BOLT; DAMPER
02.183 AUS 		8-11094-881-0 04 1 9811-0012 ●
159 00.639 RING KIT; PISTON,STANDARD
AUS 		8-92062-027-0 01 1 9811-0012 ●
160 00.639 RING KIT; PISTON,O/S=0.50
AUS 		8-92062-028-0 01 1 9811-0012 ●
161 00.616 METAL KIT; CONN ROD,STANDARD
00.094 AUS 		8-92028-817-0 01 1 9811-0012 ●
162 00.616 METAL KIT; CONN ROD,U/S=0.25
00.094 AUS 		8-92028-818-0 01 1 9811-0012 ●
163 00.616 METAL KIT; CONN ROD,U/S=0.50
00.094 AUS 		8-92028-819-0 01 1 9811-0012 ●

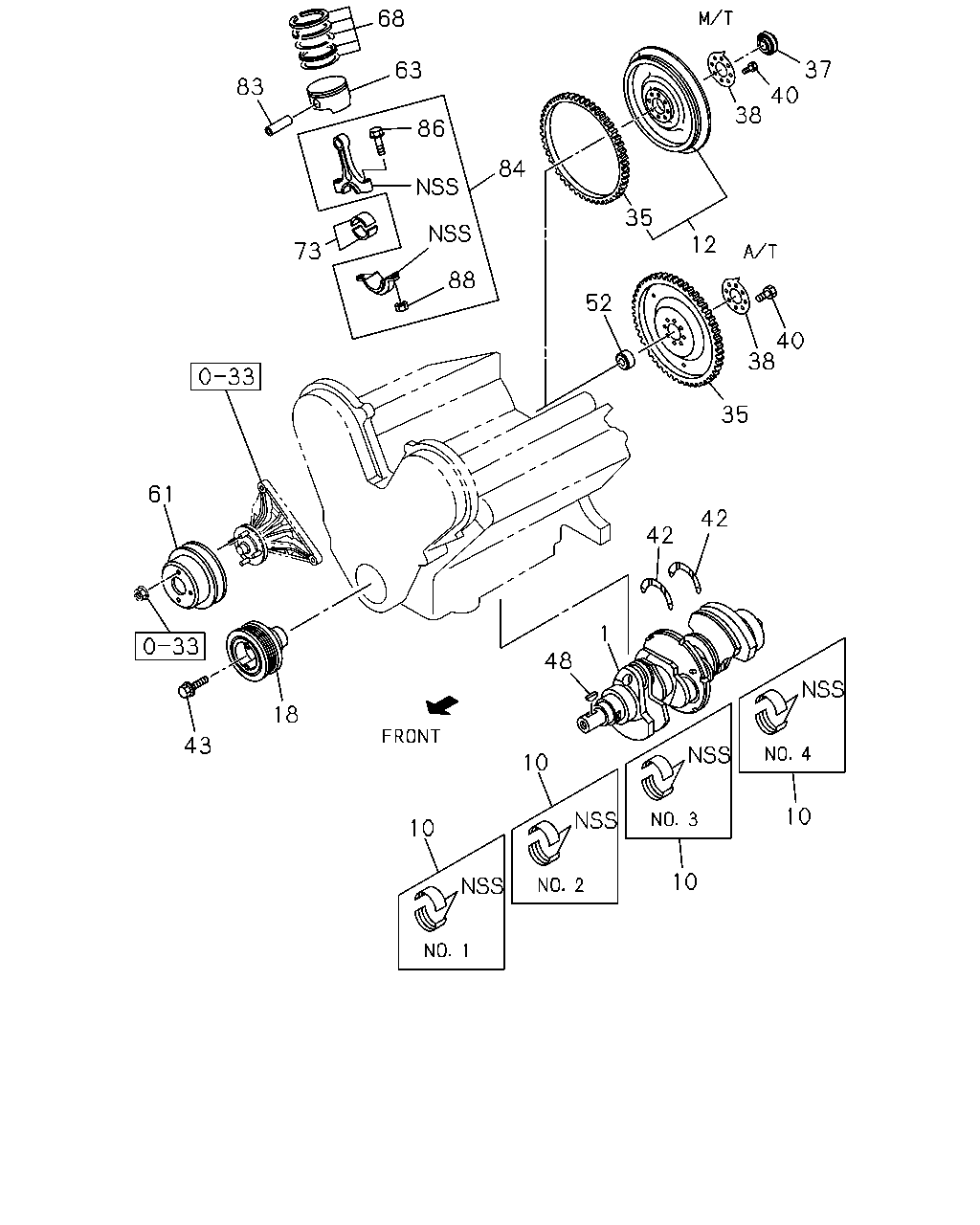

çizim 36477
68 37 40 38 63 83 86 84 35 12 73 88 52 40 38 35 61 42 42 1 48 18 43 10 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT
AUS 		8-90530-455-0 01 1 9811-0012 ●
1 00.646 CRANKSHAFT 8-97131-857-2 01 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.1, NO.4 BROWN 		8-97179-296-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.1, NO,4 GREEN 		8-97179-297-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.1, NO.4 YELLOW 		8-97179-298-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.1, NO.4 BLUE 		8-97179-299-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.2, NO.3 BROWN 		8-97179-300-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.2, NO.3 GREEN 		8-97179-301-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.2, NO.3 YELLOW 		8-97179-302-0 02 1 9811- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
NO.2, NO.3 BLUE 		8-97179-303-0 02 1 9811- ●
12 00.666 FLYWHEEL
AUS 		8-92062-669-0 01 1 9811-0012 ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED(RMN) 		8-97131-860-0 01 1 9811- ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97131-859-0 01 1 9811-0203 ●
18 00.659 PULLEY; CR/SHF
6-GROOVE 		8-97321-296-0 01 1 0204- ●
35 00.673 GEAR; RING
Z=135 AUS 		8-90136-995-0 01 1 9811-0012 ●
35 00.673 GEAR; RING
A/T THM 4 SPEED(RMQ) Z=121 		8-97174-420-0 01 1 9811- ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED(RMN) ID=281 		8-94374-959-0 01 1 9811- ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
AUS 		8-90105-743-0 01 1 9811-0012 ●
37 00.096 BEARING; PILOT,TOP GEAR SHAFT
M/T MUA 5 SPEED(RMN) 00.649 		8-97031-741-0 01 1 9811- ●
38 00.862 WASHER; FLYWHEEL
00.669 T=0.8 		8-94235-325-1 01 1 9811- ●
40 00.669 BOLT; FLYWHEEL
AUS 		8-90285-303-0 06 1 9811-0012 ●
40 00.669 BOLT; FLYWHEEL
A/T THM 4 SPEED(RMQ) M10X17 		8-97015-187-0 08 1 9811- ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED(RMN) M10X31 		8-94379-616-0 08 1 9811- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97014-208-0 02 1 9811- ●
43 00.662 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 9811- ●
48 00.662 KEY; WOODRUFF,CR/SHF
AUS 		8-11010-612-0 01 1 9811-0012 ●
48 00.662 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9811- ●
52 00.669 SLEEVE; CONV PILOT
A/T THM 4 SPEED(RMQ) 		8-94384-695-0 01 1 9811- ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE USA 		8-97130-518-0 01 1 9811- ●
63 00.629 PISTON
STAMP 00 AUS 		8-92062-910-0 04 1 9811-0012 ●
63 00.629 PISTON
STAMP 01 AUS 		8-92062-911-0 04 1 9811-0012 ●
63 00.629 PISTON
STAMP 02 AUS 		8-92062-912-0 04 1 9811-0012 ●
63 00.629 PISTON
GRADE=A 		8-97172-674-0 06 1 9811- ●
63 00.629 PISTON
GRADE=B 		8-97172-675-0 06 1 9811- ●
63 00.629 PISTON
GRADE=C 		8-97172-676-0 06 1 9811- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97365-479-0 06 1 0306- ●
68 00.643 RING SET; PISTON,STANDARD 8-97170-113-0 06 1 9811-0108 ●
68 00.643 RING SET; PISTON,STANDARD 8-97136-135-0 06 1 0109- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97179-293-0 06 1 9811- ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97179-294-0 06 1 9811- ●
73 00.616 METAL SET; CONN ROD,STANDARD
PINK 		8-97179-295-0 06 1 9811- ●
83 00.636 PIN; PISTON 8-97149-195-1 06 1 9811- ●
84 00.603 ROD ASM; CONN
AUS 		8-90530-452-0 04 1 9811-0012 ●
84 00.603 ROD ASM; CONN 8-97136-202-0 06 1 9811-0302 ●
84 00.603 ROD ASM; CONN 8-97351-159-0 06 1 0303- ●
86 00.623 BOLT; CONNROD
AUS 		8-90281-736-0 08 1 9811-0012 ●
86 00.623 BOLT; CONNROD
3/8-24UNF X 55.5 		8-97010-606-0 12 1 9811- ●
88 00.623 NUT; CONNROD
00.626 3/8-24 UNF 		8-94377-785-0 12 1 9811- ●
