◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#46244) — 157 parça

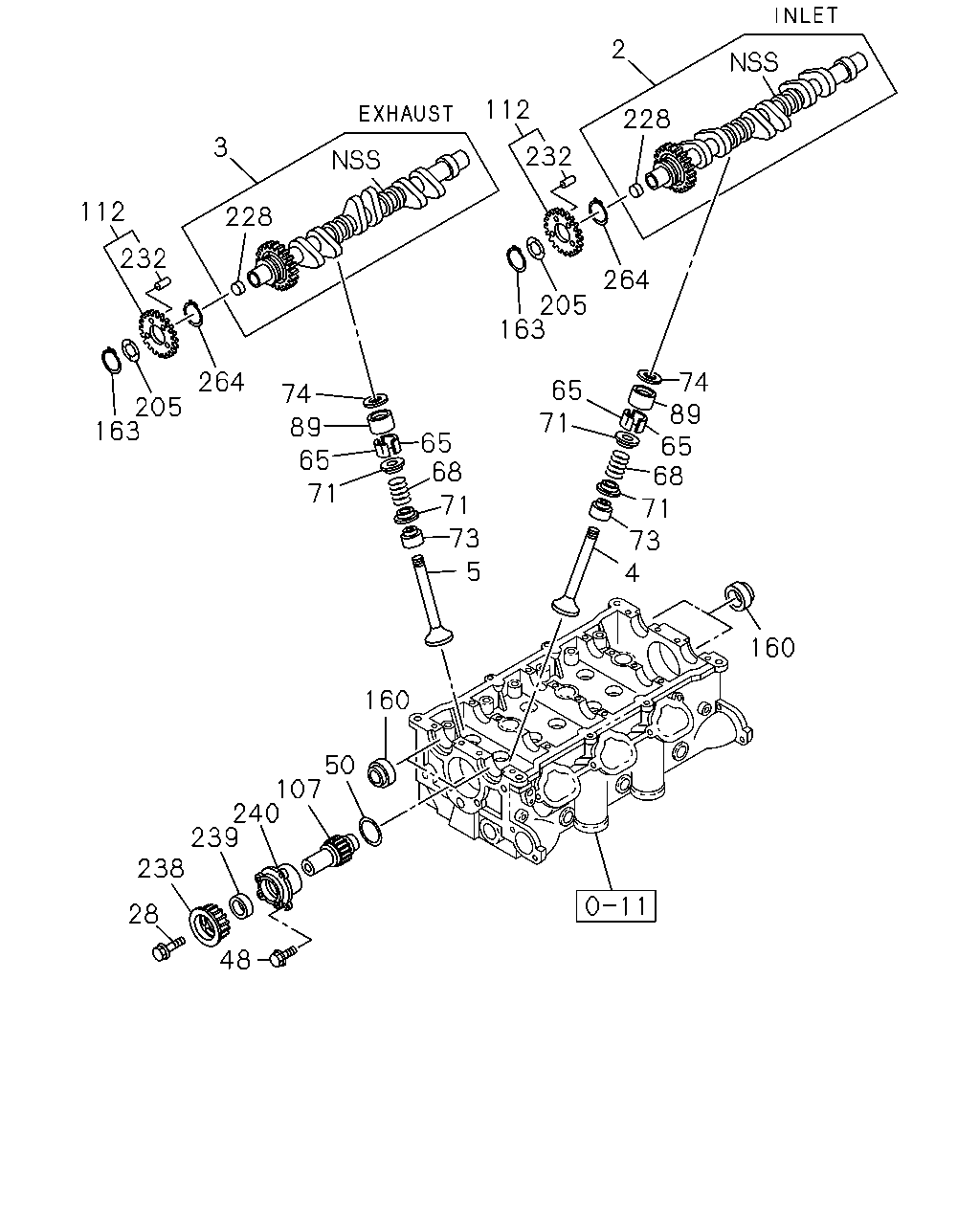

çizim 4383
2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 71 73 4 65 71 74 205 163 89 65 68 65 71 71 73 5 160 160 50 107 240 239 238 28 48
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.519 CAMSHAFT; INL
AUS 		8-90529-062-0 01 1 9811-0012 ●
2 00.519 CAMSHAFT; INL 8-97146-570-1 01 1 9811- ●
2 00.519 CAMSHAFT; INL 8-97146-569-1 01 1 9811- ●
3 00.519 CAMSHAFT; EXH
AUS 		8-90529-063-0 01 1 9811-0012 ●
3 00.519 CAMSHAFT; EXH 8-97146-572-1 02 1 9811- ●
4 00.296 VALVE; INL
STD AUS 		8-90412-277-0 08 1 9811-0012 ●
4 00.296 VALVE; INL
OVSI=0.075 AUS 		8-90412-278-0 08 1 9811-0012 ●
4 00.296 VALVE; INL
OVSI=0.150 AUS 		8-90412-279-0 08 1 9811-0012 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9811-0108 ●
4 00.296 VALVE; INL 8-97131-961-0 12 1 0109- ●
5 00.297 VALVE; EXH
STD AUS 		8-90410-813-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH
OVSI=0.075 AUS 		8-90410-814-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH
OVSI=0.150 AUS 		8-90410-815-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9811-0108 ●
5 00.297 VALVE; EXH 8-97131-962-0 12 1 0109- ●
28 00.738 BOLT; CAM PULLEY
AUS 		8-90466-737-0 02 1 9811-0012 ●
28 00.738 BOLT; CAM PULLEY 8-97149-393-0 02 1 9811-0204 ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205- ●
48 00.724 BOLT; RET
M6X20 FLANGE 		0-28690-620-0 03 1 9811- ●
48 00.724 BOLT; RET
M6X30 FLANGE 		0-28690-630-0 03 1 9811- ●
50 00.724 GASKET; RET
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97149-238-0 02 1 9811- ●
65 00.310 COLLAR; SPLIT 8-94429-487-0 48 1 9811- ●
68 00.303 SPRING; VLV
AUS 		8-90448-050-0 16 1 9811-0012 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9811-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
71 00.309 SEAT; SPR
AUS 		8-90410-740-0 16 1 9811-0012 ●
71 00.309 SEAT; SPR
UPPER OD=24.2 		8-97136-329-1 24 1 9811- ●
71 00.309 SEAT; SPR
LOWER OD=27 		8-97149-155-0 24 1 9811- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90410-741-0 16 1 9811-0012 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-94324-158-1 12 1 9811-0207 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-97332-359-0 12 1 0208- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST 		8-97146-733-0 12 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.40 		8-97149-262-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.42 		8-97149-263-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.44 		8-97149-264-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.46 		8-97149-265-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=2.48 		8-97149-266-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.50 		8-97149-267-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.52 		8-97149-268-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.54 		8-97149-269-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.56 		8-97149-270-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.58 		8-97149-271-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.60 		8-97149-272-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.62 		8-97149-273-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.64 		8-97149-274-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.66 		8-97149-275-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.68 		8-97149-276-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.70 		8-97149-277-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.72 		8-97149-278-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.74 		8-97149-279-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.76 		8-97149-280-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.78 		8-97149-281-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.80 		8-97149-282-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.82 		8-97149-283-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.84 		8-97149-284-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.86 		8-97149-285-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.88 		8-97149-286-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.90 		8-97149-287-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.92 		8-97149-288-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.94 		8-97149-289-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.96 		8-97149-290-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=2.98 		8-97149-291-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.00 		8-97149-292-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.02 		8-97149-293-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.04 		8-97149-294-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.06 		8-97149-295-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.08 		8-97149-296-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.10 		8-97149-297-0 AR 1 9811- ●
74 00.459 ADJUSTER; VLV GAP
T=3.12 		8-97149-298-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.14 		8-97149-299-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.16 		8-97149-300-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.18 		8-97149-301-0 AR 1 9811-9906 ●
74 00.459 ADJUSTER; VLV GAP
T=3.20 		8-97149-302-0 AR 1 9811-9906 ●
89 00.459 TAPPET; VLV
AUS 		8-90570-967-0 16 1 9811-0012 ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 9811- ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-871-0 01 1 9811- ●
107 00.724 SHAFT; IDLE GEAR
WARNER TEC 		8-97322-870-0 01 1 9811- ●
112 00.724 GEAR; IDLE
TOKYO BUHIN KOGYO CO.LTD Z=40 		8-97136-655-1 04 1 9811- ●
112 00.724 GEAR; IDLE
SUMITOMO ELECTRIC INDUSTRIES Z=40 		8-97322-153-0 04 1 0201- ●
160 00.533 PLUG; CM/SHF END 8-97149-338-0 08 1 9811- ●
163 00.724 RING; SNAP,IDLE 8-97149-334-0 04 1 9811- ●
205 00.724 WASHER; LK,IDLE 8-97136-589-0 04 1 9811- ●
228 00.738 CUP; SEALING,CAMSHAFT
OD=8 		8-97039-526-0 04 1 9811- ●
232 00.662 PIN; GEAR SET
00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6 		9-09878-626-0 04 1 9811- ●
232 00.662 PIN; GEAR SET
SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7 		8-97173-670-0 04 1 0201- ●
238 00.659 PULLEY; TIMING,CAM 8-97136-327-0 02 1 9811- ●
239 00.533 SEAL; OIL,IDLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94389-593-1 02 1 9811- ●
240 00.724 RETAINER; IDLE 8-97132-365-1 01 1 9811- ●
240 00.724 RETAINER; IDLE 8-97132-364-1 01 1 9811- ●
264 00.349 SPRING; GEAR
00.659 		8-97136-343-0 04 1 9811- ●

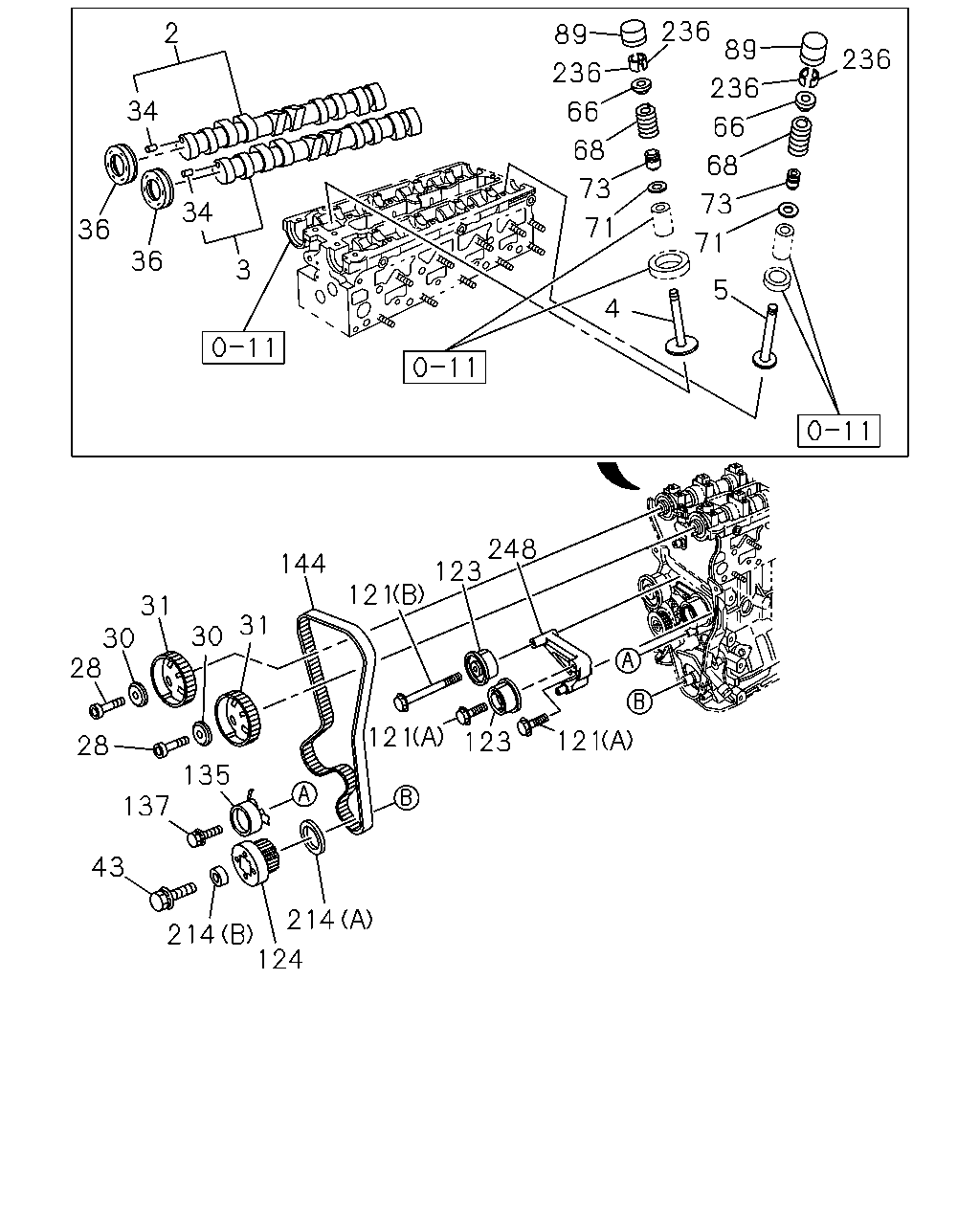

çizim 5086
236 2 89 89 236 236 236 34 66 66 68 68 73 73 34 71 36 71 36 3 5 4 248 123 144 121 31 30 28 31 30 121 123 28 135 137 43 214 214 124 121
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.519 CAMSHAFT; INL
AUS 		8-90529-062-0 01 1 9811-0012 ●
2 00.519 CAMSHAFT; INL 8-97146-570-1 01 1 9811- ●
2 00.519 CAMSHAFT; INL 8-97146-569-1 01 1 9811- ●
3 00.519 CAMSHAFT; EXH
AUS 		8-90529-063-0 01 1 9811-0012 ●
3 00.519 CAMSHAFT; EXH 8-97146-572-1 02 1 9811- ●
4 00.296 VALVE; INL
STD AUS 		8-90412-277-0 08 1 9811-0012 ●
4 00.296 VALVE; INL
OVSI=0.075 AUS 		8-90412-278-0 08 1 9811-0012 ●
4 00.296 VALVE; INL
OVSI=0.150 AUS 		8-90412-279-0 08 1 9811-0012 ●
4 00.296 VALVE; INL 8-97169-807-0 12 1 9811-0108 ●
4 00.296 VALVE; INL 8-97131-961-0 12 1 0109- ●
5 00.297 VALVE; EXH
STD AUS 		8-90410-813-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH
OVSI=0.075 AUS 		8-90410-814-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH
OVSI=0.150 AUS 		8-90410-815-0 08 1 9811-0012 ●
5 00.297 VALVE; EXH 8-97169-808-0 12 1 9811-0108 ●
5 00.297 VALVE; EXH 8-97131-962-0 12 1 0109- ●
28 00.738 BOLT; CAM PULLEY
AUS 		8-90466-737-0 02 1 9811-0012 ●
28 00.738 BOLT; CAM PULLEY 8-97149-393-0 02 1 9811-0204 ●
28 00.738 BOLT; CAM PULLEY 8-97330-881-0 02 1 0205- ●
30 00.662 WASHER; PULLEY
AUS 		8-90108-392-0 02 1 9811-0012 ●
31 00.736 SPROCKET; CM/SHF
AUS 		8-90411-776-0 02 1 9811-0012 ●
34 00.533 PIN; CM/SHF
AUS 		8-90501-111-0 02 1 9811-0012 ●
36 00.533 SEAL; OIL,CM/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90280-463-0 02 1 9811-0012 ●
43 00.662 BOLT; PULLEY
00.659 AUS 		8-11085-931-0 01 1 9811-0012 ●
66 00.303 CAP; VLV STEM END
AUS 		8-90354-649-0 16 1 9811-0012 ●
68 00.303 SPRING; VLV
AUS 		8-90448-050-0 16 1 9811-0012 ●
68 00.303 SPRING; VLV 8-97136-328-0 24 1 9811-0108 ●
68 00.303 SPRING; VLV 8-97314-228-0 24 1 0109- ●
71 00.309 SEAT; SPR
AUS 		8-90410-740-0 16 1 9811-0012 ●
71 00.309 SEAT; SPR
UPPER OD=24.2 		8-97136-329-1 24 1 9811- ●
71 00.309 SEAT; SPR
LOWER OD=27 		8-97149-155-0 24 1 9811- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90410-741-0 16 1 9811-0012 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-94324-158-1 12 1 9811-0207 ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INLET 		8-97332-359-0 12 1 0208- ●
73 00.309 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXHAUST 		8-97146-733-0 12 1 9811- ●
89 00.459 TAPPET; VLV
AUS 		8-90570-967-0 16 1 9811-0012 ●
89 00.459 TAPPET; VLV 8-97148-296-1 24 1 9811- ●
121 00.724 BOLT; IDLE PULLEY
03.670 (A) AUS 		8-11048-333-0 02 1 9811-0012 ●
121 00.724 BOLT; IDLE PULLEY
(B) AUS 		8-11048-891-0 01 1 9811-0012 ●
121 00.724 BOLT; IDLE PULLEY
03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9811- ●
123 00.724 PULLEY; IDLE,TIMING
AUS 		8-09128-738-0 02 1 9811-0012 ●
123 00.724 PULLEY; IDLE,TIMING 8-97146-877-0 01 1 9811- ●
124 00.659 PULLEY; TIMING,CR/SHF
AUS 		8-90411-795-0 01 1 9811-0012 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 9811- ●
135 00.724 PULLEY; TENSIONER
AUS 		8-90530-126-0 01 1 9811-0012 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-0 01 1 9811- ●
137 00.724 BOLT; TENSIONER
AUS 		8-11084-141-0 01 1 9811-0012 ●
144 00.724 BELT; TIMING
AUS 		8-09128-722-0 01 1 9811-0008 ●
144 00.724 BELT; TIMING 8-92065-902-0 01 1 0009-0012 ●
144 00.724 BELT; TIMING 8-97136-321-0 01 1 9811- ●
214 00.662 WASHER; PULLEY,CR/SHF
00.095 (A) AUS 		8-90156-055-0 01 1 9811-0012 ●
214 00.662 WASHER; PULLEY,CR/SHF
00.659 (B) AUS 		8-92023-395-0 01 1 9811-0012 ●
236 00.426 RETAINER; VLV LIFTER GUIDE
AUS 		8-90354-648-0 32 1 9811-0012 ●
248 00.724 BRACKET; IDLE PULLY
AUS 		8-90411-763-0 01 1 9811-0012 ●

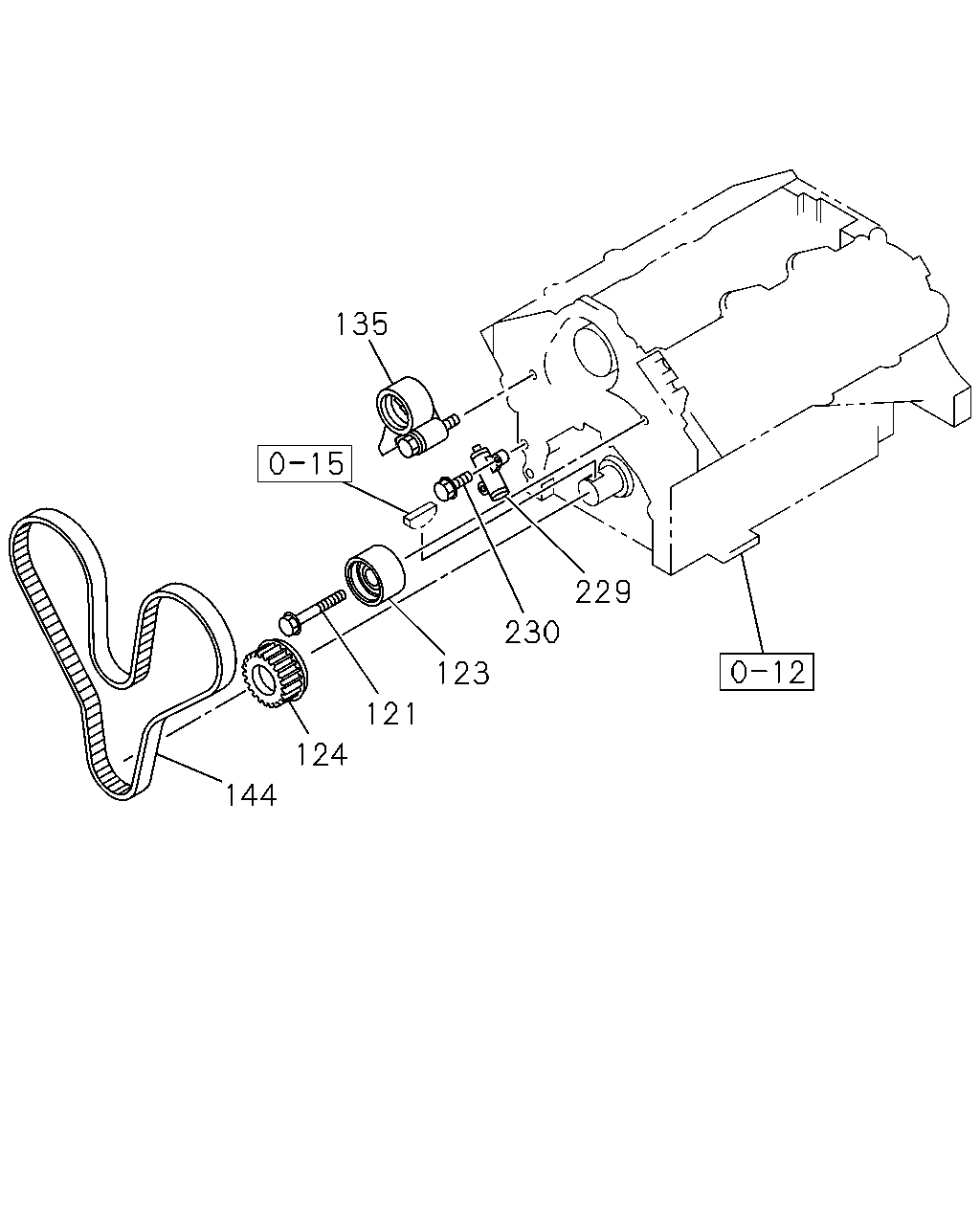

çizim 37226
135 229 230 123 121 124 144
BalonParca AdiParca NoAdetTipApplied Date A B
121 00.724 BOLT; IDLE PULLEY
03.670 (A) AUS 		8-11048-333-0 02 1 9811-0012 ●
121 00.724 BOLT; IDLE PULLEY
(B) AUS 		8-11048-891-0 01 1 9811-0012 ●
121 00.724 BOLT; IDLE PULLEY
03.613 M10X40 FLANGE 		0-28681-040-0 01 1 9811- ●
123 00.724 PULLEY; IDLE,TIMING
AUS 		8-09128-738-0 02 1 9811-0012 ●
123 00.724 PULLEY; IDLE,TIMING 8-97146-877-0 01 1 9811- ●
124 00.659 PULLEY; TIMING,CR/SHF
AUS 		8-90411-795-0 01 1 9811-0012 ●
124 00.659 PULLEY; TIMING,CR/SHF
Z=26 		8-97136-326-0 01 1 9811- ●
135 00.724 PULLEY; TENSIONER
AUS 		8-90530-126-0 01 1 9811-0012 ●
135 00.724 PULLEY; TENSIONER 8-97136-256-0 01 1 9811- ●
144 00.724 BELT; TIMING
AUS 		8-09128-722-0 01 1 9811-0008 ●
144 00.724 BELT; TIMING 8-92065-902-0 01 1 0009-0012 ●
144 00.724 BELT; TIMING 8-97136-321-0 01 1 9811- ●
229 00.724 ROD ASM; PUSH,TENSIONER 8-97136-257-0 01 1 9811- ●
230 00.724 BOLT; PUSH ROD
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
