0-13 — OIL PAN AND LEVEL GAUGE (#46243) — 53 parça

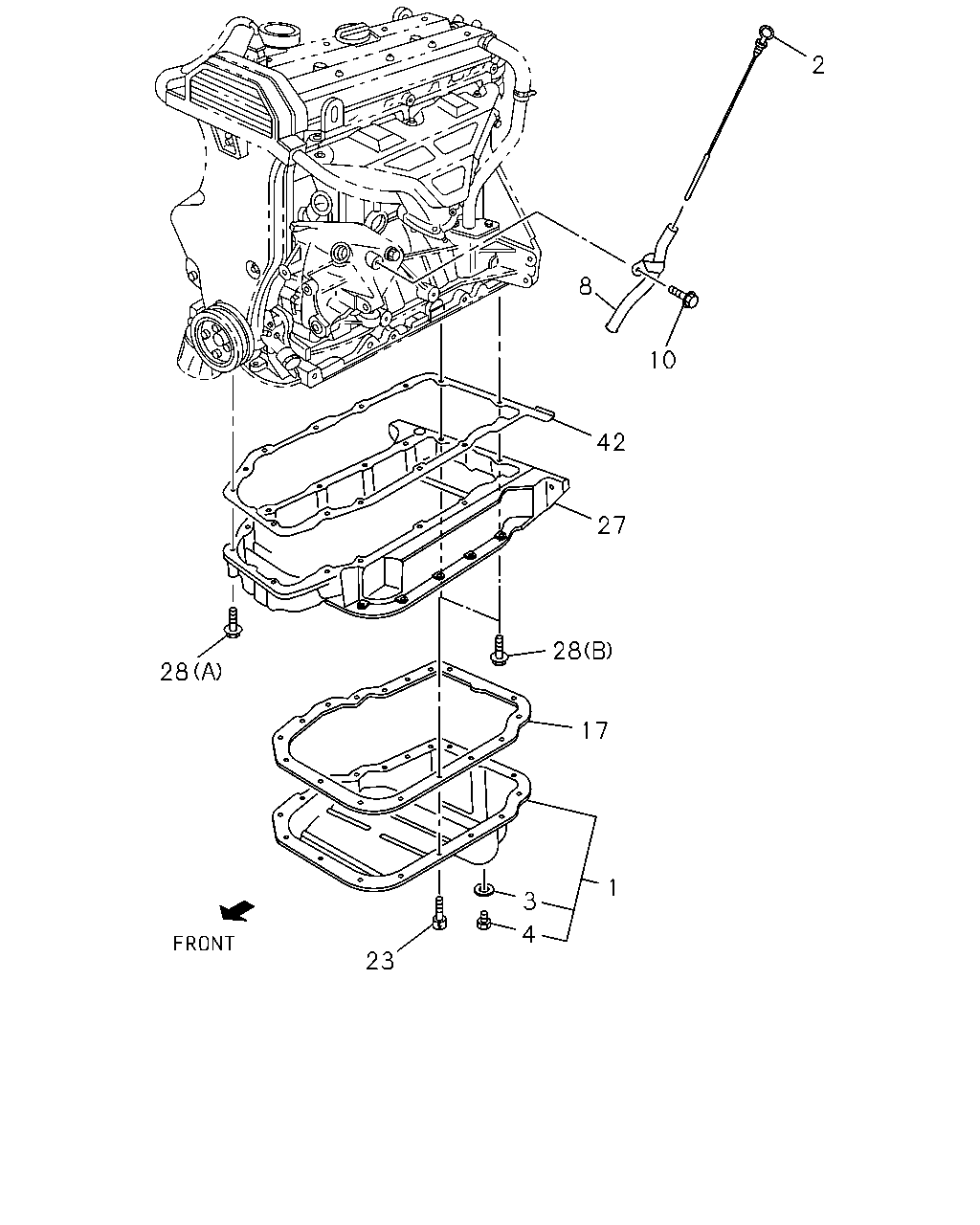

2 8 10 42 27 28 28 17 1 3 4 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL AUS	8-92062-682-0	01	1	9811-0012	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9811-0104		●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-		●
2	01.516 GAUGE; OIL LEVEL AUS	8-92064-019-0	01	1	9811-0012	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9811-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). USA	8-11023-582-0	01	1	9811-0012	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-		●
4	01.453 PLUG; DRAIN,OIL AUS	8-90409-376-0	01	1	9811-0012	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE AUS	8-92063-177-0	01	1	9811-0012	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9811-		●
10	01.516 BOLT; GUIDE TUBE M8X20 FLANGE AUS	8-11097-731-0	01	1	9811-0012	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE USA	0-28080-816-0	01	1	9811-		●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-92062-683-0	01	1	9811-0012	●
23	01.428 BOLT; OIL PAN AUS	8-11095-091-0	18	1	9811-0012	●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9811-0103		●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-		●
27	01.426 CRANKCASE AUS	8-92062-921-0	01	1	9811-0012	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9811-0012		●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-		●
28	01.780 BOLT; CRANKCASE TO C/BL 01.428 (A) M8X45 AUS	8-11093-791-0	12	1	9811-0012	●
28	01.780 BOLT; CRANKCASE TO C/BL (B) AUS	8-11096-921-0	02	1	9811-0012	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9811-0008		●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-		●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). AUS	8-92062-934-0	01	1	9811-0012	●

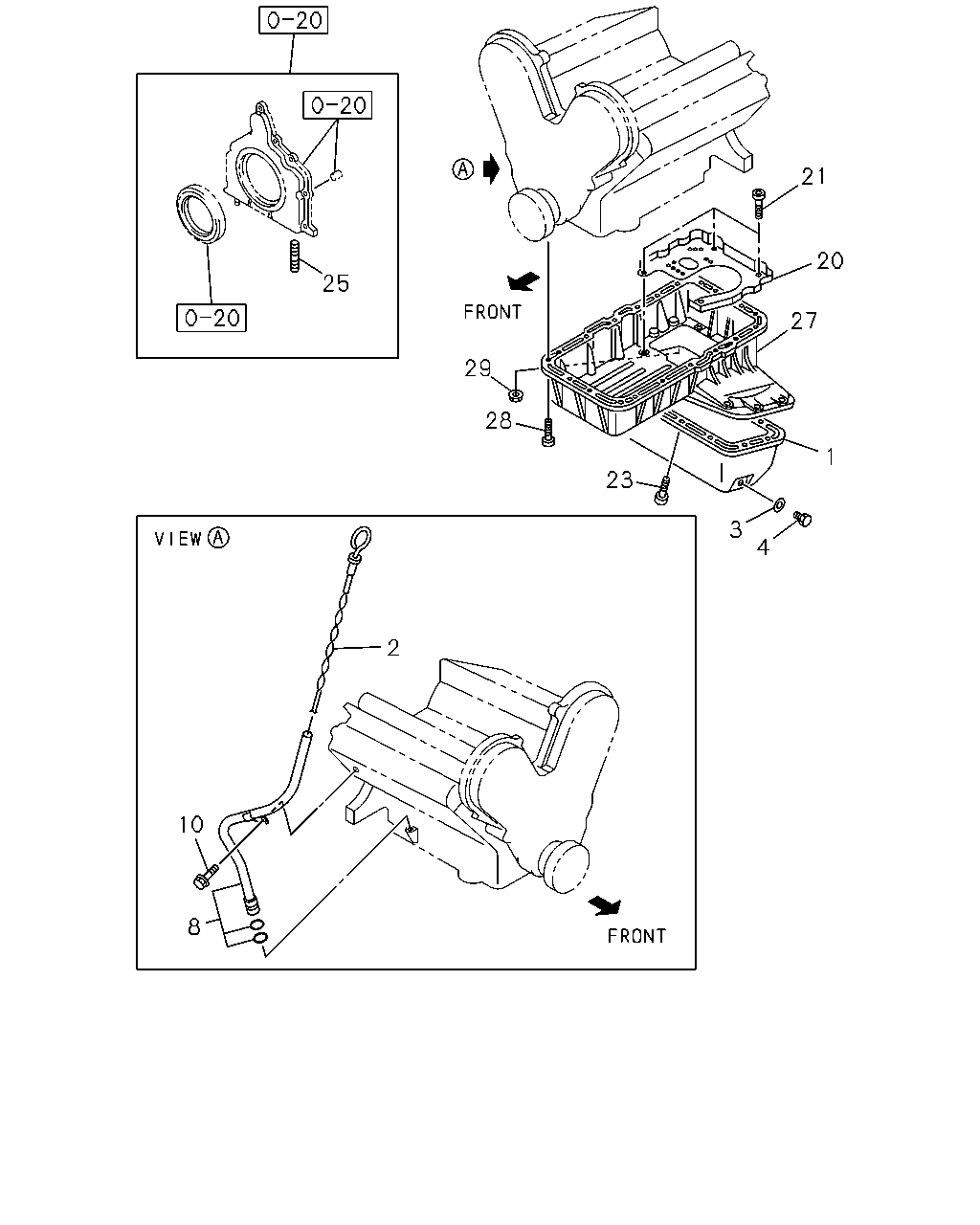

21 20 25 27 29 28 1 23 3 4 2 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.426 PAN ASM; OIL AUS	8-92062-682-0	01	1	9811-0012	●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9811-0104		●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-		●
2	01.516 GAUGE; OIL LEVEL AUS	8-92064-019-0	01	1	9811-0012	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9811-		●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). USA	8-11023-582-0	01	1	9811-0012	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-		●
4	01.453 PLUG; DRAIN,OIL AUS	8-90409-376-0	01	1	9811-0012	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9811-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE AUS	8-92063-177-0	01	1	9811-0012	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9811-		●
10	01.516 BOLT; GUIDE TUBE M8X20 FLANGE AUS	8-11097-731-0	01	1	9811-0012	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE USA	0-28080-816-0	01	1	9811-		●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9811-		●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9811-0008		●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE M6X12 HEX SOCKET	0-58310-612-0	04	1	0009-		●
23	01.428 BOLT; OIL PAN AUS	8-11095-091-0	18	1	9811-0012	●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9811-0103		●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-		●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9811-		●
27	01.426 CRANKCASE AUS	8-92062-921-0	01	1	9811-0012	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9811-0012		●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-		●
28	01.780 BOLT; CRANKCASE TO C/BL 01.428 (A) M8X45 AUS	8-11093-791-0	12	1	9811-0012	●
28	01.780 BOLT; CRANKCASE TO C/BL (B) AUS	8-11096-921-0	02	1	9811-0012	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9811-0008		●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-		●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-		●
