0-12 — CYLINDER BLOCK (#46242) — 46 parça

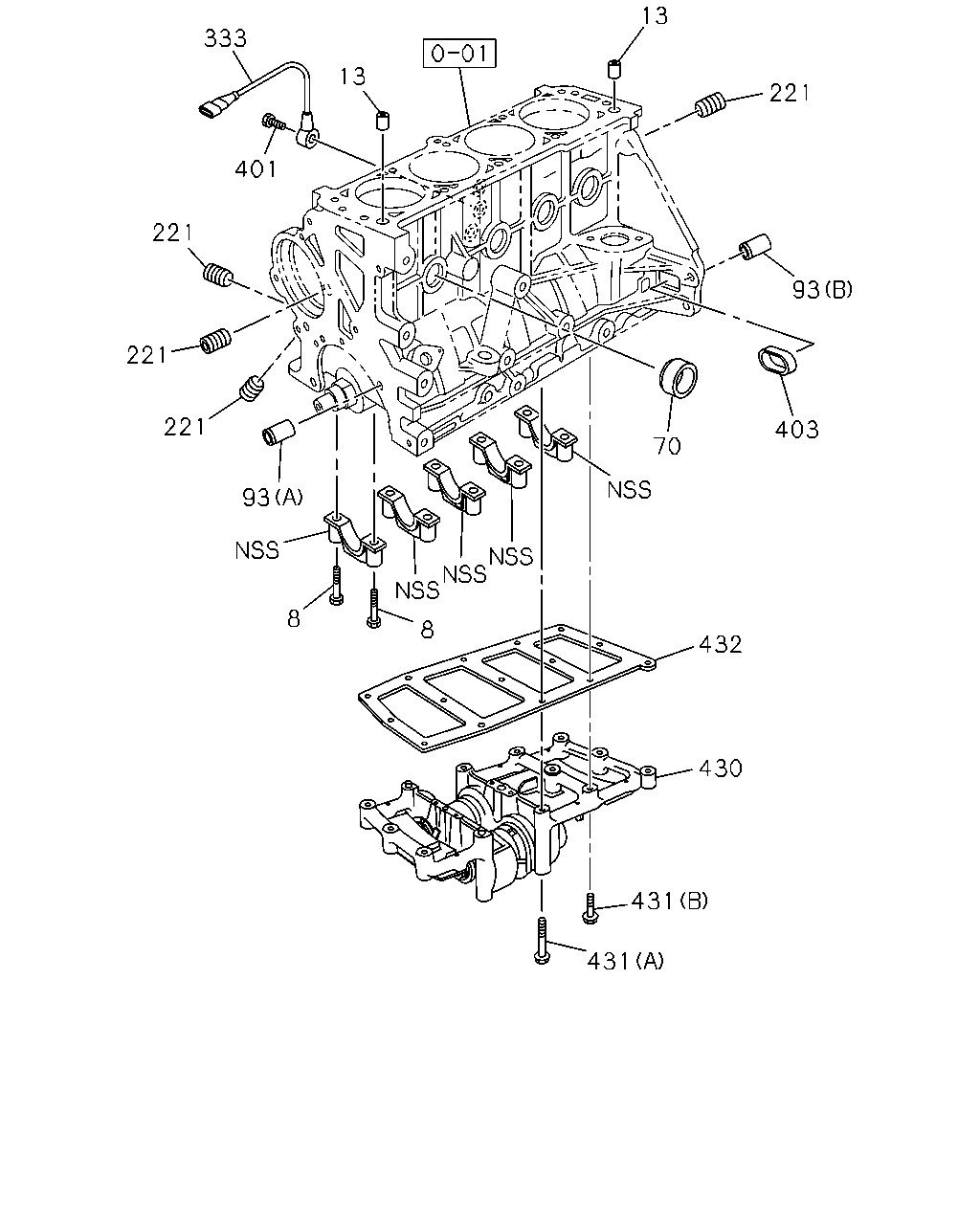

çizim 36639
13 333 13 221 401 221 93 221 221 403 70 93 8 8 432 430 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
8 00.056 BOLT; BRG CAP
AUS 		8-90502-412-0 10 1 9811-0012 ●
8 00.056 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9811- ●
8 00.056 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9811- ●
13 00.293 DOWEL; C/BL TO HD
AUS 		8-90353-654-0 02 1 9811-0012 ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9811- ●
70 00.034 CUP; SEALING,FRT & RR
OD=34 AUS 		8-11056-093-0 07 1 9811-0012 ●
70 00.034 CUP; SEALING,FRT & RR
OD=36 AUS 		8-11070-803-0 07 1 9811-0012 ●
93 00.206 DOWEL; RET TO C/BL
(B) AUS 		8-90351-708-0 01 1 9811-0012 ●
93 00.206 DOWEL; RET TO C/BL
01.609 (A) AUS 		8-90351-709-0 02 1 9811-0012 ●
221 01.531 PLUG; OIL GALLERY
AUS 		8-11056-321-0 04 1 9811-0012 ●
333 03.682 SENSOR; KNOCK
AUS 		8-10456-240-0 01 1 9811-0012 ●
401 00.724 BOLT; SENSOR
AUS 		8-92063-265-0 01 1 9811-0012 ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE USA 		0-28080-616-0 01 1 9811- ●
403 01.519 GUIDE; GALLERY
AUS 		8-90501-712-0 01 1 9811-0012 ●
430 00.662 BALANCE ASM; CRANKSHAFT
AUS 		8-90571-089-0 01 1 9811-0012 ●
431 00.662 SCREW; BALANCE ASM
(B) M8X45 AUS 		8-11096-481-0 09 1 9811-0012 ●
431 00.662 SCREW; BALANCE ASM
(A) AUS 		8-11098-821-0 06 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.55 AUS 		8-90571-078-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.58 AUS 		8-90571-079-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.61 AUS 		8-90571-080-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.64 AUS 		8-90571-081-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.67 AUS 		8-90571-082-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.70 AUS 		8-90571-083-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.73 AUS 		8-90571-084-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.76 AUS 		8-90571-085-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.79 AUS 		8-90571-086-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.82 AUS 		8-90571-087-0 01 1 9811-0012 ●
432 00.662 SHIM; BALANCE ASM,CRANKSHAFT
T=0.85 AUS 		8-90571-088-0 01 1 9811-0012 ●

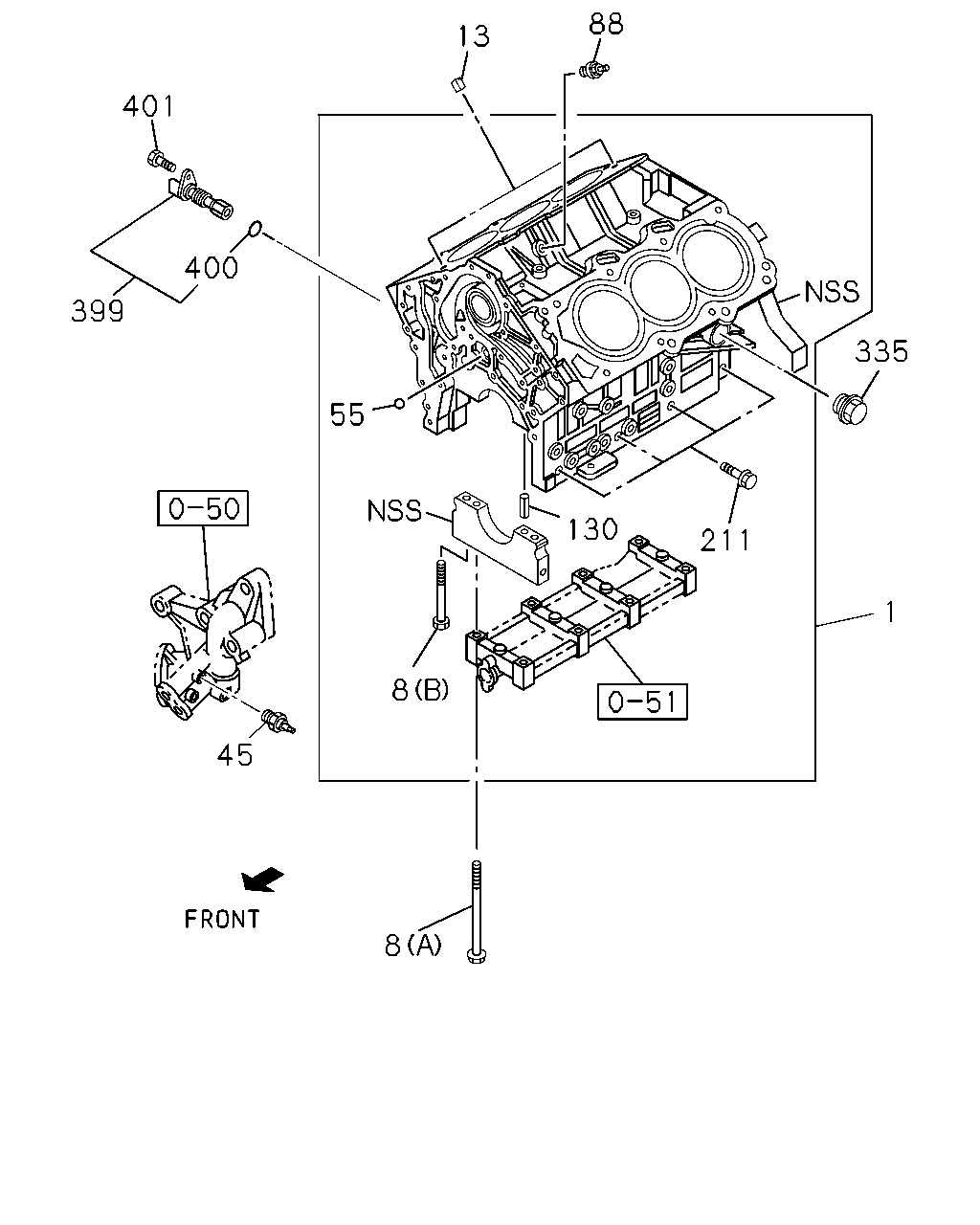

çizim 37278
88 13 401 400 399 335 55 130 211 1 8 45 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-97149-360-1 01 1 9811-0012 ●
1 00.033 BLOCK ASM; CYL 8-97193-222-1 01 1 0101- ●
8 00.056 BOLT; BRG CAP
AUS 		8-90502-412-0 10 1 9811-0012 ●
8 00.056 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9811- ●
8 00.056 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9811- ●
13 00.293 DOWEL; C/BL TO HD
AUS 		8-90353-654-0 02 1 9811-0012 ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9811- ●
45 01.800 SWITCH; OIL PRESSURE 8-94312-940-0 01 1 9811- ●
55 01.531 PLUG; OIL GALLERY
01.837 3/8" BALL 		9-00097-011-0 01 1 9811- ●
88 03.682 SENSOR; KNOCK CONT 8-10456-085-0 01 1 9811-0012 ●
130 00.056 DOWEL; BRG CAP 8-94382-070-0 08 1 9811- ●
211 01.428 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 9811- ●
335 01.531 PLUG; C/BL,SIDE
M28X16 FLANGE 		8-97028-246-2 01 1 9811- ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97136-125-1 01 1 9811-0108 ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97258-523-0 01 1 0109- ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS 8-97131-356-0 01 1 9811- ●
401 00.724 BOLT; SENSOR
AUS 		8-92063-265-0 01 1 9811-0012 ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE USA 		0-28080-616-0 01 1 9811- ●
