0-11 — CYLINDER HEAD (#46241) — 96 parça

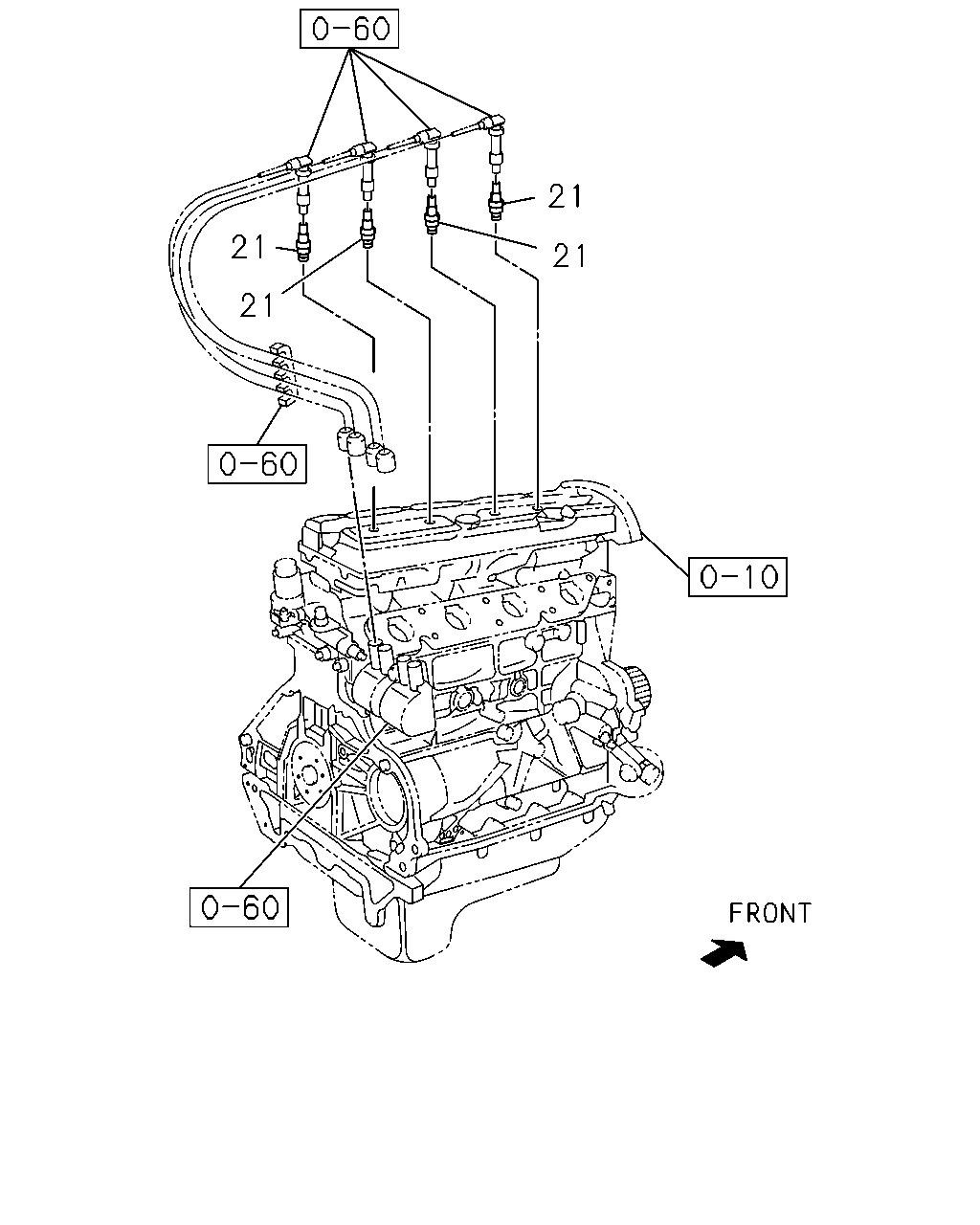

çizim 3101
21 21 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.270 PLUG; SPARK
AUS 		8-92063-303-0 04 1 9811-0012 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9811-0008 ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9811- ●

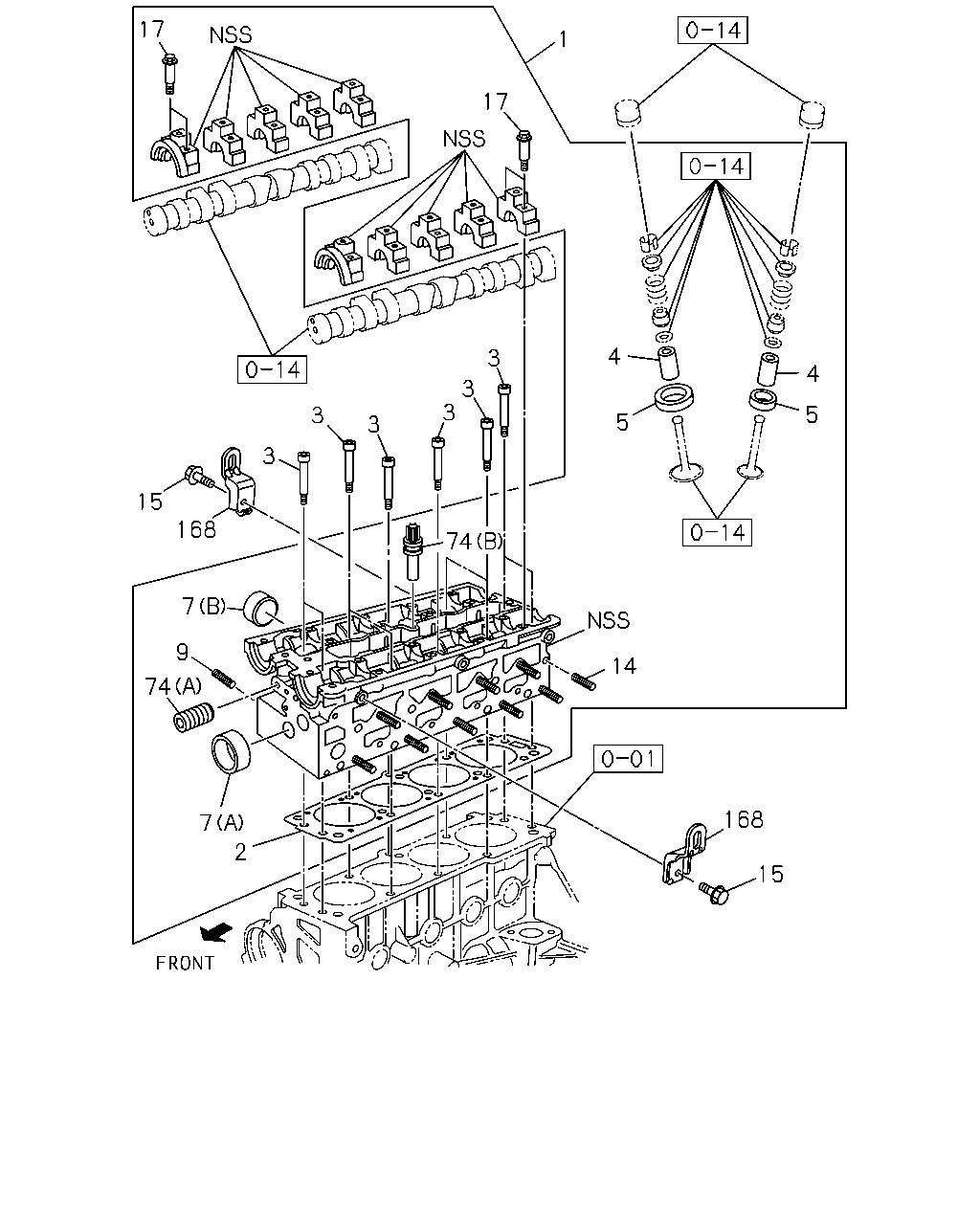

çizim 36439
17 1 17 4 3 4 3 3 5 3 5 3 3 15 168 74 7 9 14 74 168 7 2 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL
AUS 		8-92063-981-0 01 1 9811-0012 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9811-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-92062-605-0 01 1 9811-0012 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97148-520-3 01 1 9811-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97136-259-3 01 1 9811-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0105- ●
3 00.293 BOLT; CYL HD TO BLOCK
AUS 		8-90466-480-0 10 1 9811-0012 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9811- ●
4 00.283 GUIDE; VLV
INLET STD AUS 		8-90502-079-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST STD AUS 		8-90502-080-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
INLET OVSI=0.016 AUS 		8-90528-683-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST OVSI=0.012 AUS 		8-90528-684-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
INLET OVSI=0.017 AUS 		8-90528-685-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST OVSI=0.013 AUS 		8-90528-688-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9811- ●
5 00.253 SEAT; VLV INSERT
INLET STD AUS 		8-90502-081-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
EXHAUST STD AUS 		8-90502-082-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
INLET OVSI AUS 		8-90528-686-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OVSI AUS 		8-90528-687-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9811- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) STD AUS 		8-11062-402-0 02 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OVSI AUS 		8-11071-923-0 02 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI AUS 		8-11094-191-0 03 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD AUS 		8-90502-542-0 03 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9811- ●
9 03.275 STUD; INL MANIF
AUS 		8-92064-200-0 07 1 9811-0012 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9811- ●
14 03.275 STUD; EXH MANIF
AUS 		8-92064-200-0 10 1 9811-0012 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9811- ●
15 00.004 BOLT; HANGER,FRT
02.183 AUS 		8-11093-601-0 02 1 9811-0012 ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE USA 		0-28080-816-0 04 1 9811- ●
17 00.349 BOLT; ROCKER SHAFT BRKT
AUS 		8-11093-781-0 20 1 9811-0012 ●
74 01.531 PLUG; OIL GALLERY
(A) AUS 		8-11095-511-0 08 1 9811-0012 ●
74 01.531 PLUG; OIL GALLERY
(B) AUS 		8-90500-009-0 02 1 9811-0012 ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9811- ●
168 00.004 HANGER; ENG,FRT
AUS 		8-92063-302-0 02 1 9811-0012 ●

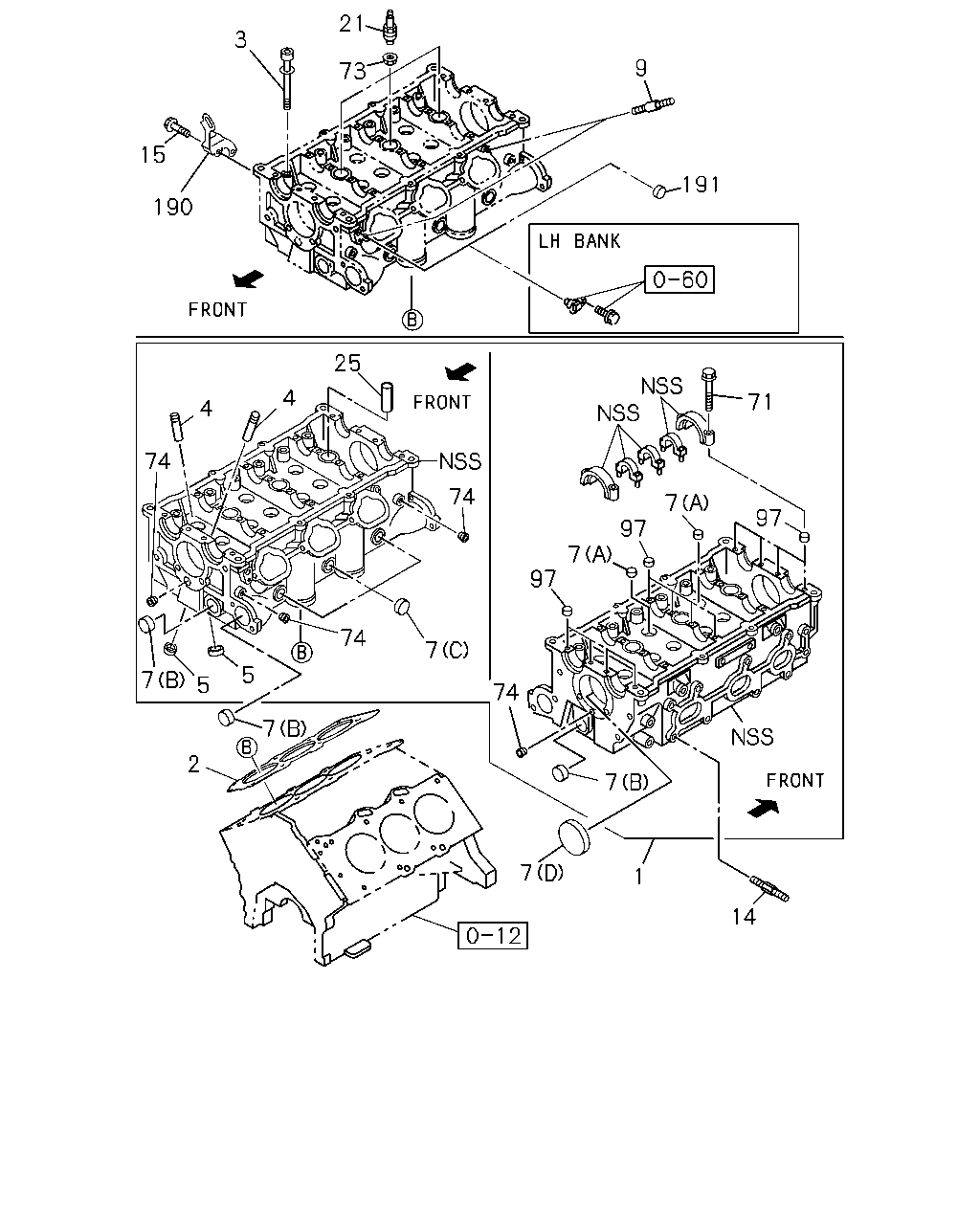

çizim 36678
21 3 9 73 15 191 190 25 4 71 4 74 74 7 97 97 7 97 5 74 7 7 5 74 7 2 7 7 1 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL
AUS 		8-92063-981-0 01 1 9811-0012 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9811-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-92062-605-0 01 1 9811-0012 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97148-520-3 01 1 9811-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97136-259-3 01 1 9811-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97262-094-0 01 1 0105- ●
3 00.293 BOLT; CYL HD TO BLOCK
AUS 		8-90466-480-0 10 1 9811-0012 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9811- ●
4 00.283 GUIDE; VLV
INLET STD AUS 		8-90502-079-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST STD AUS 		8-90502-080-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
INLET OVSI=0.016 AUS 		8-90528-683-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST OVSI=0.012 AUS 		8-90528-684-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
INLET OVSI=0.017 AUS 		8-90528-685-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
EXHAUST OVSI=0.013 AUS 		8-90528-688-0 08 1 9811-0012 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9811- ●
5 00.253 SEAT; VLV INSERT
INLET STD AUS 		8-90502-081-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
EXHAUST STD AUS 		8-90502-082-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
INLET OVSI AUS 		8-90528-686-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OVSI AUS 		8-90528-687-0 04 1 9811-0012 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9811- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) STD AUS 		8-11062-402-0 02 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OVSI AUS 		8-11071-923-0 02 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI AUS 		8-11094-191-0 03 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD AUS 		8-90502-542-0 03 1 9811-0012 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9811- ●
9 03.275 STUD; INL MANIF
AUS 		8-92064-200-0 07 1 9811-0012 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9811- ●
14 03.275 STUD; EXH MANIF
AUS 		8-92064-200-0 10 1 9811-0012 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9811- ●
15 00.004 BOLT; HANGER,FRT
02.183 AUS 		8-11093-601-0 02 1 9811-0012 ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE USA 		0-28080-816-0 04 1 9811- ●
21 02.270 PLUG; SPARK
AUS 		8-92063-303-0 04 1 9811-0012 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9811-0008 ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9811- ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9811- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 9811- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97136-173-0 06 1 9811- ●
74 01.531 PLUG; OIL GALLERY
(A) AUS 		8-11095-511-0 08 1 9811-0012 ●
74 01.531 PLUG; OIL GALLERY
(B) AUS 		8-90500-009-0 02 1 9811-0012 ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9811- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9811- ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9811-0111 ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0112- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 9811-0012 ●
191 00.293 CAP; BLIND 8-97167-998-0 02 1 0101- ●
