◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#46240) — 42 parça

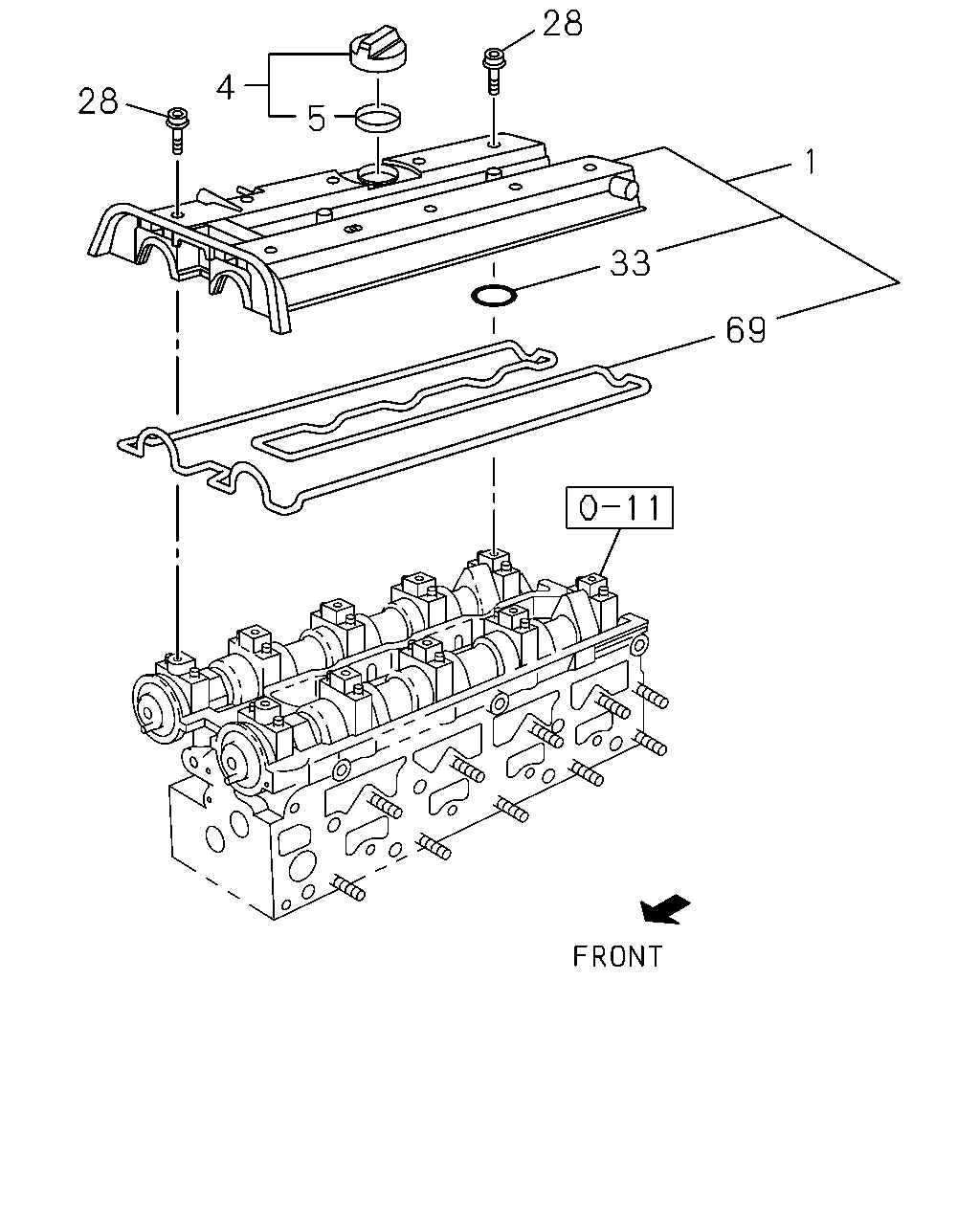

çizim 4845
28 4 28 5 1 33 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD
AUS 		8-90501-942-0 01 1 9811-0012 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9811-0012 ●
1 00.386 COVER; CYL HD 8-97228-896-0 01 1 0101-0104 ●
1 00.386 COVER; CYL HD 8-97289-505-0 01 1 0105-0110 ●
1 00.386 COVER; CYL HD 8-97321-301-0 01 1 0111- ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9811-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0110 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0111- ●
4 01.758 CAP; OIL FILLER
AUS 		8-90412-508-0 01 1 9811-0012 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9811-0108 ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 0109- ●
5 01.758 GASKET; OIL FILLER
AUS 		8-90448-217-0 01 1 9811-0012 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9811-0108 ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97136-177-0 01 1 0109- ●
28 00.413 BOLT; HD COVER
AUS 		8-11080-682-0 10 1 9811-0012 ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 9811- ●
33 00.386 RUBBER; SPACE,CYL HD COVER
AUS 		8-90528-438-0 10 1 9811-0012 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90501-944-0 01 1 9811-0012 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97172-394-0 02 1 9811- ●

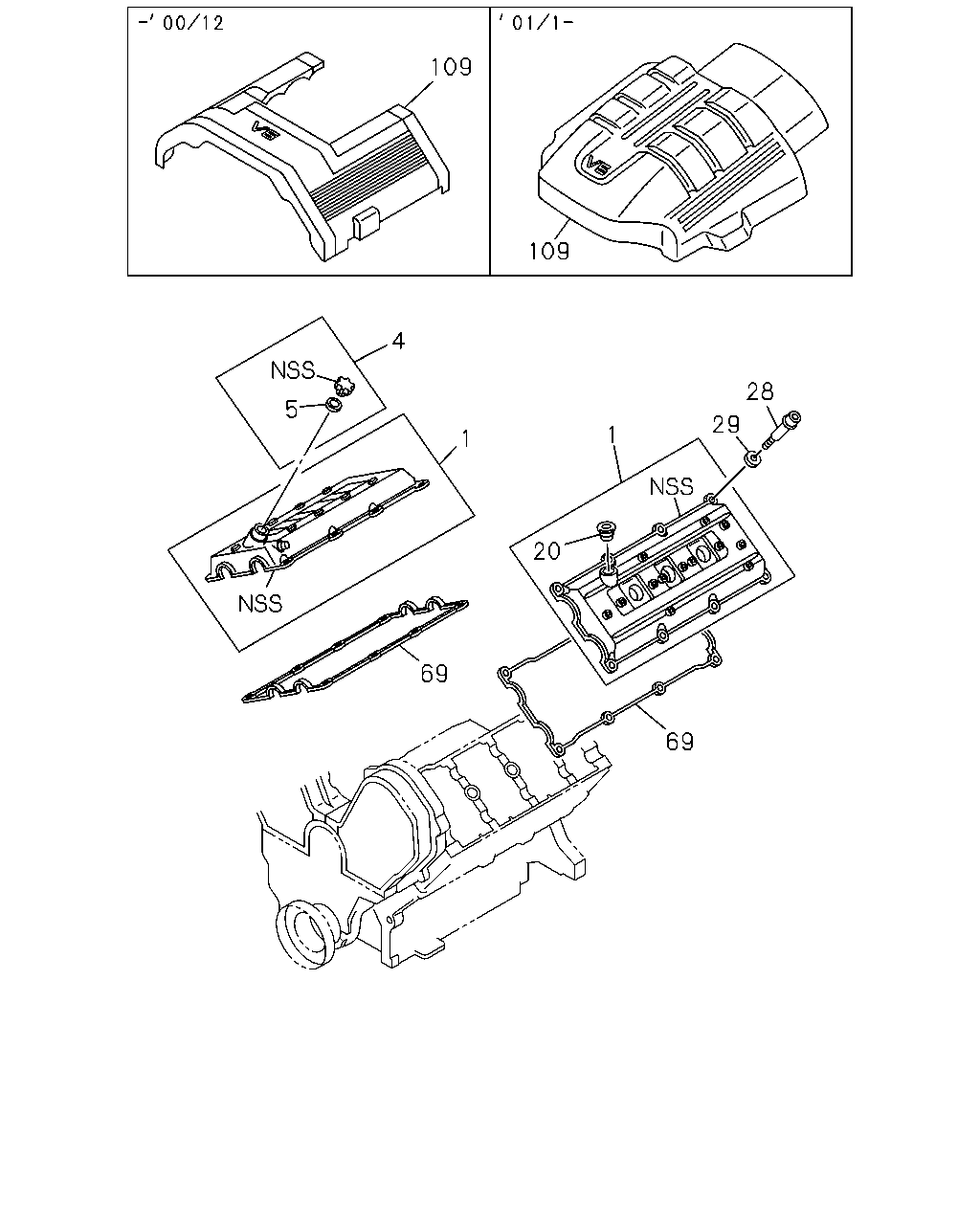

çizim 36440
109 109 4 28 5 29 1 1 20 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.386 COVER; CYL HD
AUS 		8-90501-942-0 01 1 9811-0012 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9811-0012 ●
1 00.386 COVER; CYL HD 8-97228-896-0 01 1 0101-0104 ●
1 00.386 COVER; CYL HD 8-97289-505-0 01 1 0105-0110 ●
1 00.386 COVER; CYL HD 8-97321-301-0 01 1 0111- ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9811-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0110 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0111- ●
4 01.758 CAP; OIL FILLER
AUS 		8-90412-508-0 01 1 9811-0012 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9811-0108 ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 0109- ●
5 01.758 GASKET; OIL FILLER
AUS 		8-90448-217-0 01 1 9811-0012 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9811-0108 ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97136-177-0 01 1 0109- ●
20 00.413 GROMMET; HD COVER 8-97074-653-0 01 1 9811-0104 ●
28 00.413 BOLT; HD COVER
AUS 		8-11080-682-0 10 1 9811-0012 ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 9811- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 9811- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUS 		8-90501-944-0 01 1 9811-0012 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97172-394-0 02 1 9811- ●
109 00.386 COVER; ENG 8-97170-239-1 01 1 9811-0012 ●
109 00.386 COVER; ENG 8-97195-219-2 01 1 0101-0108 ●
109 00.386 COVER; ENG 8-97314-145-1 01 1 0109- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
