◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#46239) — 14 parça

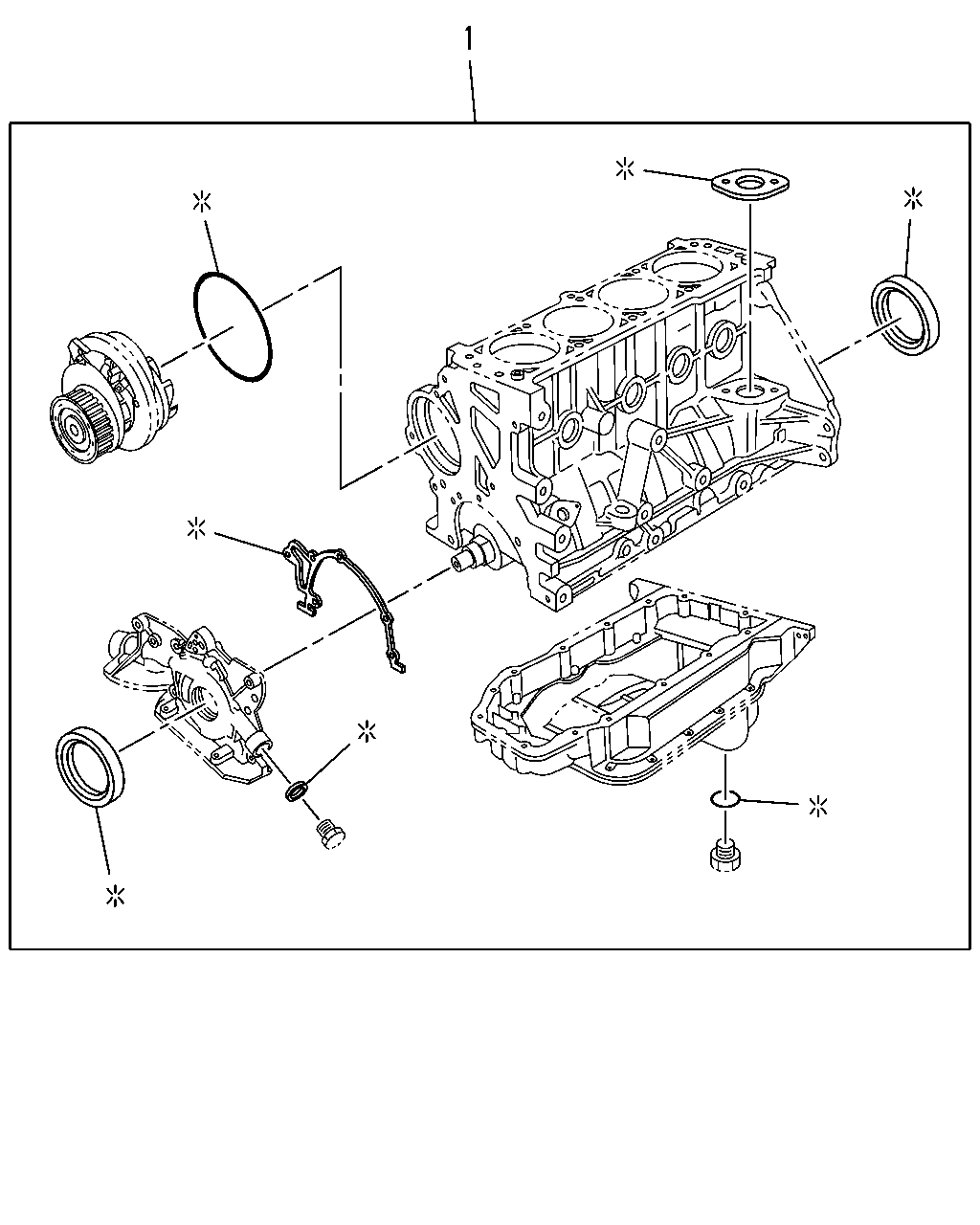

çizim 4382
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
AUS 		8-92061-971-0 01 1 9811-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9811-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-755-2 01 1 0101- ●

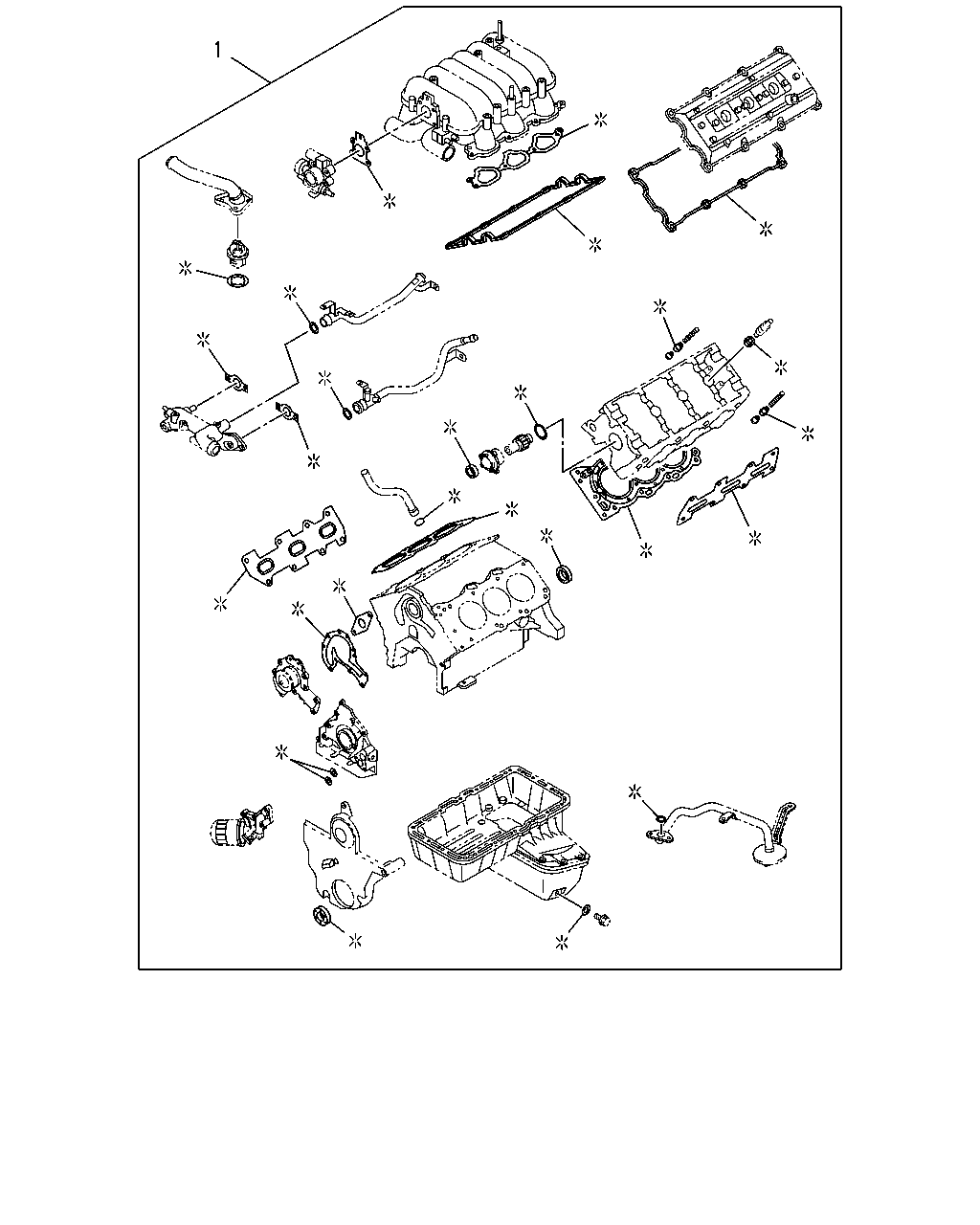

çizim 4427
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
AUS 		8-92061-971-0 01 1 9811-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9811-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0012 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-755-2 01 1 0101- ●

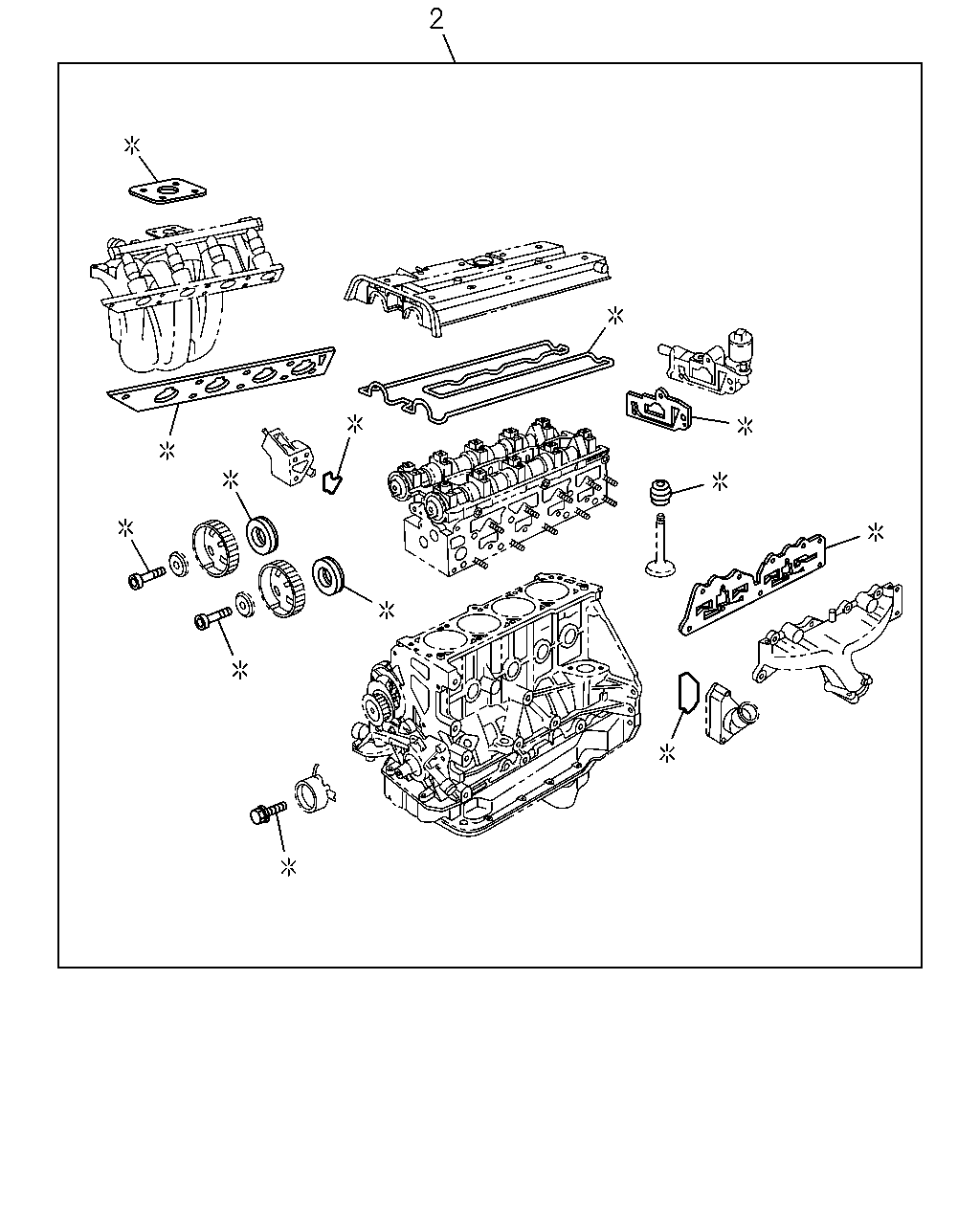

çizim 4521
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
AUS 		8-92063-977-0 01 1 9811-0012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9811-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-2 01 1 9910- ●

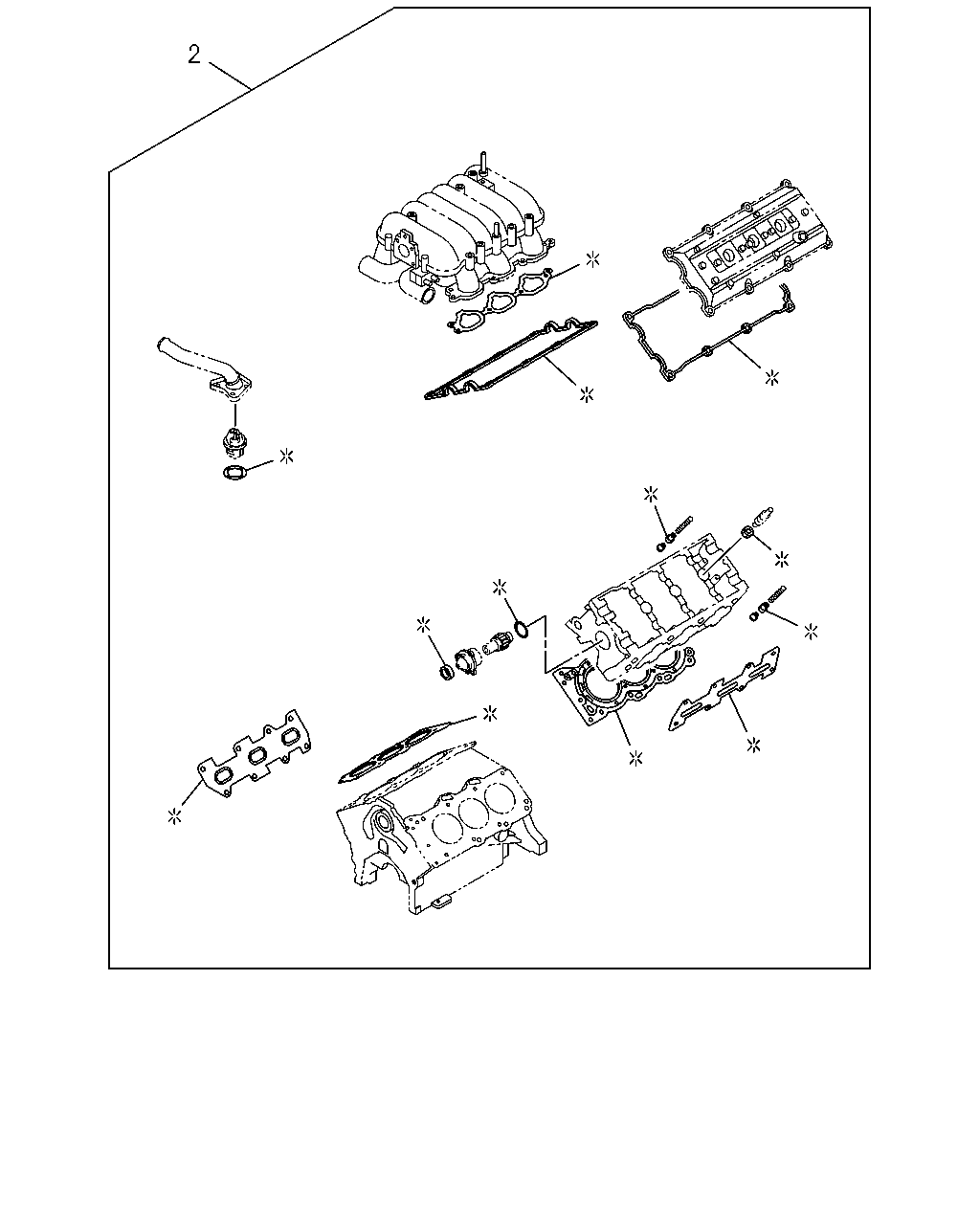

çizim 36465
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
AUS 		8-92063-977-0 01 1 9811-0012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9811-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-2 01 1 9910- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
