◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#46236) — 142 parça

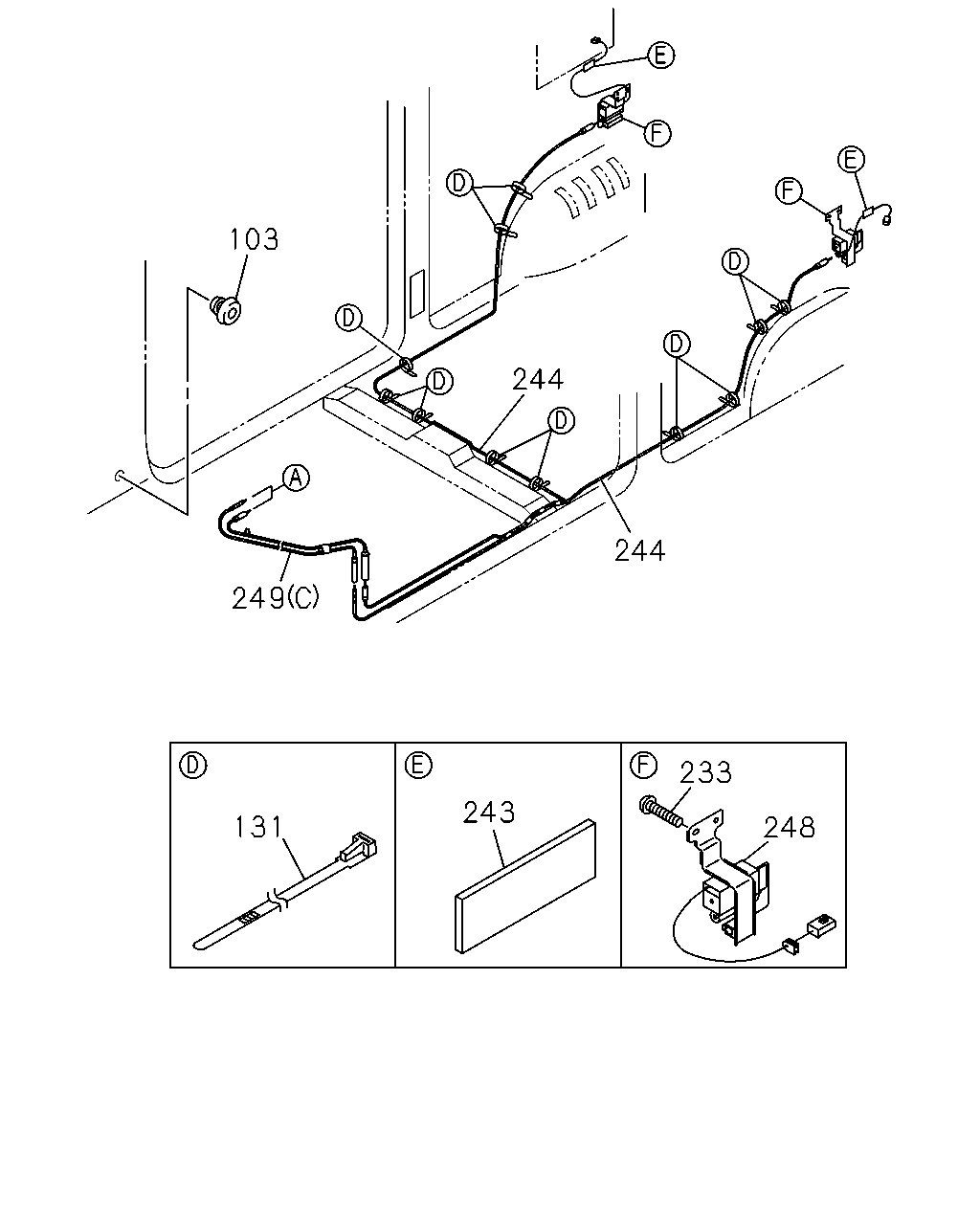

çizim 15961
103 244 244 249 233 243 131 248
BalonParca AdiParca NoAdetTipApplied Date
103 GROMMET; ANTENNA HOLE,FRT 8-94111-420-0 01 1 9708-
131 CLIP
L=140 		5-09707-031-0 02 1 9708-9806
131 CLIP
L=140 		5-09707-031-0 07 1 9807-9808
131 CLIP
L=140 		5-09707-031-1 04 1 9809-0202
131 CLIP
L=140 		5-09707-031-1 02 1 0203-
131 CLIP
DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 09 1 9708-9709
131 CLIP
DIVERSITY ANTENNA<7HE> L=100 		5-09707-036-0 11 1 9710-9801
131 CLIP
L=100 		5-09707-036-0 11 1 9802-9806
131 CLIP
L=100 		5-09707-036-1 06 1 9807-
131 CLIP
L=140 		5-09707-031-1 02 1 9809-0202
131 CLIP
L=140 		5-09707-031-1 04 1 0203-
233 SCREW
DIVERSITY ANTENNA<7HE> M5X16 		9-07076-516-0 04 1 9708-9801
233 SCREW
M5X16 		9-07076-516-0 04 1 9802-0202
233 SCREW
M5X14 		8-94120-095-0 04 1 0203-
243 TAPE; SOFT
DIVERSITY ANTENNA<7HE> 		8-94137-544-0 02 1 9708-9801
243 TAPE; SOFT 8-94137-544-0 02 1 9802-0110
243 TAPE; SOFT 8-97304-371-0 02 1 0111-
244 CABLE; FEEDER 8-97263-382-0 01 1 0011-
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97133-417-2 01 1 9708-9801
248 AMPLIFIER ASM 8-97133-417-3 01 1 9802-
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97145-141-2 01 1 9708-9801
248 AMPLIFIER ASM 8-97145-141-3 01 1 9802-
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (A) 		8-97117-539-3 01 1 9708-9801
249 CABLE FEEDER
(A) 		8-97117-539-3 01 1 9802-0010
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97146-100-0 01 1 9708-9801
249 CABLE FEEDER
(B) 		8-97146-100-0 01 1 9802-0010
249 CABLE FEEDER
(C) 		8-97146-102-2 01 1 9708-

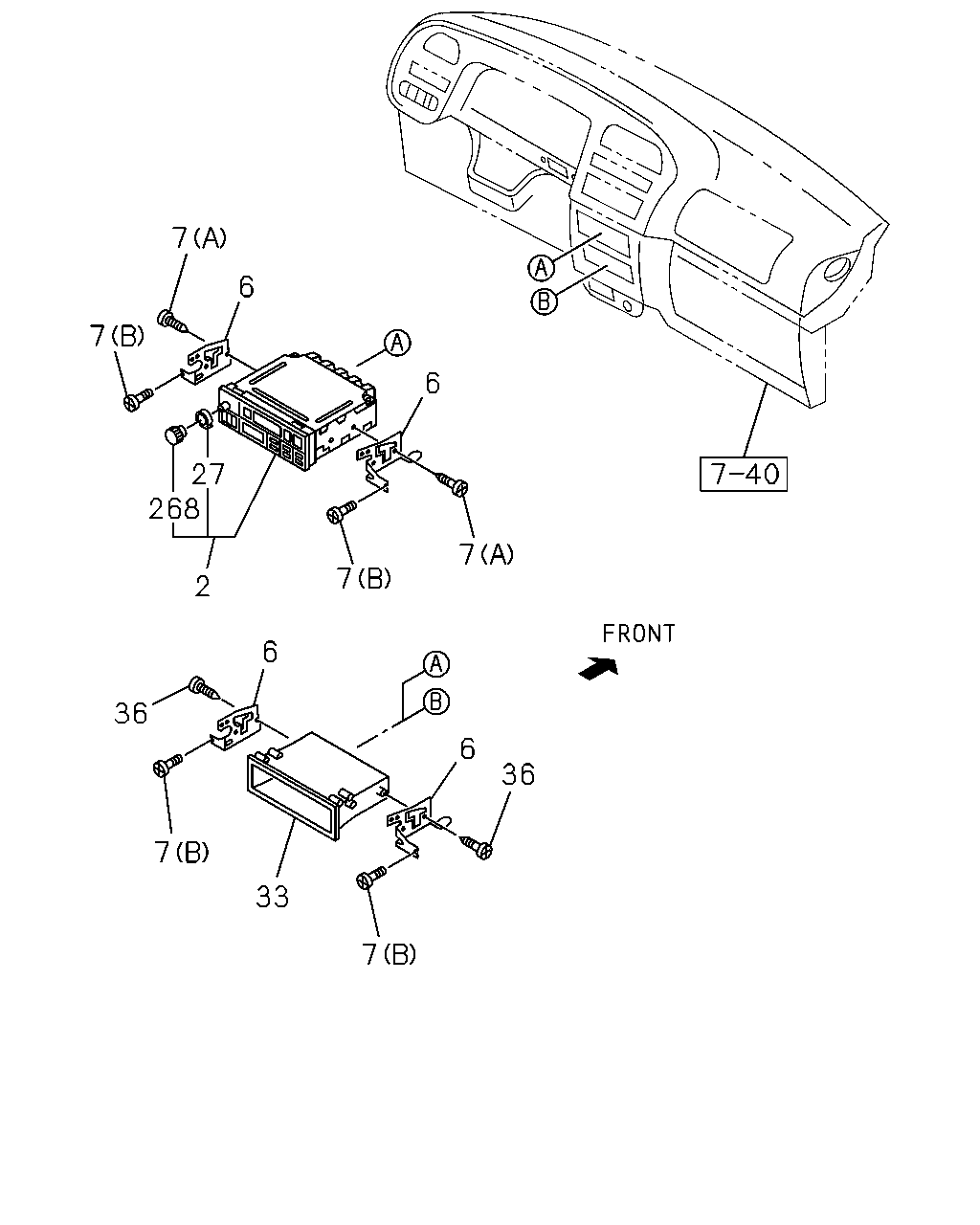

çizim 63797
7 6 7 6 27 268 7 7 2 6 36 6 36 7 33 7
BalonParca AdiParca NoAdetTipApplied Date
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) ANTENNA<U73> 		8-97163-382-2 01 1 9708-9801
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) DIVERSITY ANTENNA<7HE> 		8-97163-380-0 01 1 9708-9801
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97163-380-2 01 1 9802-9907
2 RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97218-929-2 01 1 9908-
6 BRACKET; RADIO TO PANEL 8-97102-092-1 02 1 9708-
6 BRACKET; RADIO TO PANEL 8-97085-169-1 02 1 9708-
7 SCREW; RADIO
(B) M5X16 		9-09829-323-1 02 1 9708-9801
7 SCREW; RADIO
(B) M5X16 		9-09829-323-1 02 1 9708-9801
7 SCREW; RADIO
(B) M5X16 		9-09829-323-1 02 1 9802-0202
7 SCREW; RADIO
EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> (B) M5X16 		9-09829-323-1 02 1 9802-0202
7 SCREW; RADIO
(B) M5X16 		9-09829-323-1 04 1 0203-
7 SCREW; RADIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9708-
27 KNOB; FARDER,CASSETTE DECK
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) ANTENNA<U73> 		8-16260-479-0 01 1 9708-9801
33 COVER; RADIO 8-97066-253-2 01 1 9708-9801
33 COVER; RADIO
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97066-253-2 01 1 9708-9801
33 COVER; RADIO 8-97066-253-2 01 1 9802-0011
33 COVER; RADIO
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX> 		8-97066-253-2 01 1 9802-0011
33 COVER; RADIO
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIOTYPE<8EG> 		8-97066-253-2 01 1 0012-
33 COVER; RADIO 8-97066-253-2 01 1 0012-
36 SCREW; COVER
M5X10 		8-94428-816-0 04 1 9708-9801
36 SCREW; COVER
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) M5X10 		8-94428-816-0 04 1 9708-9801
36 SCREW; COVER
M5X10 		8-94428-816-0 04 1 9802-0011
36 SCREW; COVER
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX> M5X10 		8-94428-816-0 04 1 9802-0011
36 SCREW; COVER
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIOTYPE<8EG> M5X10 		8-94428-816-0 04 1 0012-
36 SCREW; COVER
M5X10 		8-94428-816-0 04 1 0012-
268 KNOB; VOL
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) ANTENNA<U73> 		8-16260-478-0 01 1 9708-9801
268 KNOB; VOL
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) DIVERSITY ANTENNA<7HE> 		8-97178-529-0 01 1 9708-9801
268 KNOB; VOL
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97178-529-0 01 1 9802-

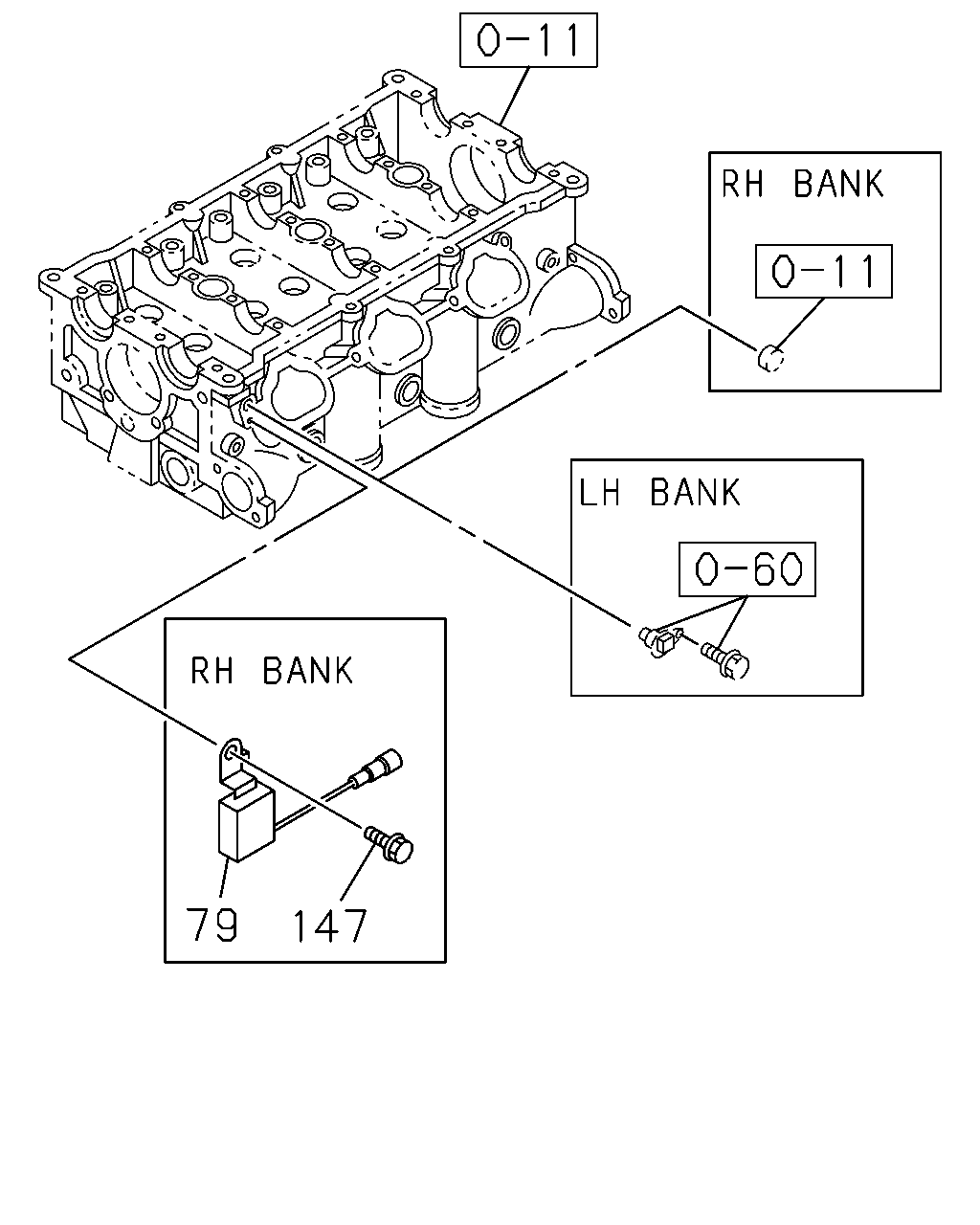

çizim 64214
79 147
BalonParca AdiParca NoAdetTipApplied Date
79 CONDENSER; RADIO 8-97174-553-1 01 1 9708-
147 BOLT; CONDENSER
M6X10 FLANGE 		0-28080-610-0 01 1 9708-

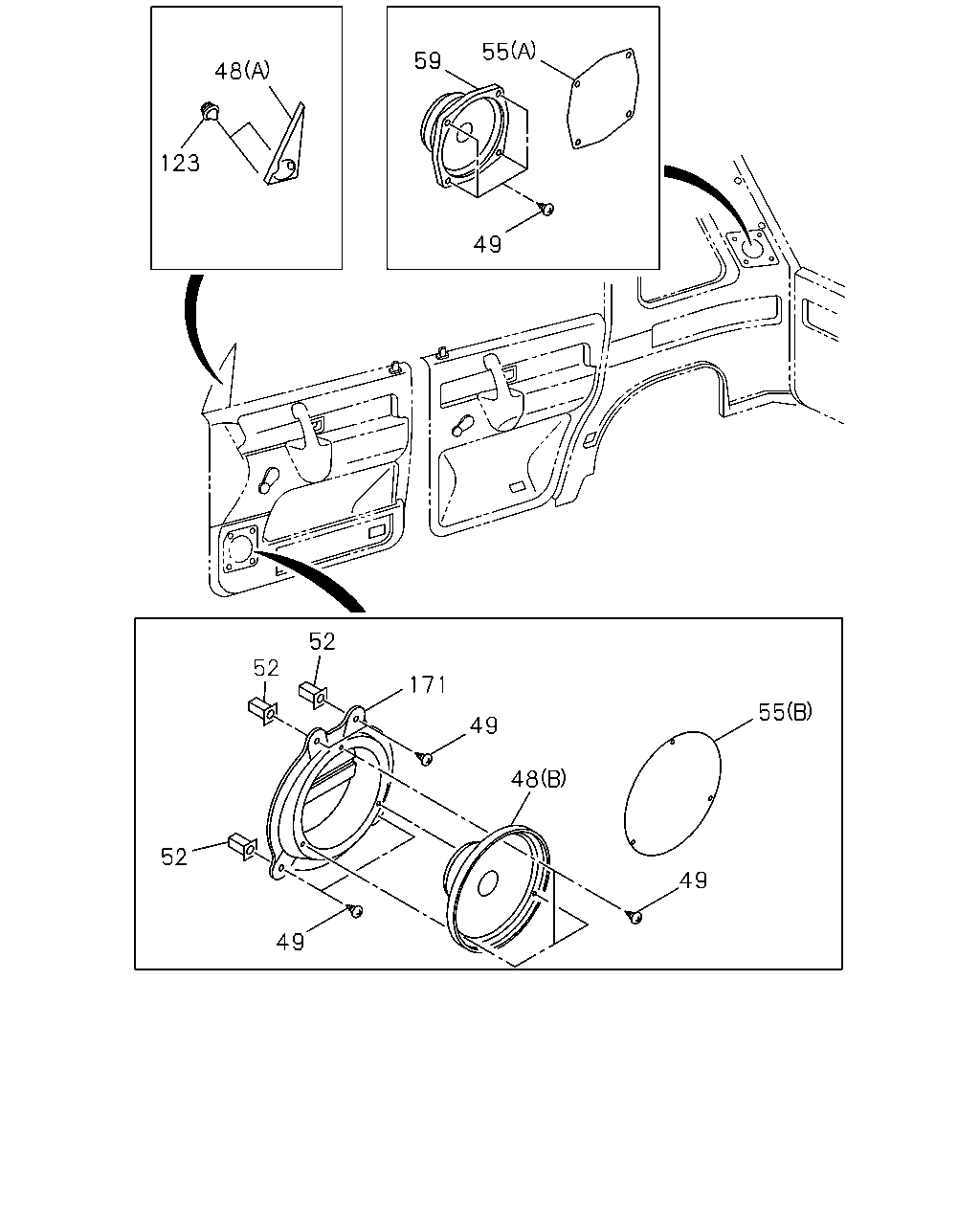

çizim 65120
55 59 48 123 49 52 52 171 55 49 48 52 49 49
BalonParca AdiParca NoAdetTipApplied Date
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (B) 		8-97163-384-0 02 1 9708-9801
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97163-384-0 02 1 9802-0006
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97163-384-0 02 1 9802-0006
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97233-508-0 02 1 0007-
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97233-508-0 02 1 0007-
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) 		8-97132-160-1 01 1 9708-9711
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) 		8-97185-106-0 01 1 9712-9801
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97185-106-0 01 1 9802-9901
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97185-106-0 01 1 9802-9901
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97211-489-0 01 1 9902-0008
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97211-489-0 01 1 9902-0008
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> (A) 		8-97211-489-0 01 1 0009-
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> (A) 		8-97211-489-0 01 1 0009-
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) 		8-97132-161-1 01 1 9708-9711
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) 		8-97185-107-0 01 1 9712-9801
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97185-107-0 01 1 9802-9901
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97185-107-0 01 1 9802-9901
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97211-490-0 01 1 9902-0008
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-97211-490-0 01 1 9902-0008
48 SPEAKER; AUDIO
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> (A) 		8-97211-490-0 01 1 0009-
48 SPEAKER; AUDIO
6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> (A) 		8-97211-490-0 01 1 0009-
48 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) 		8-97163-383-0 02 1 9708-9801
48 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) 		8-97163-383-0 02 1 9802-0006
48 SPEAKER; AUDIO
4 SPEAKERS WO/RADIO TYPE<7DX> (B) 		8-97163-383-0 02 1 9802-0006
48 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B) 		8-97233-509-0 02 1 0007-
48 SPEAKER; AUDIO
4 SPEAKERS WO/RADIO TYPE<7DX> (B) 		8-97233-509-0 02 1 0007-
49 SCREW; SPEAKER
M5X16 		9-09829-323-1 20 1 9708-0008
49 SCREW; SPEAKER
M5X16 		9-09829-323-1 12 1 0009-
49 SCREW; SPEAKER
EXC. TWEETER WO/RADIO TYPE<8EG> M5X16 		9-09829-323-1 08 1 0009-
52 GROMMET; SCREW,SPEAKER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9708-
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (A) 		8-94372-840-0 02 1 9708-9801
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ> (A) 		8-94372-840-0 02 1 9802-0008
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIOTYPE<8EG> (A) 		8-94372-840-0 02 1 0009-
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) (B) 		8-97035-686-0 02 1 9708-9801
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97035-686-0 02 1 9802-0008
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIOTYPE<8EG> (B) 		8-97035-686-0 02 1 0009-0101
55 COVER; SPEAKER HOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK),4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ> (B) 		8-97035-686-0 02 1 0102-
59 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97163-385-0 02 1 9708-9801
59 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97163-385-0 02 1 9802-0006
59 SPEAKER; AUDIO
4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ> 		8-97163-385-0 02 1 9802-0006
59 SPEAKER; AUDIO
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97233-510-0 02 1 0007-
59 SPEAKER; AUDIO
4 SPEAKERS WO/RADIO TYPE<7DX>,6 SPEAKERS AUDIO LESS<7NJ> 		8-97233-510-0 02 1 0007-
123 CLIP; SPEAKER GRILLE
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) 		8-97019-200-0 04 1 9708-9801
123 CLIP; SPEAKER GRILLE
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ> 		8-97019-200-0 04 1 9802-0008
123 CLIP; SPEAKER GRILLE
6 SPEAKERS AUDIO LESS<7NJ> 		8-97019-200-0 04 1 9802-0008
123 CLIP; SPEAKER GRILLE
AM/FM ETR 3IN1 W/CASSETTE 6 SPEAKERS(7AK) EXC. 6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> 		8-97019-200-0 04 1 0009-
123 CLIP; SPEAKER GRILLE
6 SPEAKERS AUDIO LESS<7NJ>,TWEETER WO/RADIO TYPE<8EG> 		8-97019-200-0 04 1 0009-
171 COVER; SPEAKER 8-97130-328-0 02 1 9708-0008
171 COVER; SPEAKER
EXC. TWEETER WO/RADIO TYPE<8EG> 		8-97130-328-0 02 1 0009-0101
171 COVER; SPEAKER 8-97130-328-0 02 1 0102-

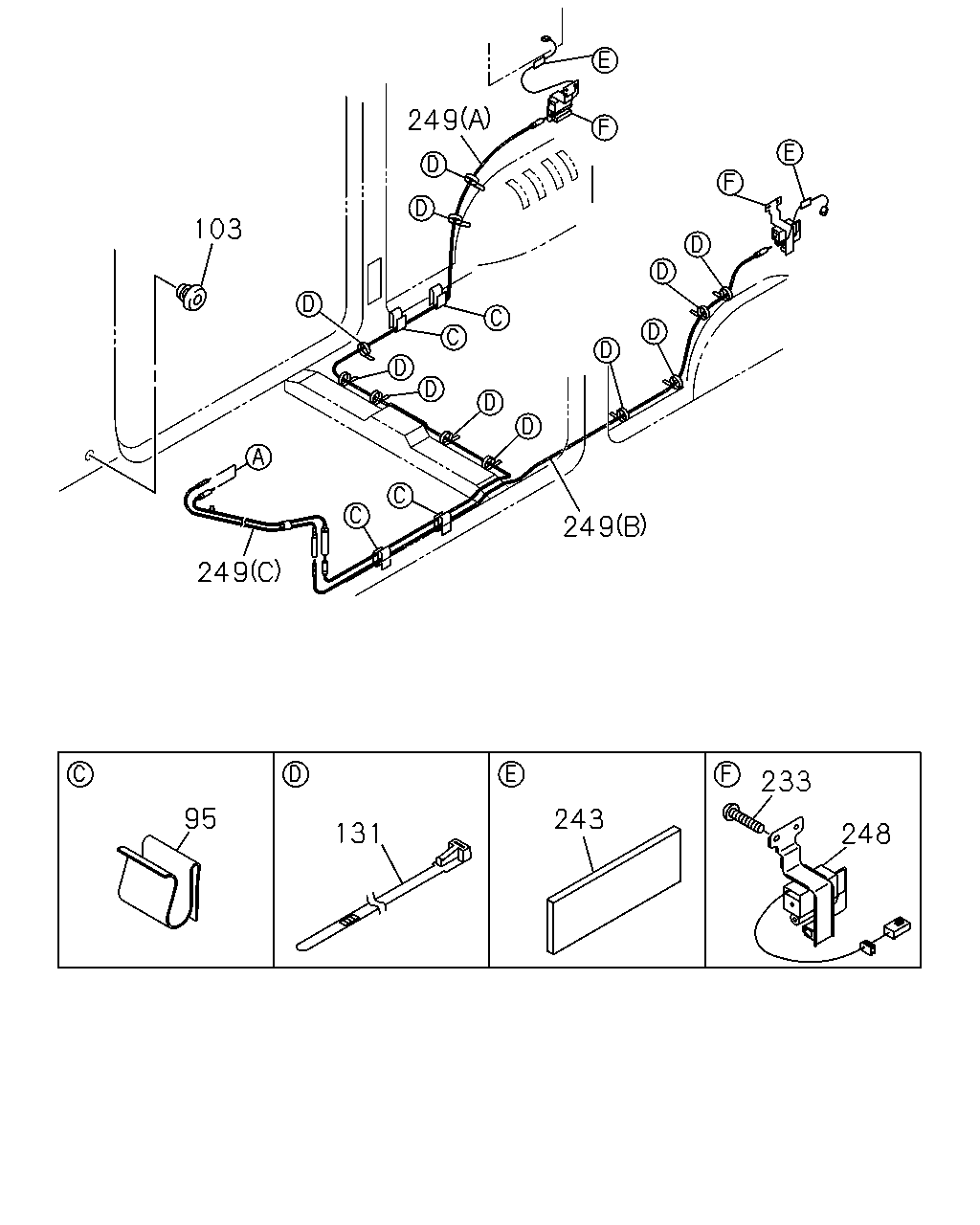

çizim 65162
249 103 249 249 233 95 243 131 248
BalonParca AdiParca NoAdetTipApplied Date
95 CLIP; FEEDER & HARNESS
DIVERSITY ANTENNA<7HE> B=8.4 H=16 CR-PLATED 		8-94116-002-3 01 1 9708-9801
95 CLIP; FEEDER & HARNESS
B=8.4 H=16 CR-PLATED 		8-94116-002-3 01 1 9802-9907
103 GROMMET; ANTENNA HOLE,FRT 8-94111-420-0 01 1 9708-
131 CLIP
L=140 		5-09707-031-0 02 1 9708-9806
131 CLIP
L=140 		5-09707-031-0 07 1 9807-9808
131 CLIP
L=140 		5-09707-031-1 04 1 9809-0202
131 CLIP
L=140 		5-09707-031-1 02 1 0203-
131 CLIP
DIVERSITY ANTENNA<7HE> L=140 		5-09707-031-0 09 1 9708-9709
131 CLIP
DIVERSITY ANTENNA<7HE> L=100 		5-09707-036-0 11 1 9710-9801
131 CLIP
L=100 		5-09707-036-0 11 1 9802-9806
131 CLIP
L=100 		5-09707-036-1 06 1 9807-
131 CLIP
L=140 		5-09707-031-1 02 1 9809-0202
131 CLIP
L=140 		5-09707-031-1 04 1 0203-
233 SCREW
DIVERSITY ANTENNA<7HE> M5X16 		9-07076-516-0 04 1 9708-9801
233 SCREW
M5X16 		9-07076-516-0 04 1 9802-0202
233 SCREW
M5X14 		8-94120-095-0 04 1 0203-
243 TAPE; SOFT
DIVERSITY ANTENNA<7HE> 		8-94137-544-0 02 1 9708-9801
243 TAPE; SOFT 8-94137-544-0 02 1 9802-0110
243 TAPE; SOFT 8-97304-371-0 02 1 0111-
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97133-417-2 01 1 9708-9801
248 AMPLIFIER ASM 8-97133-417-3 01 1 9802-
248 AMPLIFIER ASM
DIVERSITY ANTENNA<7HE> 		8-97145-141-2 01 1 9708-9801
248 AMPLIFIER ASM 8-97145-141-3 01 1 9802-
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (A) 		8-97117-539-3 01 1 9708-9801
249 CABLE FEEDER
(A) 		8-97117-539-3 01 1 9802-0010
249 CABLE FEEDER
DIVERSITY ANTENNA<7HE> (B) 		8-97146-100-0 01 1 9708-9801
249 CABLE FEEDER
(B) 		8-97146-100-0 01 1 9802-0010
249 CABLE FEEDER
(C) 		8-97146-102-2 01 1 9708-
çizim 65292
90 81 83 198 80 80 88
BalonParca AdiParca NoAdetTipApplied Date
80 ANTENNA
ANTENNA<U73> (B) 		8-97042-582-0 01 1 9708-
80 ANTENNA
ANTENNA<U73> (A) 		8-97145-145-0 01 1 9708-
81 NUT; ANTENNA POLE
ANTENNA<U73> 		8-97102-880-0 01 1 9708-
83 GROMMET; BASE,ANTENNA POLE INNER
ANTENNA<U73> 		8-97072-728-0 01 1 9708-
88 BOLT; ANTENNA EARTH
ANTENNA<U73> M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9708-
90 CABLE; ANTENNA,FEEDER
ANTENNA<U73> 		8-97126-797-2 01 1 9708-
198 SHEET; ANTENNA
ANTENNA<U73> 		8-97072-730-0 01 1 9708-9801
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
