Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-85 - REAR WIPER AND WASHER
▶

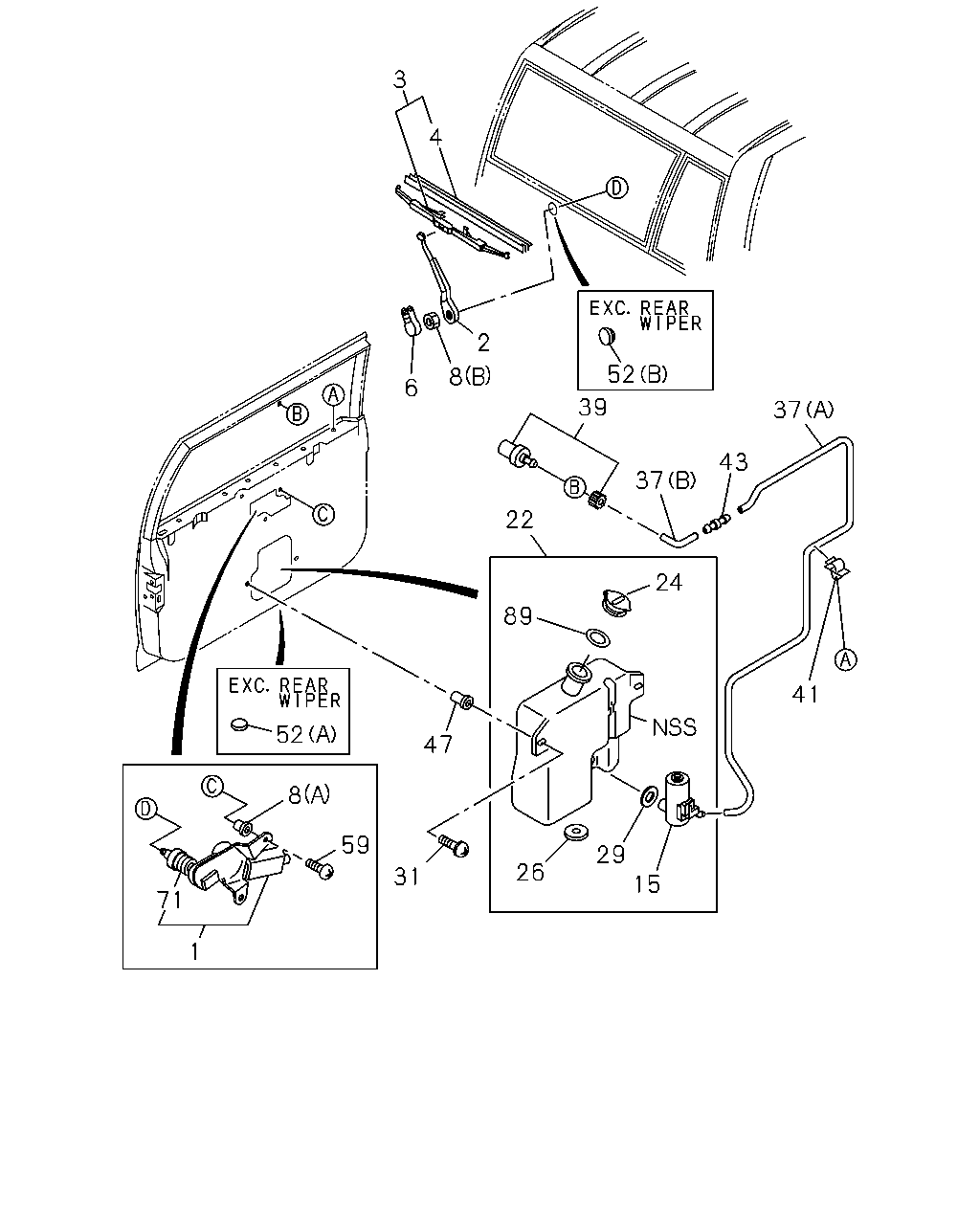

8-85 — REAR WIPER AND WASHER
(#46235) — 33 parça
3
4
2
52
8
6
39
37
43
37
22
24
89
41
52
47
8
59
29
26
31
15
71
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MOTOR ASM; RR WIPER
8-97147-216-0
01
1
9708-0210
1
MOTOR ASM; RR WIPER
8-97360-035-0
01
1
0211-
2
ARM ASM; REAR WIPER
8-97139-597-0
01
1
9708-0002
2
ARM ASM; REAR WIPER
8-97808-697-0
01
1
0003-
3
BLADE ASM; REAR WIPER
8-97139-628-0
01
1
9708-0002
3
BLADE ASM; REAR WIPER
8-97121-982-0
01
1
0003-0003
3
BLADE ASM; REAR WIPER
8-97252-182-2
01
1
0004-
4
RUBBER; BLADE,RR WIPER
8-97178-836-0
01
1
9708-0002
4
RUBBER; BLADE,RR WIPER
8-97122-718-0
01
1
0003-0003
4
RUBBER; BLADE,RR WIPER
8-97258-083-0
01
1
0004-0203
4
RUBBER; BLADE,RR WIPER
8-97333-002-0
01
1
0204-
6
CLIP; COVER
8-97139-630-0
01
1
9708-0003
6
CLIP; COVER
8-94358-866-0
01
1
0004-
8
NUT; RR WIPER ARM TO WIPER MOTOR
(A) M6 RUBBER NUT
8-97023-281-0
02
1
9708-
8
NUT; RR WIPER ARM TO WIPER MOTOR
(B) M6
9-09110-406-0
01
1
9708-
15
MOTOR ASM; RR,WASHER TANK
8-97016-545-0
01
1
9708-
22
TANK ASM; RR WASHER
8-97807-508-0
01
1
9708-
24
CAP; WASHER TANK,RR
8-97807-504-0
01
1
9708-
26
RUBBER; CUSHION,RR WASHER TANK
8-97807-503-0
01
1
9708-
29
GASKET; TANK TO MOTOR
8-97807-502-0
01
1
9708-0005
29
GASKET; TANK TO MOTOR
8-97807-512-0
01
1
0006-
31
SCREW; RR WASHER TANK TO BODY
M6X25
9-03900-625-0
02
1
9708-
37
HOSE; WASHER TANK,RR
(A) SERVICED BY L=10000
8-94389-303-0
01
1
9708-
37
HOSE; WASHER TANK,RR
(B) L=36
8-97807-507-0
01
1
9708-
39
NOZZLE; RR WINDSHIELD,WASHER
8-94358-869-0
01
1
9708-
41
CLIP; RR WASHER TANK HOSE
RR WIPER W/INTERMITTENT<6WJ> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>
8-97804-783-0
01
1
9708-9801
43
VALVE; CHECK,RR WASHER TANK HOSE
8-97807-506-0
01
1
9708-
47
NUT; HANGER,RR WIPER
M6 RUBBER NUT
8-97023-281-0
02
1
9708-
52
PLUG; RR WASHER
EXC. RR WIPER W/INTERMITTENT<6WJ> (A)
8-94186-614-0
01
1
9708-9801
52
PLUG; RR WASHER
EXC. RR WIPER W/INTERMITTENT<6WJ> (B)
8-97800-739-0
01
1
9708-9801
59
SCREW; REAR WIPER MOTOR
M6X25
9-03900-625-0
02
1
9708-
71
PARTS ASM; FIXING KITS,RR WIPER PIVOT
8-97807-635-0
01
1
9708-
89
GASKET; TANK CAP
8-97807-505-0
01
1
9708-
