8-78 — COOLER KIT (#46233) — 112 parça

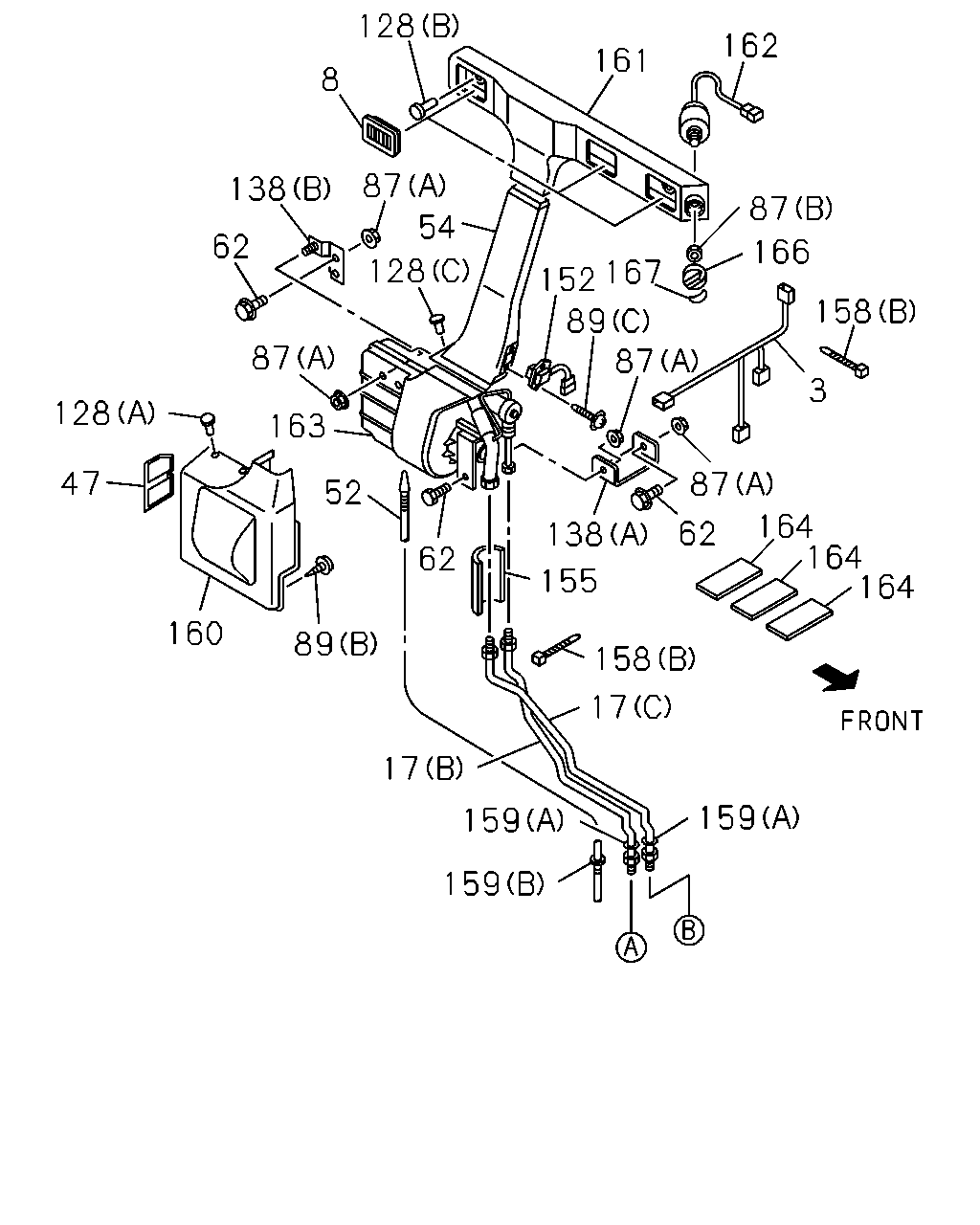

128 162 161 8 87 54 128 138 152 167 8 87 87 166 62 158 87 3 163 128 47 87 164 164 164 52 62 138 155 62 160 89 158 17 17 159 159 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	HARNESS; WIRE,A/C KIT RR COOLER<7UL>	8-97205-832-1	01	1	0003-
8	GRILLE ASM; A/C KIT RR COOLER<7UL>	8-97205-827-0	03	1	0003-
17	PIPE; A/C RR COOLER<7UL> (H)	8-97252-900-0	01	1	0203-
17	PIPE; A/C RR COOLER<7UL> (A)	8-97205-808-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (B)	8-97205-812-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (C)	8-97205-813-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (D)	8-97209-581-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (E)	8-97209-582-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (F)	8-97209-583-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (G)	8-97209-584-0	01	1	0003-
47	FILTER; AIR INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97248-916-0	01	1	0003-
47	FILTER; AIR INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97205-830-0	01	1	0003-
52	HOSE; DRAIN,A/C PIPING RR COOLER<7UL>	8-97205-841-1	01	1	0003-
54	DUCT; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97238-623-0	01	1	0003-
54	DUCT; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97205-825-1	01	1	0003-
62	BOLT; BRKT RR COOLER<7UL> M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-
87	NUT; A/C KIT RR COOLER<7UL> (A) M6 FLANGE	5-09440-004-0	05	1	0003-
87	NUT; A/C KIT RR COOLER<7UL> (B)	8-97205-836-0	01	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (A) M6X16	0-74300-616-0	02	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (C) M4X16	8-94324-850-0	02	1	0003-
128	RIVET; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97248-917-0	03	1	0003-
128	RIVET; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97205-835-0	03	1	0003-
128	RIVET; A/C UNIT RR COOLER<7UL> (B)	8-97205-833-0	03	1	0003-
128	RIVET; A/C UNIT RR COOLER<7UL> (C)	8-97205-834-0	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (A)	8-97205-817-0	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (B)	8-97205-818-1	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (C)	8-97209-096-0	01	1	0003-
152	RESISTOR; A/C UNIT RR COOLER<7UL>	8-97205-831-0	01	1	0003-
155	INSULATOR; A/C RR COOLER<7UL>	5-83579-024-0	01	1	0003-
158	CLIP; A/C UNIT RR COOLER<7UL> (A) L=600	1-09707-107-0	02	1	0003-
158	CLIP; A/C UNIT RR COOLER<7UL> (B) L=250	5-09707-030-0	05	1	0003-
159	GROMMET; A/C UNIT RR COOLER<7UL> (A)	8-97205-821-0	02	1	0003-
159	GROMMET; A/C UNIT RR COOLER<7UL> (B)	8-97205-822-0	01	1	0003-
160	COVER ASM; A/C UNIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97235-031-0	01	1	0003-
160	COVER ASM; A/C UNIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97205-826-1	01	1	0003-
161	DUCT ASM; A/C KIT INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97238-624-0	01	1	0003-
161	DUCT ASM; A/C KIT INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97205-824-0	01	1	0003-
162	SWITCH; A/C KIT RR COOLER<7UL>	8-97205-828-0	01	1	0003-
163	COOLING UNIT RR COOLER<7UL>	8-97205-823-0	01	1	0003-
164	LINING; A/C UNIT RR COOLER<7UL>	8-97209-109-0	03	1	0003-
166	KNOB; A/C KIT RR COOLER<7UL>	8-97061-917-0	01	1	0003-
167	PANEL; A/C KIT RR COOLER<7UL>	8-97205-829-0	01	1	0003-

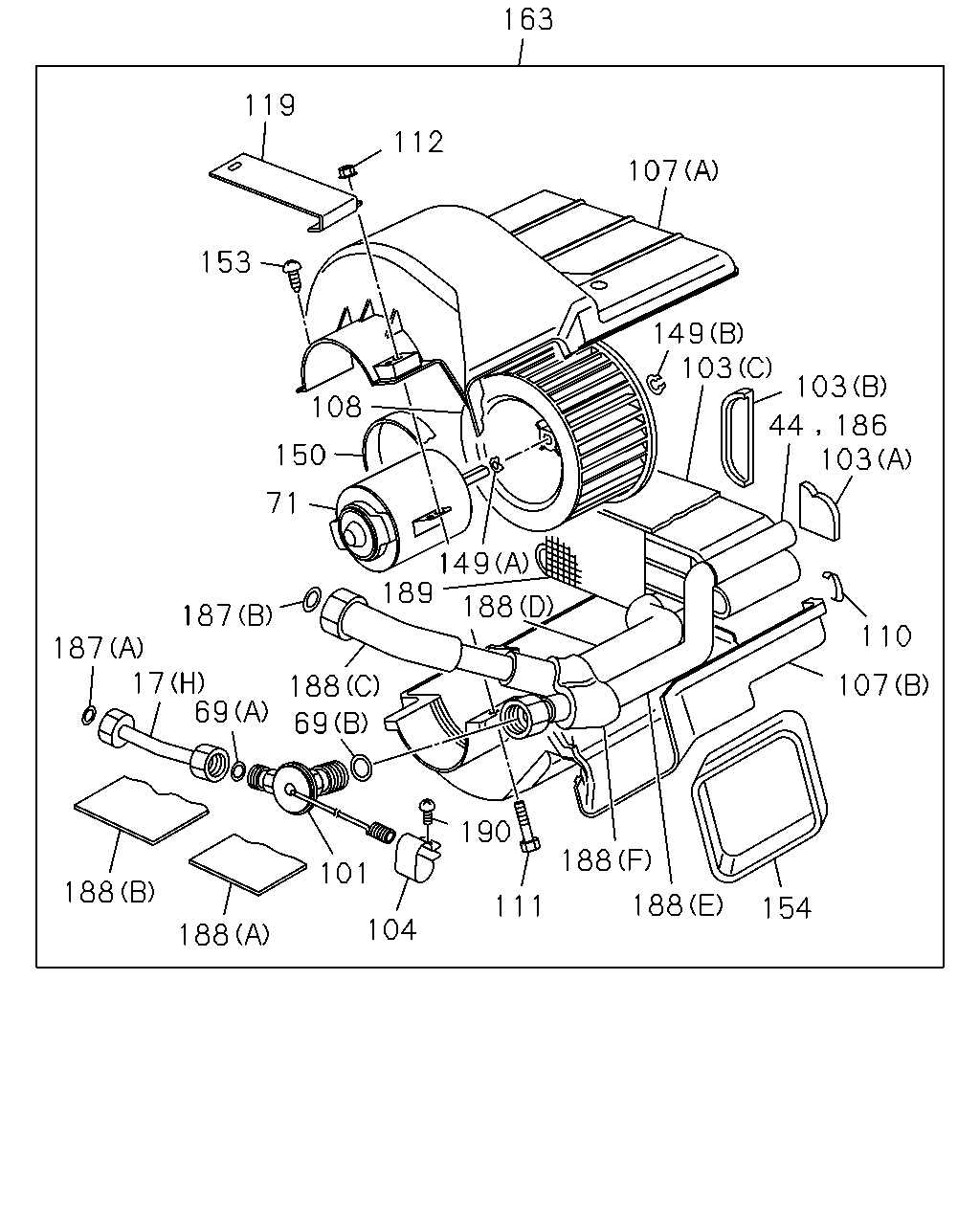

163 119 112 107 153 149 103 103 108 103 150 71 149 189 188 187 110 187 17 69 107 188 69 190 188 101 188 188 111 154 104 188 44 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	PIPE; A/C RR COOLER<7UL> (H)	8-97252-900-0	01	1	0203-
17	PIPE; A/C RR COOLER<7UL> (A)	8-97205-808-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (B)	8-97205-812-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (C)	8-97205-813-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (D)	8-97209-581-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (E)	8-97209-582-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (F)	8-97209-583-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (G)	8-97209-584-0	01	1	0003-
44	EVAPORATOR; A/C RR COOLER<7UL>	8-97252-898-0	01	1	0203-
69	GASKET; VLV RR COOLER<7UL> (A) ID=6.07	8-94461-902-0	01	1	0203-
69	GASKET; VLV RR COOLER<7UL> (B)	8-94481-717-0	01	1	0203-
71	MOTOR ASM; FAN RR COOLER<7UL>	8-97252-912-0	01	1	0203-
101	VALVE; EXPANSION RR COOLER<7UL>	8-97252-899-0	01	1	0203-
103	LINING; EVAPORATOR RR COOLER<7UL> (A)	8-97252-904-0	02	1	0203-
103	LINING; EVAPORATOR RR COOLER<7UL> (B)	8-97252-905-0	01	1	0203-
103	LINING; EVAPORATOR RR COOLER<7UL> (C)	8-97252-906-0	01	1	0203-
104	CLIP; EXPANSION VLV RR COOLER<7UL>	1-83574-214-0	01	1	0203-
107	CASE; BLOWER UNIT RR COOLER<7UL> (A)	8-97252-894-0	01	1	0203-
107	CASE; BLOWER UNIT RR COOLER<7UL> (B)	8-97252-895-0	01	1	0203-
108	IMPELLER; FAN MOTOR RR COOLER<7UL>	8-97252-896-0	01	1	0203-
110	CLIP; BLOWER UNIT RR COOLER<7UL>	5-09709-026-0	04	1	0203-
111	BOLT; CASE RR COOLER<7UL>	1-15729-920-0	01	1	0203-
112	NUT; BLOWER UNIT RR COOLER<7UL> M6 FLANGE	5-09440-004-0	01	1	0203-
119	BRACKET; BLOWER RR COOLER<7UL>	8-97252-909-0	01	1	0203-
149	RING; SNAP,FAN MOTOR RR COOLER<7UL> (A)	5-83569-088-0	01	1	0203-
149	RING; SNAP,FAN MOTOR RR COOLER<7UL> (B)	8-94243-962-0	01	1	0203-
150	ISOLATOR; A/C UNIT RR COOLER<7UL>	8-97252-911-0	01	1	0203-
153	SCREW; TAPPING,BLOWER RR COOLER<7UL> M4X16	8-94324-850-0	02	1	0203-
154	LINING; BLOWER RR COOLER<7UL>	8-97252-910-0	01	1	0203-
163	COOLING UNIT RR COOLER<7UL>	8-97205-823-0	01	1	0003-
186	EVAPORATOR ASM; COOLER KIT RR COOLER<7UL>	8-97252-897-0	01	1	0203-
187	GASKET; PIPE RR COOLER<7UL> (A)	8-97161-776-0	01	1	0203-
187	GASKET; PIPE RR COOLER<7UL> (B) ID=18.3	8-97161-778-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (A)	1-83579-784-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (B) T=3.0	5-83569-104-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (C)	8-97252-901-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (D)	8-97252-902-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (E)	8-97252-903-0	01	1	0203-
188	INSULATOR; PIPE RR COOLER<7UL> (F)	8-97252-907-0	01	1	0203-
189	ELIMINATOR; EVAPORATOR RR COOLER<7UL>	8-97252-908-0	01	1	0203-
190	SCREW; TAPPING,CLIP RR COOLER<7UL>	8-97130-601-0	01	1	0203-

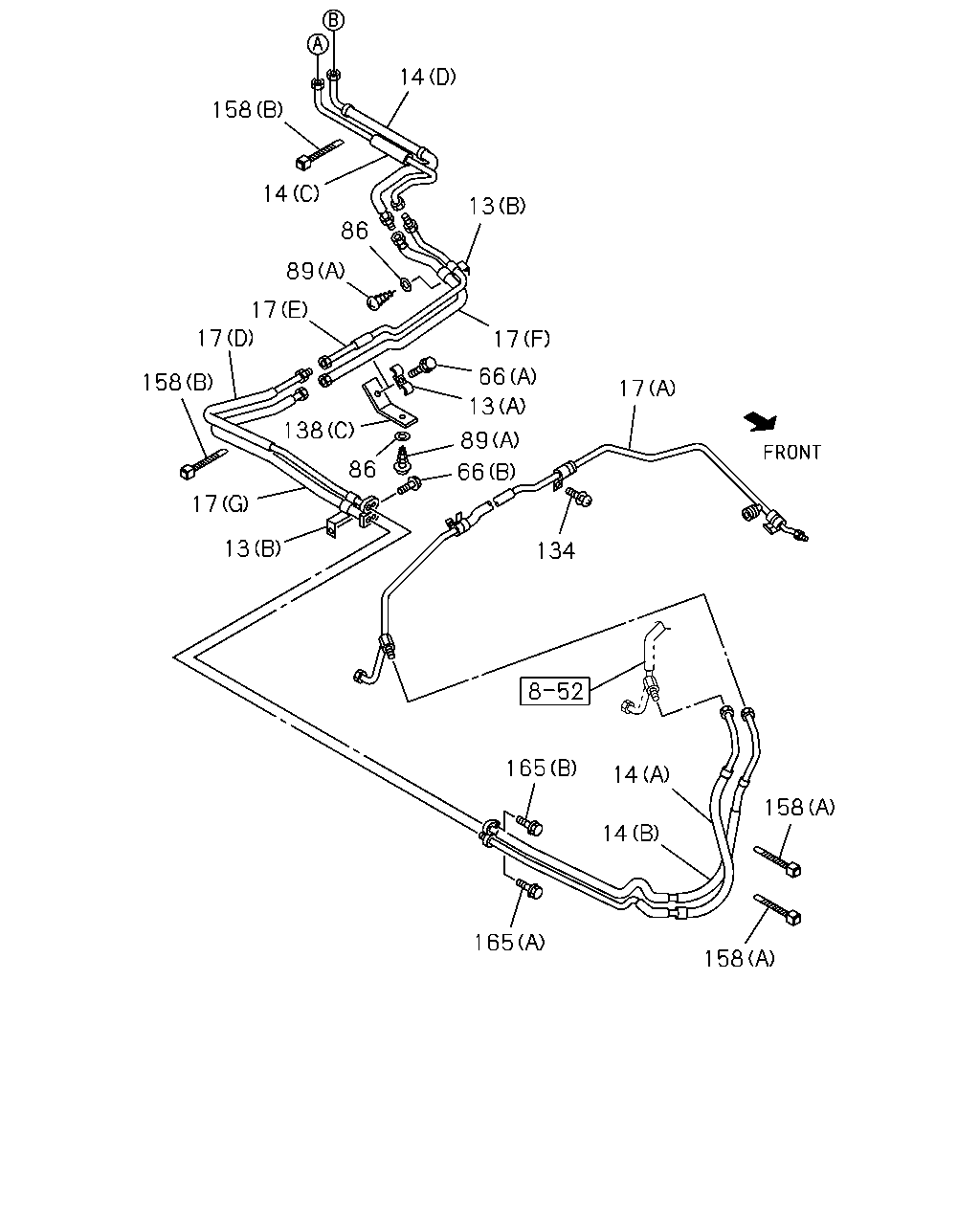

14 158 14 138 86 89 17 17 17 66 13 89 66 158 17 138 86 17 13 134 165 14 158 14 165 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; PIPE,A/C RR COOLER<7UL> (A)	8-97205-819-0	01	1	0003-
13	CLIP; PIPE,A/C RR COOLER<7UL> (B)	8-97205-820-0	02	1	0003-
14	HOSE; PIPING,A/C RR COOLER<7UL> (A)	8-97205-837-1	01	1	0003-
14	HOSE; PIPING,A/C RR COOLER<7UL> (B)	8-97205-838-1	01	1	0003-
14	HOSE; PIPING,A/C RR COOLER<7UL> (C)	8-97205-839-1	01	1	0003-
14	HOSE; PIPING,A/C RR COOLER<7UL> (D)	8-97205-840-1	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (H)	8-97252-900-0	01	1	0203-
17	PIPE; A/C RR COOLER<7UL> (A)	8-97205-808-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (B)	8-97205-812-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (C)	8-97205-813-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (D)	8-97209-581-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (E)	8-97209-582-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (F)	8-97209-583-0	01	1	0003-
17	PIPE; A/C RR COOLER<7UL> (G)	8-97209-584-0	01	1	0003-
66	BOLT; CLIP RR COOLER<7UL> (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
66	BOLT; CLIP RR COOLER<7UL> (B) M8X20 FLANGE	0-28680-820-0	01	1	0003-
86	WASHER; LK,A/C KIT RR COOLER<7UL> ID=6	9-09160-606-0	02	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (A) M6X16	0-74300-616-0	02	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-
89	SCREW; A/C KIT RR COOLER<7UL> (C) M4X16	8-94324-850-0	02	1	0003-
134	CLIP; A/C UNIT RR COOLER<7UL> D6.8X12	8-94198-687-0	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (A)	8-97205-817-0	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (B)	8-97205-818-1	01	1	0003-
138	BRACKET; A/C UNIT RR COOLER<7UL> (C)	8-97209-096-0	01	1	0003-
158	CLIP; A/C UNIT RR COOLER<7UL> (A) L=600	1-09707-107-0	02	1	0003-
158	CLIP; A/C UNIT RR COOLER<7UL> (B) L=250	5-09707-030-0	05	1	0003-
165	BOLT; HOSE RR COOLER<7UL> (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0003-
165	BOLT; HOSE RR COOLER<7UL> (B) M6X25	8-97095-660-0	01	1	0003-
