8-75 — CONDENSER (#46232) — 114 parça

1 23 89 161 195 162 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-52481-460-0	01	1	9708-9801
1	CONDENSER; A/C EXC. RR COOLER<7UL>	8-52481-460-0	01	1	9802-0004
1	CONDENSER; A/C RR COOLER<7UL>	8-97183-191-1	01	1	9802-9905
1	CONDENSER; A/C RR COOLER<7UL>	8-97231-087-0	01	1	9906-0004
1	CONDENSER; A/C	8-97231-087-0	01	1	0005-0202
1	CONDENSER; A/C	8-97311-492-1	01	1	0203-
23	SWITCH; PRESSURE,CONDENSER	8-97234-542-0	01	1	0006-
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-52481-408-0	01	1	9708-9801
23	SWITCH; PRESSURE,CONDENSER EXC. RR COOLER<7UL>	8-52481-408-0	01	1	9802-0004
23	SWITCH; PRESSURE,CONDENSER RR COOLER<7UL> "R-134A"	8-97093-509-0	01	1	9802-0004
23	SWITCH; PRESSURE,CONDENSER "R-134A"	8-97093-509-0	01	1	0005-0005
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-52481-453-0	01	1	9708-9801
85	DRYER; RECEIVER EXC. RR COOLER<7UL>	8-52481-453-0	01	1	9802-0004
85	DRYER; RECEIVER RR COOLER<7UL>	8-97170-846-0	01	1	9802-9905
85	DRYER; RECEIVER RR COOLER<7UL>	8-97217-209-0	01	1	9906-0004
85	DRYER; RECEIVER	8-97217-209-0	01	1	0005-
89	BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-52477-158-0	01	1	9708-9801
89	BOLT; CONDENSER TO BODY EXC. RR COOLER<7UL>	8-52477-158-0	01	1	9802-0004
89	BOLT; CONDENSER TO BODY RR COOLER<7UL>	8-97049-255-0	02	1	9802-0004
89	BOLT; CONDENSER TO BODY	8-97049-255-0	02	1	0005-
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-52477-174-0	01	1	9708-9801
161	BOLT; PIPE EXC. RR COOLER<7UL>	8-52477-174-0	01	1	9802-0004
161	BOLT; PIPE RR COOLER<7UL>	8-97189-426-0	01	1	9802-9905
161	BOLT; PIPE RR COOLER<7UL> M6X25	8-97095-660-0	01	1	9906-0004
161	BOLT; PIPE M6X25	8-97095-660-0	01	1	0005-
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60)	8-52478-919-0	01	1	9708-9801
162	GASKET; PIPE TO DRYER EXC. RR COOLER<7UL>	8-52478-919-0	01	1	9802-0004
162	GASKET; PIPE TO DRYER RR COOLER<7UL>	8-97161-776-0	01	1	9802-0004
162	GASKET; PIPE TO DRYER	8-97161-776-0	01	1	0005-
195	ISOLATOR KIT AIR CONDITIONER MANUAL CONT(C60)	8-52481-458-0	01	1	9708-9801
195	ISOLATOR KIT EXC. RR COOLER<7UL>	8-52481-458-0	01	1	9802-0004

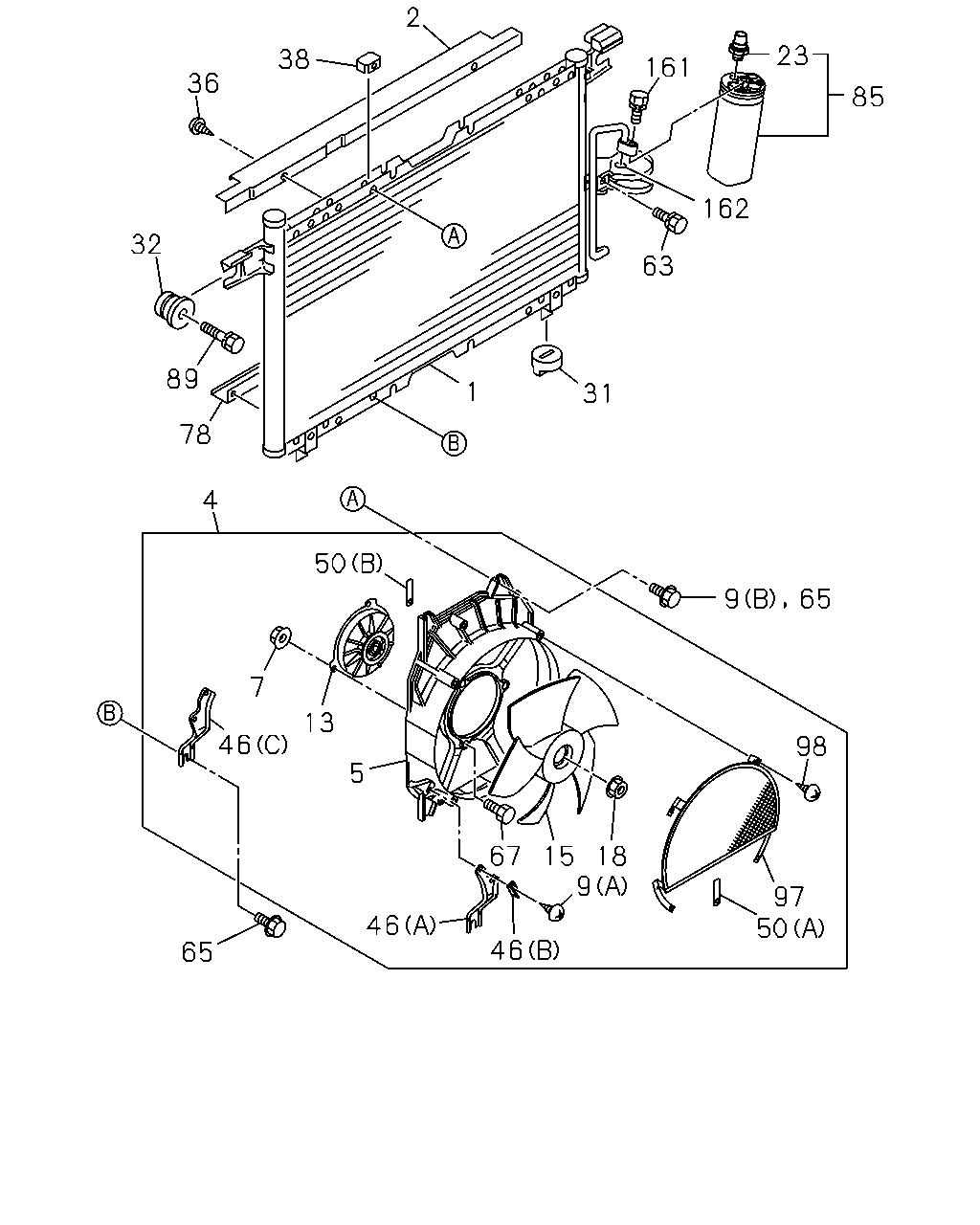

2 23 38 161 36 85 162 32 63 89 1 31 78 4 50 9 65 7 13 46 98 5 67 9 97 50 46 46 65 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-52481-460-0	01	1	9708-9801
1	CONDENSER; A/C EXC. RR COOLER<7UL>	8-52481-460-0	01	1	9802-0004
1	CONDENSER; A/C RR COOLER<7UL>	8-97183-191-1	01	1	9802-9905
1	CONDENSER; A/C RR COOLER<7UL>	8-97231-087-0	01	1	9906-0004
1	CONDENSER; A/C	8-97231-087-0	01	1	0005-0202
1	CONDENSER; A/C	8-97311-492-1	01	1	0203-
2	PLATE; UPR,CONDENSER RR COOLER<7UL>	8-97049-256-1	01	1	9802-9905
4	MOTOR ASM; FAN RR COOLER<7UL>	8-97183-187-1	01	1	9802-9905
4	MOTOR ASM; FAN RR COOLER<7UL>	8-97184-985-0	01	1	9906-0004
4	MOTOR ASM; FAN	8-97184-985-0	01	1	0005-
5	SHROUD; FAN MOTOR RR COOLER<7UL>	8-97139-118-0	01	1	9802-0004
5	SHROUD; FAN MOTOR	8-97139-118-0	01	1	0005-
7	NUT; FAN RR COOLER<7UL> M6 FLANGE	5-09440-004-0	03	1	9802-0004
7	NUT; FAN M6 FLANGE	5-09440-004-0	03	1	0005-
9	BOLT; BRKT (B) M5X35 TAPPING	8-97071-786-0	02	1	0203-
9	BOLT; BRKT RR COOLER<7UL> (A) M5X10 W/WASHER	0-74300-510-0	04	1	9802-0004
9	BOLT; BRKT (A) M5X10 W/WASHER	0-74300-510-0	04	1	0005-
9	BOLT; BRKT RR COOLER<7UL> (B) M5X35 TAPPING	8-97071-786-0	02	1	9802-9905
13	MOTOR; FAN RR COOLER<7UL>	8-97139-120-0	01	1	9802-0004
13	MOTOR; FAN	8-97139-120-0	01	1	0005-
15	FAN; MOTOR RR COOLER<7UL>	8-97091-323-0	01	1	9802-0004
15	FAN; MOTOR	8-97091-323-0	01	1	0005-
18	NUT; FAN,CENTER RR COOLER<7UL>	8-97018-672-0	01	1	9802-0004
18	NUT; FAN,CENTER	8-97018-672-0	01	1	0005-
23	SWITCH; PRESSURE,CONDENSER	8-97234-542-0	01	1	0006-
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-52481-408-0	01	1	9708-9801
23	SWITCH; PRESSURE,CONDENSER EXC. RR COOLER<7UL>	8-52481-408-0	01	1	9802-0004
23	SWITCH; PRESSURE,CONDENSER RR COOLER<7UL> "R-134A"	8-97093-509-0	01	1	9802-0004
23	SWITCH; PRESSURE,CONDENSER "R-134A"	8-97093-509-0	01	1	0005-0005
31	RUBBER; MTG,CONDENSER RR COOLER<7UL>	8-97018-673-0	02	1	9802-0004
31	RUBBER; MTG,CONDENSER	8-97018-673-0	02	1	0005-
32	GROMMET; CONDENSER RR COOLER<7UL> "R-134A"	8-94481-685-1	02	1	9802-0004
32	GROMMET; CONDENSER "R-134A"	8-94481-685-1	02	1	0005-
36	SCREW; PLATE TO CONDENSER RR COOLER<7UL>	8-97142-815-0	02	1	9802-9905
36	SCREW; PLATE TO CONDENSER RR COOLER<7UL>	8-97195-036-0	02	1	9906-0004
36	SCREW; PLATE TO CONDENSER	8-97195-036-0	02	1	0005-
38	PLATE; CONDENSER RR COOLER<7UL>	8-97183-190-0	04	1	9802-9905
38	PLATE; CONDENSER RR COOLER<7UL>	8-97234-635-0	04	1	9906-0004
38	PLATE; CONDENSER	8-97234-635-0	04	1	0005-
46	BRACKET; SHROUD RR COOLER<7UL> (B)	8-97139-122-0	01	1	9802-0004
46	BRACKET; SHROUD (B)	8-97139-122-0	01	1	0005-
46	BRACKET; SHROUD RR COOLER<7UL> (A)	8-97183-189-0	01	1	9802-0004
46	BRACKET; SHROUD (A)	8-97183-189-0	01	1	0005-
46	BRACKET; SHROUD RR COOLER<7UL> (C)	8-97201-015-0	01	1	9802-0004
46	BRACKET; SHROUD (C)	8-97201-015-0	01	1	0005-
50	CLIP; CABLE RR COOLER<7UL> (B)	8-97139-126-0	01	1	9802-0004
50	CLIP; CABLE (B)	8-97139-126-0	01	1	0005-0202
50	CLIP; CABLE RR COOLER<7UL> (A)	8-97183-188-0	01	1	9802-9905
50	CLIP; CABLE RR COOLER<7UL> (A)	8-97171-656-0	01	1	9906-0004
50	CLIP; CABLE (A)	8-97171-656-0	01	1	0005-0202
63	BOLT; RECEIVER TANK RR COOLER<7UL>	8-97189-426-0	01	1	9802-9905
63	BOLT; RECEIVER TANK RR COOLER<7UL>	8-97195-038-0	01	1	9906-0004
63	BOLT; RECEIVER TANK	8-97195-038-0	01	1	0005-
65	BOLT; SHROUD RR COOLER<7UL> M5X35 TAPPING	8-97071-786-0	02	1	9802-9905
65	BOLT; SHROUD RR COOLER<7UL> M5X35 TAPPING	8-97071-786-0	04	1	9906-0004
65	BOLT; SHROUD M5X35 TAPPING	8-97071-786-0	04	1	0005-0202
65	BOLT; SHROUD M5X35 TAPPING	8-97071-786-0	02	1	0203-
67	SCREW; COVER RR COOLER<7UL>	9-88410-505-0	03	1	9802-0004
67	SCREW; COVER	9-88410-505-0	03	1	0005-
78	PLATE; LWR,CONDENSER RR COOLER<7UL>	8-97049-257-0	01	1	9802-0004
78	PLATE; LWR,CONDENSER	8-97049-257-0	01	1	0005-
85	DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-52481-453-0	01	1	9708-9801
85	DRYER; RECEIVER EXC. RR COOLER<7UL>	8-52481-453-0	01	1	9802-0004
85	DRYER; RECEIVER RR COOLER<7UL>	8-97170-846-0	01	1	9802-9905
85	DRYER; RECEIVER RR COOLER<7UL>	8-97217-209-0	01	1	9906-0004
85	DRYER; RECEIVER	8-97217-209-0	01	1	0005-
89	BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-52477-158-0	01	1	9708-9801
89	BOLT; CONDENSER TO BODY EXC. RR COOLER<7UL>	8-52477-158-0	01	1	9802-0004
89	BOLT; CONDENSER TO BODY RR COOLER<7UL>	8-97049-255-0	02	1	9802-0004
89	BOLT; CONDENSER TO BODY	8-97049-255-0	02	1	0005-
97	NET; CONDENSER UNIT RR COOLER<7UL>	8-97139-121-0	01	1	9802-0004
97	NET; CONDENSER UNIT	8-97139-121-0	01	1	0005-
98	SCREW; NET TO SHROUD RR COOLER<7UL>	1-83579-423-1	04	1	9802-0004
98	SCREW; NET TO SHROUD	1-83579-423-1	04	1	0005-
161	BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-52477-174-0	01	1	9708-9801
161	BOLT; PIPE EXC. RR COOLER<7UL>	8-52477-174-0	01	1	9802-0004
161	BOLT; PIPE RR COOLER<7UL>	8-97189-426-0	01	1	9802-9905
161	BOLT; PIPE RR COOLER<7UL> M6X25	8-97095-660-0	01	1	9906-0004
161	BOLT; PIPE M6X25	8-97095-660-0	01	1	0005-
162	GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60)	8-52478-919-0	01	1	9708-9801
162	GASKET; PIPE TO DRYER EXC. RR COOLER<7UL>	8-52478-919-0	01	1	9802-0004
162	GASKET; PIPE TO DRYER RR COOLER<7UL>	8-97161-776-0	01	1	9802-0004
162	GASKET; PIPE TO DRYER	8-97161-776-0	01	1	0005-
