8-74 — EVAPORATOR (#46231) — 105 parça

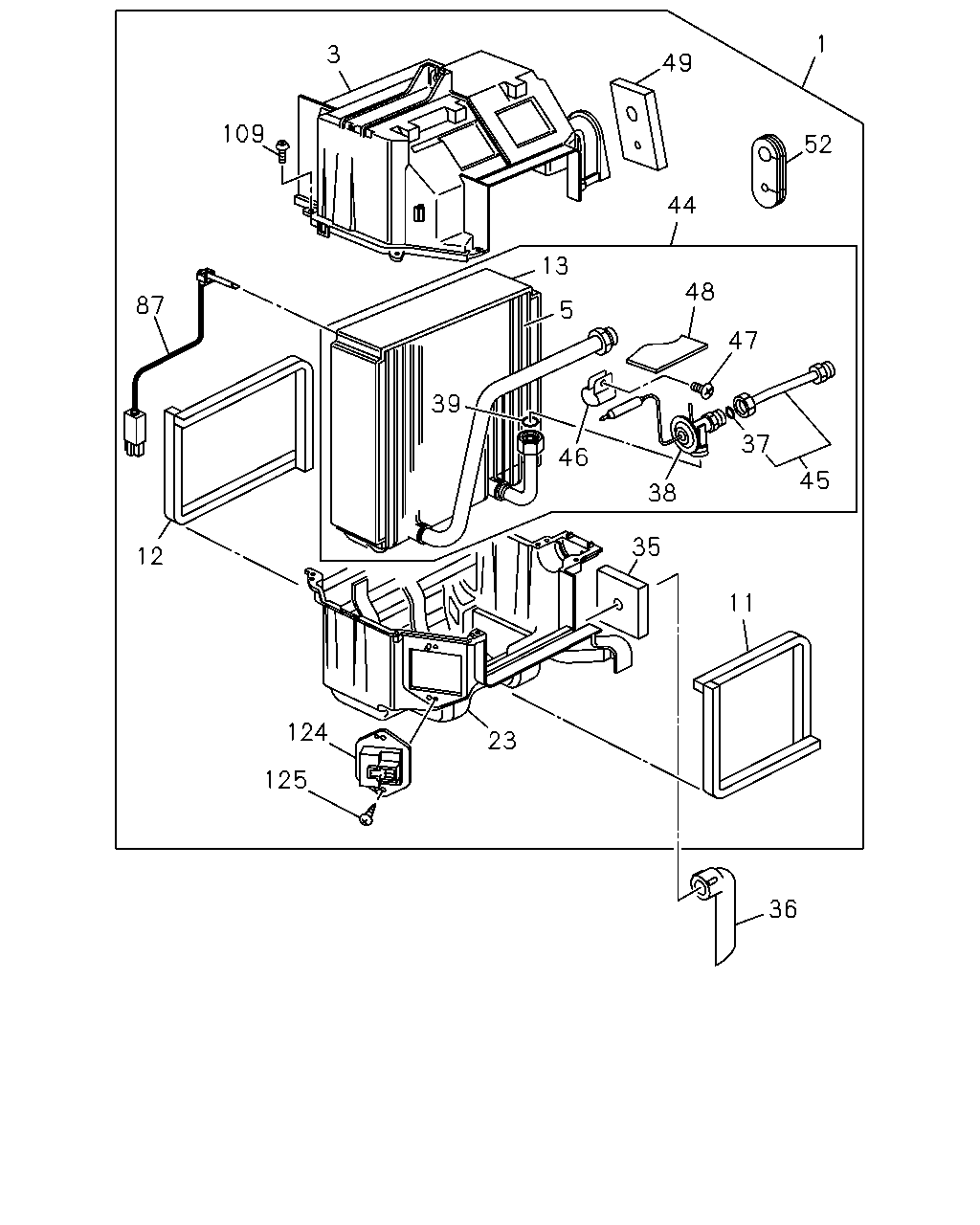

1 3 49 109 52 44 13 48 87 5 47 39 37 46 45 38 35 12 11 124 23 125 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97164-585-0	01	1	9708-9901
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97223-664-0	01	1	9902-0202
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97264-503-0	01	1	0203-
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97218-695-0	01	1	9908-0202
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97310-733-0	01	1	0203-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97165-289-0	01	1	9708-9806
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97221-319-0	01	1	9807-0202
3	CASE; EVAP,UPR FULLAUTO AIR CONDITIONER(C68)	8-97165-289-1	01	1	9908-0202
3	CASE; EVAP,UPR	8-97165-289-1	01	1	0203-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97165-291-0	01	1	9708-9907
5	EVAPORATOR	8-97165-291-0	01	1	9908-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9708-9907
11	LINING; EVAP A/C	8-97103-724-0	01	1	9908-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9708-9907
12	LINING; EVAP	8-97103-723-0	01	1	9908-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9708-9907
13	SEAL; EVAP T=4.0	8-97165-293-0	01	1	9908-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97165-288-0	01	1	9708-9806
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97221-320-0	01	1	9807-0202
23	CASE; EVAP,LWR FULLAUTO AIR CONDITIONER(C68)	8-97165-288-1	01	1	9908-0202
23	CASE; EVAP,LWR	8-97165-288-1	01	1	0203-
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9708-9907
35	GROMMET; EVAP,LOW	8-97069-405-3	01	1	9908-
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9708-9806
36	HOSE; DRAIN EVAP	8-97140-076-0	01	1	9807-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9708-9907
37	GASKET; EVAP ID=6.07	8-94461-902-0	01	1	9908-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9708-9907
38	VALVE; EXPANSION	8-97170-788-0	01	1	9908-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9708-9907
39	GASKET; EVAP	8-94481-717-0	01	1	9908-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-793-0	01	1	9708-9907
44	EVAPORATOR ASM; A/C	8-97170-793-1	01	1	9908-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9708-9907
45	PIPE; EXPANSION VLV	8-97165-292-0	01	1	9908-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) ID=8	8-94344-881-1	01	1	9708-9907
46	CLIP; EXPANSION VLV ID=8	8-94344-881-1	01	1	9908-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9708-9907
47	SCREW; EVAP	8-97130-601-0	01	1	9908-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9708-9806
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9807-9907
48	INSULATOR; EVAP	1-83579-784-0	01	1	9908-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9708-9907
49	GROMMET; EVAP	8-97069-404-1	01	1	9908-
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9708-9907
52	GROMMET; EVAP,A/C	8-94324-801-0	01	1	9908-
87	SENSOR; EVAP FULLAUTO AIR CONDITIONER(C68)	8-97170-787-0	01	1	9908-
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	06	1	9708-9907
109	BOLT; EVAP M4X16	8-94324-850-0	06	1	9908-
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68)	8-97111-797-0	01	1	9908-0202
124	TRANSISTOR; POWER,EVAP FULLAUTO AIR CONDITIONER(C68)	8-97314-138-0	01	1	0203-
125	SCREW; TRANSISTOR FULLAUTO AIR CONDITIONER(C68) M4X16	8-94324-850-0	02	1	9908-

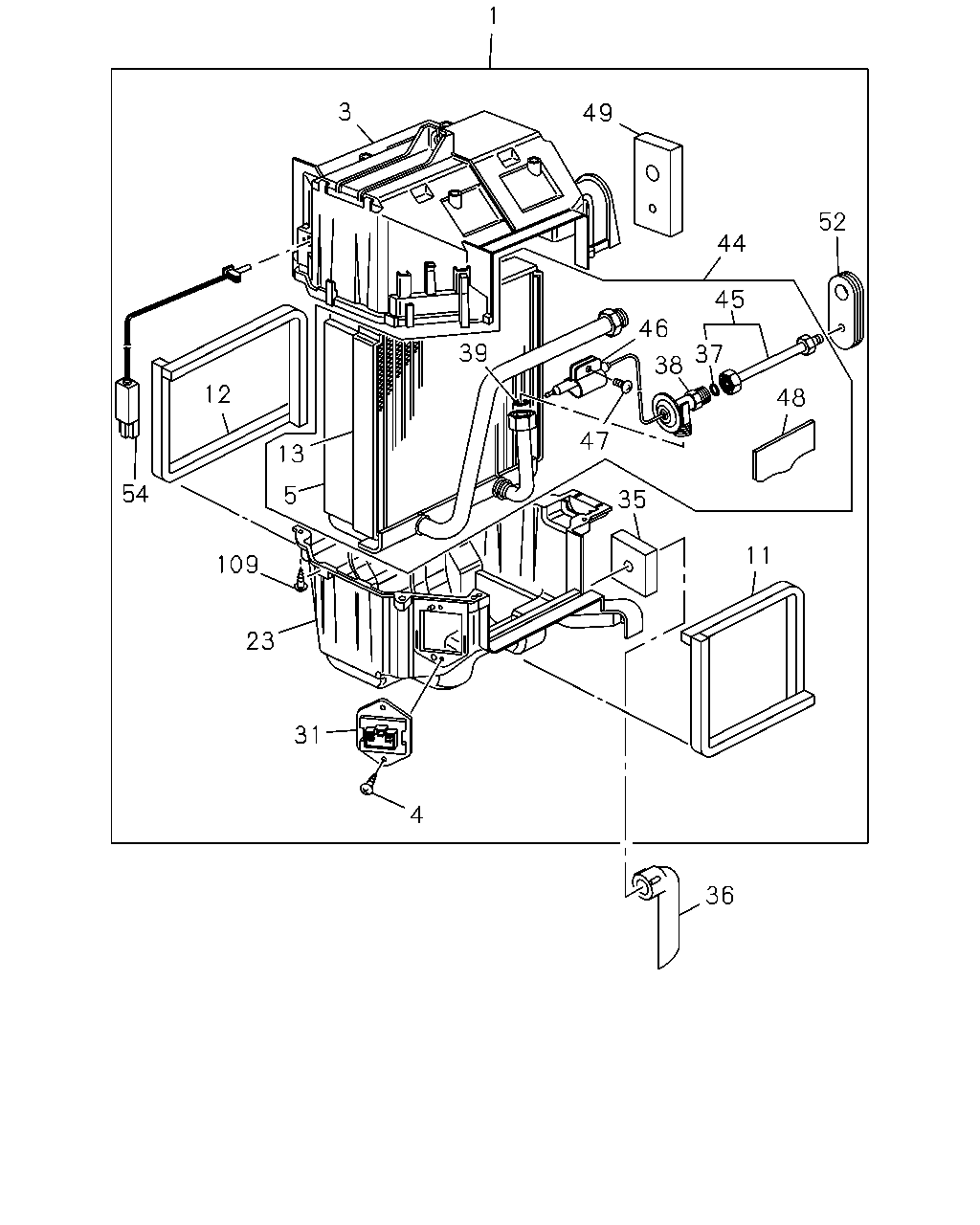

1 3 49 52 44 45 46 39 37 38 12 48 47 13 54 5 35 11 109 23 31 4 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97164-585-0	01	1	9708-9901
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97223-664-0	01	1	9902-0202
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97264-503-0	01	1	0203-
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97218-695-0	01	1	9908-0202
1	EVAPORATOR ASM FULLAUTO AIR CONDITIONER(C68)	8-97310-733-0	01	1	0203-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97165-289-0	01	1	9708-9806
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97221-319-0	01	1	9807-0202
3	CASE; EVAP,UPR FULLAUTO AIR CONDITIONER(C68)	8-97165-289-1	01	1	9908-0202
3	CASE; EVAP,UPR	8-97165-289-1	01	1	0203-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	9708-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97165-291-0	01	1	9708-9907
5	EVAPORATOR	8-97165-291-0	01	1	9908-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9708-9907
11	LINING; EVAP A/C	8-97103-724-0	01	1	9908-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9708-9907
12	LINING; EVAP	8-97103-723-0	01	1	9908-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9708-9907
13	SEAL; EVAP T=4.0	8-97165-293-0	01	1	9908-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97165-288-0	01	1	9708-9806
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97221-320-0	01	1	9807-0202
23	CASE; EVAP,LWR FULLAUTO AIR CONDITIONER(C68)	8-97165-288-1	01	1	9908-0202
23	CASE; EVAP,LWR	8-97165-288-1	01	1	0203-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97083-136-1	01	1	9708-
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9708-9907
35	GROMMET; EVAP,LOW	8-97069-405-3	01	1	9908-
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9708-9806
36	HOSE; DRAIN EVAP	8-97140-076-0	01	1	9807-
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9708-9907
37	GASKET; EVAP ID=6.07	8-94461-902-0	01	1	9908-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9708-9907
38	VALVE; EXPANSION	8-97170-788-0	01	1	9908-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9708-9907
39	GASKET; EVAP	8-94481-717-0	01	1	9908-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-793-0	01	1	9708-9907
44	EVAPORATOR ASM; A/C	8-97170-793-1	01	1	9908-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9708-9907
45	PIPE; EXPANSION VLV	8-97165-292-0	01	1	9908-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) ID=8	8-94344-881-1	01	1	9708-9907
46	CLIP; EXPANSION VLV ID=8	8-94344-881-1	01	1	9908-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9708-9907
47	SCREW; EVAP	8-97130-601-0	01	1	9908-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9708-9806
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9807-9907
48	INSULATOR; EVAP	1-83579-784-0	01	1	9908-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9708-9907
49	GROMMET; EVAP	8-97069-404-1	01	1	9908-
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9708-9907
52	GROMMET; EVAP,A/C	8-94324-801-0	01	1	9908-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-805-0	01	1	9708-9806
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97223-415-0	01	1	9807-0202
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97287-650-0	01	1	0203-
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	06	1	9708-9907
109	BOLT; EVAP M4X16	8-94324-850-0	06	1	9908-
