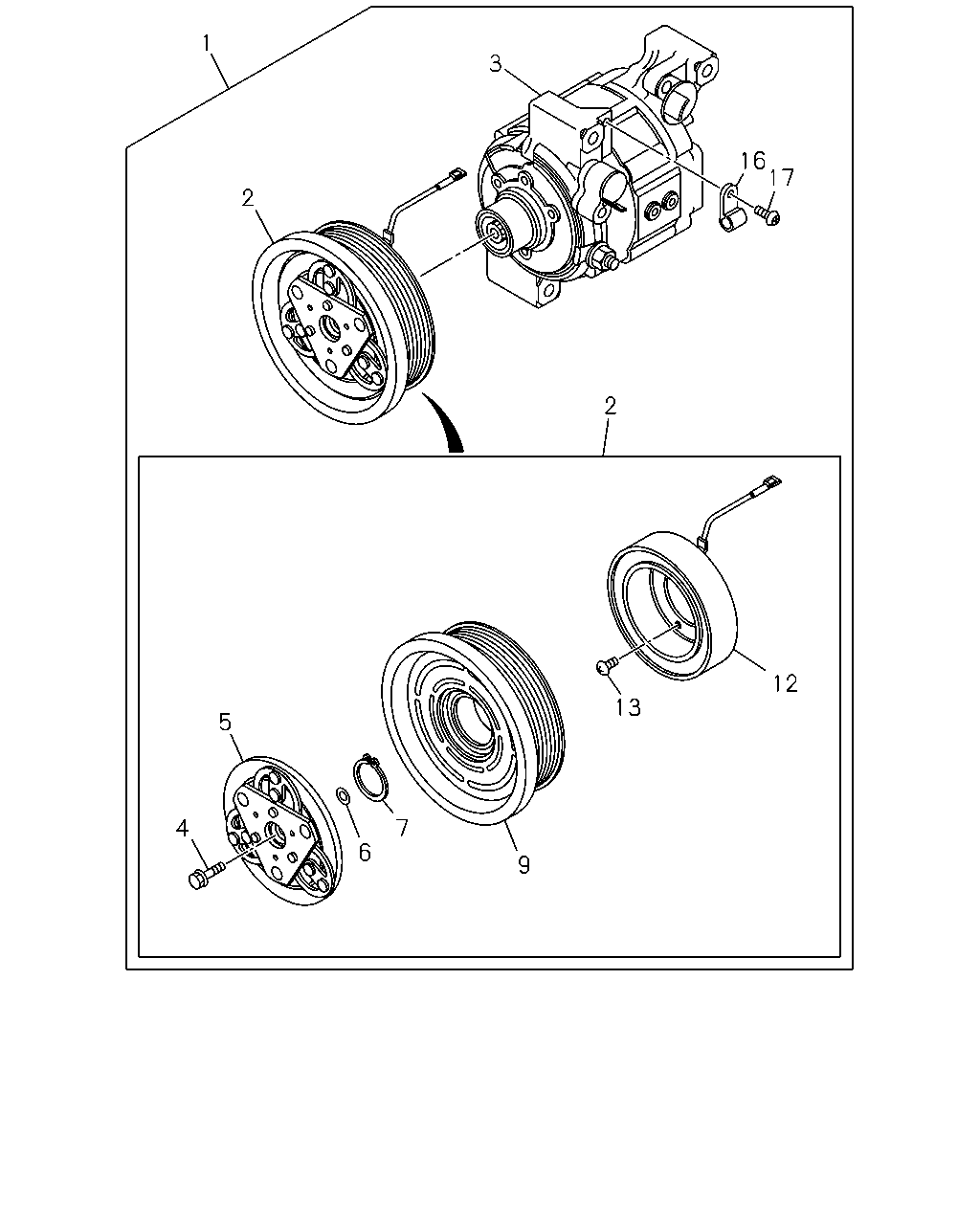

8-71 — COMPRESSOR; AIR CONDITIONING (#46229) — 167 parça

1 3 16 17 2 2 12 13 5 7 4 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-01136-592-1	01	1	9708-9801
1	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-01136-592-1	01	1	9802-0004
1	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97170-820-0	01	1	9802-0004
1	COMPRESSOR ASM; A/C	8-97258-528-0	01	1	0005-0202
1	COMPRESSOR ASM; A/C	8-97264-508-3	01	1	0203-
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-973-0	01	1	9708-9801
2	CLUTCH; MAGNET,A/C EXC. RR COOLER<7UL>	8-02724-973-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C RR COOLER<7UL>	8-97161-511-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C	8-97261-165-0	01	1	0005-0202
2	CLUTCH; MAGNET,A/C	8-97311-495-0	01	1	0203-0208
2	CLUTCH; MAGNET,A/C	8-97357-113-0	01	1	0209-
3	COMPRESSOR ASM; A/C	8-97320-622-0	01	1	0203-
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-972-1	01	1	9708-9801
3	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-02724-972-1	01	1	9802-0004
3	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97178-004-0	01	1	9802-0004
3	COMPRESSOR ASM; A/C	8-97178-004-0	01	1	0005-0202
4	BOLT; MAGNET CLU RR COOLER<7UL>	8-94164-439-0	01	1	9802-0004
4	BOLT; MAGNET CLU	8-94164-439-0	01	1	0005-
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60)	8-06580-056-0	01	1	9708-9801
5	ARMATURE ASM; MAGNET CLU,A/C EXC. RR COOLER<7UL>	8-06580-056-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C RR COOLER<7UL>	8-97161-513-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C	8-97261-433-0	01	1	0005-0202
5	ARMATURE ASM; MAGNET CLU,A/C	8-97313-253-0	01	1	0203-0208
5	ARMATURE ASM; MAGNET CLU,A/C	8-97357-112-0	01	1	0209-
6	SHIM; MAGNET CLU T=0.15	1-83578-029-0	AR	1	0005-0208
6	SHIM; MAGNET CLU T=0.25	1-83578-030-0	AR	1	0005-0208
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.1	8-94120-721-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.1	8-94120-721-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.3	8-94120-722-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.3	8-94120-722-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.5	8-94120-723-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.5	8-94120-723-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.8	8-94380-751-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.8	8-94380-751-0	AR	1	0005-
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-06555-329-0	01	1	9708-9801
7	RING; SNAP,PULLEY EXC. RR COOLER<7UL>	8-06555-329-0	01	1	9802-0004
7	RING; SNAP,PULLEY RR COOLER<7UL>	8-94380-752-0	01	1	9802-0004
7	RING; SNAP,PULLEY	8-94380-752-0	01	1	0005-
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06580-044-0	01	1	9708-9801
9	PULLEY; MAGNET CLU EXC. RR COOLER<7UL>	8-06580-044-0	01	1	9802-0004
9	PULLEY; MAGNET CLU RR COOLER<7UL>	8-97161-514-0	01	1	9802-0004
9	PULLEY; MAGNET CLU	8-97261-434-0	01	1	0005-0202
9	PULLEY; MAGNET CLU	8-97313-254-0	01	1	0203-0208
9	PULLEY; MAGNET CLU	8-97357-111-0	01	1	0209-
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06552-423-0	01	1	9708-9801
12	COIL; FIELD,MAGNET CLU EXC. RR COOLER<7UL>	8-06552-423-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU RR COOLER<7UL>	8-97161-512-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU	8-97161-512-0	01	1	0005-0202
12	COIL; FIELD,MAGNET CLU	8-97313-255-0	01	1	0203-0208
12	COIL; FIELD,MAGNET CLU	8-97320-620-0	01	1	0209-
13	SCREW; COIL FIELD RR COOLER<7UL>	8-94120-727-0	03	1	9802-0004
13	SCREW; COIL FIELD	8-94164-438-0	03	1	0005-
16	CLIP; WIRE,MAGNET CLU RR COOLER<7UL>	8-97024-418-0	01	1	9802-0004
16	CLIP; WIRE,MAGNET CLU	8-97024-418-0	01	1	0005-0202
16	CLIP; WIRE,MAGNET CLU	8-97311-505-0	01	1	0203-0208
16	CLIP; WIRE,MAGNET CLU	8-97320-623-0	01	1	0209-
17	SCREW; WIRE CLIP MAGNET CLU RR COOLER<7UL>	8-97024-419-0	01	1	9802-0004
17	SCREW; WIRE CLIP MAGNET CLU	8-97024-419-0	01	1	0005-

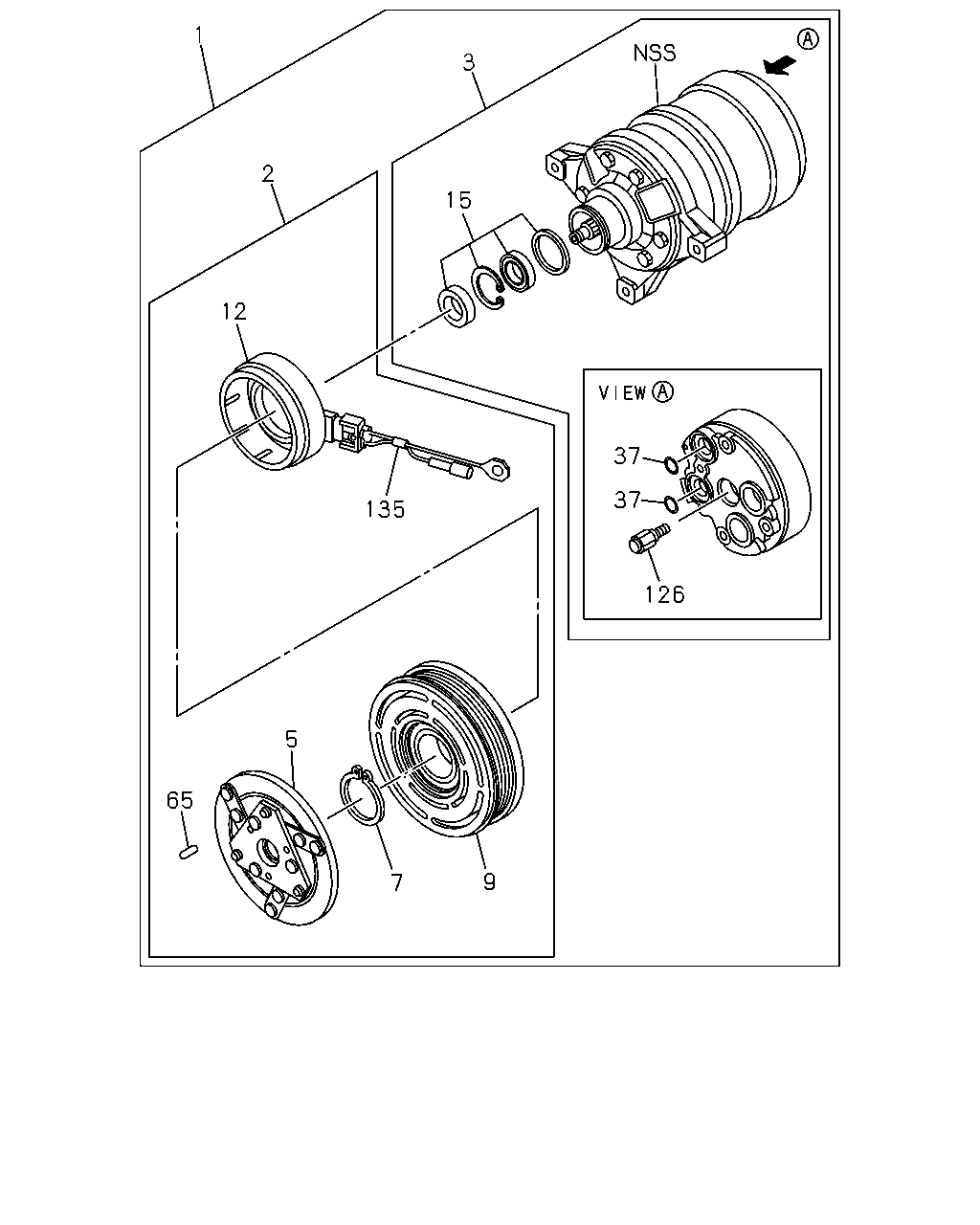

1 3 2 15 12 37 37 135 126 5 65 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-01136-592-1	01	1	9708-9801
1	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-01136-592-1	01	1	9802-0004
1	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97170-820-0	01	1	9802-0004
1	COMPRESSOR ASM; A/C	8-97258-528-0	01	1	0005-0202
1	COMPRESSOR ASM; A/C	8-97264-508-3	01	1	0203-
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-973-0	01	1	9708-9801
2	CLUTCH; MAGNET,A/C EXC. RR COOLER<7UL>	8-02724-973-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C RR COOLER<7UL>	8-97161-511-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C	8-97261-165-0	01	1	0005-0202
2	CLUTCH; MAGNET,A/C	8-97311-495-0	01	1	0203-0208
2	CLUTCH; MAGNET,A/C	8-97357-113-0	01	1	0209-
3	COMPRESSOR ASM; A/C	8-97320-622-0	01	1	0203-
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-972-1	01	1	9708-9801
3	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-02724-972-1	01	1	9802-0004
3	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97178-004-0	01	1	9802-0004
3	COMPRESSOR ASM; A/C	8-97178-004-0	01	1	0005-0202
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60)	8-06580-056-0	01	1	9708-9801
5	ARMATURE ASM; MAGNET CLU,A/C EXC. RR COOLER<7UL>	8-06580-056-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C RR COOLER<7UL>	8-97161-513-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C	8-97261-433-0	01	1	0005-0202
5	ARMATURE ASM; MAGNET CLU,A/C	8-97313-253-0	01	1	0203-0208
5	ARMATURE ASM; MAGNET CLU,A/C	8-97357-112-0	01	1	0209-
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-06555-329-0	01	1	9708-9801
7	RING; SNAP,PULLEY EXC. RR COOLER<7UL>	8-06555-329-0	01	1	9802-0004
7	RING; SNAP,PULLEY RR COOLER<7UL>	8-94380-752-0	01	1	9802-0004
7	RING; SNAP,PULLEY	8-94380-752-0	01	1	0005-
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06580-044-0	01	1	9708-9801
9	PULLEY; MAGNET CLU EXC. RR COOLER<7UL>	8-06580-044-0	01	1	9802-0004
9	PULLEY; MAGNET CLU RR COOLER<7UL>	8-97161-514-0	01	1	9802-0004
9	PULLEY; MAGNET CLU	8-97261-434-0	01	1	0005-0202
9	PULLEY; MAGNET CLU	8-97313-254-0	01	1	0203-0208
9	PULLEY; MAGNET CLU	8-97357-111-0	01	1	0209-
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06552-423-0	01	1	9708-9801
12	COIL; FIELD,MAGNET CLU EXC. RR COOLER<7UL>	8-06552-423-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU RR COOLER<7UL>	8-97161-512-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU	8-97161-512-0	01	1	0005-0202
12	COIL; FIELD,MAGNET CLU	8-97313-255-0	01	1	0203-0208
12	COIL; FIELD,MAGNET CLU	8-97320-620-0	01	1	0209-
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONT(C60)	8-02724-954-0	01	1	9708-9801
15	SEAL; SHAFT EXC. RR COOLER<7UL>	8-02724-954-0	01	1	9802-9908
15	SEAL; SHAFT EXC. RR COOLER<7UL>	8-02724-978-0	01	1	9909-0004
37	GASKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-02724-577-0	01	1	9708-9801
37	GASKET; CMPR EXC. RR COOLER<7UL>	8-02724-577-0	01	1	9802-9802
37	GASKET; CMPR EXC. RR COOLER<7UL>	8-02724-577-0	02	1	9803-0004
65	KEY; CLU HUB AIR CONDITIONER MANUAL CONT(C60)	8-06557-411-0	01	1	9708-9801
65	KEY; CLU HUB EXC. RR COOLER<7UL>	8-06557-411-0	01	1	9802-0004
126	VALVE; RELIEF,CMPR AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-06552-743-0	01	1	9708-9801
126	VALVE; RELIEF,CMPR EXC. RR COOLER<7UL> "R-134A"	8-06552-743-0	01	1	9802-9902
126	VALVE; RELIEF,CMPR EXC. RR COOLER<7UL> "R-134A"	8-06560-606-0	01	1	9903-0004
135	HARNESS; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-15303-125-0	01	1	9708-9801
135	HARNESS; CMPR EXC. RR COOLER<7UL>	8-15303-125-0	01	1	9802-0004

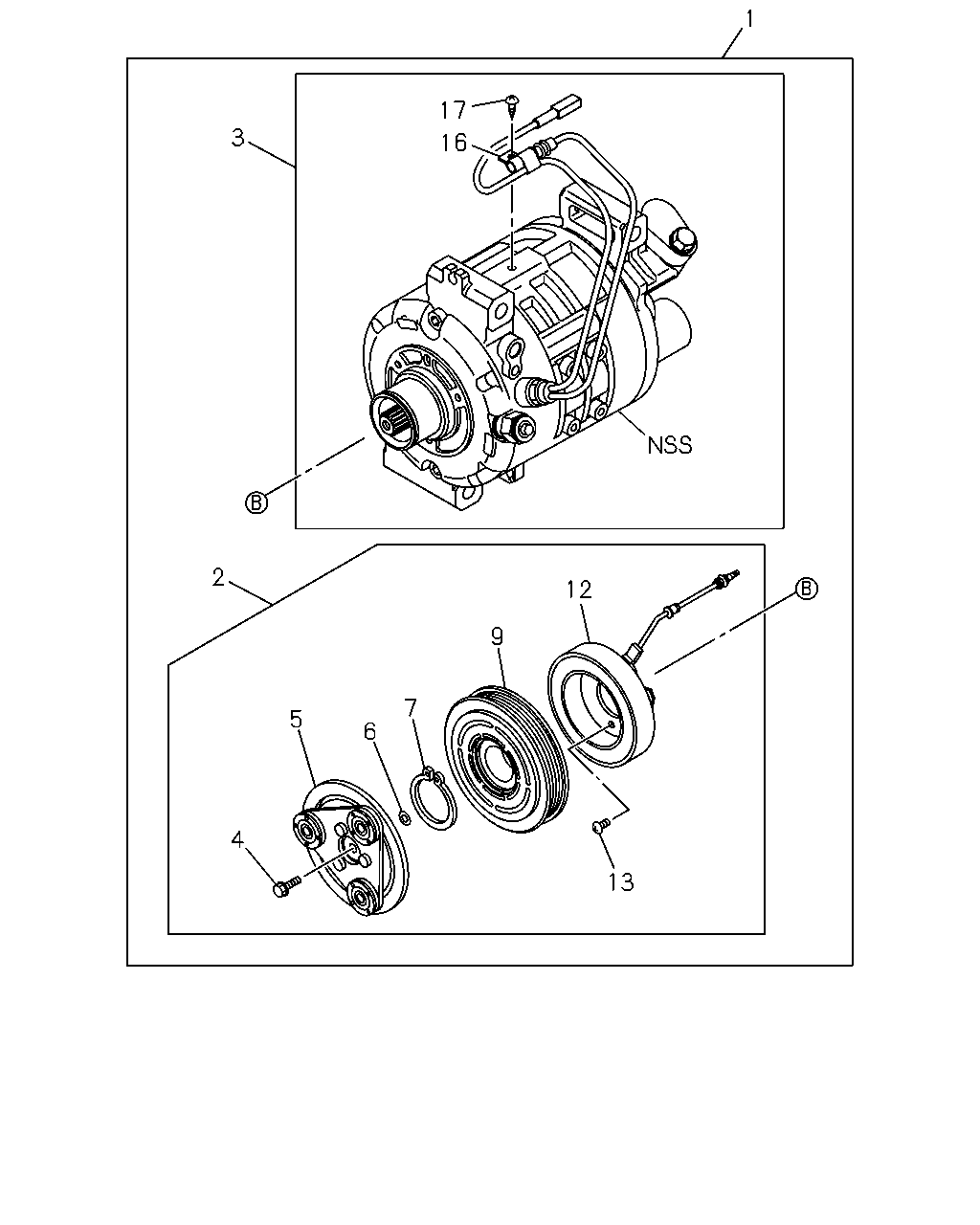

1 17 16 3 2 12 9 7 5 6 4 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-01136-592-1	01	1	9708-9801
1	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-01136-592-1	01	1	9802-0004
1	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97170-820-0	01	1	9802-0004
1	COMPRESSOR ASM; A/C	8-97258-528-0	01	1	0005-0202
1	COMPRESSOR ASM; A/C	8-97264-508-3	01	1	0203-
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-973-0	01	1	9708-9801
2	CLUTCH; MAGNET,A/C EXC. RR COOLER<7UL>	8-02724-973-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C RR COOLER<7UL>	8-97161-511-0	01	1	9802-0004
2	CLUTCH; MAGNET,A/C	8-97261-165-0	01	1	0005-0202
2	CLUTCH; MAGNET,A/C	8-97311-495-0	01	1	0203-0208
2	CLUTCH; MAGNET,A/C	8-97357-113-0	01	1	0209-
3	COMPRESSOR ASM; A/C	8-97320-622-0	01	1	0203-
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-02724-972-1	01	1	9708-9801
3	COMPRESSOR ASM; A/C EXC. RR COOLER<7UL>	8-02724-972-1	01	1	9802-0004
3	COMPRESSOR ASM; A/C RR COOLER<7UL>	8-97178-004-0	01	1	9802-0004
3	COMPRESSOR ASM; A/C	8-97178-004-0	01	1	0005-0202
4	BOLT; MAGNET CLU RR COOLER<7UL>	8-94164-439-0	01	1	9802-0004
4	BOLT; MAGNET CLU	8-94164-439-0	01	1	0005-
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60)	8-06580-056-0	01	1	9708-9801
5	ARMATURE ASM; MAGNET CLU,A/C EXC. RR COOLER<7UL>	8-06580-056-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C RR COOLER<7UL>	8-97161-513-0	01	1	9802-0004
5	ARMATURE ASM; MAGNET CLU,A/C	8-97261-433-0	01	1	0005-0202
5	ARMATURE ASM; MAGNET CLU,A/C	8-97313-253-0	01	1	0203-0208
5	ARMATURE ASM; MAGNET CLU,A/C	8-97357-112-0	01	1	0209-
6	SHIM; MAGNET CLU T=0.15	1-83578-029-0	AR	1	0005-0208
6	SHIM; MAGNET CLU T=0.25	1-83578-030-0	AR	1	0005-0208
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.1	8-94120-721-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.1	8-94120-721-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.3	8-94120-722-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.3	8-94120-722-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.5	8-94120-723-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.5	8-94120-723-0	AR	1	0005-
6	SHIM; MAGNET CLU RR COOLER<7UL> T=0.8	8-94380-751-0	AR	1	9802-0004
6	SHIM; MAGNET CLU T=0.8	8-94380-751-0	AR	1	0005-
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-06555-329-0	01	1	9708-9801
7	RING; SNAP,PULLEY EXC. RR COOLER<7UL>	8-06555-329-0	01	1	9802-0004
7	RING; SNAP,PULLEY RR COOLER<7UL>	8-94380-752-0	01	1	9802-0004
7	RING; SNAP,PULLEY	8-94380-752-0	01	1	0005-
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06580-044-0	01	1	9708-9801
9	PULLEY; MAGNET CLU EXC. RR COOLER<7UL>	8-06580-044-0	01	1	9802-0004
9	PULLEY; MAGNET CLU RR COOLER<7UL>	8-97161-514-0	01	1	9802-0004
9	PULLEY; MAGNET CLU	8-97261-434-0	01	1	0005-0202
9	PULLEY; MAGNET CLU	8-97313-254-0	01	1	0203-0208
9	PULLEY; MAGNET CLU	8-97357-111-0	01	1	0209-
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-06552-423-0	01	1	9708-9801
12	COIL; FIELD,MAGNET CLU EXC. RR COOLER<7UL>	8-06552-423-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU RR COOLER<7UL>	8-97161-512-0	01	1	9802-0004
12	COIL; FIELD,MAGNET CLU	8-97161-512-0	01	1	0005-0202
12	COIL; FIELD,MAGNET CLU	8-97313-255-0	01	1	0203-0208
12	COIL; FIELD,MAGNET CLU	8-97320-620-0	01	1	0209-
13	SCREW; COIL FIELD RR COOLER<7UL>	8-94120-727-0	03	1	9802-0004
13	SCREW; COIL FIELD	8-94164-438-0	03	1	0005-
16	CLIP; WIRE,MAGNET CLU RR COOLER<7UL>	8-97024-418-0	01	1	9802-0004
16	CLIP; WIRE,MAGNET CLU	8-97024-418-0	01	1	0005-0202
16	CLIP; WIRE,MAGNET CLU	8-97311-505-0	01	1	0203-0208
16	CLIP; WIRE,MAGNET CLU	8-97320-623-0	01	1	0209-
17	SCREW; WIRE CLIP MAGNET CLU RR COOLER<7UL>	8-97024-419-0	01	1	9802-0004
17	SCREW; WIRE CLIP MAGNET CLU	8-97024-419-0	01	1	0005-
