8-65 — CONTROL LEVER; HEATER AND AIR CON (#46228) — 55 parça

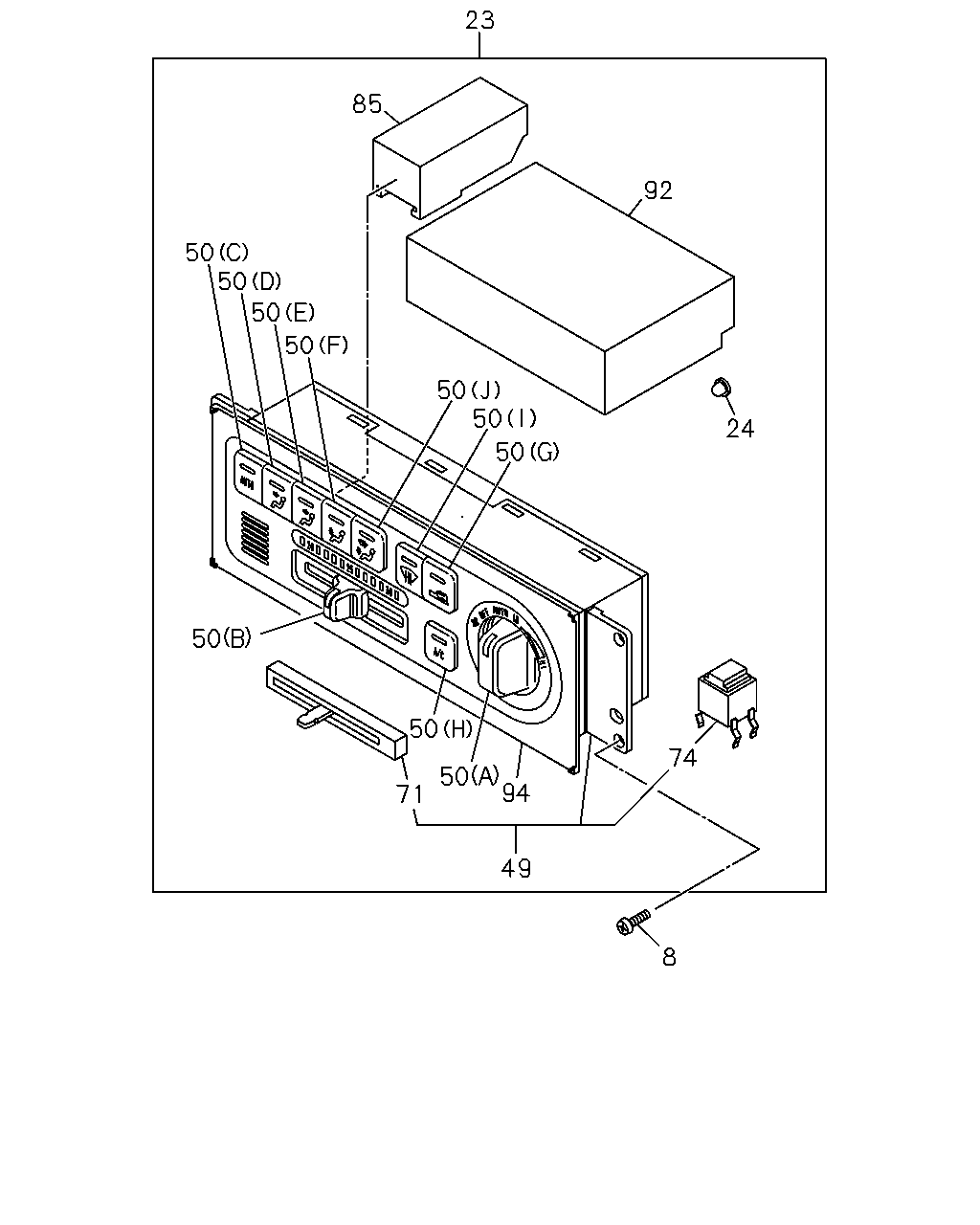

23 85 92 50 50 50 50 50 50 50 24 50 50 74 50 94 71 49 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SCREW; CONT LVR TO INST PNL M5X16	9-09829-323-1	04	1	9708-
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97222-620-1	01	1	9908-0202
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97264-491-0	01	1	0203-
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97222-621-1	01	1	9908-0202
23	BEZEL; CONT LEVER FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97264-492-0	01	1	0203-
24	BULB; CONT LEVER FULLAUTO AIR CONDITIONER(C68) 14V 0.1A	8-97112-615-0	01	1	9908-
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97232-192-1	01	1	9908-
49	PANEL; CONT FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97232-191-1	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (A)	8-97112-613-1	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (B)	8-97112-614-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (C)	8-97122-455-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (D)	8-97122-456-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (E)	8-97122-457-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (F)	8-97122-458-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (G)	8-97122-461-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (H)	8-97122-462-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (I)	8-97221-330-0	01	1	9908-
50	KNOB; CONT PANEL FULLAUTO AIR CONDITIONER(C68) (J)	8-97221-331-0	01	1	9908-
71	RESISTOR; CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97123-992-0	01	1	9908-
74	SWITCH; CONT PANEL FULLAUTO AIR CONDITIONER(C68)	8-97123-991-1	01	1	9908-
85	ASPIRATOR FULLAUTO AIR CONDITIONER(C68)	8-97077-720-1	01	1	9908-
92	CASE; CONT UNIT FULLAUTO AIR CONDITIONER(C68)	8-97123-993-0	01	1	9908-
94	PANEL; BEZEL FULLAUTO AIR CONDITIONER(C68) INST TRIM WOOD GRAIN<7HB>	8-97137-776-0	01	1	9908-
94	PANEL; BEZEL FULLAUTO AIR CONDITIONER(C68) EXC. INST TRIM WOOD GRAIN<7HB>	8-97126-084-0	01	1	9908-

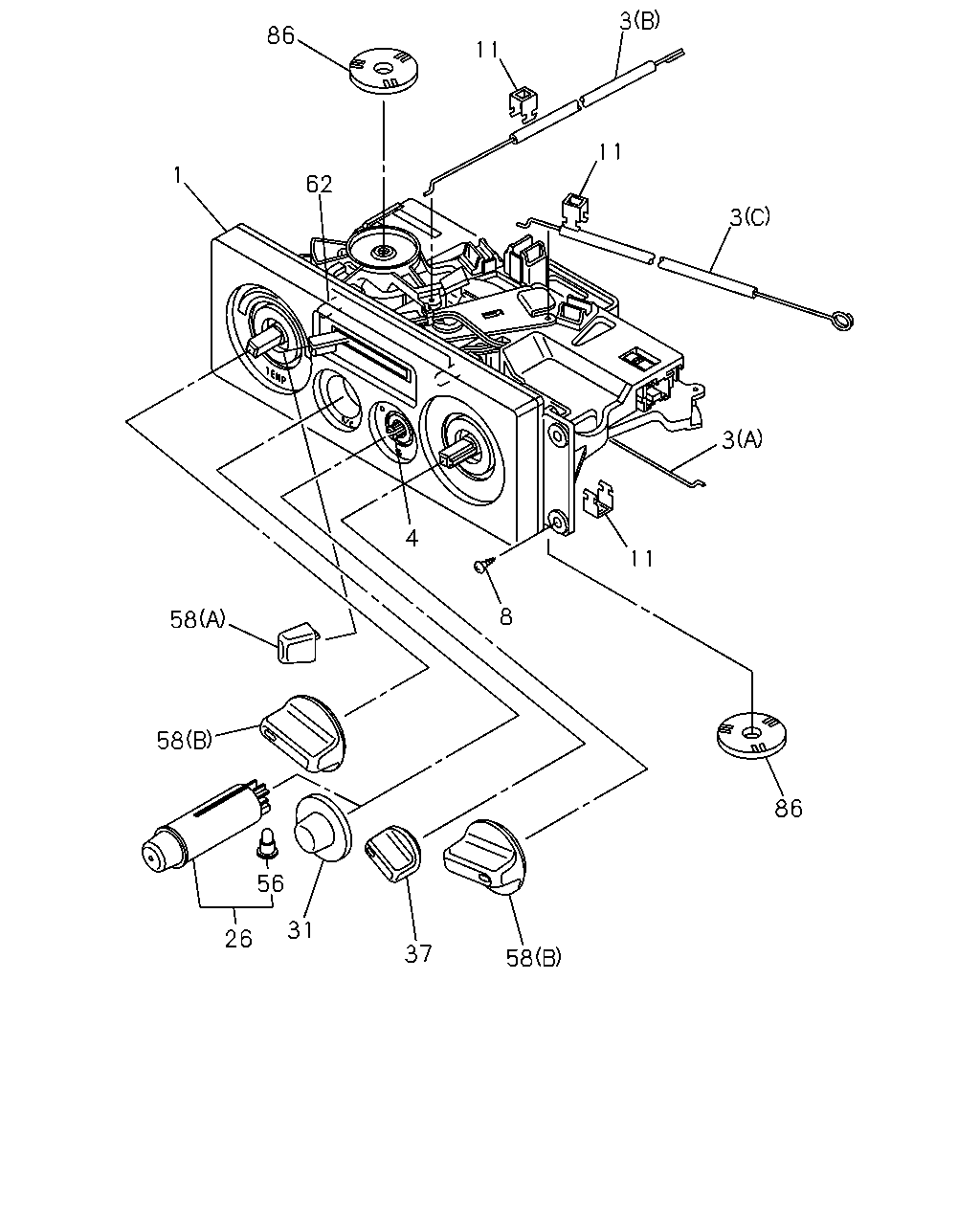

3 86 11 11 1 62 3 3 4 11 8 58 58 86 56 31 26 37 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER SUB ASM; HTR CONT	8-97116-766-1	01	1	9708-9806
1	LEVER SUB ASM; HTR CONT	8-97218-502-0	01	1	9807-9907
1	LEVER SUB ASM; HTR CONT AIR CONDITIONER MANUAL CONT(C60)	8-97218-502-0	01	1	9908-
3	CABLE; HTR CONT LVR (A) MODE	8-97116-763-2	01	1	9708-9907
3	CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) MODE	8-97116-763-2	01	1	9908-
3	CABLE; HTR CONT LVR (B) TEMP	8-97116-764-0	01	1	9708-9907
3	CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) TEMP	8-97116-764-0	01	1	9908-
3	CABLE; HTR CONT LVR (C) F/C	8-97116-765-0	01	1	9708-9907
3	CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (C) F/C	8-97116-765-0	01	1	9908-
4	SWITCH; FAN,HTR CONT LVR	8-97061-915-2	01	1	9708-9907
4	SWITCH; FAN,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97061-915-2	01	1	9908-
8	SCREW; CONT LVR TO INST PNL M5X16	9-09829-323-1	04	1	9708-
11	CLIP; CABLE,HTR CONT LVR	8-94325-471-0	03	1	9708-9907
11	CLIP; CABLE,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-94325-471-0	03	1	9908-
26	SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	9708-9806
26	SWITCH; A/C,HTR CONT LVR	8-97042-015-1	01	1	9807-9907
26	SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	9908-
31	COVER; HOLE,CONT LEVER HEATER & DEFROSTER(C41)	8-97061-922-0	01	1	9708-9806
37	KNOB; SW,HTR CONT LVR	8-97061-917-0	01	1	9708-9907
37	KNOB; SW,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97061-917-0	01	1	9908-
56	BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9708-9806
56	BULB; SWITCH,A/C	8-97115-090-0	01	1	9807-9907
56	BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9908-
58	KNOB; LVR,HTR CONT LVR (B) MODE & TEMP	8-97061-916-0	02	1	9708-9907
58	KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	02	1	9908-
58	KNOB; LVR,HTR CONT LVR (A) FLESH & CIRCULATION	8-97116-767-0	01	1	9708-9907
58	KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) FLESH & CIRCULATION	8-97116-767-0	01	1	9908-
62	BULB; HTR CONT LVR	8-97061-914-0	02	1	9708-9907
62	BULB; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97061-914-0	02	1	9908-
86	WASHER; CONT LEVER	8-94129-950-0	02	1	9708-9907
86	WASHER; CONT LEVER AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	02	1	9908-
