8-60 — HEATER UNIT; FRONT (#46227) — 104 parça

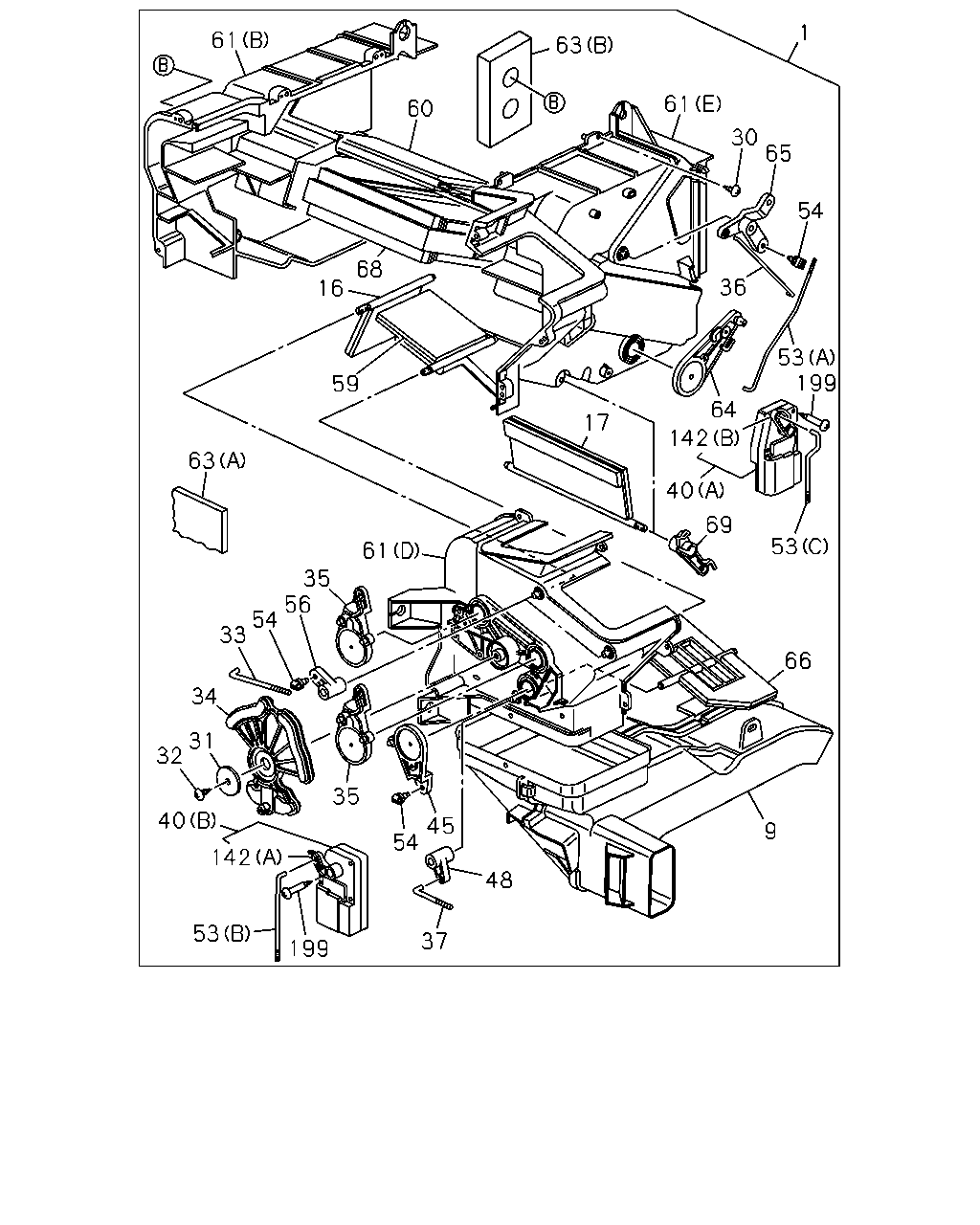

çizim 16185
1 61 63 61 30 65 60 54 68 16 36 53 199 59 64 142 17 63 40 69 53 61 35 56 54 33 66 34 31 32 35 40 45 54 9 142 48 53 37 199
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-97161-818-0 01 1 9708-9907
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-818-0 01 1 9908-
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97218-692-1 01 1 9908-
9 DUCT; HTR UNIT 8-97045-852-1 01 1 9708-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-527-0 01 1 9708-
17 SHUTTER; HTR UNIT,CENTER 8-94324-834-0 01 1 9708-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 13 1 9708-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9708-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9708-
33 ROD; SHUTTER LEVER 8-94324-849-0 02 1 9708-
34 LEVER; SHUTTER,HTR UNIT 8-97142-572-0 01 1 9708-9907
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9908-
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97221-315-0 01 1 9908-
35 LEVER; SHUTTER,HTR UNIT 8-94324-843-1 02 1 9708-
36 ROD; HTR UNIT 8-94324-847-0 01 1 9708-0009
36 ROD; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 0010-
37 ROD; LEVER 8-94324-848-0 01 1 9708-
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (A) 		8-97221-310-0 01 1 9908-
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97221-311-0 01 1 9908-0009
40 ACTUATOR; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		1-83579-830-0 01 1 0010-
45 LEVER; SHUTTER,HTR UNIT 8-94324-844-1 01 1 9708-
48 LEVER; HTR UNIT 8-94324-842-0 01 1 9708-
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9708-
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97221-313-0 01 1 9908-
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97221-314-0 01 1 9908-
54 CLIP; SHUTTER LEVER 8-94248-794-0 04 1 9708-9907
54 CLIP; SHUTTER LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9908-
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9908-
56 LEVER; SHUTTER,HTR UNIT 8-94324-841-0 02 1 9708-
59 SHUTTER; HTR UNIT,SIDE 8-94324-835-0 01 1 9708-
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9708-
61 CASE; HTR UNIT
(A) 		8-94324-828-3 01 1 9708-9907
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-828-3 01 1 9908-
61 CASE; HTR UNIT
(B) 		8-94324-829-3 01 1 9708-
61 CASE; HTR UNIT
(C) 		8-94324-830-1 01 1 9708-9907
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9908-
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97221-317-0 01 1 9908-0009
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97223-962-0 01 1 0010-
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (E) 		8-97221-318-0 01 1 9908-0009
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (E) 		8-97223-963-0 01 1 0010-
63 LINING; HTR UNIT
(B) 		8-97069-416-1 01 1 9708-
63 LINING; HTR UNIT
(A) 		8-97081-291-1 01 1 9708-
64 LEVER; MIX,DOOR 8-94324-840-1 01 1 9708-0009
64 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 0010-
64 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-94328-658-0 01 1 0010-
65 LEVER; MIX,DOOR 8-94324-838-0 01 1 9708-9907
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-838-0 01 1 9908-
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97221-316-0 01 1 9908-
66 SHUTTER; HTR UNIT,CENTER LWR 8-94324-836-0 01 1 9708-
68 CORE; HTR UNIT 8-97165-287-0 01 1 9708-
69 LEVER; SHUTTER,HTR UNIT 8-97045-854-0 01 1 9708-
142 LEVER; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) (A) 		1-83564-385-0 01 1 9908-
142 LEVER; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97226-480-0 01 1 9908-
199 SCREW; ACTUATOR
FULLAUTO AIR CONDITIONER(C68) 		8-94348-809-0 04 1 9908-

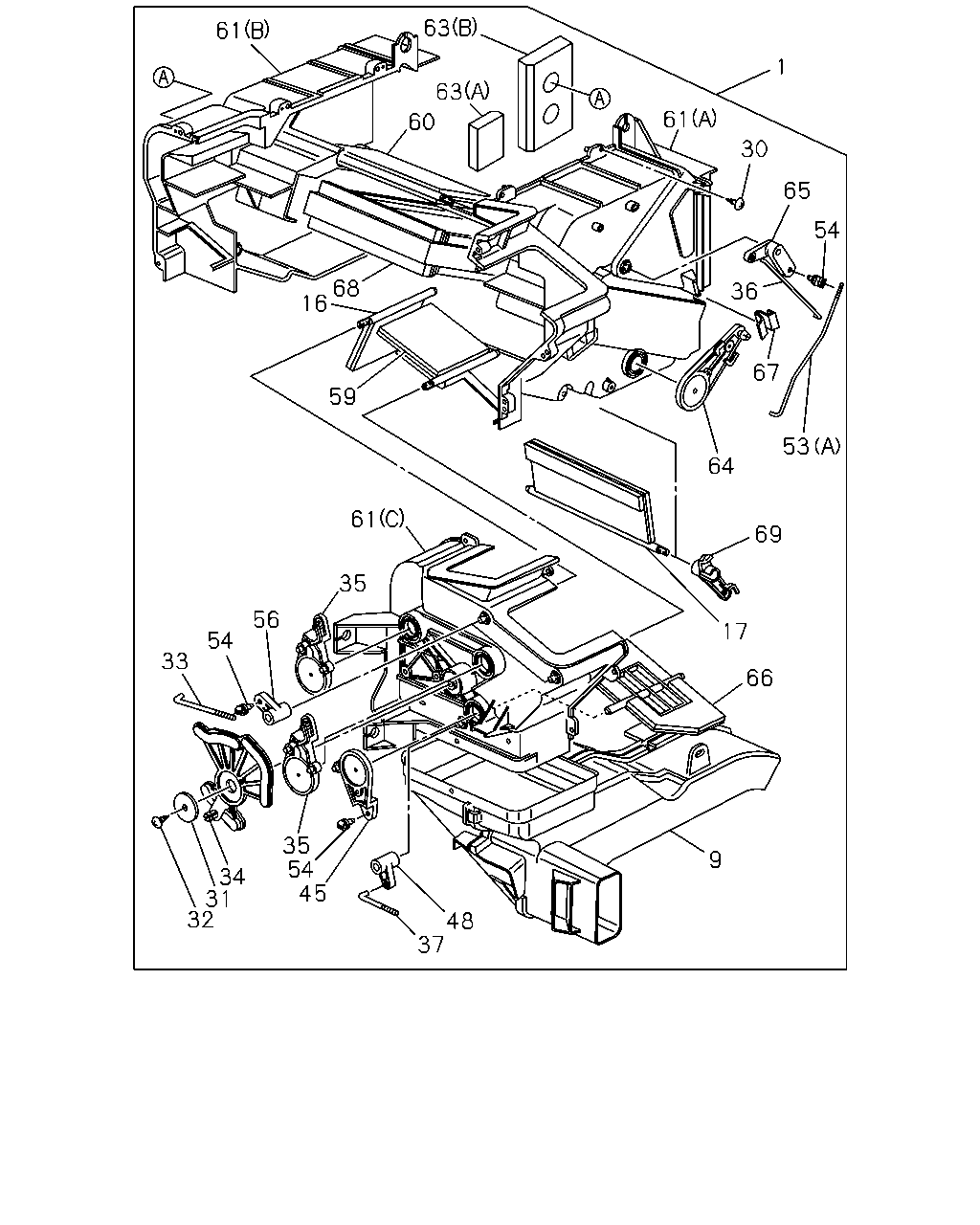

çizim 63860
63 61 1 63 61 60 30 65 54 68 16 36 67 59 53 64 61 69 35 56 17 54 33 66 35 54 45 9 34 31 32 48 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-97161-818-0 01 1 9708-9907
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-818-0 01 1 9908-
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97218-692-1 01 1 9908-
9 DUCT; HTR UNIT 8-97045-852-1 01 1 9708-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97161-527-0 01 1 9708-
17 SHUTTER; HTR UNIT,CENTER 8-94324-834-0 01 1 9708-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 13 1 9708-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9708-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9708-
33 ROD; SHUTTER LEVER 8-94324-849-0 02 1 9708-
34 LEVER; SHUTTER,HTR UNIT 8-97142-572-0 01 1 9708-9907
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9908-
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-97221-315-0 01 1 9908-
35 LEVER; SHUTTER,HTR UNIT 8-94324-843-1 02 1 9708-
36 ROD; HTR UNIT 8-94324-847-0 01 1 9708-0009
36 ROD; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 0010-
37 ROD; LEVER 8-94324-848-0 01 1 9708-
45 LEVER; SHUTTER,HTR UNIT 8-94324-844-1 01 1 9708-
48 LEVER; HTR UNIT 8-94324-842-0 01 1 9708-
53 ROD; SHUTTER LEVER
(A) 		8-94324-846-0 01 1 9708-
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (B) 		8-97221-313-0 01 1 9908-
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) (C) 		8-97221-314-0 01 1 9908-
54 CLIP; SHUTTER LEVER 8-94248-794-0 04 1 9708-9907
54 CLIP; SHUTTER LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9908-
54 CLIP; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-94248-794-0 06 1 9908-
56 LEVER; SHUTTER,HTR UNIT 8-94324-841-0 02 1 9708-
59 SHUTTER; HTR UNIT,SIDE 8-94324-835-0 01 1 9708-
60 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9708-
61 CASE; HTR UNIT
(A) 		8-94324-828-3 01 1 9708-9907
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-828-3 01 1 9908-
61 CASE; HTR UNIT
(B) 		8-94324-829-3 01 1 9708-
61 CASE; HTR UNIT
(C) 		8-94324-830-1 01 1 9708-9907
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9908-
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97221-317-0 01 1 9908-0009
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (D) 		8-97223-962-0 01 1 0010-
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (E) 		8-97221-318-0 01 1 9908-0009
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (E) 		8-97223-963-0 01 1 0010-
63 LINING; HTR UNIT
(B) 		8-97069-416-1 01 1 9708-
63 LINING; HTR UNIT
(A) 		8-97081-291-1 01 1 9708-
64 LEVER; MIX,DOOR 8-94324-840-1 01 1 9708-0009
64 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 0010-
64 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-94328-658-0 01 1 0010-
65 LEVER; MIX,DOOR 8-94324-838-0 01 1 9708-9907
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-94324-838-0 01 1 9908-
65 LEVER; MIX,DOOR
FULLAUTO AIR CONDITIONER(C68) 		8-97221-316-0 01 1 9908-
66 SHUTTER; HTR UNIT,CENTER LWR 8-94324-836-0 01 1 9708-
67 CLIP; HTR UNIT 8-94337-654-0 02 1 9708-9907
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 9908-
68 CORE; HTR UNIT 8-97165-287-0 01 1 9708-
69 LEVER; SHUTTER,HTR UNIT 8-97045-854-0 01 1 9708-
