8-52 — PIPING; AIR CONDITIONING (#46226) — 147 parça

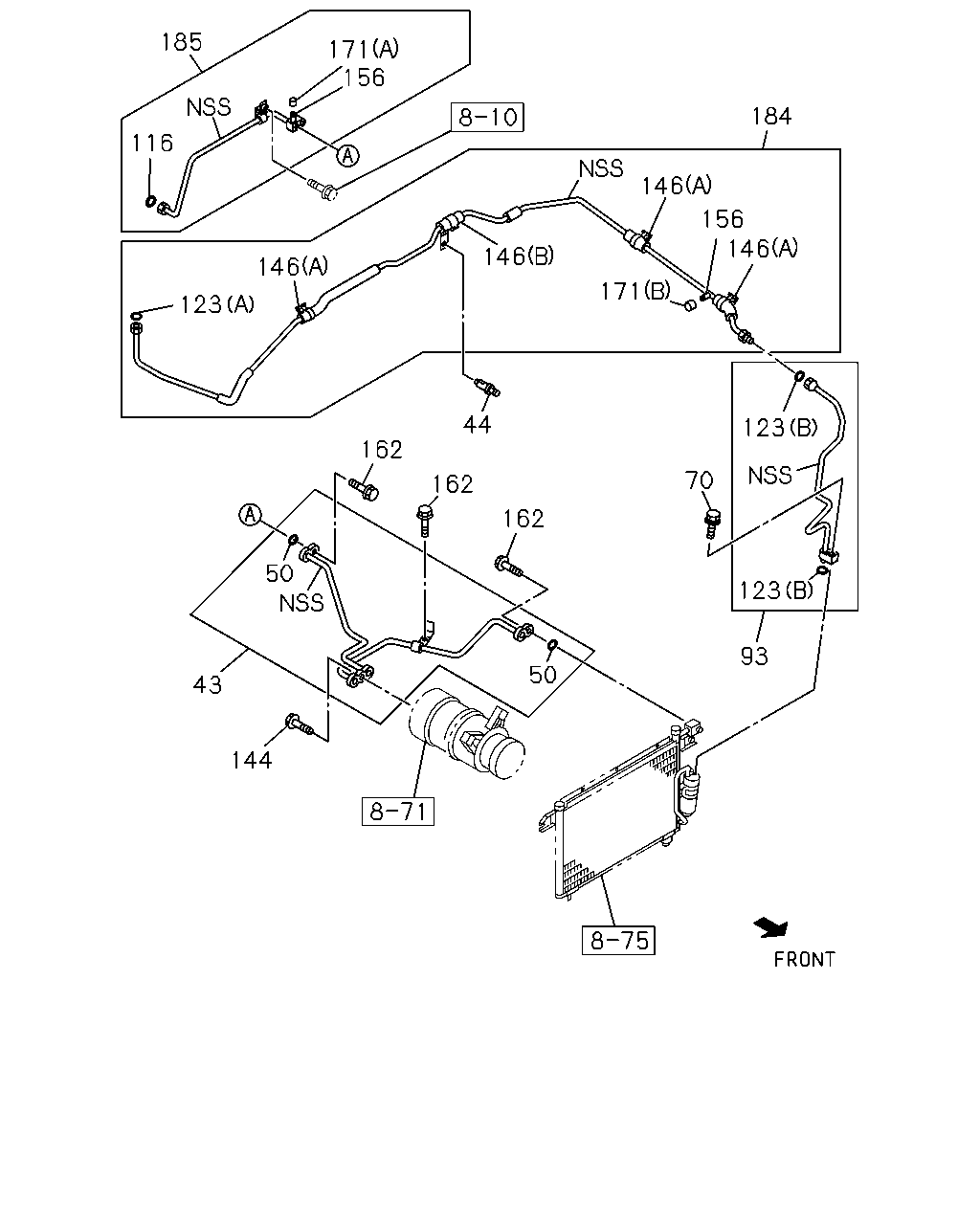

185 171 156 116 184 146 156 146 146 146 171 123 44 123 162 70 162 162 50 123 50 93 43 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-52477-883-1	01	1	9708-9708
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-52481-545-1	01	1	9709-9801
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-52481-545-1	01	1	9802-9806
43	HOSE; FLEX,A/C,EVAP TO CMPR EXC. RR COOLER<7UL>	8-52481-545-1	01	1	9807-0004
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	01	1	9708-9801
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> D6.8X12	8-94198-687-0	01	1	9802-9806
44	CLIP; FLEX HOSE EXC. RR COOLER<7UL> D6.8X12	8-94198-687-0	01	1	9807-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=9.25	8-52454-645-0	01	1	9708-9801
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=9.25	8-52454-645-0	01	1	9802-9806
50	GASKET; FLEX HOSE,A/C EXC. RR COOLER<7UL> ID=9.25	8-52454-645-0	01	1	9807-0004
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=13.6	8-52478-902-0	01	1	9708-9801
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=13.6	8-52478-902-0	01	1	9802-9806
50	GASKET; FLEX HOSE,A/C EXC. RR COOLER<7UL> ID=13.6	8-52478-902-0	01	1	9807-0004
70	BOLT; PIPE TO BODY M6X16 FLANGE	0-28680-616-0	01	1	0203-
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28680-625-0	01	1	9708-9806
70	BOLT; PIPE TO BODY M6X25 FLANGE	0-28680-625-0	01	1	9807-
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-52477-884-0	01	1	9708-9801
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-52477-884-0	01	1	9802-9806
93	PIPE; RECEIVER TANK TO PIPE EXC. RR COOLER<7UL>	8-52477-884-0	01	1	9807-0004
93	PIPE; RECEIVER TANK TO PIPE RR COOLER<7UL>	8-97167-945-0	01	1	9802-0004
93	PIPE; RECEIVER TANK TO PIPE	8-97167-945-0	01	1	0005-0202
93	PIPE; RECEIVER TANK TO PIPE	8-97264-497-0	01	1	0203-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) ID=18.3	8-97161-778-0	01	1	9708-9801
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=18.3	8-97161-778-0	01	1	9802-9806
116	GASKET; PIPE ID=18.3	8-97161-778-0	01	1	9807-
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-52478-919-0	02	1	9708-9801
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B)	8-52478-919-0	02	1	9802-9806
123	GASKET; RECEIVER PIPE EXC. RR COOLER<7UL> (B)	8-52478-919-0	02	1	9807-0004
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97161-776-0	01	1	9708-9801
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9802-9806
123	GASKET; RECEIVER PIPE EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9807-
123	GASKET; RECEIVER PIPE RR COOLER<7UL> (B)	8-97161-776-0	02	1	9802-0004
123	GASKET; RECEIVER PIPE (B)	8-97161-776-0	02	1	0005-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X30 FLANGE	0-28781-030-0	01	1	9708-9801
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> M10X30 FLANGE	0-28781-030-0	01	1	9802-9806
144	BOLT; CONN TO CMPR EXC. RR COOLER<7UL> M10X30 FLANGE	0-28781-030-0	01	1	9807-0004
144	BOLT; CONN TO CMPR RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	02	1	9802-0004
144	BOLT; CONN TO CMPR M8X25 FLANGE	0-28680-825-0	02	1	0005-
146	CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9708-9801
146	CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9802-9806
146	CLIP; RECEIVER PIPE EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9807-
146	CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9708-9801
146	CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9802-9806
146	CLIP; RECEIVER PIPE EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9807-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9708-9801
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97083-100-0	02	1	9802-9806
156	VALVE; PIPE RR COOLER<7UL>	8-97083-100-0	01	1	9807-9905
156	VALVE; PIPE RR COOLER<7UL>	8-97083-100-0	01	1	9906-
156	VALVE; PIPE EXC. RR COOLER<7UL>	8-97083-100-0	02	1	9807-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	01	1	9708-9801
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9802-9806
162	BOLT; FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	9807-9809
162	BOLT; FLEX HOSE RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9810-9911
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) M8X30 FLANGE	0-28680-830-0	01	1	9708-9806
162	BOLT; FLEX HOSE M8X30 FLANGE	0-28680-830-0	01	1	9807-9911
162	BOLT; FLEX HOSE M8X30 FLANGE	0-28680-830-0	02	1	9912-
162	BOLT; FLEX HOSE EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	02	1	9810-9911
162	BOLT; FLEX HOSE EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9912-0004
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97083-101-0	01	1	9708-9801
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H	8-97083-101-0	01	1	9802-9806
171	CAP; PIPE EXC. RR COOLER<7UL> (B) CAP MARK H	8-97083-101-0	01	1	9807-
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	8-97083-102-0	01	1	9708-9801
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) CAP MARK L	8-97083-102-0	01	1	9802-9806
171	CAP; PIPE (A) CAP MARK L	8-97083-102-0	01	1	9807-9905
171	CAP; PIPE EXC. RR COOLER<7UL> (A) CAP MARK L	8-97083-102-0	01	1	9906-9906
171	CAP; PIPE (A) CAP MARK L	8-97083-102-0	01	1	9907-
184	PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97161-819-0	01	1	9708-9801
184	PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97161-819-0	01	1	9802-9806
184	PIPE; PIPE TO EVAP EXC. RR COOLER<7UL>	8-97161-819-0	01	1	9807-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER MANUAL CONT(C60)	8-97161-820-1	01	1	9708-9801
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97161-820-1	01	1	9802-9806
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97161-820-1	01	1	9807-0004
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97253-742-0	01	1	0005-0202
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97264-499-0	01	1	0203-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97205-809-0	01	1	9807-9905
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97228-213-0	01	1	9907-0202
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97264-498-0	01	1	0203-

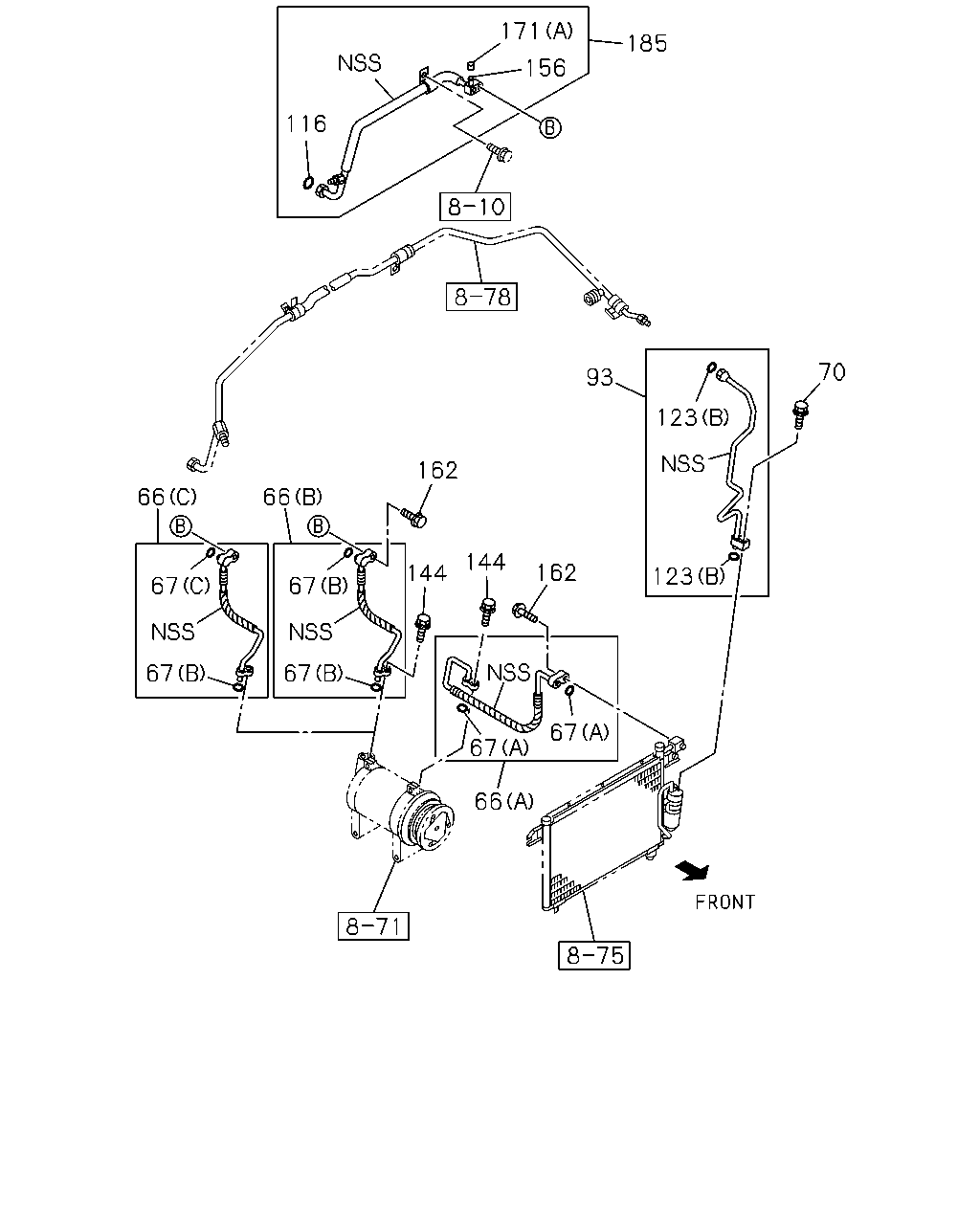

171 185 156 116 70 93 123 162 66 66 144 162 144 123 67 67 67 67 67 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	HOSE; FLEX,A/C RR COOLER<7UL> (B)	8-97167-976-0	01	1	9802-9905
66	HOSE; FLEX,A/C RR COOLER<7UL> (A)	8-97186-628-0	01	1	9802-0004
66	HOSE; FLEX,A/C (A)	8-97186-628-0	01	1	0005-0202
66	HOSE; FLEX,A/C (A)	8-97264-664-0	01	1	0203-
66	HOSE; FLEX,A/C RR COOLER<7UL> (C)	8-97228-220-0	01	1	9906-0004
66	HOSE; FLEX,A/C (C)	8-97228-220-1	01	1	0005-0202
66	HOSE; FLEX,A/C (C)	8-97264-666-0	01	1	0203-
67	GASKET; FLEX HOSE (C) ID=21.3	8-97252-506-0	01	1	0005-0202
67	GASKET; FLEX HOSE ID=21.3	8-97252-506-0	02	1	0203-
67	GASKET; FLEX HOSE RR COOLER<7UL> (A) ID=15.5	8-97161-777-0	02	1	9802-0004
67	GASKET; FLEX HOSE (A) ID=15.5	8-97161-777-0	02	1	0005-
67	GASKET; FLEX HOSE RR COOLER<7UL> (B) ID=18.3	8-97161-778-0	02	1	9802-9905
67	GASKET; FLEX HOSE RR COOLER<7UL> (B) ID=18.3	8-97161-778-0	01	1	9906-0004
67	GASKET; FLEX HOSE (B) ID=18.3	8-97161-778-0	01	1	0005-0202
67	GASKET; FLEX HOSE RR COOLER<7UL> (C) ID=21.3	8-97252-506-0	01	1	9906-0004
70	BOLT; PIPE TO BODY M6X16 FLANGE	0-28680-616-0	01	1	0203-
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28680-625-0	01	1	9708-9806
70	BOLT; PIPE TO BODY M6X25 FLANGE	0-28680-625-0	01	1	9807-
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-52477-884-0	01	1	9708-9801
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-52477-884-0	01	1	9802-9806
93	PIPE; RECEIVER TANK TO PIPE EXC. RR COOLER<7UL>	8-52477-884-0	01	1	9807-0004
93	PIPE; RECEIVER TANK TO PIPE RR COOLER<7UL>	8-97167-945-0	01	1	9802-0004
93	PIPE; RECEIVER TANK TO PIPE	8-97167-945-0	01	1	0005-0202
93	PIPE; RECEIVER TANK TO PIPE	8-97264-497-0	01	1	0203-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) ID=18.3	8-97161-778-0	01	1	9708-9801
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=18.3	8-97161-778-0	01	1	9802-9806
116	GASKET; PIPE ID=18.3	8-97161-778-0	01	1	9807-
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-52478-919-0	02	1	9708-9801
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B)	8-52478-919-0	02	1	9802-9806
123	GASKET; RECEIVER PIPE EXC. RR COOLER<7UL> (B)	8-52478-919-0	02	1	9807-0004
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97161-776-0	01	1	9708-9801
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9802-9806
123	GASKET; RECEIVER PIPE EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9807-
123	GASKET; RECEIVER PIPE RR COOLER<7UL> (B)	8-97161-776-0	02	1	9802-0004
123	GASKET; RECEIVER PIPE (B)	8-97161-776-0	02	1	0005-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M10X30 FLANGE	0-28781-030-0	01	1	9708-9801
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> M10X30 FLANGE	0-28781-030-0	01	1	9802-9806
144	BOLT; CONN TO CMPR EXC. RR COOLER<7UL> M10X30 FLANGE	0-28781-030-0	01	1	9807-0004
144	BOLT; CONN TO CMPR RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	02	1	9802-0004
144	BOLT; CONN TO CMPR M8X25 FLANGE	0-28680-825-0	02	1	0005-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	9708-9801
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97083-100-0	02	1	9802-9806
156	VALVE; PIPE RR COOLER<7UL>	8-97083-100-0	01	1	9807-9905
156	VALVE; PIPE RR COOLER<7UL>	8-97083-100-0	01	1	9906-
156	VALVE; PIPE EXC. RR COOLER<7UL>	8-97083-100-0	02	1	9807-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	01	1	9708-9801
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9802-9806
162	BOLT; FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	9807-9809
162	BOLT; FLEX HOSE RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9810-9911
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) M8X30 FLANGE	0-28680-830-0	01	1	9708-9806
162	BOLT; FLEX HOSE M8X30 FLANGE	0-28680-830-0	01	1	9807-9911
162	BOLT; FLEX HOSE M8X30 FLANGE	0-28680-830-0	02	1	9912-
162	BOLT; FLEX HOSE EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	02	1	9810-9911
162	BOLT; FLEX HOSE EXC. RR COOLER<7UL> M8X25 FLANGE	0-28680-825-0	01	1	9912-0004
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97083-101-0	01	1	9708-9801
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H	8-97083-101-0	01	1	9802-9806
171	CAP; PIPE EXC. RR COOLER<7UL> (B) CAP MARK H	8-97083-101-0	01	1	9807-
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	8-97083-102-0	01	1	9708-9801
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) CAP MARK L	8-97083-102-0	01	1	9802-9806
171	CAP; PIPE (A) CAP MARK L	8-97083-102-0	01	1	9807-9905
171	CAP; PIPE EXC. RR COOLER<7UL> (A) CAP MARK L	8-97083-102-0	01	1	9906-9906
171	CAP; PIPE (A) CAP MARK L	8-97083-102-0	01	1	9907-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER MANUAL CONT(C60)	8-97161-820-1	01	1	9708-9801
185	PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97161-820-1	01	1	9802-9806
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97161-820-1	01	1	9807-0004
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97253-742-0	01	1	0005-0202
185	PIPE; EVAP TO FLEX HOSE,PRESS LO EXC. RR COOLER<7UL>	8-97264-499-0	01	1	0203-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97205-809-0	01	1	9807-9905
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97228-213-0	01	1	9907-0202
185	PIPE; EVAP TO FLEX HOSE,PRESS LO RR COOLER<7UL>	8-97264-498-0	01	1	0203-
