8-50 — AIR CONDITIONING SYSTEM; FRONT (#46225) — 59 parça

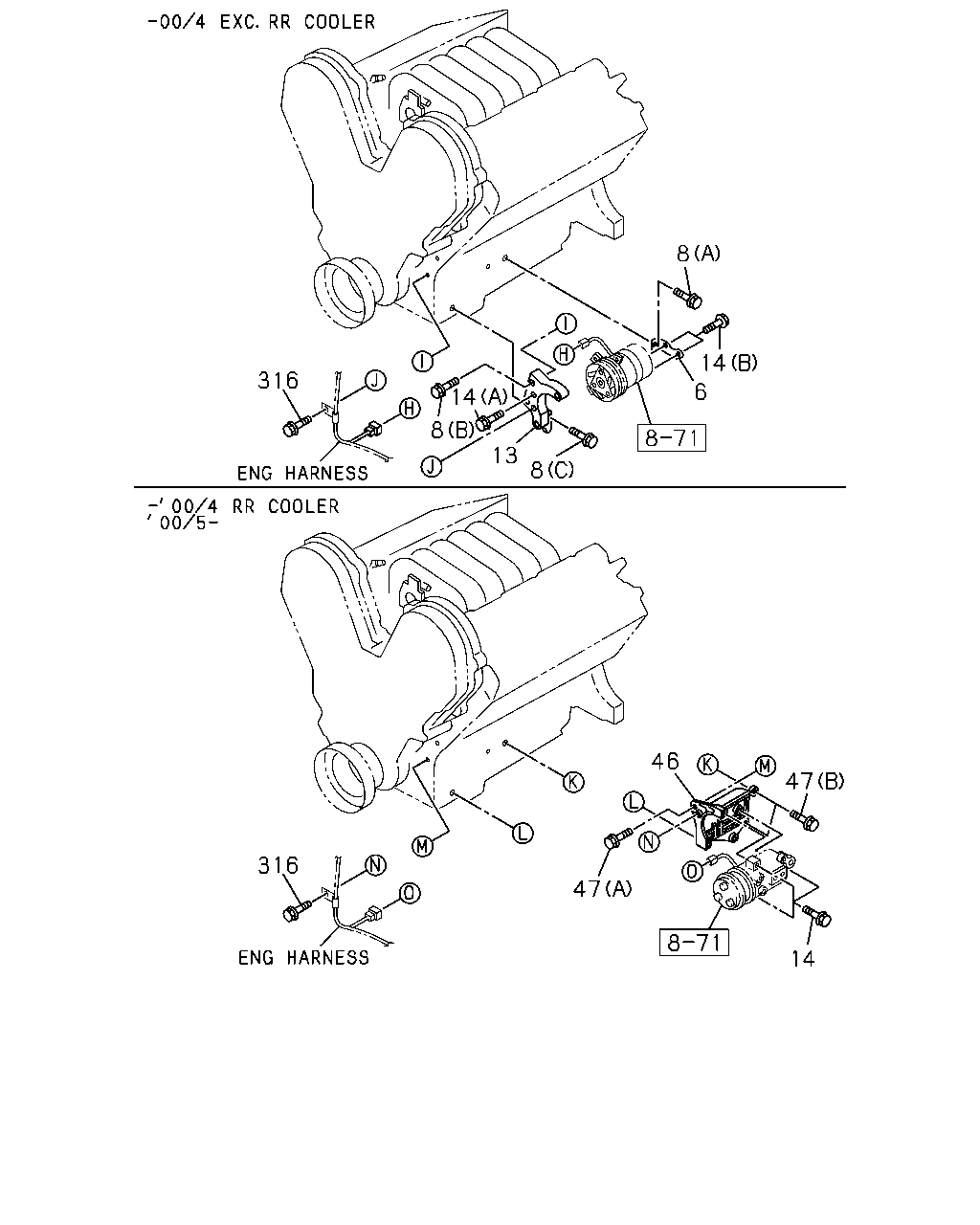

çizim 16312
8 14 6 14 8 13 8 316 46 47 316 47 14
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONT(C60) 		8-97163-228-1 01 1 9708-9801
6 BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97163-228-1 01 1 9802-9806
6 BRACKET; CMPR,RR
EXC. RR COOLER<7UL> 		8-97163-228-1 01 1 9807-0004
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9708-9801
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9802-9806
8 BOLT; BRKT
EXC. RR COOLER<7UL> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9807-0004
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M10X60 FLANGE 		0-28181-060-0 02 1 9708-9801
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) M10X60 FLANGE 		0-28181-060-0 02 1 9802-9806
8 BOLT; BRKT
EXC. RR COOLER<7UL> (B) M10X60 FLANGE 		0-28181-060-0 02 1 9807-0004
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (C) M10X25 FLANGE 		0-28781-025-0 01 1 9708-9801
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C) M10X25 FLANGE 		0-28781-025-0 01 1 9802-9806
8 BOLT; BRKT
EXC. RR COOLER<7UL> (C) M10X25 FLANGE 		0-28781-025-0 01 1 9807-0004
13 BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONT(C60) 		8-97163-227-0 01 1 9708-9801
13 BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97163-227-0 01 1 9802-9806
13 BRACKET; CMPR,FRT
EXC. RR COOLER<7UL> 		8-97163-227-0 01 1 9807-0004
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE 		0-28181-050-0 03 1 9708-9801
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) M10X50 FLANGE 		0-28181-050-0 03 1 9802-9806
14 BOLT; CMPR
EXC. RR COOLER<7UL> (A) M10X50 FLANGE 		0-28181-050-0 03 1 9807-0004
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28680-820-0 02 1 9708-9801
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9806
14 BOLT; CMPR
EXC. RR COOLER<7UL> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9807-0004
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) RR COOLER<7UL> (C) M8X80 FLANGE 		0-28080-880-0 02 1 9802-9806
14 BOLT; CMPR
RR COOLER<7UL> (C) M8X80 FLANGE 		0-28080-880-0 02 1 9807-0004
14 BOLT; CMPR
(C) M8X80 FLANGE 		0-28080-880-0 02 1 0005-0202
14 BOLT; CMPR
(C) M8X70 FLANGE 		0-28080-870-0 04 1 0203-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) RR COOLER<7UL> (C) M8X65 FLANGE 		1-09044-072-1 02 1 9802-9806
14 BOLT; CMPR
RR COOLER<7UL> (C) M8X65 FLANGE 		1-09044-072-1 02 1 9807-0004
14 BOLT; CMPR
(C) M8X65 FLANGE 		1-09044-072-1 02 1 0005-0202
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) RR COOLER<7UL> 		8-97130-360-1 01 1 9802-9806
46 BRACKET; CMPR
RR COOLER<7UL> 		8-97130-360-1 01 1 9807-0004
46 BRACKET; CMPR 8-97130-360-1 01 1 0005-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) RR COOLER<7UL> (A) M10X80 FLANGE 		0-28181-080-0 01 1 9802-9806
47 BOLT; BRKT TO BODY
RR COOLER<7UL> (A) M10X80 FLANGE 		0-28181-080-0 01 1 9807-0004
47 BOLT; BRKT TO BODY
(A) M10X80 FLANGE 		0-28181-080-0 01 1 0005-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) RR COOLER<7UL> (B) M10X30 FLANGE 		0-28781-030-0 02 1 9802-9806
47 BOLT; BRKT TO BODY
RR COOLER<7UL> (B) M10X30 FLANGE 		0-28781-030-0 02 1 9807-0004
47 BOLT; BRKT TO BODY
(B) M10X30 FLANGE 		0-28781-030-0 02 1 0005-
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) M6X10 FLANGE 		0-28080-610-0 01 1 9708-9806
316 BOLT; BRKT FIX
M6X10 FLANGE 		0-28080-610-0 01 1 9807-9907
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6X10 FLANGE 		0-28080-610-0 01 1 9908-0005
316 BOLT; BRKT FIX
M6X10 FLANGE 		0-28080-610-0 01 1 0006-

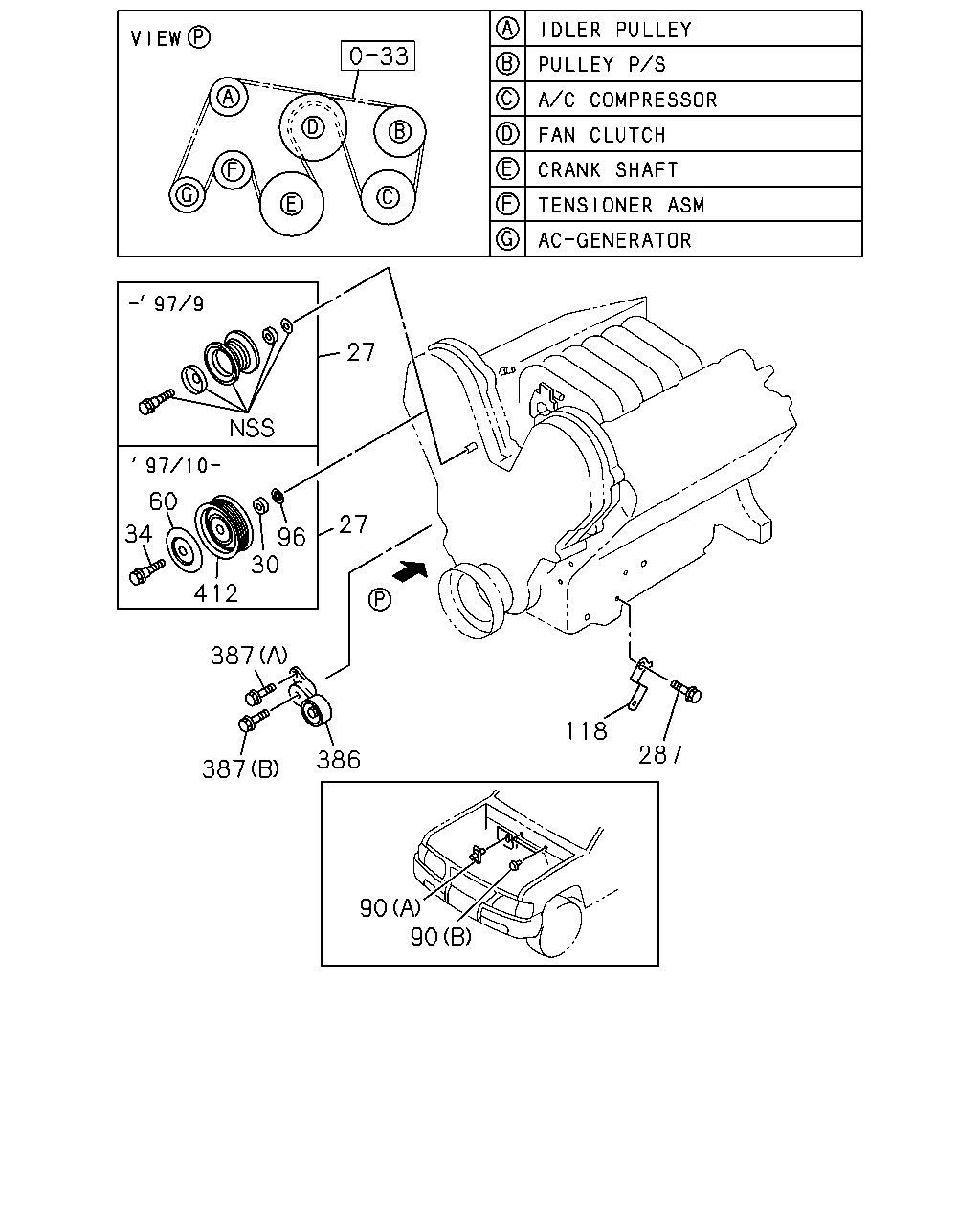

çizim 64050
27 96 30 412 60 34 27 387 118 287 386 387 90 90
BalonParca AdiParca NoAdetTipApplied Date
27 PULLEY; IDLE,A/C 8-97130-359-0 01 1 9708-9709
27 PULLEY; IDLE,A/C 8-97178-354-0 01 1 9710-
30 COLLAR; IDLE PULLEY 8-97185-854-0 01 1 9710-
34 SHAFT; IDLE PULLEY 8-97185-858-0 01 1 9710-
60 COVER; IDLER PULLEY 8-97185-857-0 01 1 9710-
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94222-310-1 01 1 9708-9907
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12 		9-09956-122-0 02 1 9708-9907
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-94222-310-1 01 1 9908-
90 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=12 		9-09956-122-0 02 1 9908-
96 WASHER; LK 8-97185-853-0 01 1 9710-
118 BRACKET; HARNESS CLIP,A/C
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97039-000-0 01 1 9708-9907
118 BRACKET; HARNESS CLIP,A/C
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97039-000-0 01 1 9908-
287 BOLT; BRKT,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) M10X16 FLANGE 		0-28181-016-0 01 1 9708-9907
287 BOLT; BRKT,HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M10X16 FLANGE 		0-28181-016-0 01 1 9908-
386 TENSIONER ASM 8-97125-860-1 01 1 9708-
387 BOLT; TENSIONER FIX
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9708-
387 BOLT; TENSIONER FIX
(B) M10X65 		9-05821-065-0 01 1 9708-
412 PULLEY; IDLER WITH BRG 8-97185-859-0 01 1 9710-
