Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶

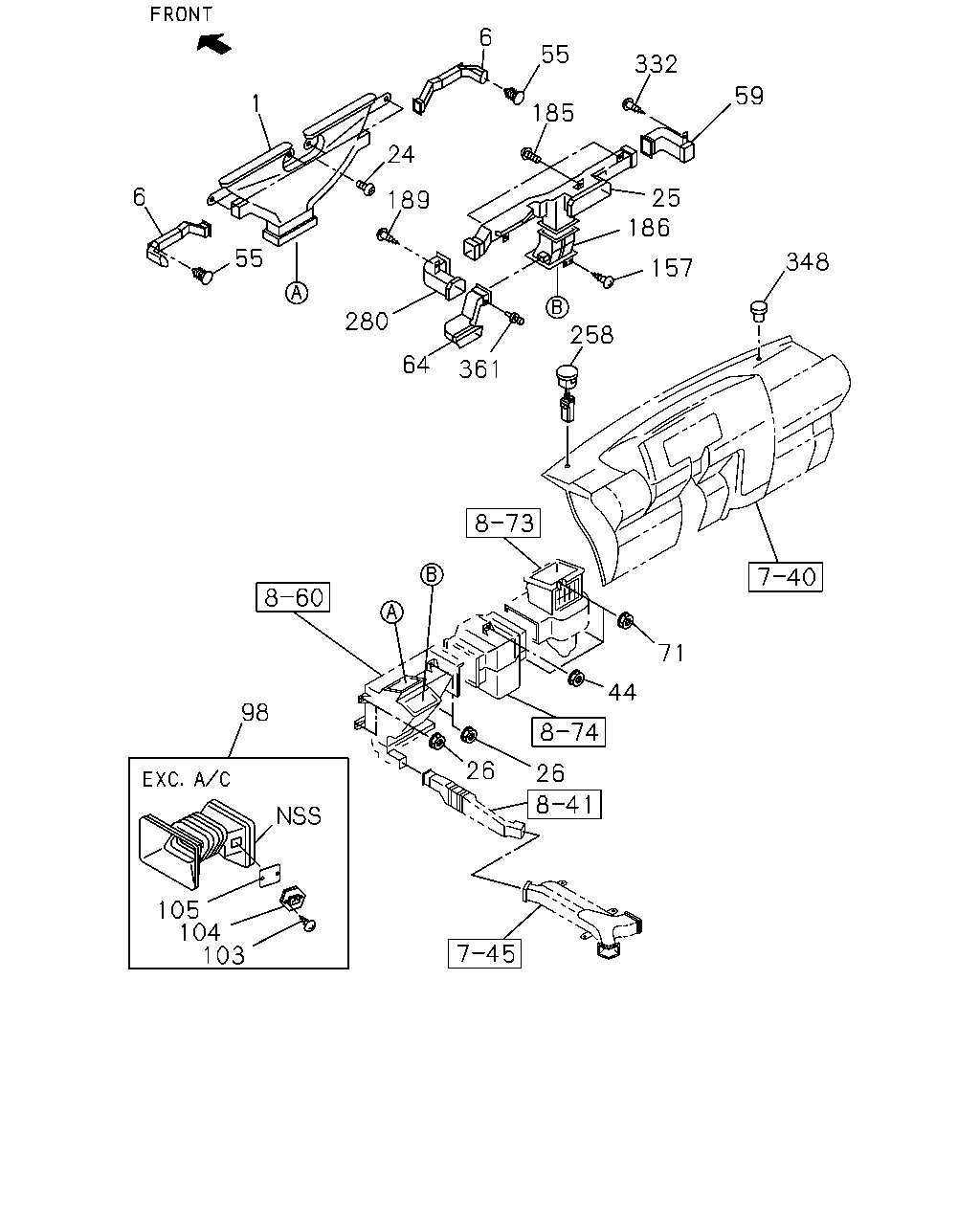

8-40 — HEATER SYSTEM
(#46222) — 32 parça
◀
[840A] DUCT (28 parça)
[840A] AMBIENT SENSOR,RELAY (4 parça)
▶
6
55
332
59
1
185
24
6
25
186
189
55
348
157
258
280
64
361
71
44
98
26
26
105
104
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
NOZZLE; DEFROSTER,INST PNL
8-97102-691-2
01
1
9708-
6
DUCT; SIDE DEFROSTER
8-97102-688-1
01
1
9708-
6
DUCT; SIDE DEFROSTER
8-97102-689-1
01
1
9708-
24
SCREW; NOZZLE TO INST PNL
M5X16 W/LK&PL WASHER
9-03920-516-0
04
1
9708-
25
DUCT; CENTER
8-97102-683-1
01
1
9708-
26
NUT; HTR
M6 FLANGE
8-97063-399-0
04
1
9708-
44
NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE
8-97063-399-0
02
1
9708-9806
44
NUT; EVAP
M6 FLANGE
8-97063-399-0
02
1
9807-
55
CLIP; HOSE,SIDE DEFROSTER
ID=6 OD=16 L=18
8-94178-705-0
02
1
9708-
59
DUCT; VENT,ASSIST SIDE
8-97102-685-1
01
1
9708-
64
DUCT; VENT,DRIVER SIDE
8-97102-686-2
01
1
9708-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
8-97063-399-0
03
1
9708-
98
DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41)
8-94376-106-0
01
1
9708-9806
103
SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41) M4X16 TAPPING
1-83579-114-0
02
1
9708-9806
104
RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41)
8-97045-850-0
01
1
9708-9806
105
PLATE; HTR DUCT
HEATER & DEFROSTER(C41)
8-97045-851-0
01
1
9708-9806
157
SCREW
M5X16
9-09829-323-1
01
1
9708-
185
SCREW; VENT DUCT
M5X16
9-09829-323-1
03
1
9708-
186
DUCT; VENTILATOR
8-97102-687-2
01
1
9708-
189
SCREW; AIR DUCT
M5X16
9-09829-323-1
01
1
9708-
258
SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68)
8-97045-692-0
01
1
9908-
280
DUCT; VENT,DRIVER SIDE
8-97102-684-0
01
1
9708-
332
SCREW; TAP,COVER
M5X16
9-09829-323-1
01
1
9708-
348
COVER; SUN SENSOR
8-97121-843-1
01
1
9708-9901
348
COVER; SUN SENSOR
8-97121-843-1
02
1
9902-9907
348
COVER; SUN SENSOR
FULLAUTO AIR CONDITIONER(C68)
8-97121-843-1
01
1
9908-
348
COVER; SUN SENSOR
EXC. FULLAUTO AIR CONDITIONER(C68)
8-97121-843-1
02
1
9908-
361
CLIP; DUCT
D6.8X12
8-94198-687-0
01
1
9708-
241
32
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
RELAY; A/C
RR COOLER<7UL> 12V 20A
8-97093-910-1
01
1
9802-
207
SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68)
8-97177-549-0
01
1
9908-
241
PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-94222-309-1
01
1
9708-9907
241
PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)
8-94222-309-1
01
1
9908-
