◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#46220) — 18 parça

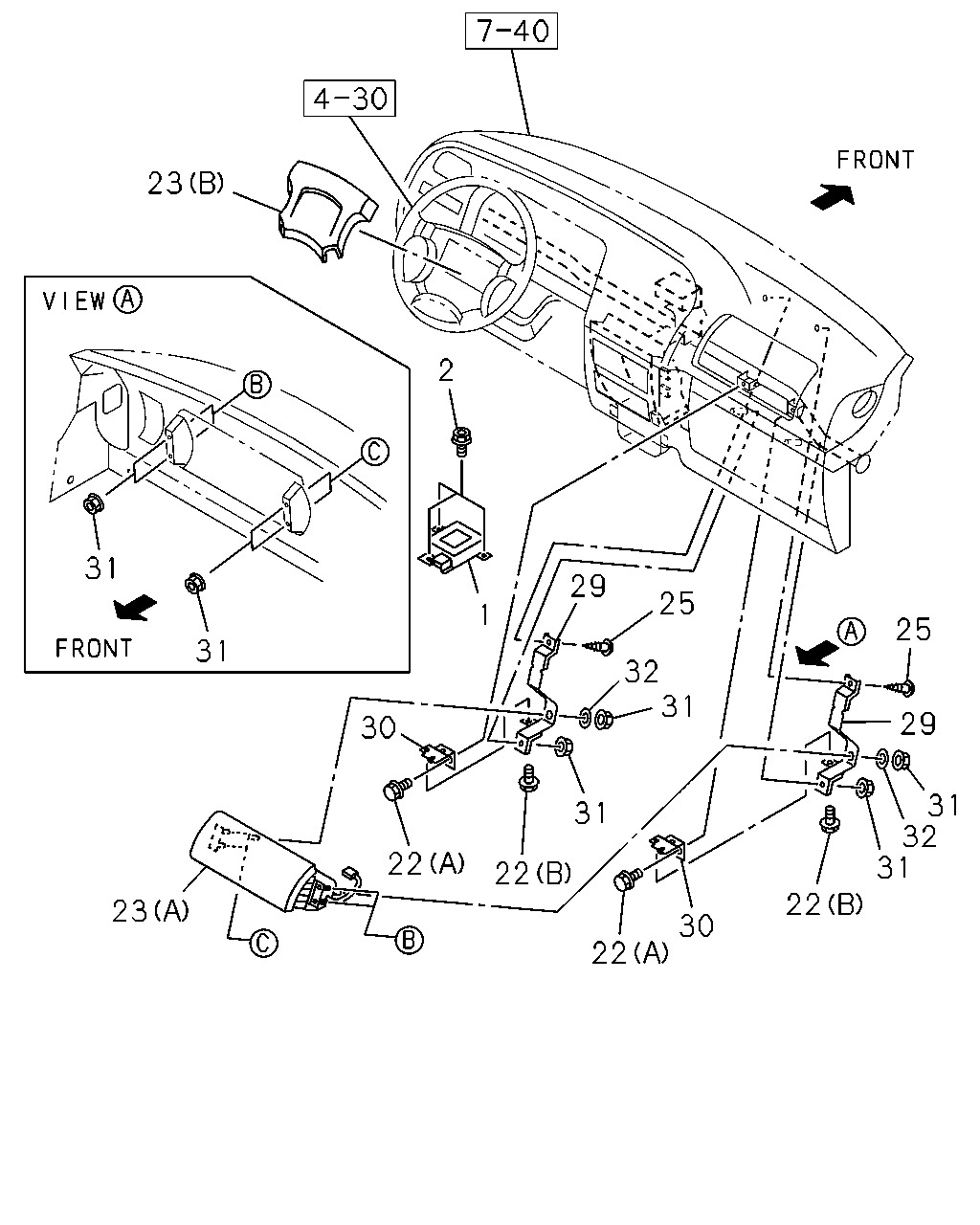

çizim 65145
23 2 31 25 29 1 25 31 32 31 29 30 31 32 31 22 31 22 22 23 30 22
BalonParca AdiParca NoAdetTipApplied Date
1 CONTROL UNIT; SIR 8-16230-119-2 01 1 9708-9712
1 CONTROL UNIT; SIR 8-09352-669-2 01 1 9801-
2 BOLT; CONT UNIT,SIR
M6X18 W/PL WASHER 		8-97105-796-0 03 1 9708-
22 BOLT; SIR MODULE
(A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9708-
22 BOLT; SIR MODULE
(B) M6X12 W/PL WASHER 		8-97806-950-0 02 1 9708-
23 AIR BAG UNIT
(A) DARK GRAY 		8-97159-609-0 01 1 9708-9907
23 AIR BAG UNIT
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97159-609-1 01 1 9908-
23 AIR BAG UNIT
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-567-1 01 1 9908-
23 AIR BAG UNIT
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97292-323-4 01 1 9908-
23 AIR BAG UNIT
STRG WHEEL LEATHER(NK3),STRG WHEEL URETHANE(NK4) (B) BLACK 		8-97158-277-0 01 1 9708-9801
23 AIR BAG UNIT
STRG WHEEL LEATHER(NK3) (B) BLACK 		8-97158-277-0 01 1 9802-9806
23 AIR BAG UNIT
(B) BLACK 		8-97198-160-0 01 1 9807-9907
23 AIR BAG UNIT
INTERIOR COLOR MEDIUM GRAY(113) (B) BLACK 		8-97198-663-4 01 1 9908-
25 SCREW
M5X14 		1-72548-072-0 02 1 9708-
29 BRACKET; SUPPORT 8-97103-476-1 02 1 9708-
30 BRACKET; SIR 8-97083-249-1 02 1 9708-
31 NUT
M6 W/WASHER 		8-94170-192-0 08 1 9708-
32 WASHER; PL 1-09503-075-0 02 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
