◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#46218) — 126 parça

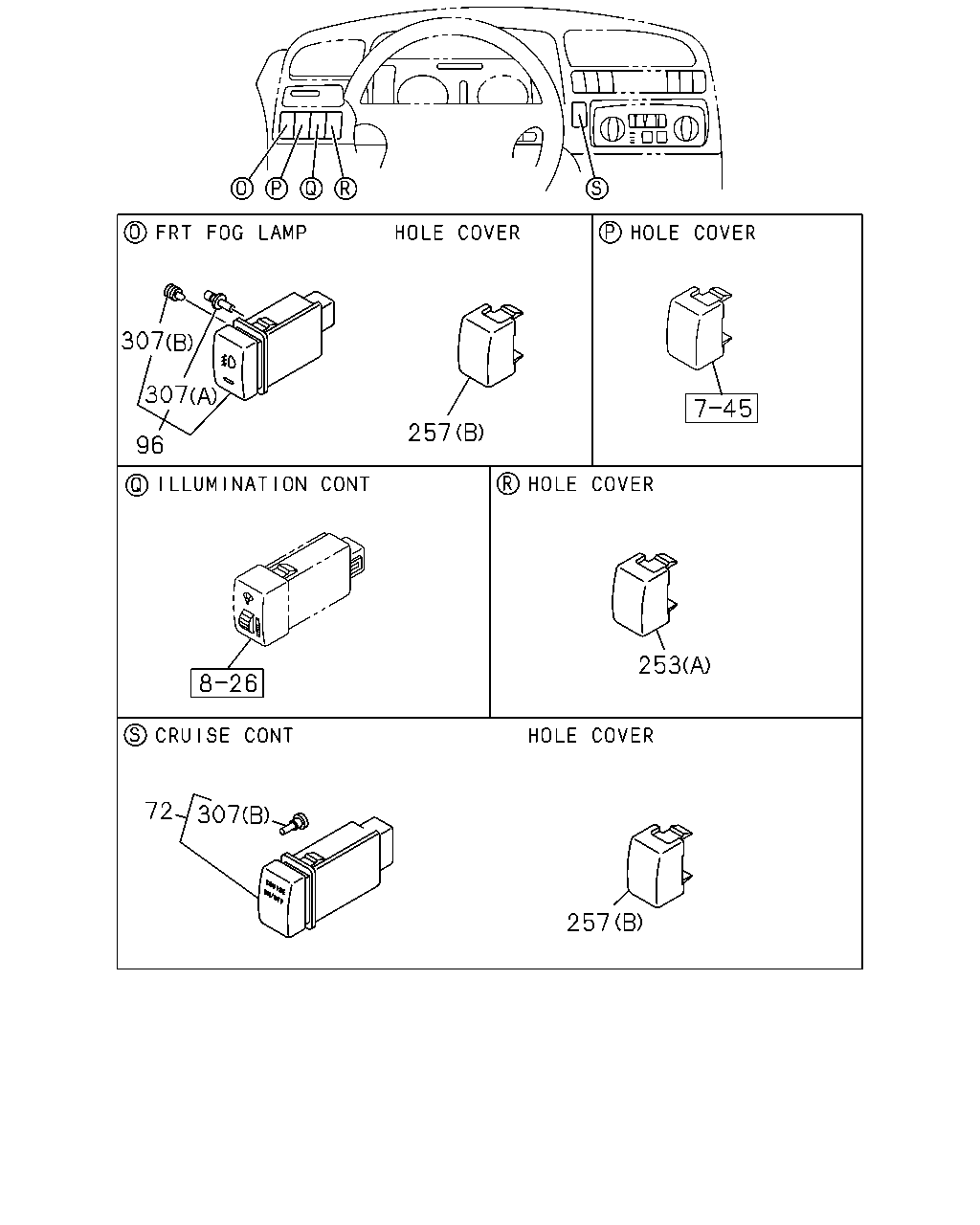

çizim 15805
307 307 257 96 72 257 253 307
BalonParca AdiParca NoAdetTipApplied Date
72 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97135-520-0 01 1 9708-9801
72 SWITCH; CRUISE CONT 8-97135-520-0 01 1 9802-
96 SWITCH; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97135-512-0 01 1 9708-
253 COVER; SW HOLE
(A) 		8-97081-617-1 01 1 9708-
253 COVER; SW HOLE
(B) 		8-97088-762-0 02 1 9708-
257 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (B) 		8-97081-617-1 01 1 9708-9801
257 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (B) 		8-97081-617-1 01 1 9708-9801
257 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (B) 		8-97081-617-1 01 1 9802-
257 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (A) 		8-97088-762-0 01 1 9708-9801
257 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97088-762-0 01 1 9708-9801
307 BULB ASM; SW
(D) 		8-97262-247-0 01 1 9708-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 02 1 9807-
307 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9802-9806
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9708-9806
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (C) 14V 		8-97102-738-0 01 1 9807-

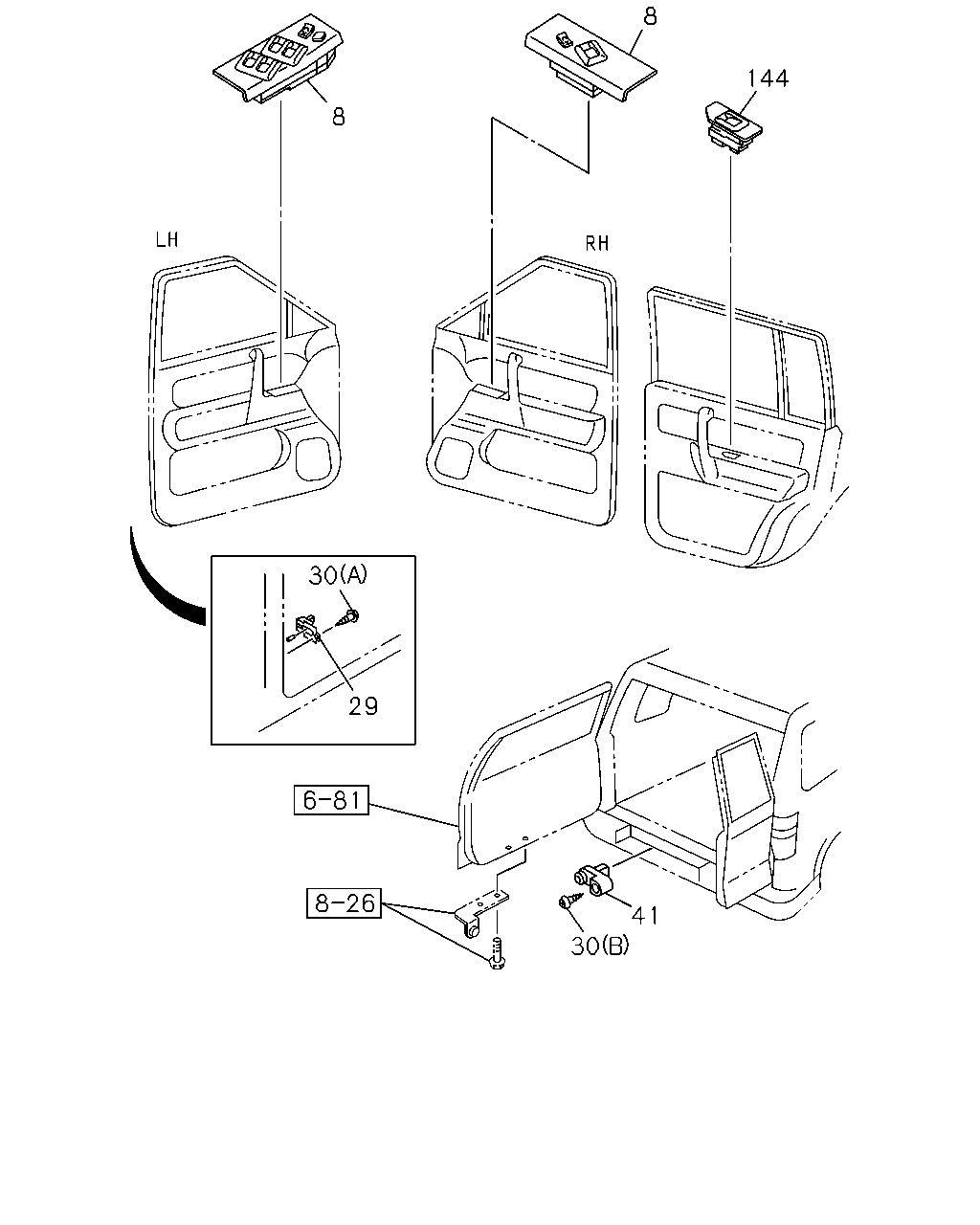

çizim 16581
8 144 8 30 29 41 30
BalonParca AdiParca NoAdetTipApplied Date
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97154-904-1 01 1 9708-9801
8 SWITCH; POWER WINDOW
BLACK 		8-97154-904-1 01 1 9802-0202
8 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97154-904-3 01 1 0203-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> BLACK 		8-97153-006-1 01 1 9708-9801
8 SWITCH; POWER WINDOW
BLACK 		8-97153-006-1 01 1 9802-0202
8 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97153-006-2 01 1 0203-0302
8 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97395-390-1 01 1 0303-
8 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> 		8-97288-235-2 01 1 0203-
8 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> 		8-97288-231-1 01 1 0203-0302
8 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> 		8-97353-400-1 01 1 0303-
29 SWITCH; DOOR 8-97146-195-1 04 1 9708-
30 SCREW; DOOR SW
(A) M5X14 		8-94120-095-0 04 1 9708-
30 SCREW; DOOR SW
(B) M5X14 BURRING BIND-HEAD 		8-94313-116-1 01 1 9708-
41 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 9708-
144 SWITCH; POWER WINDOW,RR
BLACK 		8-97098-342-2 01 1 9802-0202
144 SWITCH; POWER WINDOW,RR
EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-342-3 01 1 0203-
144 SWITCH; POWER WINDOW,RR
BLACK 		8-97098-341-2 01 1 9802-0202
144 SWITCH; POWER WINDOW,RR
EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-341-3 01 1 0203-
144 SWITCH; POWER WINDOW,RR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9708-9801
144 SWITCH; POWER WINDOW,RR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9708-9801
144 SWITCH; POWER WINDOW,RR
WOOD PRINT TRIM<7QR> 		8-97288-239-1 01 1 0203-
144 SWITCH; POWER WINDOW,RR
WOOD PRINT TRIM<7QR> 		8-97288-240-1 01 1 0203-

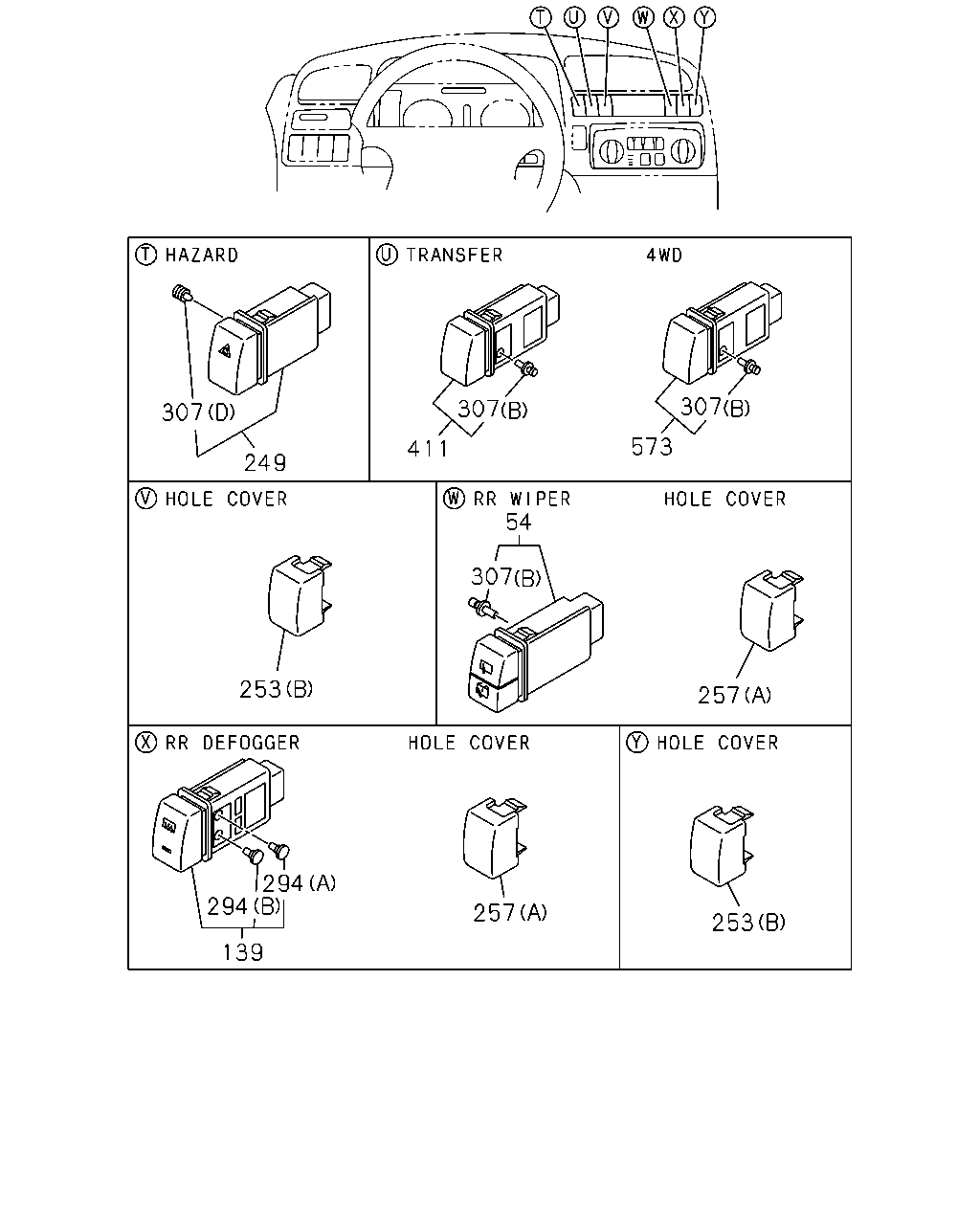

çizim 63939
307 307 307 573 411 249 54 307 253 257 294 294 257 253 139
BalonParca AdiParca NoAdetTipApplied Date
54 SWITCH; RR WIPER 8-97135-516-0 01 1 9708-
139 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97163-882-0 01 1 9708-9801
139 SWITCH; RR DEFOGGER 8-97163-882-0 01 1 9802-
249 SWITCH; HAZARD 8-97085-381-3 01 1 9708-
253 COVER; SW HOLE
(A) 		8-97081-617-1 01 1 9708-
253 COVER; SW HOLE
(B) 		8-97088-762-0 02 1 9708-
257 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (B) 		8-97081-617-1 01 1 9708-9801
257 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (B) 		8-97081-617-1 01 1 9708-9801
257 COVER; HOLE,SW
EXC. FOG LAMP HALOGEN(T37) (B) 		8-97081-617-1 01 1 9802-
257 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (A) 		8-97088-762-0 01 1 9708-9801
257 COVER; HOLE,SW
EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97088-762-0 01 1 9708-9801
294 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 14V 0.84W 		8-97102-440-0 01 1 9708-9801
294 BULB; DEFOGGER SW
(B) 14V 0.84W 		8-97102-440-0 01 1 9802-
294 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> (A) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
294 BULB; DEFOGGER SW
(A) 14V 0.84W 		8-97117-108-0 01 1 9802-
307 BULB ASM; SW
(D) 		8-97262-247-0 01 1 9708-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 02 1 9807-
307 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9802-9806
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9708-9806
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (C) 14V 		8-97102-738-0 01 1 9807-
411 SWITCH; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97142-656-1 01 1 9708-
573 SWITCH; 4WD
EXC. TORQUE ON DEMAND<7HA> 		8-97142-655-1 01 1 9708-

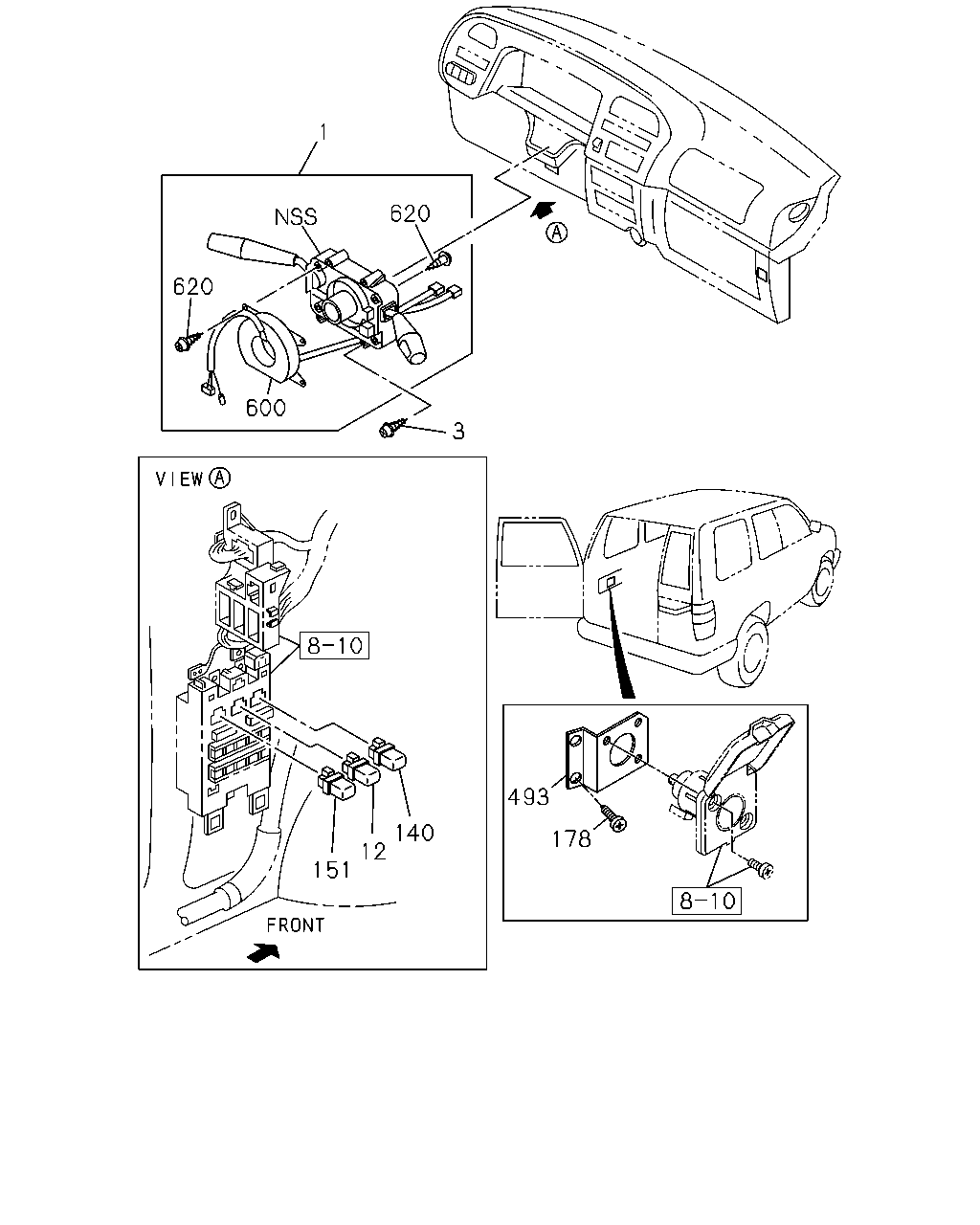

çizim 64008
1 620 620 600 3 493 140 178 12 151
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97163-931-2 01 1 9708-9801
1 SWITCH; COMB 8-97163-931-5 01 1 9802-
1 SWITCH; COMB
FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97163-929-2 01 1 9708-9801
1 SWITCH; COMB
INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> 		8-97163-930-2 01 1 9708-9801
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30> 		8-97163-928-2 01 1 9708-9801
3 SCREW; COMB SW
M5X14 W/LK WASHER 		9-03910-514-0 04 1 9708-
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A 		8-97093-910-1 01 1 9708-9801
12 RELAY; POWER WINDOW
12V 20A 		8-97093-910-1 01 1 9802-
140 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A 		8-97093-910-1 01 1 9708-9801
140 RELAY; RR DEFOGGER
12V 20A 		8-97093-910-1 01 1 9802-
151 RELAY; HTR & A/C
12V 20A 		8-97093-910-1 01 1 9708-
178 SCREW; BRKT
M5X16 		9-09829-323-1 02 1 0203-
493 BRACKET 8-97111-258-3 01 1 0203-
600 COIL ASM; SIR 8-97215-213-0 01 1 9708-
620 SCREW; COIL,COMB SW 8-97166-506-0 06 1 9708-
çizim 65143
311 99 154 277 155 164 45 442
BalonParca AdiParca NoAdetTipApplied Date
45 RELAY; HORN 8-97018-462-0 01 1 9708-
99 RELAY; FOG LAMP
FOG LAMP HALOGEN(T37) 12V 20A 		8-97093-910-1 01 1 9708-
154 RELAY; CONDENSER FAN
RR COOLER<7UL> 12V 20A 		8-94218-497-0 01 1 9802-
155 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97093-910-1 01 1 9708-9806
155 RELAY; THERMO SW,A/C
12V 20A 		8-97093-910-1 01 1 9807-
164 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97093-910-1 01 1 9708-9806
164 RELAY; A/C
12V 20A 		8-97093-910-1 01 1 9807-
277 RELAY; FUEL PUMP
12V 20A 		8-97093-910-1 01 1 9708-
311 RELAY; CORNERING LAMP
12V 20A 		8-97093-910-1 01 1 9708-
442 RELAY
12V 20A 		8-97093-910-1 01 1 0203-

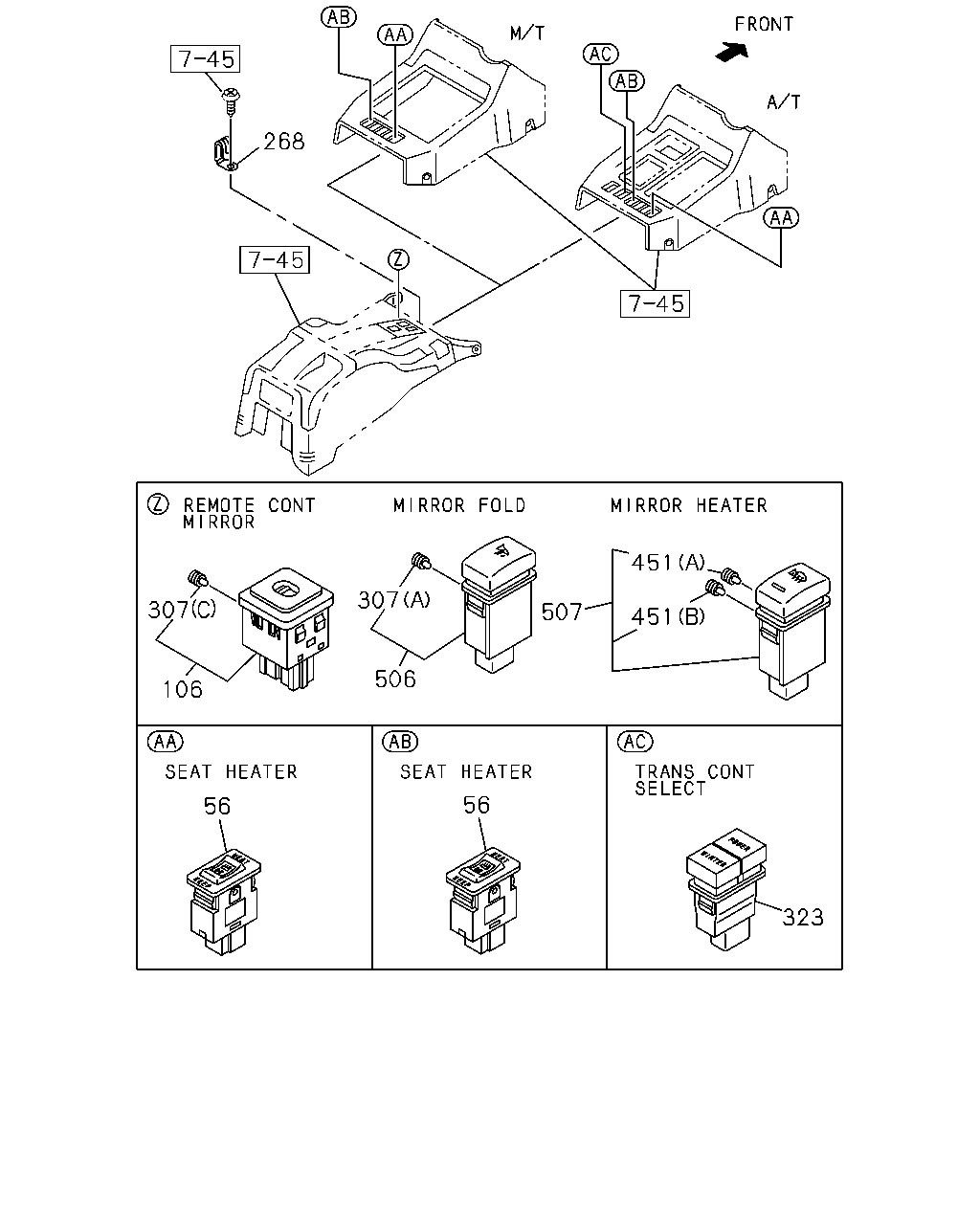

çizim 65473
268 451 307 307 507 451 506 106 56 56 323
BalonParca AdiParca NoAdetTipApplied Date
56 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-2 01 1 9708-
56 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-1 01 1 9708-
106 SWITCH; REMOTE CONT MIRROR
GRADE S(RBA) CONVENIENT PACKAGE<6QZ> 		8-97060-167-1 01 1 9708-9801
106 SWITCH; REMOTE CONT MIRROR
GRADE LS(RBB),GRADE LTD(RBD) 		8-97060-167-1 01 1 9708-9801
106 SWITCH; REMOTE CONT MIRROR
GRADE LS(RBB),GRADE LTD(RBD) 		8-97060-167-2 01 1 9802-
268 CLIP; SW
A/T THM(RMQ) ID=6.5 		5-09700-348-0 01 1 9708-9806
268 CLIP; SW
ID=6.5 		5-09700-348-0 01 1 9807-
307 BULB ASM; SW
(D) 		8-97262-247-0 01 1 9708-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 02 1 9807-
307 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9708-9801
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9802-9806
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
(B) 14V 0.84W 		8-97117-108-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9708-9806
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
FOG LAMP HALOGEN(T37) (A) 14V 0.7W 		8-97102-439-0 01 1 9807-
307 BULB ASM; SW
GRADE LS(RBB),GRADE LTD(RBD) (C) 14V 		8-97102-738-0 01 1 9807-
323 SWITCH ASM; SELECTOR
A/T THM(RMQ) 		8-97170-708-0 01 1 9708-9806
323 SWITCH ASM; SELECTOR 8-97170-708-2 01 1 9807-
451 BULB; MIRROR HTR SW
GRADE S(RBA) CONVENIENT PACKAGE<6QZ> (A) 14V 0.7W 		8-97102-439-0 01 1 9708-9801
451 BULB; MIRROR HTR SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9708-9801
451 BULB; MIRROR HTR SW
GRADE LS(RBB),GRADE LTD(RBD) (A) 14V 0.7W 		8-97102-439-0 01 1 9802-
451 BULB; MIRROR HTR SW
GRADE S(RBA) CONVENIENT PACKAGE<6QZ> (B) 14V 0.84W 		8-97102-440-0 01 1 9708-9801
451 BULB; MIRROR HTR SW
GRADE LS(RBB),GRADE LTD(RBD) (B) 14V 0.84W 		8-97102-440-0 01 1 9708-9801
451 BULB; MIRROR HTR SW
GRADE LS(RBB),GRADE LTD(RBD) (B) 14V 0.84W 		8-97102-440-0 01 1 9802-
506 SWITCH; MIRROR FOLD
GRADE LS(RBB),GRADE LTD(RBD) 		8-97081-766-3 01 1 9708-
507 SWITCH; MIRROR HEATER
GRADE S(RBA) CONVENIENT PACKAGE<6QZ> 		8-97081-763-4 01 1 9708-9801
507 SWITCH; MIRROR HEATER
GRADE LS(RBB),GRADE LTD(RBD) 		8-97081-763-4 01 1 9708-9801
507 SWITCH; MIRROR HEATER
GRADE LS(RBB),GRADE LTD(RBD) 		8-97081-763-4 01 1 9802-
